PALBOARD 2D

PALBOARD™ 2D Co-Extruded Multilayer PVC

2 layer substrate for signage, frameless photos, & retail displays

Originally designed for flat printing and signage applications, this co-extruded two layer PVC sheet was the 1st member of the PALBOARD family.

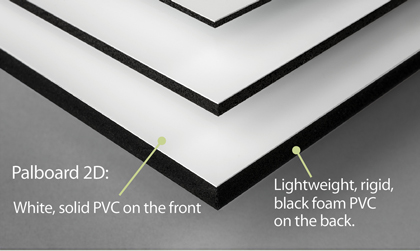

For printers and advertisers, this substrate offers the best of both worlds - a bright white, rigid, ultra-smooth surface for vibrant color reproductions accompanied by a rich, black back. It’s ideal for signage requiring an attractive dark back and edges—and is the perfect complement for structures made from PALBOARD 3D.

Sign & DisplaySign & Display

Main Benefits

  • Ultra-smooth and uniform surface
  • EverClean™ protective film is standard
  • Bright white surface for excellent color reproduction
  • Superior ink adhesion
  • No more flood pre-coating with white
  • Easy, smooth CNC routing and cutting
  • Black core provides an attractive edge
  • Rigid, yet lightweight
  • Up to 50% recycled content, 100% recyclable
  • Solid PVC surface resists dents & scratches
  • Phthalate-free, REACH & RoHS compliant
  • Excellent chemical and fire resistance
  • Good electrical and thermal insulation
  • A true co-extruded sheet, not a laminate
  • 10 year warranty for delamination

Typical Applications

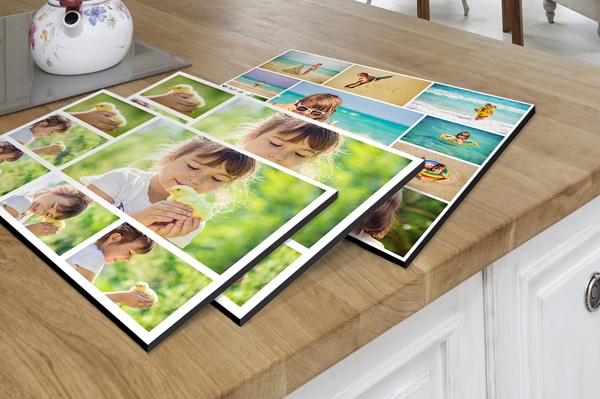

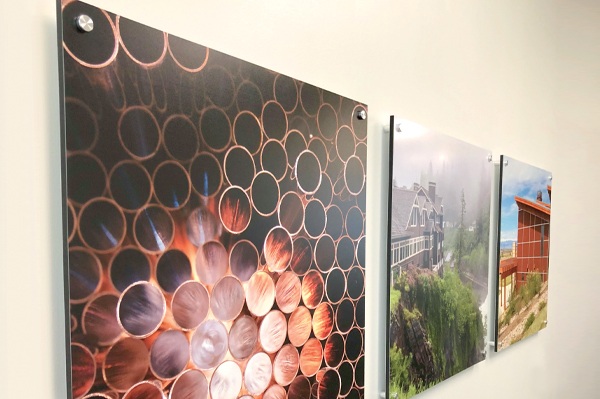

  • Standoff photos, images and graphics
  • Frameless photo printing
  • Signage, decorative panels
  • Digital and screen printing
  • Routed and relief lettering
  • POP and retail displays
  • Simple dimensional structures
  • Can be v-grooved & kerf cut for cold bends, angles and curves

Applications

Downloads

File name
Size
Flat Sheet Line Card (SP).pdfFlat Sheet Line Card (SP).pdf
1 MB
Flat Sheets Line Card (EN).pdfFlat Sheets Line Card (EN).pdf
5 MB
Palboard Family Brochure (EN).pdfPalboard Family Brochure (EN).pdf
2 MB
Chemical Resistance of Palram PVC Products.pdfChemical Resistance of Palram PVC Products.pdf
104 KB
Flat PVC Recyclability.pdfFlat PVC Recyclability.pdf
89 KB
PALBOARD Fabrication Guide.pdfPALBOARD Fabrication Guide.pdf
365 KB
Palboard 2D, 3D, and 3D MAX Physical Properties Table.pdfPalboard 2D, 3D, and 3D MAX Physical Properties Table.pdf
288 KB
Palboard Recycled Content 11-17-22.pdfPalboard Recycled Content 11-17-22.pdf
250 KB
Palram Product Safety Data Sheet for Foamed PVC Products.pdfPalram Product Safety Data Sheet for Foamed PVC Products.pdf
126 KB
Palboard Family Warranty.pdfPalboard Family Warranty.pdf
157 KB
Palram Americas ROHS Declaration Document.pdfPalram Americas ROHS Declaration Document.pdf
73 KB
ISO CERTIFICATION 2015 for PALRAM AMERICAS.pdfISO CERTIFICATION 2015 for PALRAM AMERICAS.pdf
745 KB
Palram Americas Company Overview (SP).pdfPalram Americas Company Overview (SP).pdf
4 MB
Palram Americas Company Overview.pdfPalram Americas Company Overview.pdf
5 MB
Palram's Concepts for Safer Environments.pdfPalram's Concepts for Safer Environments.pdf
4 MB

Product Details

Dimensions

Standard Sizes *

StandardThicknessClassification*
EN135010.118" ( 3mm )
0.118" - 0.394" ( 3 - 10mm )		B, s2, d0
B, s3, d0
UL 940.118" - 0.394" ( 3 - 10mm ) V-0
ASTM E 84Class A*

* Other dimensions available upon request with minimum order requirements

Colors & Finishes

Colors

White / Black

Physical Properties

Physical Properties

PropertyConditionsASTM Method*UnitsValue
Physical
Density D-1505g/cm³.60 (37.5)
Water absorption24 hr @ 23°CD-570%<1%
Mechanical – Machine direction 1400 (203,000)
Flexural modulus 1.3 mm/min (0.05 in./min) D-790MPa1600
Shore hardness D-2240Shore D55
Thermal
Service temperature range °C (°F)-10 to 50 (14 to 122)
Heat deflection temperatureLoad: 1.82 MPaD-648°C (°F)55 (131)
Coefficient of linear thermal expansion D-69610-5/°C (10-5/°F) 6.7 (3.7)
Electrical
Surface resistance KetleyD-257Ohm<10 to the 15th pwr

Technical Data

Flammability Properties

StandardThicknessClassification*
EN135010.118" ( 3mm )
0.118" - 0.394" ( 3 - 10mm )		B, s2, d0
B, s3, d0
UL 940.118" - 0.394" ( 3 - 10mm ) V-0

* Depends on thickness. For additional information please contact your Palram distributor.
