Palboard 3D Max HYG

PALBOARD™ 3D MAX HYG Antimicrobial* Sheet

3 layer substrate for hygienic-conscious POP displays & kiosks

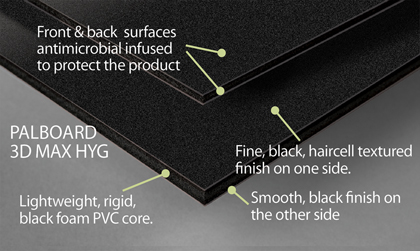

PALBOARD 3D MAX HYG is an extra-rigid, antimicrobial, durable, multilayer polymer sheet. It combines two surfaces of solid, black polymer with a lightweight, black foam PVC core. Silver-ion technology protects the product against the growth of microbes such as bacteria, mold, and mildew that cause stains and odors.

*Palram’s antimicrobial technology does not protect users or others against disease causing bacteria, germs, viruses or other harmful organisms. This technology is not a substitute for good hygiene and/or cleaning practices. Not for sale in Canada.

Download the PALBOARD 3D MAX HYG sales sheet here.

Product Details

Standard Sizes *

Thickness: 2mm, 3mm, 5mm

4mm & 6m on Request (minimums apply)
Length: 8' (2440mm)
Width: 4' (1220mm)

* Other dimensions available upon request with minimum order requirements

Colors

Black / Black / Black

Physical Properties

PropertyConditionsASTM Method*UnitsValue
Physical
Density D-1505g/cm³ (lb/ft³)1.05 (65.6)
Water absorption24 hr @ 23°CD-570%<1%
Mechanical – Machine direction
Flexural modulus 1.3 mm/min (0.05 in./min) D-790MPa (psi)2100 (304,000)
Shore hardness D-2240Shore D75
Thermal
Service temperature range °C (°F)-10 to 50 (14 to 122)
Heat deflection temperatureLoad: 1.82 MPa (264 PSI)D-648°C (°F)60 (140)
Coefficient of linear thermal expansion D-69610-5 /°C (10-5/°F) 6.7 (3.7)
Electrical
Surface resistance KetleyD-257Ohm<10(15)

Flammability Properties

StandardThicknessClassification*
EN135010.118" ( 3mm )
0.118" - 0.394" ( 3 - 10mm )
B, s2, d0
B, s3, d0
UL 940.118" - 0.394" ( 3 - 10mm ) V-0

* Depends on thickness. For additional information please contact your Palram distributor.
