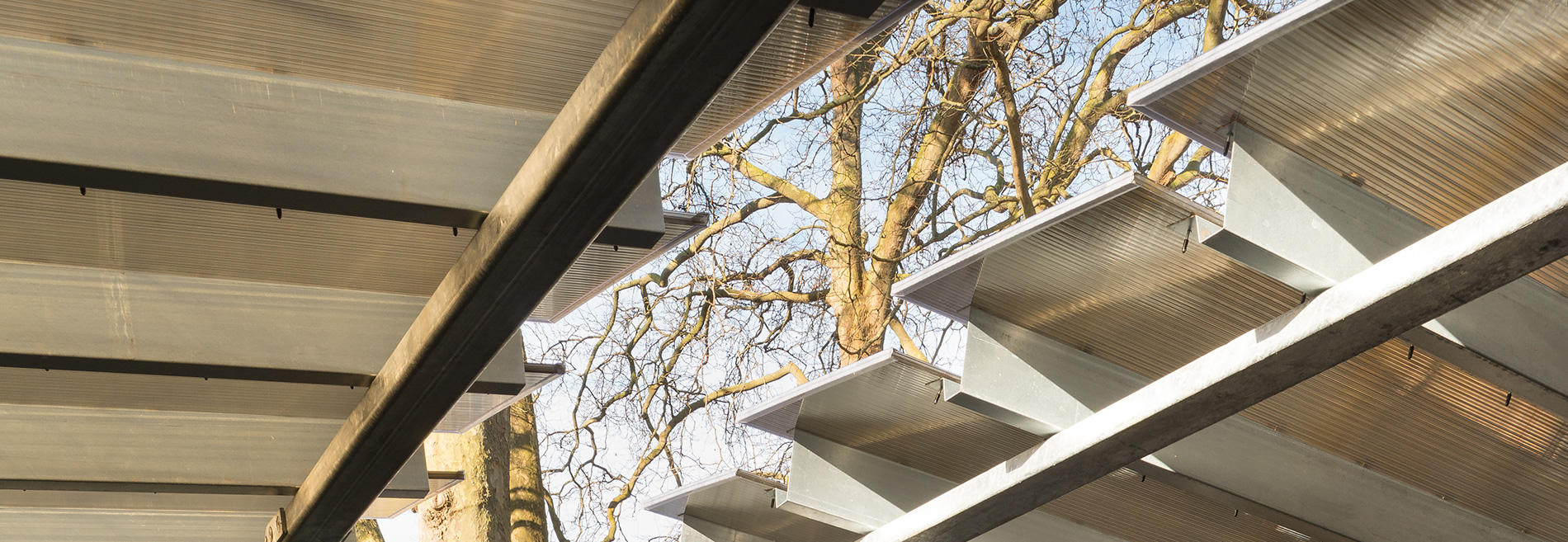

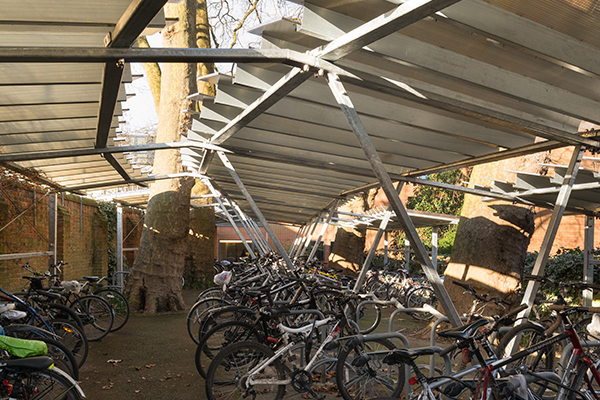

The structure of the canopy carefully steps around the trees above ground and their roots below ground, utilising minimal columns, feet and small pads. The above ground structure is a slim and refined ‘V’ structure of standard galvanized steel posts and off-the-shelf fittings.

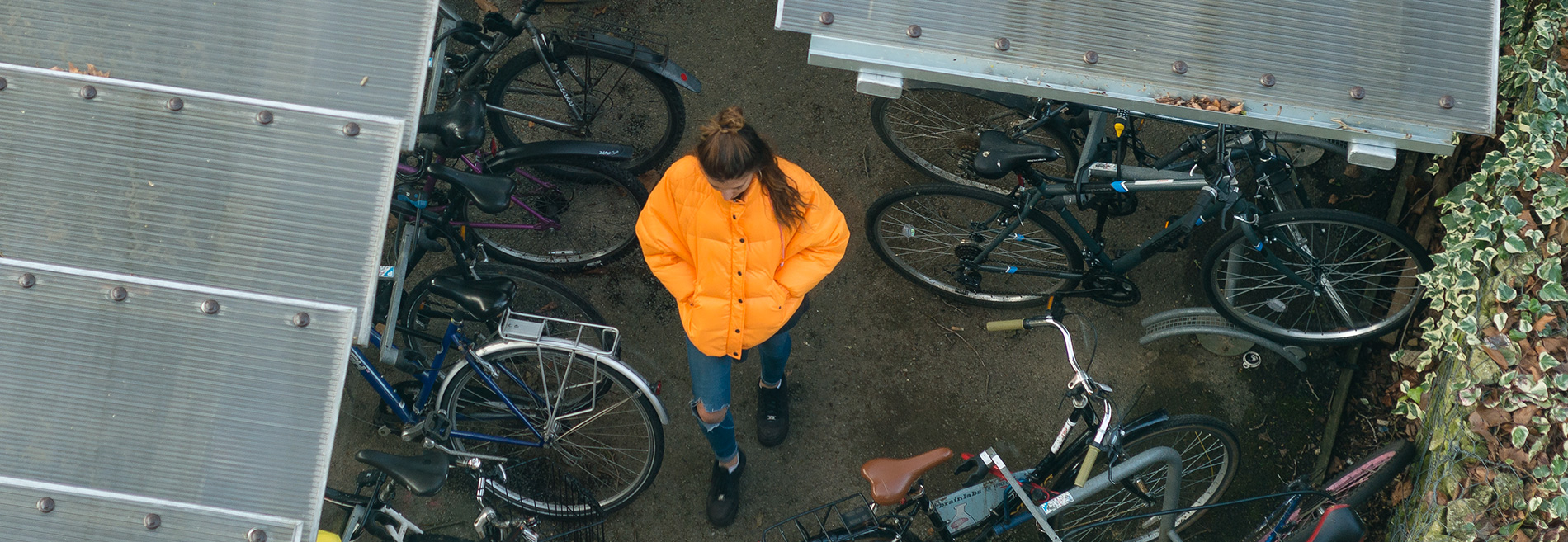

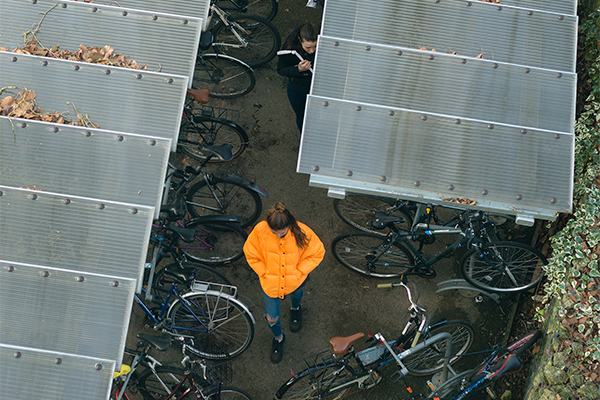

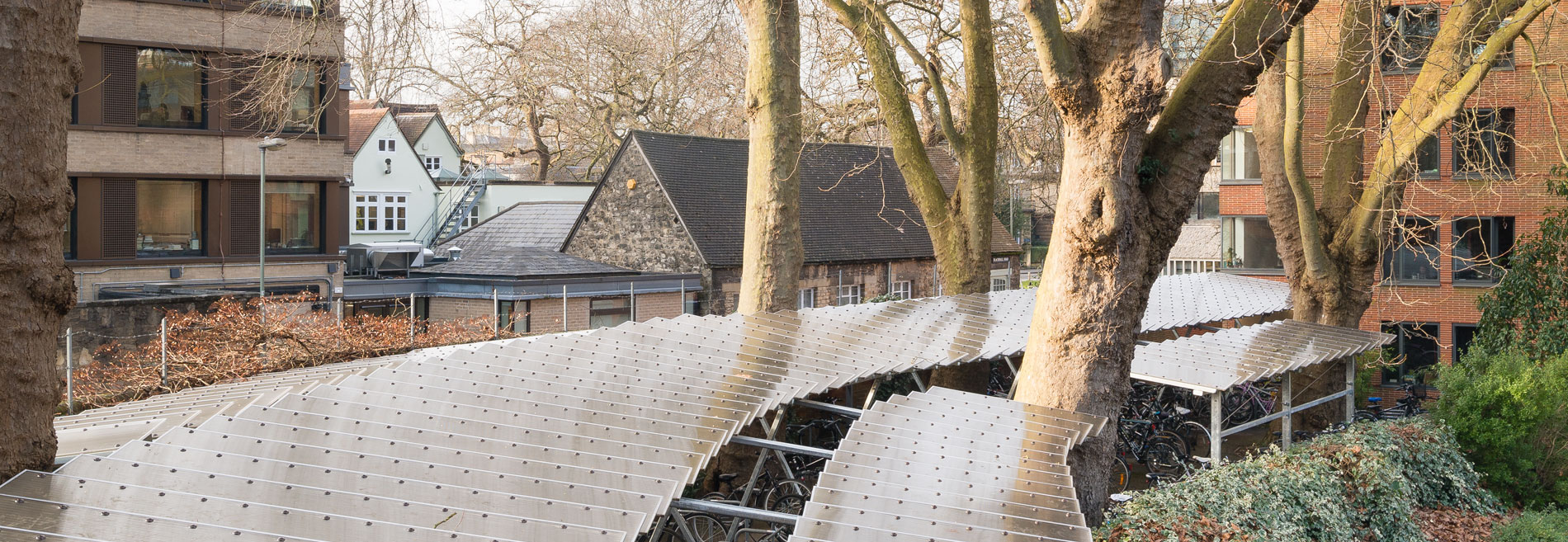

The structure supports an overlapping 'scale' of translucent polycarbonate panels that sinuously snake along the existing bike racks and site contours providing shelter and channelling water to the tree roots. The profile of the roof is visible from the garden and provides a consistent variegated horizon to the existing planted slope. The roof is not a complete enclosure with gaps left in the aisles for light and views to the trees.
The design uses standard components, steel sections and regular panel sizes installed in a bespoke manner providing an effective solution for a large shelter on a complex site. The modularisation of elements also allowed the shelter to be installed quickly as a kit of parts.
Palrams Sunlite product was used as it was lightweight but rigid allowing a tile like installation, the colour enabled it to blend into the surroundings in the day and its structure gave an interesting light dispersing effect when illuminated at night.
