PALOPAQUE® CHAPA COMPACTA DE PVC

Chapas compactas de PVC resistentes a UV para uma grande variedade de aplicações

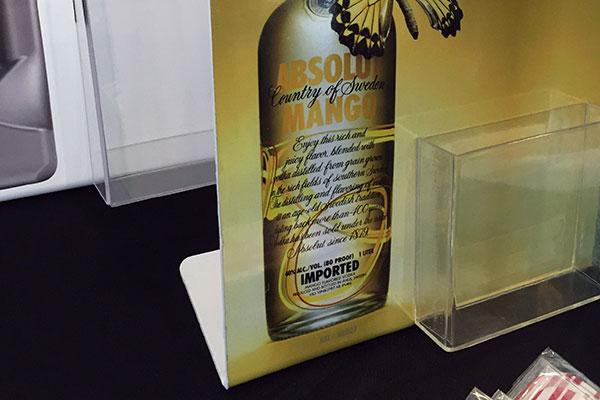

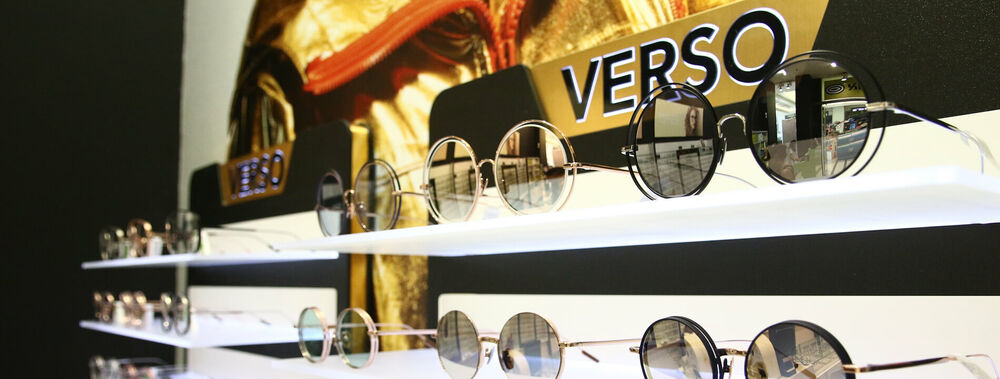

As chapas compactas de PVC resistentes a UV PALOPAQUE podem ser facilmente moldadas e trabalhadas. Com uma superfície lisa e resistente a impactos, elas são uma excelente escolha para aplicações que vão desde componentes e exibidores fabricados e termomoldados a revestimentos de paredes resistêntes à água e a produtos químicos. Os profissionais de impressão digital adoram a excepcional adesão de tinta das chapas PALOPAQUE. Além disso, as chapas PALOPAQUE têm uma excelente resistência ao fogo e a produtos químicos, o que as torna a melhor solução para uma variedade de aplicações industriais. As chapas PALOPAQUE são apenas um dos produtos que a Palram oferece para esses segmentos de mercado.

Downloads

File name
Size
Sales Information
Installation/Technical
General Information

DADOS DO PRODUTO

Standard Dimensions

Width x Length (mm)Thickness (mm)
1220 x 24401 to 15
1000 x 20001 to 10
1500 x 30001 to 6
2000 x 30001 to 4
Standard Dimensions Note * Custom Dimensions Are Available, Subject To Minimum Quantity

Typical Physical Properties

PropertyMethod*ConditionsUnitsValue
DensityD-792g/cm³1.4
Heat deflection temperature (H.D.T)D-648Load: 1.82MPAºC65 - 68
Service TemperatureºC-10 to +50
Thermal conductivityC-177W/m K0.15
Coefficient of linear thermal expansionD-696cm/cm ºC6.7 x 10-⁵
Rockwell hardnessD-785R Scale97R
Tensile strength at yieldD-63810 mm/minMPa50
Tensile strength at breakD-63810 mm/minMPa45
Elongation at yieldD-63810 mm/min%3
Elongation at breakD-63810 mm/min%>80
Tensile modulus of elasticityD-6381 mm/minMPa2900
Flexural strengthD-7901.3 mm/minMPa80
Flexural modulusD-7901.3 mm/minMPa2700
Impact falling weightISO 6603/1 E503 mm sheetJ95
Typical Physical Properties Notes * ASTM Except Where Noted Otherwise

Flammability

ProductStandardClassification
PALOPAQUE™EN 13501B, s3, d0
PALOPAQUE™BS 476/7Class 0
PALOPAQUE™ASTM E 84Class A
PALOPAQUE™ LS (Low Smoke)EN 13501B, s2, d0
Flammability Notes *Depends On Sheet Thickness And Type.

Perguntas Feitas Frequentemente

What are three-dimensional or 3D logo signs?
+ -

3D letters and/or 3D logos are made of plastic, metal or foam. They reinforce an upscale image and create a clear highlighted message. These signs can be illuminated when required.

Should products be pre-dried before thermoforming?
+ -

This depends on the production date and storage conditions of the product before thermoforming. It is recommended to check the product before thermoforming is attempted.

Is the PE film suitable for thermoforming applications?
+ -

Most of Palram's products that are delivered with PE film covering are suitable for thermoforming. In general, we recommend using clear PE and not printed PE.

What are the dimensions of PALCLAD Pro sheets (size and thickness)?
+ -

PALCLAD Pro comes in a standard size of 1500x3000 mm and in thicknesses of 2 and 2.5 mm.

What is the range of colors for PALCLAD Pro?
+ -

PALCLAD Pro comes standard in white and off-white. In addition, 10 more colors are available on special order. PALCLAD Pro can be printed on with excellent ink adhesion to surface and print quality.

What is the difference between antimicrobial and antibacterial?
+ -

Antimicrobial and antibacterial are interchangeable in many cases. However, antimicrobial offers further protection by eliminating fungi, that is, by eliminating any mold or potential mold build-up.

Will polycarbonate light transmittance deteriorate over time?
+ -

PALRAM's polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.

Do Palram's animal covering and cladding solutions have thermal insulation properties?
+ -

All of Palram's animal covering & cladding solutions have superior thermal insulation properties compared to metal coverings.

Which of Palram's sheets are suitable for printing, sign & display applications?
+ -

For use in illuminated signage, PALSUN, PALSUN CS (Coil Stock) and PALGLAS are suitable for the sign face; and PALBOARD, PALOPAQUE, and PALIGHT for the body of the letters or symbols. For print & display, Palram's entire product portfolio can be used based on the specific application. This choice depends on a combination of several parameters, including the cost of the media, its durability, and its suitability for the specific application. Please visit Palram’s Flat sheet application catalog for more information.

Which materials can be used in the construction of my sign?
+ -

Sign faces are usually made from polycarbonate or acrylic. For extreme conditions such as heavy hail, low temperatures, or high temperatures produced when thermo-forming, polycarbonate is probably more suitable. For sign boxes or channel letter cans, PVC, multi-layered PVC and foam PVC can be used.

What is the most accurate white point that is suitable for wide-format printing?
+ -

There are different white substrates available but in order to achieve a true colored image according to the design, a process of profiling (ICC profile) needs to be done. By using a natural white substrate (a tint which been made with no extra additives), the process of measuring and profiling becomes very simple and fast.

How do I handle inkjet printable media before and after printing?
+ -

Before: use a protected sheet with PE masking, store unused inkjet printable media in original packaging and in a clean area, and avoid touching the print side by handling the edges of the sheet or by using lint-free white gloves.

After: avoid any finishing until prints are completely dry, store the printed media in a clean environment, and avoid dust from sticking to the fresh cured ink.

What is the difference between a polypropylene sheet and PVC?
+ -

In terms of ink adhesion properties, both polymers act very differently. PVC is a ready-to-use polymer so no pre-treatment needs to be done before printing (on rigid or flexible media). Polypropylene has different chemical properties and for this reason, needs to get a pre-treatment coat ('Corona'), which has a limited shelf life.

What is the best wide-format inkjet media (substrate) for my application?
+ -

This is based on a combination of several parameters, but the main ones are the cost of the media and its durability, and its fit to the required application. Please visit Palram’s Flat Sheet Application Catalog.

What can assure accurate double-sided printing or recto verso prints?
+ -

A strict spec of diagonal (from angle to angle) during the production process is feasible for this.
