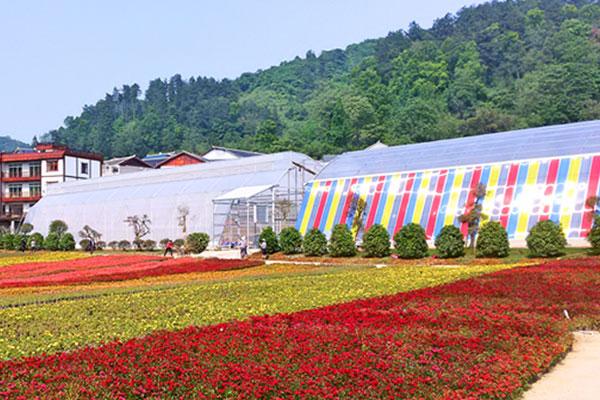

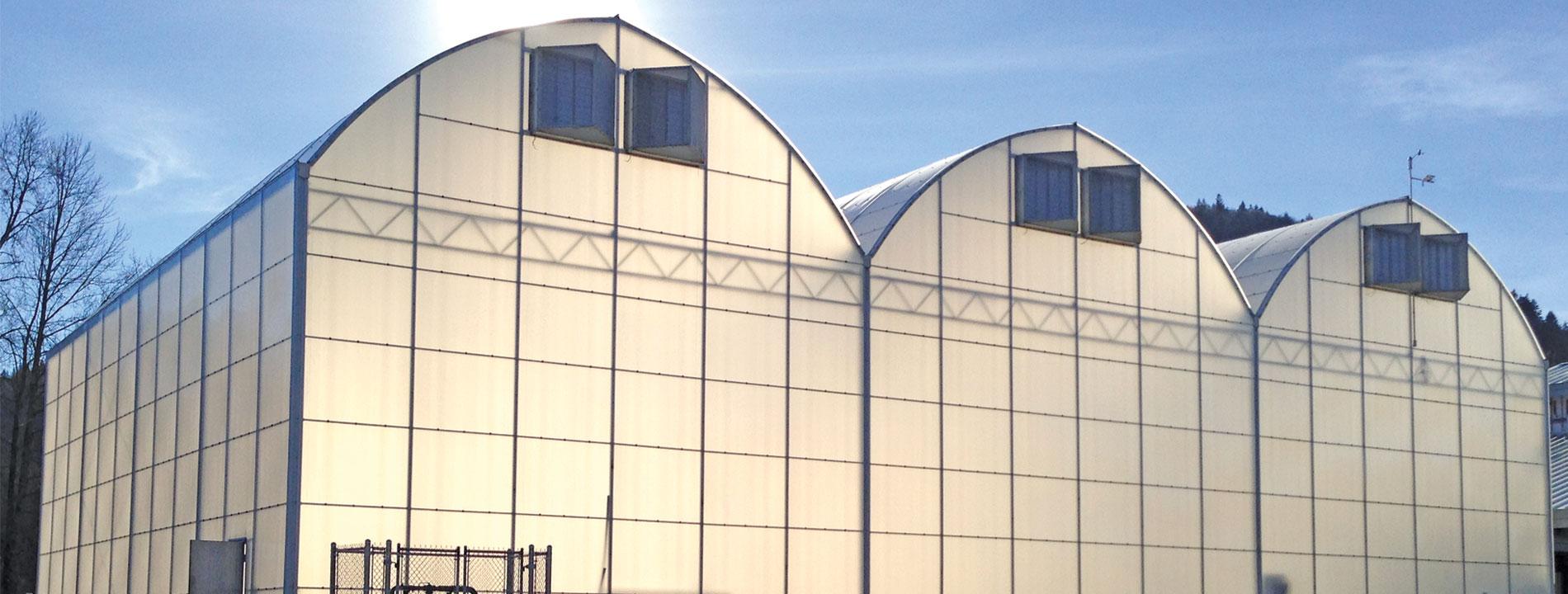

Built-in condensation control for commercial greenhouses & garden centers

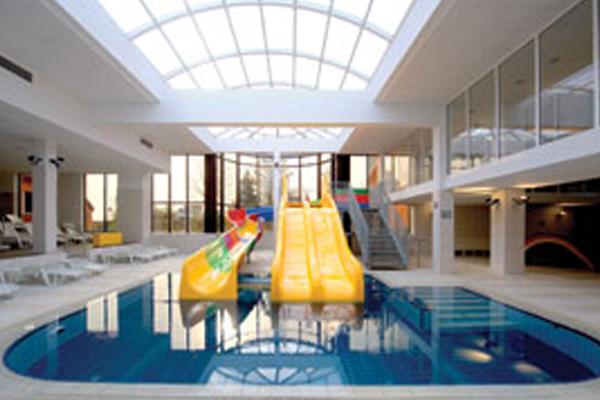

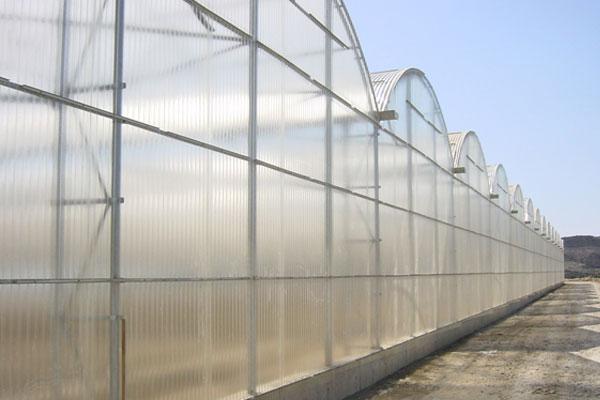

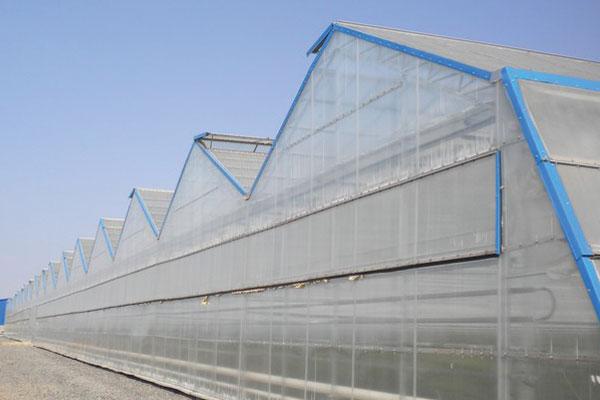

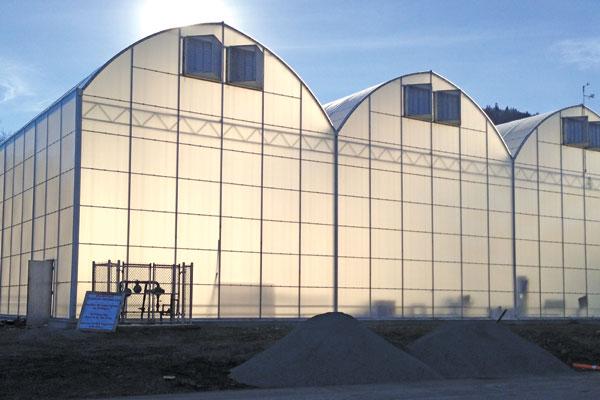

SUNLITE Plus multiwall polycarbonate offers the same light transmission, rigidity, durability, insulation, and co-extruded UV protection as standard SUNLITE, and it also features built-in condensation control. Palram’s proprietary condensate control technology helps maximize light transmission by minimizing condensation droplet formation that would otherwise reflect valuable sunlight. And, by reducing or eliminating condensate drip, it also helps prevent various moisture-related diseases in crops to improve crop quality and yield. SUNLITE Plus is also suitable for garden centers and other potentially humid public areas such as covered swimming pools and spas. It can be used for gable-peak, arch, and most Gothic arch style structures; as well as retrofit glass, polyfilm, and fiberglass-covered structures. It is extremely tough but also lightweight, so it helps reduce the cost of the supporting structure.


Built-In Condensation Control and Thermal Insulation

High Condensation Control

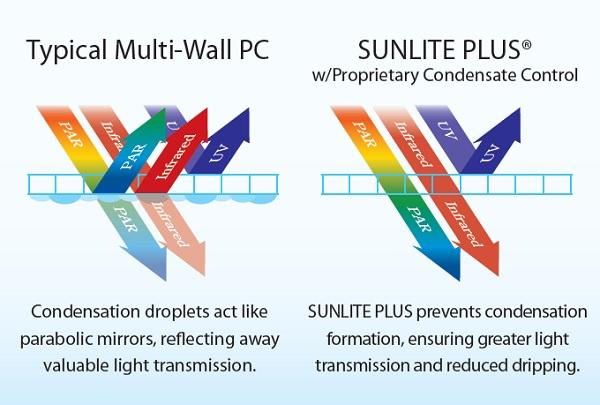

Built-in condensation control helps to minimize condensate droplets that reflect as much as 30% of the light transmission and that can cause moisture-related diseases in crops. The increased light transmission is especially beneficial during winter months with shorter day lengths.

Controlling thermal insulation & light transmittance using different thicknesses, colors and tints


U ValueK ValueLT%
High Condensation Control



StructureThickness (mm)Area Weight (Kg\m²)U-Value (W\m²•ºK)Width 700 (mm)Width 980 (mm)Width 1050 (mm)Width 1200 (mm)Width 1220 (mm)*Width 1250 (mm)Width 1600 (mm)Width 1800 (mm)Width 1830 (mm)Width 2085 (mm)Width 2090 (mm)Width 2095 (mm)Width 2100 (mm)**

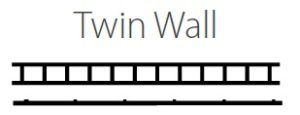

Twin Wall40.83.8
Twin Wall4.513.7
Twin Wall61.33.5
Twin Wall81.53.3
Twin Wall101.72.9
Triple Wall81.73
Triple Wall1022.7
Triple Wall162.72.3

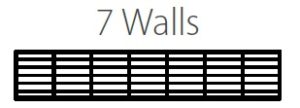

7 Walls10**1.92.3
7 Walls162.551.75
7 Walls202.91.55
7 Walls253.41.39
Dimensions NoteAvailable In USA Only. Width Of 7 Wall 10mm Is 2096mm Instead Of 2100mm.
Standard Dimensions NoteNote: Other Structures, Dimensions And Weights Are Available Upon Request. Please Contact Your Palram Distributor For More Details.

Standard Color chart

StructureClearWhite OpalWhite Diffuser
Twin wall 4mm82%30%
Twin wall 4.5mm82%30%
Twin wall 6mm80%20%60%
Twin wall 8mm80%35%55%
Twin wall 10mm79%30%
Triple wall 8mm76%48%
Triple wall 10mm76%48%
Triple wall 16mm76%48%
7 Walls 10mm64%45%
7 Walls 16mm64%38%
7 Walls 20mm62%38%
7 Walls 25mm60%38%
Standard Color TextLight Transmission Values Adhere To ASTM D-1003.

Typical Physical Properties

Heat deflection temperature (HDT)D-648Load: 1.82 MPºC135
Service Temperature - Short termºC-50 to +120
Service Temperature - Long termºC-50 to +100
Coefficient of linear thermal expansionD-696mm\mm ºC6.5x10-⁵
Tensile strength at yieldD-63810 mm\minMPa62
Elongation at breakD-63810 mm\min%>90
Impact falling dartISO 6603\1J40-400
Practical thermal expansion/contractionmm\m3


BS 476/7Class 1
EN 13501B, s1, d0
ASTM E-84Class A
Flammability Notes* Depends On Sheet Structure. For More Information Please Contact Your Palram Distributor.
