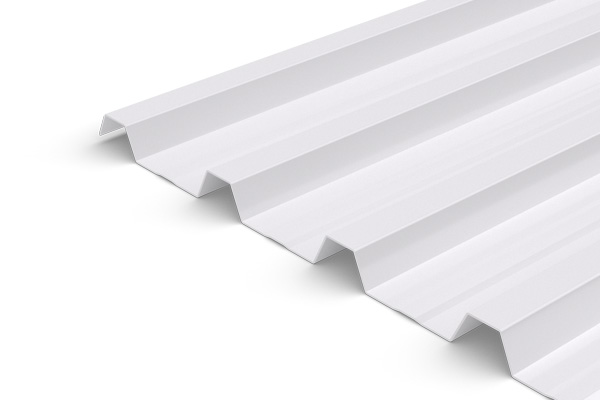

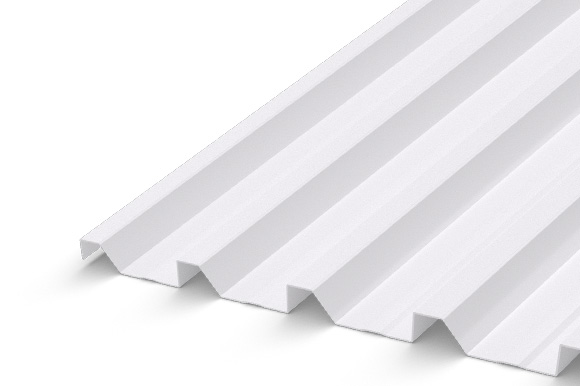

PALRUF® INDUSTRIAL PROFILED PVC SHEET

Corrugated PVC for industrial and agricultural roofing and exterior cladding applications

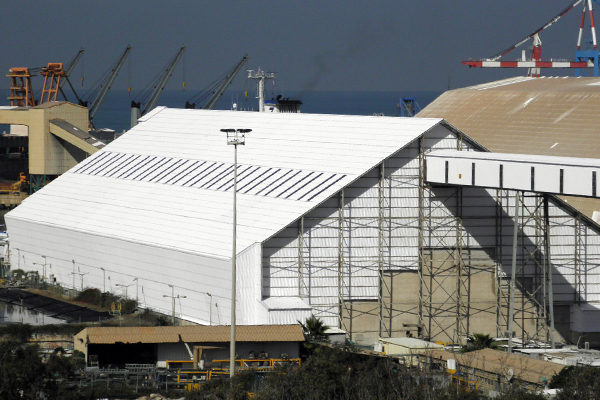

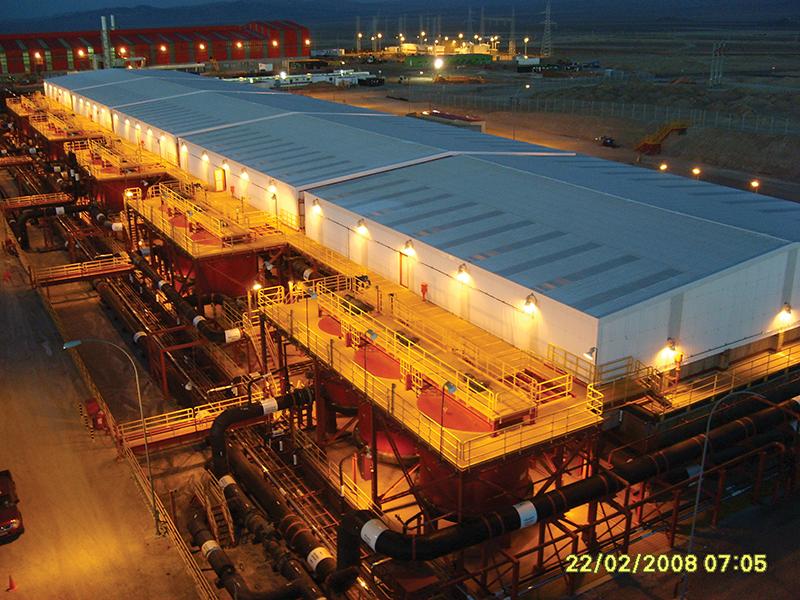

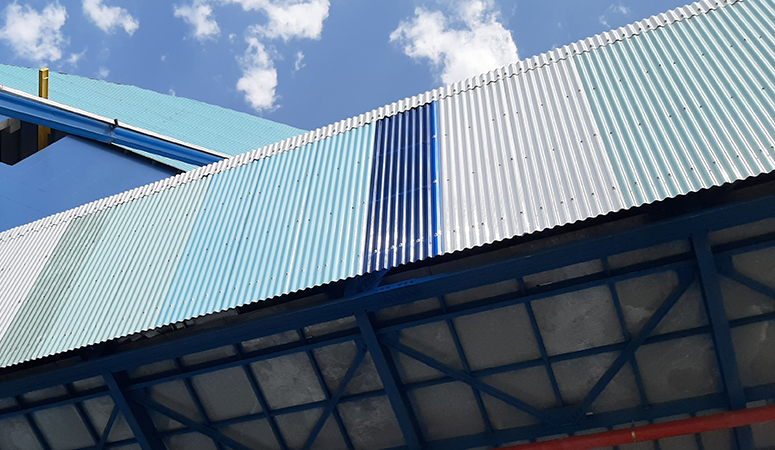

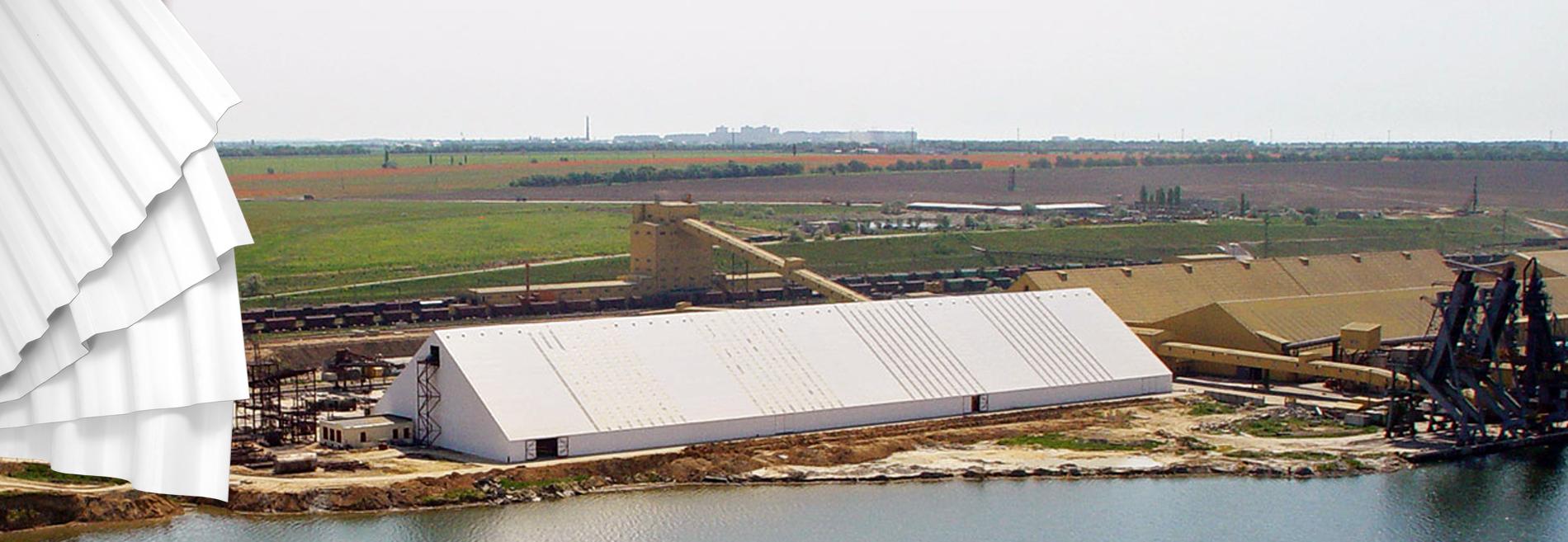

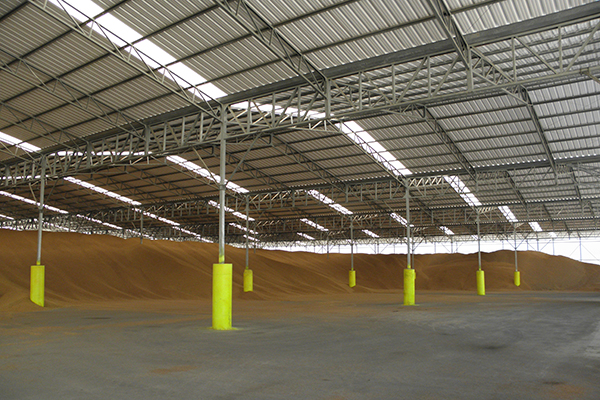

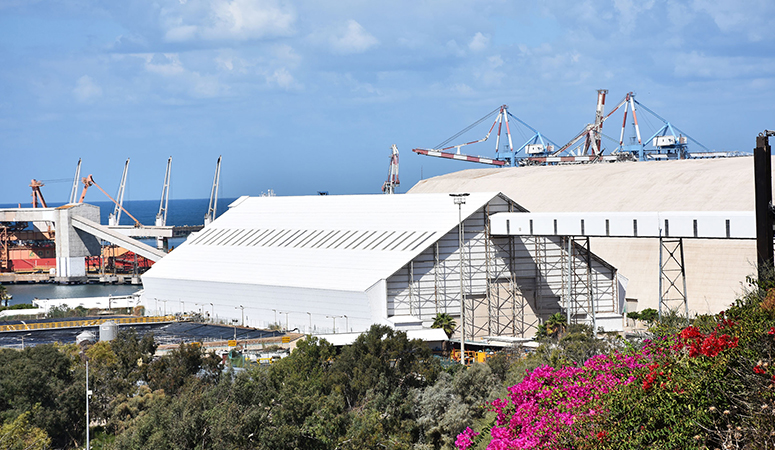

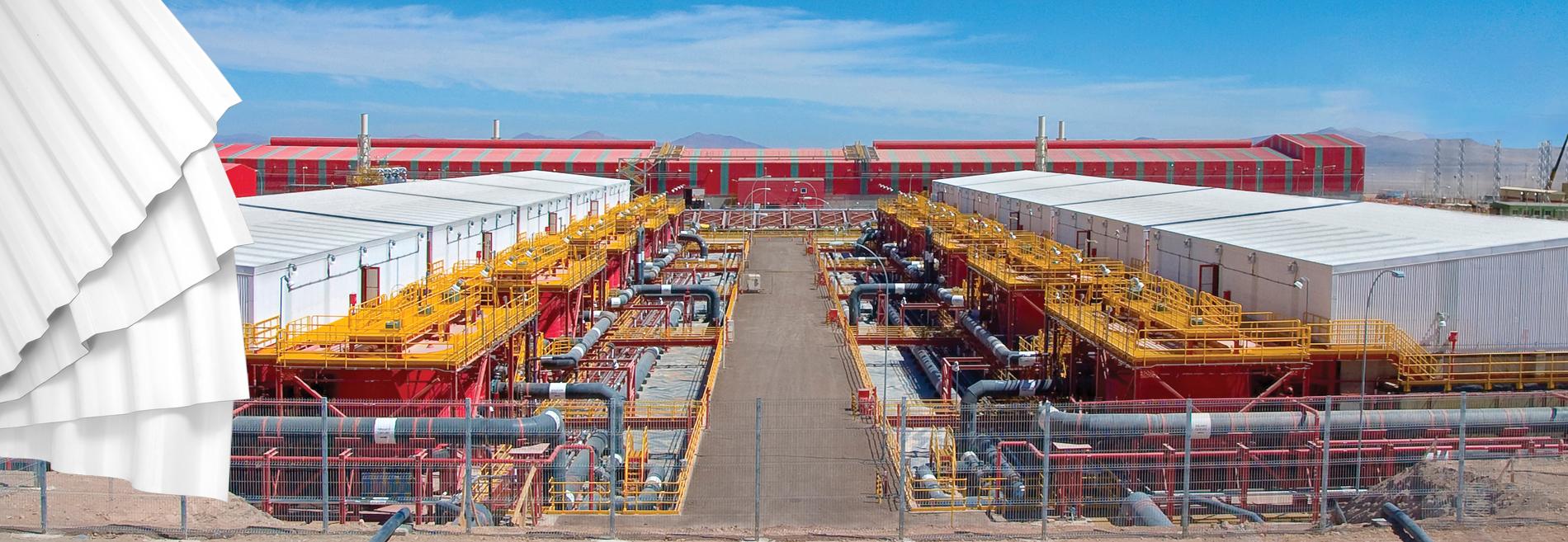

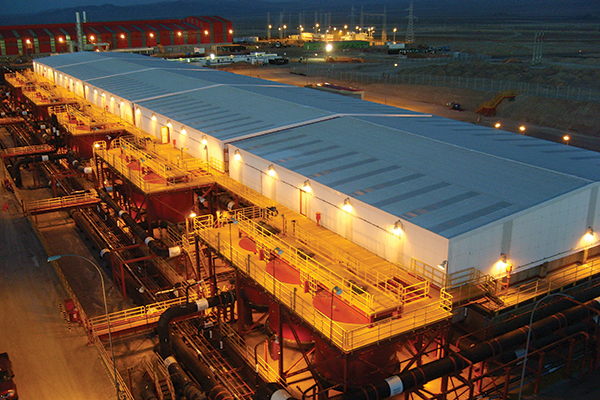

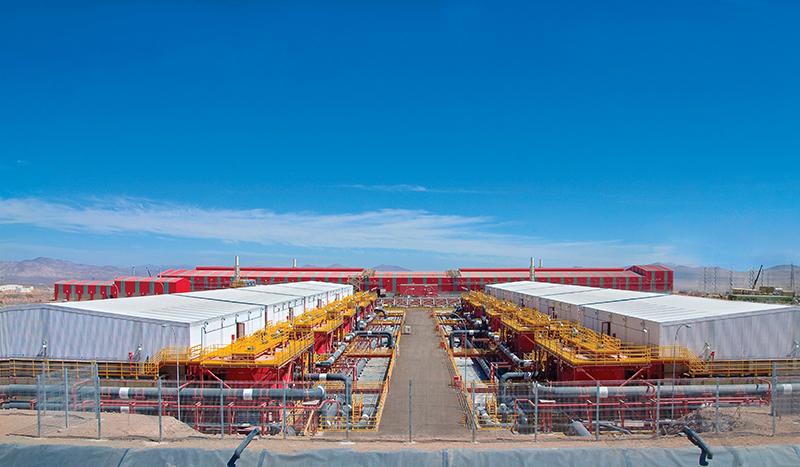

PALRUF profiled PVC panel combines excellent resistance to chemicals, fire and impact, resulting in an extremely durable roofing solution. PALRUF withstands harsh chemical environments where conventional roofing quickly corrodes, which makes it ideal for long term use in demanding industrial applications such as chemical plants and storages, mines, ports and more.

Royal Institute of British Architects

Royal Institute of British Architects

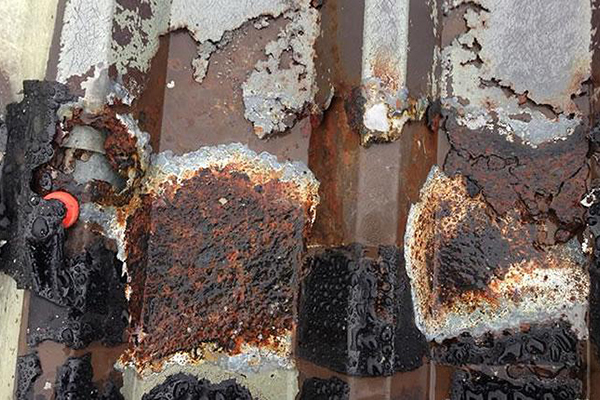

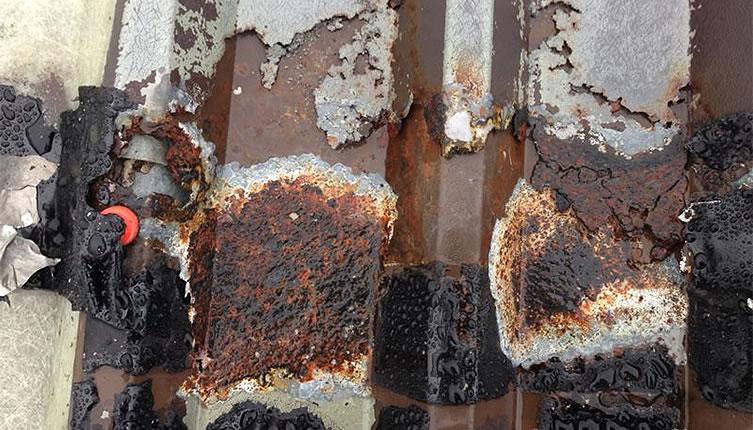

WHY AVOID METAL IN CHEMICALLY AGGRESSIVE AND CORROSIVE ENVIRONMENTS?

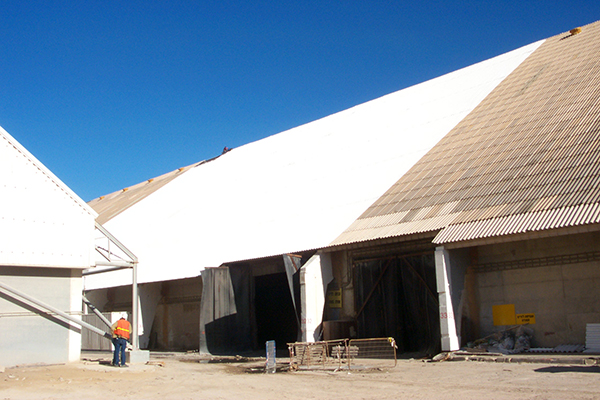

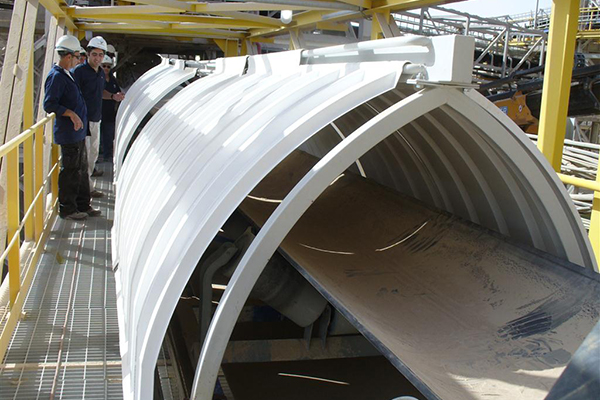

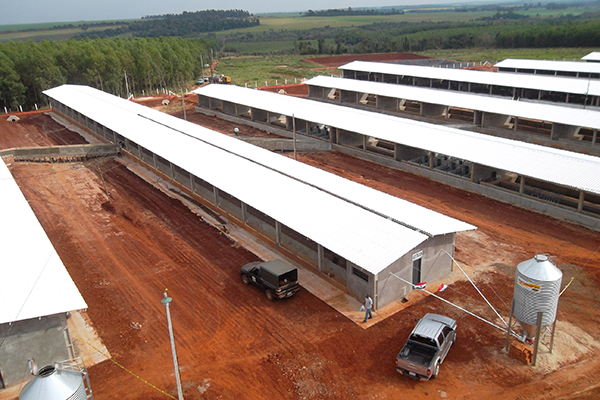

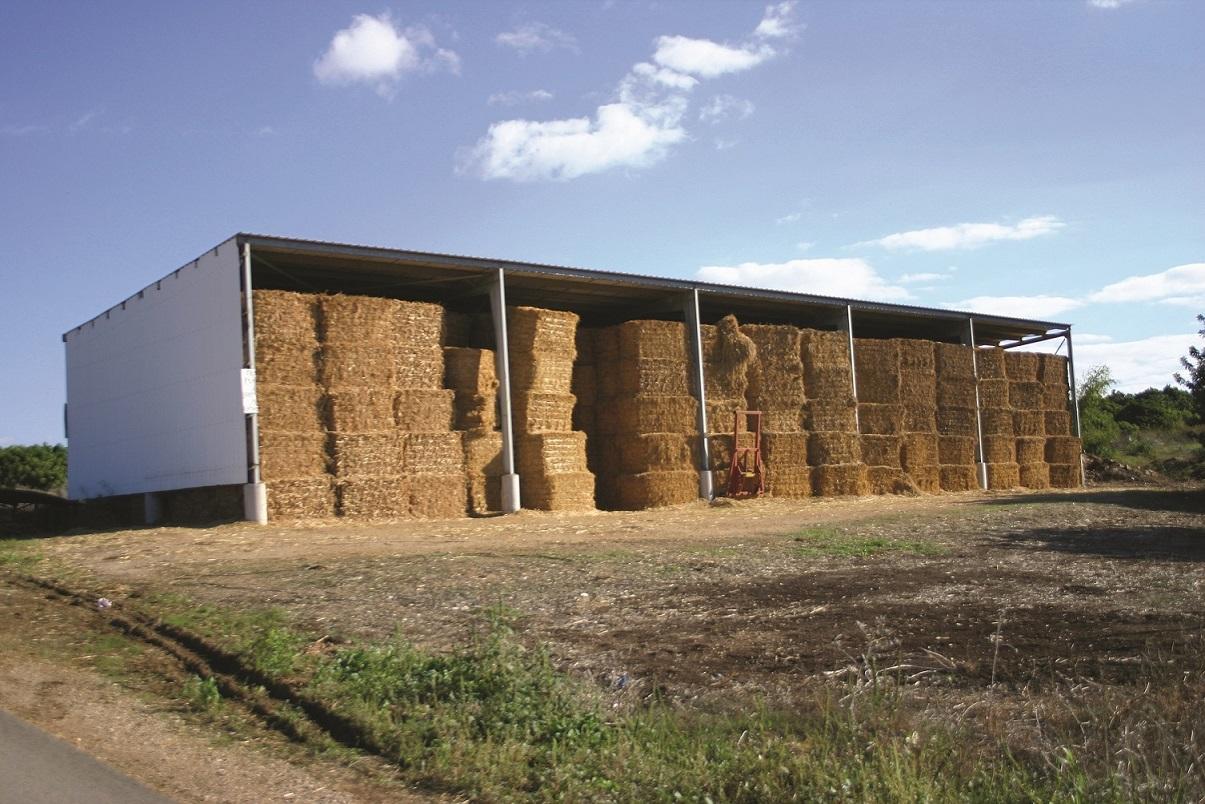

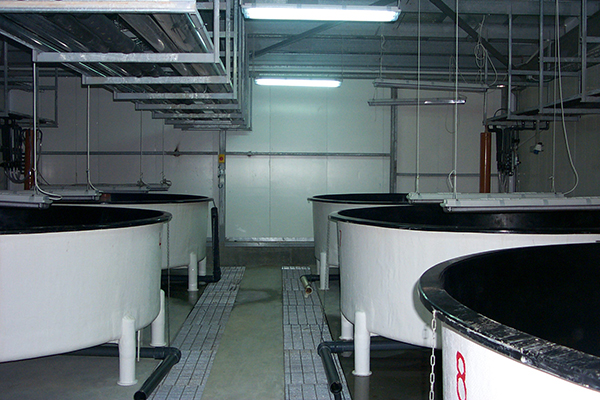

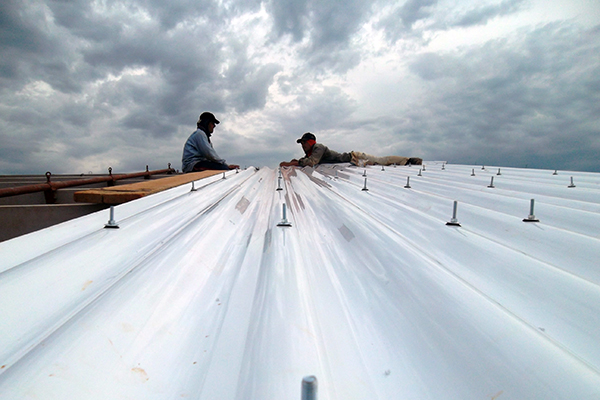

Agricultural environments such as barns, pigpens, hen houses, dairies, and stables can present hygienic and cleaning challenges for any roofing or cladding material. Gases such as ammonia and hydrogen are common in livestock feeding or housing environments, and they are the source of quick and widespread rust and corrosion for metal roofs and partitions. This corrosion results in high maintenance and replacement costs. PALRUF corrugated PVC roof panels and cladding sheets offer a corrosion-free and chemical-resistant alternative that provides farmers with years of low cost, low maintenance and greater hygiene. Industrial environments such as mining and chemical processing plants create dust and ash that, when combined with mist, rain, and perhaps even saltwater, coat the roofing with a layer that is highly corrosive to metals. But not in the case of PALRUF corrugated PVC sheets. These solutions are virtually maintenance free as they can endure a wide variety of gases and chemicals for the life of the panel—and under the harshest conditions.

WHY AVOID METAL IN CHEMICALLY AGGRESSIVE AND CORROSIVE ENVIRONMENTS?

CUSTOM-MATCH VIRTUALLY ANY METAL PROFILE

PALRUF industrial profiled PVC sheets are designed to match a variety of the most popular metal building profiles. But what if you can't find a PALRUF profile to match your metal profile? IF WE DON’T HAVE IT, WE CAN PROBABLY MAKE IT. FAST. Palram’s proprietary MetalMatch technology allows for the rapid matching of existing corrugated metal profiles. In addition, by using this technology, order minimums can be reduced. This enables metal roll-forming companies to offer matching PALRUF PVC panels for all their products and allows them to capitalize on the growing interest in natural daylighting. Learn more about MetalMatch technology.

IMPROVE POULTRY PRODUCTION BY REPLACING RUSTED METAL PANELS

 Published by the National Poultry Technology Center, Auburn University, Auburn, AL, USA During colder weather, poultry growers should turn their attention to issues that can increase heating costs and hurt bird performance by allowing cold air infiltration and heat leakage. Published in 2014, this newsletter from the National Poultry Technology Center (NPTC) at Auburn University addresses metal sidewall issues that can cause problems such as this. The newsletter includes a PALRUF/AG-TUF solution that NPTC began long-term tests on in 2011 that proved to be effective in field trials. Poultry house sidewalls have been undergoing a transformation from large drop-down curtains to solid, fully sealed and insulated walls. This has dramatically improved environmental control and reduced heating costs. However, severe air leakage caused by corrosion of exterior metal along the lower sidewall at ground level makes it much more challenging to keep birds comfortable at a reasonable fuel cost. Further, holes provide entry points for rodents and other pests. Download the article

IMPROVE POULTRY PRODUCTION BY REPLACING RUSTED METAL PANELS

Marketing Downloads

Icon

PALRUF En Leaflet 0.00 KB 2 downloads

...
Icon

PALRUF En Brochure 0.00 KB 3 downloads

...
Icon

PALRUF En DIY Brochure 0.00 KB 2 downloads

...
Icon

PALRUF En Farming Brochure 0.00 KB 2 downloads

...
Icon

PALRUF Projects Portfolio 0.00 KB 2 downloads

...



Technical Downloads

Icon

PALRUF Greca 70 Technical Guide 0.00 KB 2 downloads

...
Icon

PALRUF Iron 76 Technical Guide 0.00 KB 1 downloads

...
Icon

PALRUF Greca 76 Technical Guide 0.00 KB 1 downloads

...



PRODUCT DETAILS

Standard Dimensions

ProfileDesignationThickness (mm)Width (mm)Length (mm)
Mini32/90.8660, 750, 10401.5 - 11.8
Iron/Sinus 7676/180.8 - 1.5660, 860, 900, 11501.5 - 11.8
Greca/Trapeze76/180.8 - 1.31045, 1060, 1140, 1145, 11901.5 - 11.8
Greca/Trapeze75//190.75 - 1.011351.5 - 11.8
Greca/Trapeze70/180.8 - 1.5550, 765, 1090, 11031.5 - 11.8
5,6 Waves177/510.8 - 2.0920, 1100, 11701.5 - 11.8
3″ Standard72/200.811.3
American 2.6″67.8/20210201.5 - 11.8
American 4.2″107/271.8 - 4.510701.5 - 11.8
Big 6″146/481.11.32
Astoria305/382.210151.5 - 11.8
Industrial 0100250/401.8 - 3.010661.5 - 11.8
7.2″183/382.0 - 3.0967, 1150, 12171.5 - 11.8
5105400/502.0-3.017001.5 - 11.8
Standard Dimensions Note           *Custom Profiles Are Available Upon Request, Subject To Minimum Order.

Product Range

ProductDescription
PALRUF® OpaqueOpaque sheet inherently UV resistant, suitable for all applications.
PALRUF® ClearClear UV stabilized sheet, ideal for DIY applications
PALRUF® OpalUV stabilized sheet, reduced light transmission (~35%)
PALRUF® High ImpactWith increased impact resistance and durability.
PALRUF® HYGWith active antimicrobial action, ideal for livestock applications.

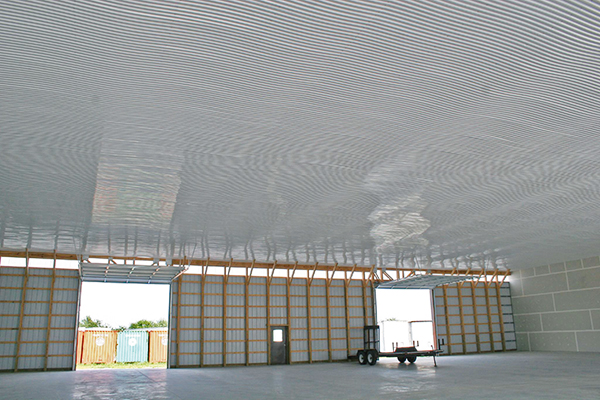

AG-TUF®Liner panel for indoor applications



Standard Color chart

Type:Color
OpaqueWhite, Light Grey, Beige, Light Green Light Blue
TransparentClear, Bronze
TranslucentWhite Opal, White Diffuser, Blue

Typical Physical Properties

PropertyMethod*ConditionsUnitsValue
DensityD-792g/cm³1.4
Heat deflection temperature (H.D.T)D-648Load: 1.82 MP°C61 - 67
Service Temperature Range°C-20 to +50
Thermal conductivity C-177C-177W/mK0.16
Coefficient of linear thermal expansion D-696D-696cm/cm°C6.3 x 10-⁵
Impact strength ISO6603/12 mm sheetJ45 - 60
Tensile strength at yieldD-63810 mm/minMPa50 - 66
Tensile strength at breakD-63810 mm/minMPa39 - 53
Elongation at yieldD-63810 mm/min%3
Elongation at breakD-63810 mm/min%>80
Tensile modulus of elasticityD-6381 mm/minMPa2900
Flexural strengthD-7901.3 mm/minMPa90 - 100
Flexural modulusD-7901.3 mm/minMPa2700
Rockwell hardnessD-785R Scale105 - 115
Typical Physical Properties Notes          * ASTM Method Except Where Noted Otherwise

Flammability

MethodClassification*
DIN 4102B-1
BS 476/7Class 1
NSP 92501, 5M-1
FMRC 4870Class 1
Flammability Notes           * For More Information Please Contact Your Palram Distributor
