SUNTUF® DIY CORRUGATED POLYCARBONATE SHEET

Make the most of your outdoor spaces all year round!

SUNTUF® DIY is a lightweight, impact-resistant, and easy-to-install corrugated roofing sheet. It was the first DIY polycarbonate roof sheet introduced into the Australian markets over 25 years ago and has proven a performer since. Available with clear roofing options and in a variety of designer colours, SUNTUF® is the first and only DIY roofing sheet to have matching Colorbond colours for modern roofs. With built-in UV protection, the panel itself and everything underneath it is protected from the sun. Today, SUNTUF® DIY continues to be the top plastic roof sheeting choice.  It can be seen in homes across Australia, proving its performance, and providing the right balance between light and shade.

Main Benefits

  • Performance and durability
  • Excellent impact resistance - Hail proof
  • Up to 90% light transmission
  • Long-term UV protection
  • Lightweight and easy to install
  • Compliant to fire rating standards
  • Lifetime warranty

Typical Applications

  • Patio roofing and pergola covers
  • Roofing for verandahs
  • DIY skylights
  • Carport roof sheets
  • Swimming pool cover sheets
  • Sunrooms and conservatories

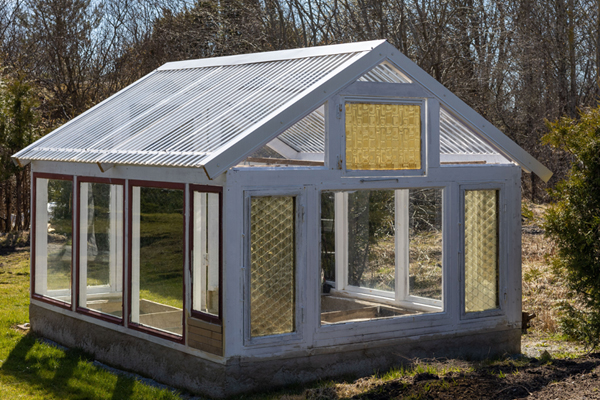

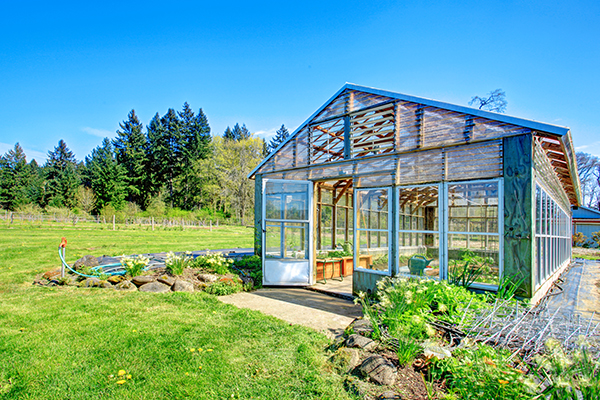

  • Sheets for hobby greenhouse’s
  • Canopy and awning
  • Roofing for hardware and storage sheds

GALLERY

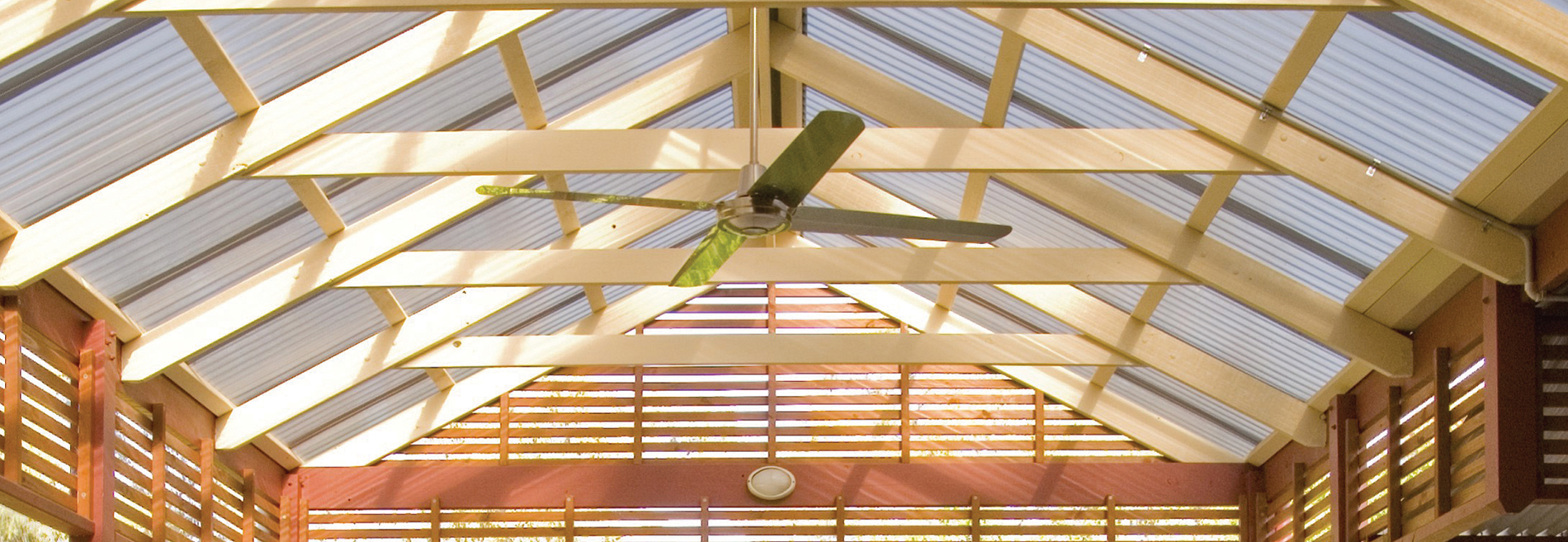

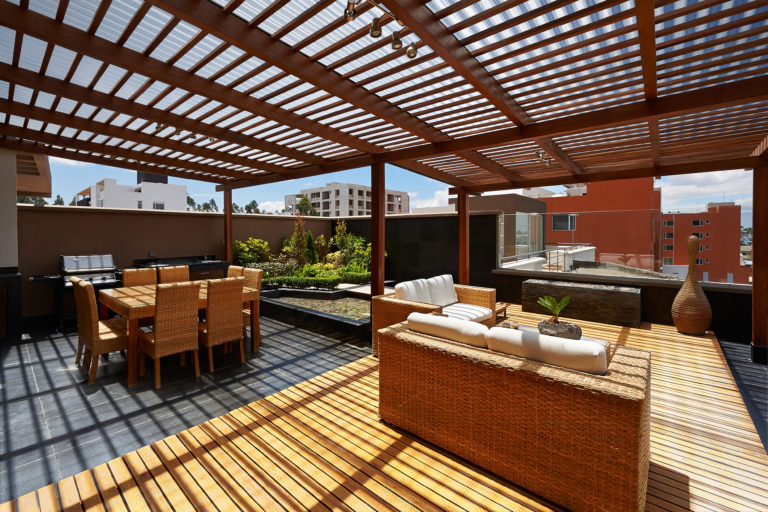

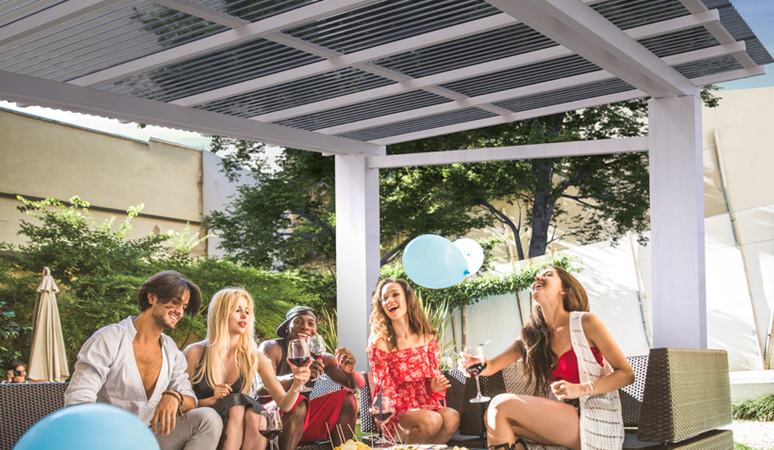

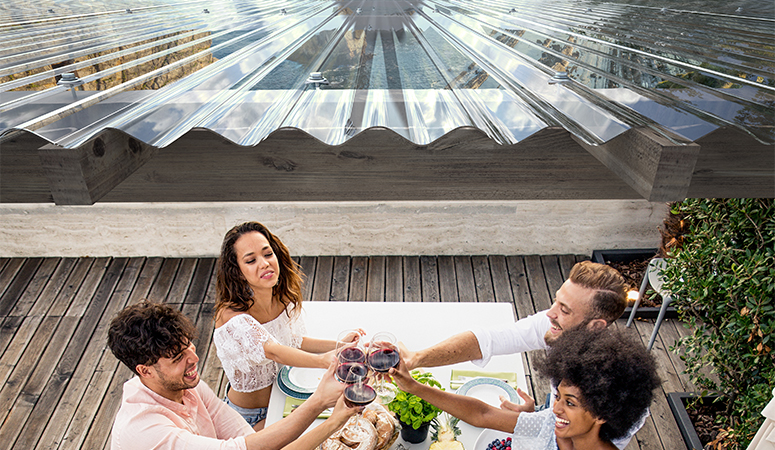

SUNTUF® DIY polycarbonate Pergola Roofing

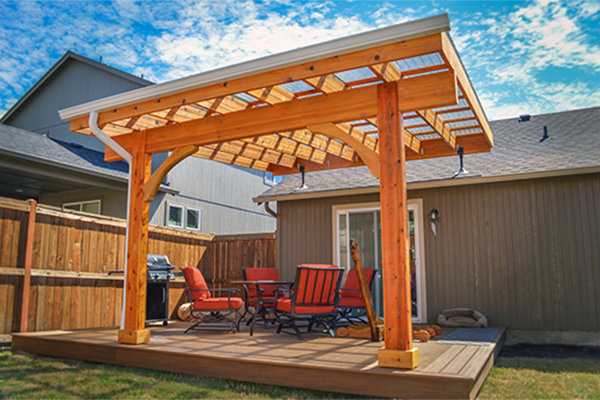

Gazebo built with SUNTUF® DIY roofing
DIY skylight with SUNTUF® corrugated roofing
Clear roofing options with SUNTUF® DIY
Polycarbonate canopy Roofing

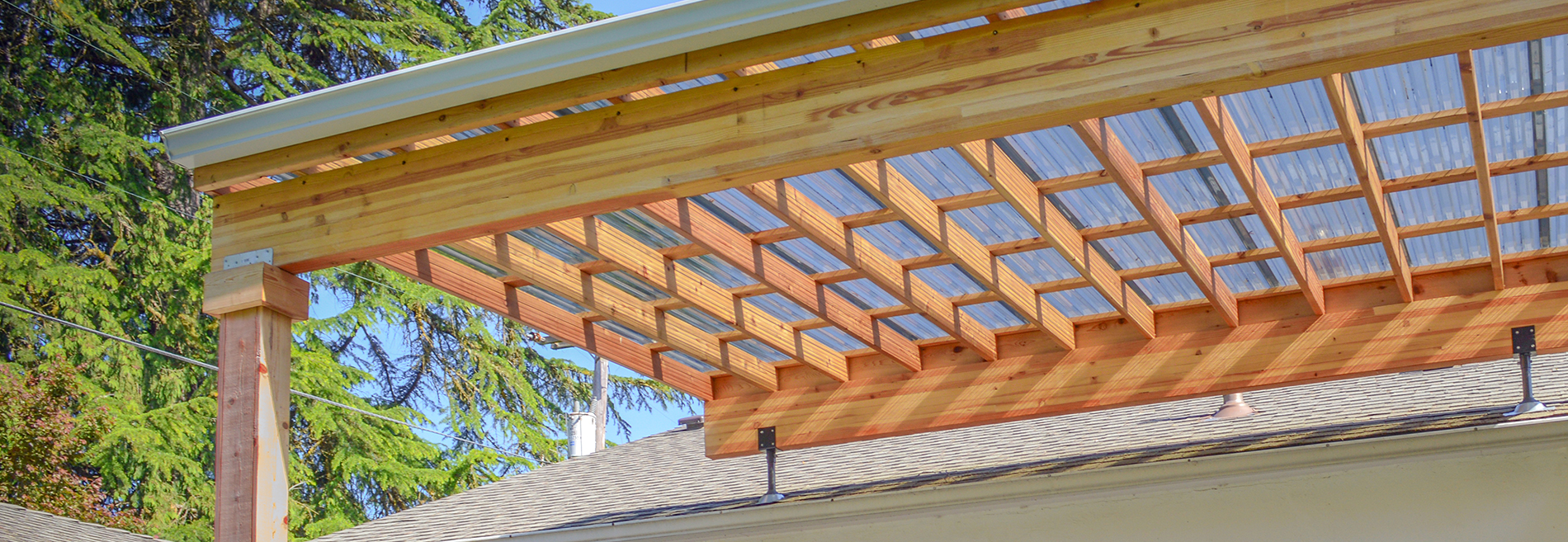

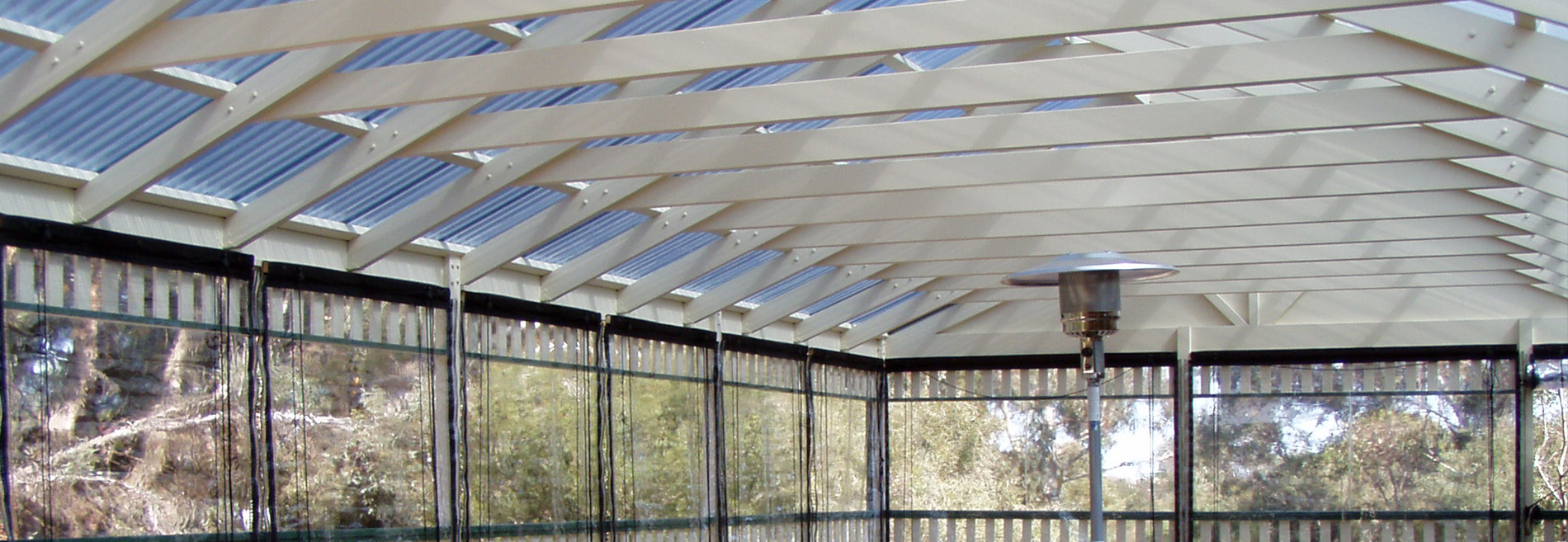

Outdoor Patio roofing, SUNTUF® DIY

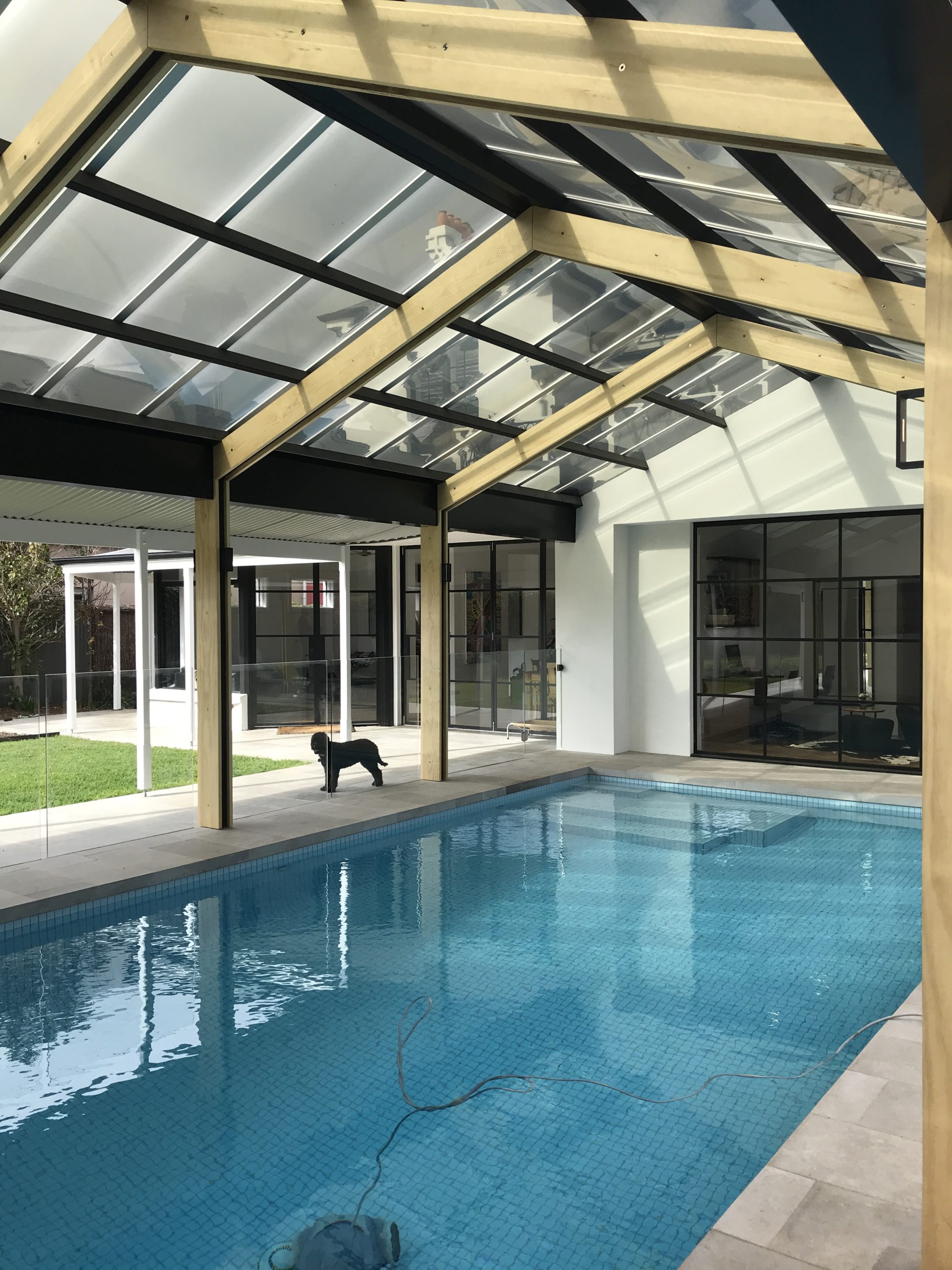

SUNTUF® DIY pool covers

SUNTUF® DIY COLOUR SWATCHES

CLEAR

Light Transfer 90%
Solar Transmittance 86%

OPAL

Light Transfer 45%
Solar Transmittance 40%

SMOOTH CREAM

Light Transfer 44%
Solar Transmittance 33%

CEDAR BRONZE

Light Transfer 25%
Solar Transmittance 48%

SOLAR GREY

Light Transfer 20%
Solar Transmittance 43%

SUNTUF DIY SOLARSMART™ COLOUR SWATCHES

TRANPARENT GREY

Light Transfer 20%
Solar Transmittance 30%

DIFFUSED ICE

Light Transfer 48%
Solar Transmittance 21%

DIFFUSED GREY

Light Transfer 20%
Solar Transmittance 18%

SANDUNE

Light Transfer 15%
Solar Transmittance 15%

METALIC JASPER

Light Transfer 15%
Solar Transmittance 16%

SUNTUF DIY BASICS

SUNTUF® DIY
SUNTUF® DIY

A variety of designs, shades, and finishes

How to Cut SUNTUF
How to Cut SUNTUF

Watch this video for an explanation on the different ways to cut SUNTUF.

How to Fasten SUNTUF
How to Fasten SUNTUF

Correct fasteners, fastening locations, and fastener tightness can make or break a project. Learn what matters if you want to ensure long-term durability.

How to Store SUNTUF
How to Store SUNTUF

SUNTUF is one of the toughest products around when installed, but you should follow these tips if you want to store it before installation.

RELATED ARTICLES

SolarSmart™: Polycarbonate glazing that controls heat & light transmission
SolarSmart™: Polycarbonate glazing that controls heat & light transmission
PALRAM’S SOLARSMART™ TECHNOLOGY defies standard transmission of solar energy in transparent sheets and allows more versatile color and solar transmission specification per project.
Read all about it
A Handy Comparison between Polycarbonate Sheet and Glass
A Handy Comparison between Polycarbonate Sheet and Glass
Deciding whether to use glass or polycarbonate is about more than just aesthetics. While polycarbonate is versatile enough to meet a variety of design challenges, it’s also extremely strong, provides effective insulation against heat, cold, and UV radiation, as well as offering unparalleled ease of installation with the added bonus of reduced costs.
Read all about it
Polycarbonate roofing sheets – the perfect combination of roofing coverings and natural light
Polycarbonate roofing sheets – the perfect combination of roofing coverings and natural light
There are many advantages to using polycarbonate sheets for a wide range of roofing solutions. Due to its unique inherent properties, this material is now being used all over the world. From China to the United States, through Australia and Brazil, designers of projects large and small are using polycarbonate sheets as an excellent alternative to glass and fiberglass
Read all about it

PROJECT MATERIALS CALCULATOR

Estimate the materials required for a basic patio structure using our range of products.
Simply fill in a few fields with the appropriate dimensions—we'll calculate the results.

Click Here For the Calculator

PROJECT MATERIALS CALCULATOR

RELATED PRODUCTS

EZ GLAZE™
EZ GLAZE™

Glass-Like DIY Polycarbonate Roof Sheets

COOLTOP® DIY
COOLTOP® DIY

Corrugated PVC Roofing Sheets

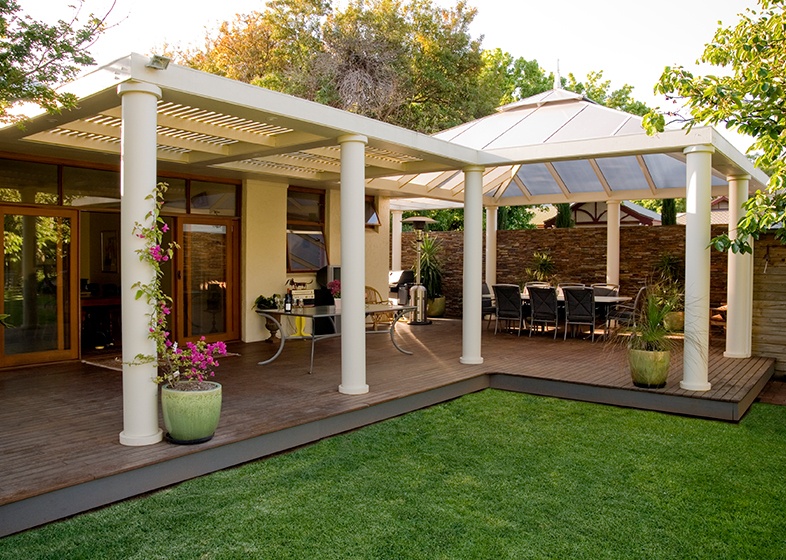

SUNLITE® DIY
SUNLITE® DIY

Twin & Multiwall Polycarbonate Sheet

SUNPAL®
SUNPAL®

Twin & Multiwall Polycarbonate Sheet

SUNGLAZE™
SUNGLAZE™

Solid Polycarbonate Seam Architectural System

Downloads

File name
Size
SUNTUF Beehive Leaflet (Au).pdfSUNTUF Beehive Leaflet (Au).pdf
535 KB
Suntuf Small Brochure 2016-2023.pdfSuntuf Small Brochure 2016-2023.pdf
154 MB
SUNTUF DIY BH Installation Guide (Au).pdfSUNTUF DIY BH Installation Guide (Au).pdf
5 MB
Polycarbonate Care and Maintenance (En).pdfPolycarbonate Care and Maintenance (En).pdf
69 KB
Palram En PC Adhesives Sealants.pdfPalram En PC Adhesives Sealants.pdf
149 KB
Palram Polycarbonate Product Safety Data Sheet (PSDS).pdfPalram Polycarbonate Product Safety Data Sheet (PSDS).pdf
121 KB

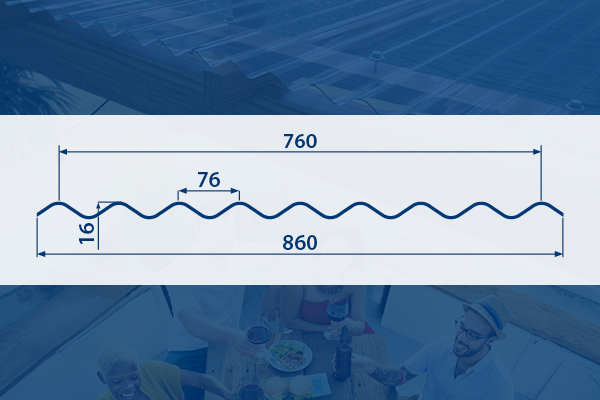

SUNTUF Corri Iron 76- 860 – Technical Guide-Australia-7-2021.pdfSUNTUF Corri Iron 76- 860 – Technical Guide-Australia-7-2021.pdf
411 KB

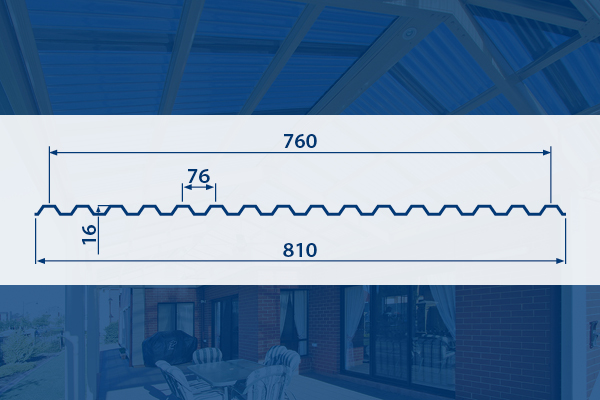

SUNTUF Greca 76-810-Technical Guide-2021.pdfSUNTUF Greca 76-810-Technical Guide-2021.pdf
437 KB
Suntuf life time WARRANTY 12.2015 AUS.pdfSuntuf life time WARRANTY 12.2015 AUS.pdf
368 KB

Frequently Asked Questions

How do I curve the polycarbonate to follow the façade curve?
+ -

All Palram polycarbonate products can be cold bent onsite during installation, subject to a minimum radius. The radius varies based on the chosen product. For flat sheets such as PALSUN & SUNLITE, the rule-of-thumb for the minimum radius is the thickness multiplied by 200. Please check the Palram catalog for more detailed specifications.

PALGARD™PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNPALSUNTOP®SUNTUF®
How do I specify the required thickness of the polycarbonate glazing material?
+ -

The recommended thickness of the polycarbonate glazing material is based on factors such as wind & snow load, panel size, and boundary conditions. Visit the Palram website for access to calculators that can help you determine the recommended thickness.

PALSUNPALGARD™SUNGLAZE™SUNLITESUNLITE® PlusSUNPALSUNTOP®SUNTUF®SUNTUF BH
How do I reduce the heat build-up coming from the façade into the building?
+ -

In order to reduce heat build-up through the façade, Palram strongly recommends the use of its tinted SolarSmart™ panels. SolarSmart™ tints can be implemented in all Palram polycarbonate products. For more information, reference the Palram SolarSmart™ technology page.

PALGARD™PALSUNSUNLITESUNLITE® PlusSUNGLAZE™SUNPALSUNTUF®SUNTUF BH
What is the minimum allowed bending radius of polycarbonate?
+ -

The minimum allowed bending radius of the polycarbonate is 200 times the thickness of the sheet, for example, a 2 mm sheet has a minimum 400 mm bending radius.

PALGARD™PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNTOP®SUNTUF®SUNTUF BH
How do I install corrugated polycarbonate sheets as a skylight?
+ -

Corrugated polycarbonate sheets are installed as a homogeneous part of the metal roof. For more information, please review Palram's installation instructions for the desired profile.

SUNTUF®SUNTUF BH
Can the percentage of light transmission be controlled? I need a lot of light but I need it to be diffused.
+ -

Palram offers various LT% parameters - from 0% to 90%. In addition, we offer a color called a “diffuser” that allows 85% of the light in while diffusing it by 100%. The result is a light-transmitting panel that is not transparent but is highly translucent.

PALCLEAR®PALGARD™PALGLAS®PALSHIELD™PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNPALSUNTUF®SUNTUF BH
Can corrugated sheets be curved?
+ -

Yes. Corrugated sheets can be cold-curved to create arched shapes. It's important to follow the relevant Palram specifications for minimum radius in cold-curving, which can be found in the Installation Instructions of the relevant sheets. In addition, corrugated sheets should be arched so that the corrugations themselves are curved lengthwise.

AG-TUF®PALRUF®SUNTOP®SUNTUF®SUNTUF BH
How do I design the secondary steel support spacings for roofing/siding?
+ -

Palram created specific loading tables for each product. Please visit our website and download the specific catalog.

AG-TUF®PALGLAS®PALRUF®PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNPALSUNTOP®SUNTUF®SUNTUF BH
Can I install corrugated PVC and polycarbonate sheets horizontally for siding?
+ -

Yes. Make sure you start installing from the bottom up so the overlaps will not let the water in.

AG-TUF®PALRUF®SUNGLAZE™SUNTOP®SUNTUF®SUNTUF BH
How do I clean the polycarbonate?
+ -

  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.

PALGARD™PALSHIELD™PALSUNSUNGLAZE™SUNPALSUNTUF®SUNLITESUNLITE® PlusSUNTOP®SUNTUF BH
When should I use PVC corrugated sheets versus polycarbonate corrugated sheets?
+ -

PVC corrugated sheets are mainly used for opaque roofing and siding of industrial buildings in highly-corrosive environments such as port warehouses, cowsheds, and dairies. Polycarbonate corrugated sheets are mainly used as roofing or siding where natural daylight illumination is needed.

AG-TUF®PALRUF®SUNLITE® PlusSUNTOP®SUNTUF®SUNTUF BH
What are the benefits of using polycarbonate standing-seam system over standard polycarbonate sheets?
+ -

The main benefit of the standing-seam system is that unlike standard sheets, it is sold together with all installation accessories. This system also provides superior water tightness and is easier and faster to install.

SUNGLAZE™SUNPAL
What is the meaning of Shading Coefficient (SC)?
+ -

Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.

PALCLEAR®PALGARD™PALGLAS®PALSHIELD™PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNPALSUNTUF®SUNTUF BH
When should I specify a matte surface finish for the polycarbonate?
+ -

A matte surface finish is good if you want to avoid glare within your surroundings.

PALGARD™PALSUNSUNLITESUNPALSUNTUF®SUNTUF BH
How do I determine the color, Light Transmission (LT) and haze properties of polycarbonate?
+ -

This decision depends on the application – some of the colors are transparent and some are translucent. If a see-through material is needed, then haze should be smaller than 1% and the LT% should be based on the illumination design. If a translucent effect is needed, then the haze should be 100% and the LT% based on the chosen color.

PALGARD™PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNPALSUNTUF®SUNTUF BH
Where should I use corrugated versus multiwall polycarbonate covering?
+ -

SUNTUF Plus corrugated polycarbonate sheets provide the best light transmittance and UV light resistance, with exceptional load bearing and impact-resistance properties. SUNLITE Plus multiwall PC sheets provide the best thermal insulation. In locations where you would prefer thermal insulation to light transmission, you should use SUNLITE Plus multiwall PC sheets.

SUNLITESUNLITE® PlusSUNTOP®SUNTUF®SUNTUF BH
Can I cover my old polyethylene greenhouse with polycarbonate while still keeping the old structure?
+ -

Yes, but with minor reinforcements to the structure in order to support the load.

PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNTUF®SUNTUF BH
Will polycarbonate light transmittance deteriorate over time?
+ -

PALRAM's polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.

PALGARD™PALOPAQUE™PALSHIELD™PALSUNSUNGLAZE™SUNLITESUNLITE® PlusSUNPALSUNTUF®SUNTUF BH
