SUNTOP® DIY Corrugated Polycarbonate Roofing Sheet

SUNTOP® CHAPAS CORRUGADAS DE POLICARBONATO EXPANDID

Solução leve e durável em policarbonato expandido para coberturas residenciais

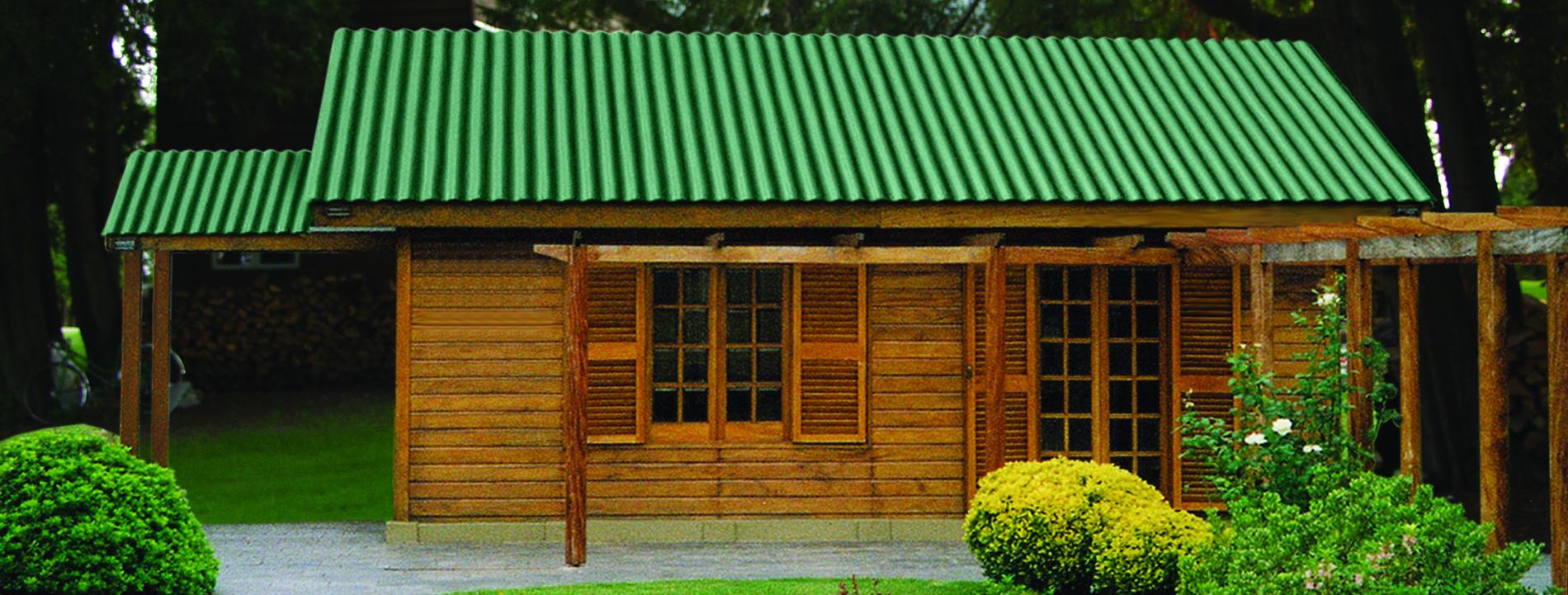

A chapa corrugada de policarbonato expandido SUNTOP é um produto para coberturas e revestimentos leve, opaco, rígido e altamente resistente a impactos. Ele suporta golpes de pedras, bolas de golfe e até bolas de beisebol (veja o vídeo abaixo). As chapas SUNTOP estão disponíveis em cores sólidas e intensas, que fornecem 100% de sombra e proteção contra a radiação UV prejudicial à saúde. Elas também suportam uma faixa de temperatura, desde as mais frias até as mais quentes, assim como as condições climáticas mais severas. Não importa se você é um profissional ou um usuário que gosta de fazer as coisas sozinho, o SUNTOP é fácil de instalar.

Chapa corrugada de policarbonato opaca e resistente

Clique para obter informações adicionais

Clique para obter informações adicionais

CORES FORTES E INTENSAS E 100% DE SOMBRA

As chapas para cobertura SUNTOP estão disponíveis em três cores opacas, que fornecem 100% de sombra (a diferença do SUNTUF, que é transparente ou translúcido e deixa a luz passar). As amostras de cores abaixo são apenas para referência, pois as cores na tela podem ser diferentes. Visite seu revendedor local para ver os painéis reais. Você também pode solicitar amostras de seu revendedor.





Tão resistente que outros painéis ficam com inveja

As chapas de cobertura SUNTOP são resistentes e não amassam, a diferença dos painéis de metal corrugado para aplicações de bricolagem. SUNTOP suporta facilmente neve, gelo e temperaturas que variam de -40 ° a 100 ° C. Além disso, por serem mais rígidas e até 20 vezes mais resistentes ao impacto que as chapas que a fibra de vidro, as chapas SUNTOP oferecem a melhor proteção contra granizo em produtos de policarbonato opaco. Veja como SUNTOP aguenta pedras, bolas de golfe e bolas de beisebol neste vídeo.
Tão resistente que outros painéis ficam com inveja

Dados do produto

Dimensions

ProfileDesignation Thickness (in.)Width (in.)Length (ft.)
Iron/Sinus76/180.063, 0.080*268, 12
5,6 Waves*177/510.08365 - 20
American 4.2”*107/270.08425 - 20
Dimensions Note * Special Order Item, Subject To Minimum Order Requirements

Standard Color chart

ColorsLight Transmission
Castle Gray0%
Sedona Brick0%
Rain Forest Green0%

Typical Physical Properties

Property(ASTM Method)ConditionsUnitsValue
Density(D-1505)g/cmu00b30.8- 0.9
Water Absorption(D-570)24 hr. @ 23 u00baC%1.23
Heat Deflection Temperature(D-648)Load: 1.82 MPu00baC124
Service Temperature - Short Termu00baC-50 to +120
Service Temperature - Long Termu00baC-50 to +100
Thermal Conductivity(C-177)W/m K0.113
Tensile Strength at Yield(D-638)10 mm/minMPa25-30
Tensile Strength at Break(D-638)10 mm/minMPa25-30
Elongation at Yield(D-638)10 mm/min%3-Apr
Modulus of Elasticity(D-638)1 mm/minMPa1200-1500
Flexural Strength(D-790)1 mm/minMPa50-60
Flexural Modulus(D-790)1 mm/minMPa1600-1800
Fire Resistance(D-635-91)CC1

Thermal conductivity

MaterialThermal Conductivity (W/mK)
SUNTOP® foamed polycarbonate sheet0.11
Fiberglas0.16
Steel sheet50

Perguntas Frequentes

How do I curve the polycarbonate to follow the façade curve?
+ -

All Palram polycarbonate products can be cold bent onsite during installation, subject to a minimum radius. The radius varies based on the chosen product. For flat sheets such as PALSUN & SUNLITE, the rule-of-thumb for the minimum radius is the thickness multiplied by 200. Please check the Palram catalog for more detailed specifications.

How do I specify the required thickness of the polycarbonate glazing material?
+ -

The recommended thickness of the polycarbonate glazing material is based on factors such as wind & snow load, panel size, and boundary conditions. Visit the Palram website for access to calculators that can help you determine the recommended thickness.

What is the minimum allowed bending radius of polycarbonate?
+ -

The minimum allowed bending radius of the polycarbonate is 200 times the thickness of the sheet, for example, a 2 mm sheet has a minimum 400 mm bending radius.

Why do I have to pre-drill fastener holes in roofing with corrugated panels?
+ -

Pre-drilling the holes ensures that the panels have room to expand and contract properly with temperature changes. Skipping this step can lead to distorted, warped or cracked panels.

Can corrugated sheets be curved?
+ -

Yes. Corrugated sheets can be cold-curved to create arched shapes. It's important to follow the relevant Palram specifications for minimum radius in cold-curving, which can be found in the Installation Instructions of the relevant sheets. In addition, corrugated sheets should be arched so that the corrugations themselves are curved lengthwise.

How do I design the secondary steel support spacings for roofing/siding?
+ -

Palram created specific loading tables for each product. Please visit our website and download the specific catalog.

Can I install corrugated PVC and polycarbonate sheets horizontally for siding?
+ -

Yes. Make sure you start installing from the bottom up so the overlaps will not let the water in.

How do I clean the polycarbonate?
+ -

  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.

How do I combine corrugated polycarbonate sheets (SUNTUF) with metal sheets?
+ -

With Palram's MetalMatch technology, we can perfectly match almost any trapezoid industrial metal sheet and install SUNTUF as a homogeneous part of the roof.

When should I use PVC corrugated sheets versus polycarbonate corrugated sheets?
+ -

PVC corrugated sheets are mainly used for opaque roofing and siding of industrial buildings in highly-corrosive environments such as port warehouses, cowsheds, and dairies. Polycarbonate corrugated sheets are mainly used as roofing or siding where natural daylight illumination is needed.

Where should I use corrugated versus multiwall polycarbonate covering?
+ -

SUNTUF Plus corrugated polycarbonate sheets provide the best light transmittance and UV light resistance, with exceptional load bearing and impact-resistance properties. SUNLITE Plus multiwall PC sheets provide the best thermal insulation. In locations where you would prefer thermal insulation to light transmission, you should use SUNLITE Plus multiwall PC sheets.
