SUNTOP® DIY Corrugated Polycarbonate Roofing Sheet

SUNTOP® Corrugated Foamed Polycarbonate Sheets

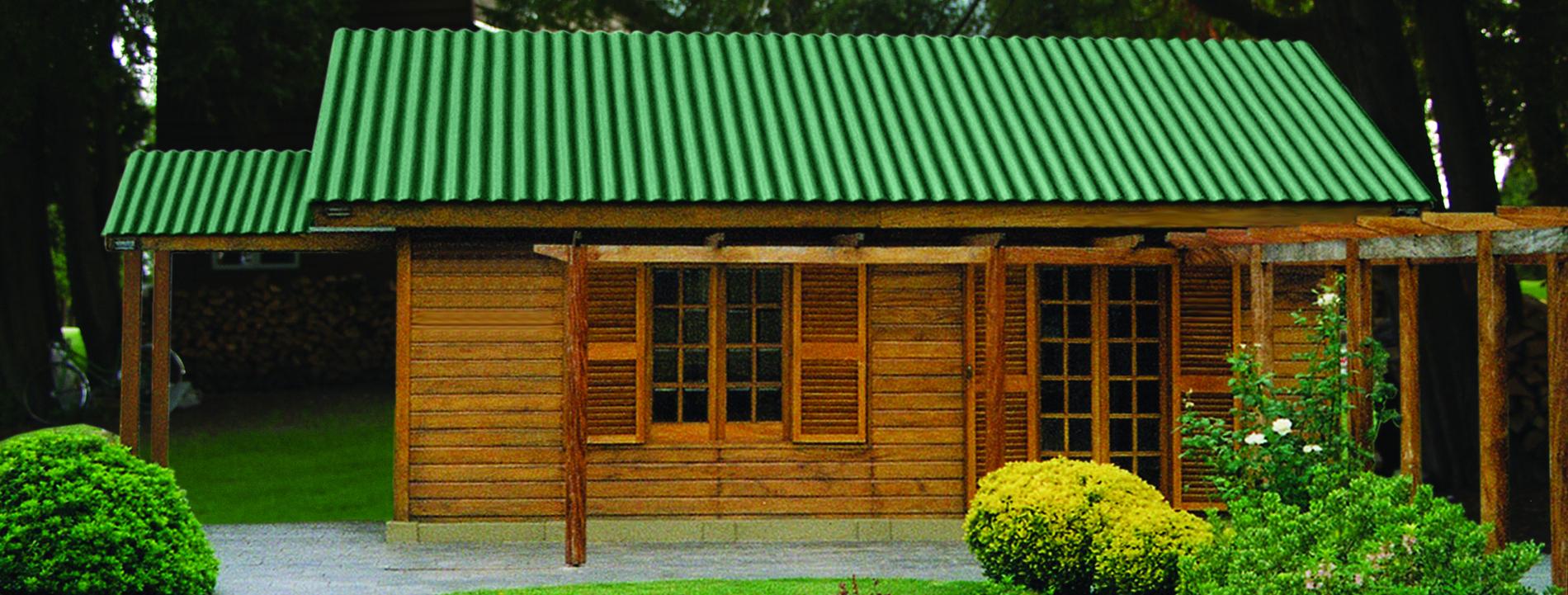

Durable lightweight foamed polycarbonate solution for residential roofing

SUNTOP corrugated foamed polycarbonate is a lightweight roofing & siding product that is opaque, rigid and highly impact-resistant. It can withstand garden rocks, golf balls and even baseballs (see the video below). SUNTOP roofing sheets are available in rich solid colors that provide 100% shade and protection from harmful UV radiation. SUNTOP solutions can also endure the full range of hot and cold temperatures, and even the most severe weather conditions. Whether you are a contractor or do-it-yourselfer, SUNTOP is easy to install.

Tough opaque foamed polycarbonate sheet

Click for Additional Information

Click for Additional Information

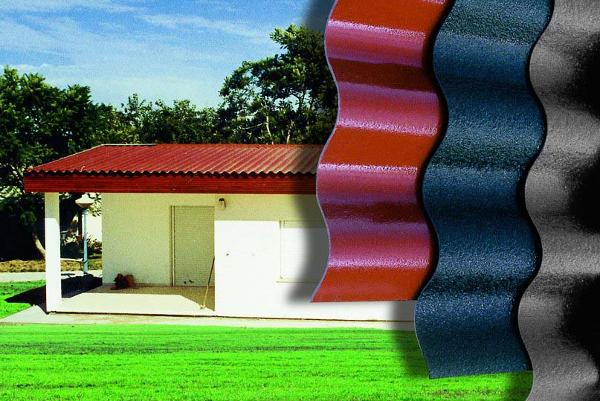

Rich, bold colors & 100% shade

SUNTOP roofing sheets are available in three opaque colors that each provides 100% shade (as compared to SUNTUF which is transparent or translucent and lets light shine through). The color swatches below are provided for reference only as onscreen colors may vary. Visit your local dealer to see the actual panels. You can also request samples from your dealer.







So tough, other panels are jealous

SUNTOP roofing sheets are tough and won’t dent like typical corrugated metal panels for DIY applications. SUNTOP easily withstands snow, ice and temperatures ranging from -40° to 212 °F (-40° to 100° C). In addition, with more rigidity and up to 20 times more impact resistance than fiberglass, SUNTOP offers the best hail protection available in opaque polycarbonate products. See how well SUNTOP holds up to garden rocks, golf balls and baseballs in this video.


So tough, other panels are jealous

Downloads

File name
Size

PRODUCT DETAILS



Dimensions

ProfileDesignationThickness (mm)
Width (mm)
Length (mm)
Iron/Sinus76/180.8
600, 900
1.5-11.6
5,6 Waves*177/511.0 - 2.0
920
5 - 20
American 4.2”107/271.0 - 1.5
1070
1.5-6.0

Dimensions Note * Special Order Item, Subject To Minimum Order Requirements



Standard Color chart

ColorsLight Transmission
Castle Gray0%
Sedona Brick0%
Rain Forest Green0%

Typical Physical Properties

Property(ASTM Method)ConditionsUnitsValue
Density(D-1505)g/cm³0.8- 0.9
Water Absorption(D-570)24 hr. @ 23 °C%1.23
Heat Deflection Temperature(D-648)Load: 1.82 MP°C
124
Service Temperature - Short Term°C
-50 to +120
Service Temperature - Long Term°C
-50 to +100
Thermal Conductivity(C-177)W/m K0.113
Tensile Strength at Yield(D-638)10 mm/minMPa25-30
Tensile Strength at Break(D-638)10 mm/minMPa25-30
Elongation at Yield(D-638)10 mm/min%3-Apr
Modulus of Elasticity(D-638)1 mm/minMPa1200-1500
Flexural Strength(D-790)1 mm/minMPa50-60
Flexural Modulus(D-790)1 mm/minMPa1600-1800
Fire Resistance(D-635-91)CC1

Thermal conductivity

MaterialThermal Conductivity (W/mK)
SUNTOP® foamed polycarbonate sheet0.11
Fiberglas0.16
Steel sheet50

Frequently Asked Questions

How do I curve the polycarbonate to follow the façade curve?
+ -

All Palram polycarbonate products can be cold bent onsite during installation, subject to a minimum radius. The radius varies based on the chosen product. For flat sheets such as PALSUN & SUNLITE, the rule-of-thumb for the minimum radius is the thickness multiplied by 200. Please check the Palram catalog for more detailed specifications.

How do I specify the required thickness of the polycarbonate glazing material?
+ -

The recommended thickness of the polycarbonate glazing material is based on factors such as wind & snow load, panel size, and boundary conditions. Visit the Palram website for access to calculators that can help you determine the recommended thickness.

What is the minimum allowed bending radius of polycarbonate?
+ -

The minimum allowed bending radius of the polycarbonate is 200 times the thickness of the sheet, for example, a 2 mm sheet has a minimum 400 mm bending radius.

Why do I have to pre-drill fastener holes in roofing with corrugated panels?
+ -

Pre-drilling the holes ensures that the panels have room to expand and contract properly with temperature changes. Skipping this step can lead to distorted, warped or cracked panels.

Can corrugated sheets be curved?
+ -

Yes. Corrugated sheets can be cold-curved to create arched shapes. It's important to follow the relevant Palram specifications for minimum radius in cold-curving, which can be found in the Installation Instructions of the relevant sheets. In addition, corrugated sheets should be arched so that the corrugations themselves are curved lengthwise.

How do I design the secondary steel support spacings for roofing/siding?
+ -

Palram created specific loading tables for each product. Please visit our website and download the specific catalog.

Can I install corrugated PVC and polycarbonate sheets horizontally for siding?
+ -

Yes. Make sure you start installing from the bottom up so the overlaps will not let the water in.

How do I clean the polycarbonate?
+ -

  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.

How do I combine corrugated polycarbonate sheets (SUNTUF) with metal sheets?
+ -

With Palram's MetalMatch technology, we can perfectly match almost any trapezoid industrial metal sheet and install SUNTUF as a homogeneous part of the roof.

When should I use PVC corrugated sheets versus polycarbonate corrugated sheets?
+ -

PVC corrugated sheets are mainly used for opaque roofing and siding of industrial buildings in highly-corrosive environments such as port warehouses, cowsheds, and dairies. Polycarbonate corrugated sheets are mainly used as roofing or siding where natural daylight illumination is needed.

What is the meaning of Shading Coefficient (SC)?
+ -

Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.

Where should I use corrugated versus multiwall polycarbonate covering?
+ -

SUNTUF Plus corrugated polycarbonate sheets provide the best light transmittance and UV light resistance, with exceptional load bearing and impact-resistance properties. SUNLITE Plus multiwall PC sheets provide the best thermal insulation. In locations where you would prefer thermal insulation to light transmission, you should use SUNLITE Plus multiwall PC sheets.
