PALSHIELD® Bullet Resistant and containment glazing

Ballistic polycarbonate product line for a variety of applications

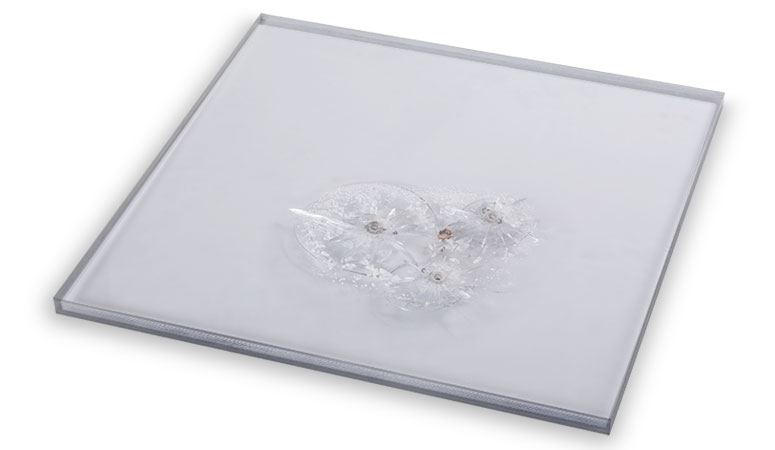

The PALSHIELD ballistic polycarbonate product line is available with different levels of ballistics and forced-entry protection to meet a variety of application needs. Due to their layered, laminated structure, PALSHIELD sheets can withstand both physical attacks and multi-shot ballistic assaults by absorbing impact energy without shattering or spalling.  PALSHIELD also features an abrasion-resistant coating, which ensures long-term clarity for applications in accessible public areas. Note that the information listed on the PALSHIELD sales sheet represents the Palram products that meet or exceed the various testing standards at the time of its printing. Please contact Palram for information about other test approvals that you may need.

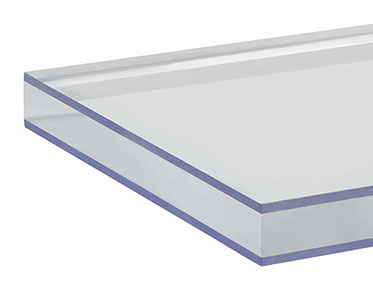

Reinforced, Layered Polycarbonate Structure

Reinforced, Layered Polycarbonate Structure



Size*mm1220 x 2440
ColorsClear, Bronze, Grey


Dimensions Note*Other Sizes Are Available Upon Request, Subject To Minimum Quantity
Product Availability Note* Contains Acrylic N** Tested By An Acredited Independent Lab According To UL Specs.
Available Colors     Clear, Bronze, Gray

Typical Physical Properties

PropertyConditions (U.S. Customary)ASTM MethodUnits - SI U.S. Customary)Value (U.S. Customary)
DensityD-1505g/cm3 (lb/ft3)1.2 (75)
Water Absorption24 hr. @ 23°CD-570%0.15
Tensile strength at yield10 mm/min (0.4 in./min)D-638MPa (psi)62 (9
Tensile strength at break10 mm/min (0.4 in./min)D-638MPa (psi)65 (9500)
Elongation at yield10 mm/min (0.4 in./min)D-638%6
Elongation at break10 mm/min (0.4 in./min)D-638%110
Tensile Modulus of Elasticity10 mm/min (0.4 in. /min)D-638MPa (psi)2
Flexural Modulus1.3 mm/min (0.05 in./min)D-790MPa (psi)2
Flexural Strength at Yield1.3 mm/min (0.05 in./min)D-790MPa (psi)93 (13
Notch Impact Strength Izod23°C (73°F)D-256J/m (ft·lbf/in.)800 (15)
Notch Impact Strength Charpy23°C (73°F)D-256J/m (ft·lbf/in)800 (15)
Impact Falling Weight3 mm (0.12 in.) SheetISO-6603/1bJ (ft·lbf)158 (117)
Rockwell HardnessD-785R scale / M scale125 / 70
Abrasion (Taber Process)100 CyclesCS-10S Wheel500gD-1044
Compressive Strength1.3 mm/min (.05 in./min)D-695MPa (psi)86 (12
Compressive Modulus1.3 mm/min (.05 in./min)D-695MPa (psi)2378 (345
Shear strength at Yield1.3 mm/min (.05 in./min)D-732MPa (psi)41 (6000)
Shear strength at Break1.3 mm/min (.05 in./min)D-732MPa (psi)68 (10
Shear Modulus1.3 mm/min (.05 in./min)D-732MPa (psi)786 (114
Long Term Service Temperature°C (°F)-75 to +100 (-175 to +212)
Short Term Service Temperature°C (°F)-75 to +120 (-175 to +250)
Heat Deflection TemperatureLoad: 1.82 Mpa (264 psi)D-648°C (°F)132 (270)
Vicat Softening TemperatureLoad: 1 kg (2.2 lb)D-1525°C (°F)150 (300)
Coefficient of Linear
Thermal ExpansionD-69610-5/°C (10-5/°F)6.5 (3.6)
Thermal ConductivityC-177W/m°K (Btu-in./hr-ft2-°F)0.21 (1.46)
Specific Heat CapacityC-351kJ/kg°K (Btu/lb°F)1.26 (0.31)
Light TransmissionD-1003%See Product Data Sheet
Refractive IndexClear SheetD-5421.59
Dielectric Constant50 HzD-1503
1 MHzD-1502.9
Dissipation Factor50 HzD-1500.9
1 MHzD-15011
Dielectric Strength Short Time500 V/sD-149kV/mm (V/mil)>30 (>770)
Surface ResistanceKetleyD-257Ohm5.1x1015
Volume ResistanceKetleyD-257Ohm-cm1.3x1017


Forced Entry Ratings

Forced Entry ProductsStandardCompliance / RatingThickness (inches, mm)PliesLbs./ft2 (Kg/m²)Light Transmission
PALSHIELD FE 375ASTM F1915-0Security Grade Level 20.375″ (9.5mm)22.4 (11.7)86%
PALSHIELD FE 500ASTM F1915-05Security Grade Level 20.500″ (12.7mm)33.3 (16.1)83%
PALSHIELD FE 500HPW 0500.03Level A ballistics (.38 special)0.500″ (12.7mm)33.3 (16.1)83%
PALSHIELD FE 750ASTM F1915-05Security Grade Level 10.750″ (19mm)34.9 (23.9)77%
PALSHIELD FE 750HPW-TP-0500.00Level B Balllistics (9mm)0.750″ (19mm)34.9 (23.9)77%


Ballistic Ratings

Ballistic ProductsStandardCompliance / RatingThickness (inches, mm)PliesLbs./ft2 (Kg/m²)Light Transmission
PALSHIELD UL1-750*UL 752Level 1 u2020 - 9mm 3 shots.750″ (19mm)34.9 (23.9)88%
PALSHIELD UL2-1000UL 752Level 2 u2020 - .357 3 shots1.0″ (25.4mm)46.5 (31.7)72%
PALSHIELD UL3-1250UL 752Level 3 u2020 - .44 Mag 3 shots1.25″48.1 (39.5)67%
PALSHIELD UL3-1250ASTM F1915-05Security Grade 11.25″48.1 (39.5)67%
PALSHIELD UL3-1250ASTM 1233-08Class V (Body)1.25″ (32mm)48.1 (39.5)67%
PALSHIELD UL6-1250*UL 752Level 6 u2020 - High Velocity 9mm 5 shots, Supplemental shotgun 1 shot1.25″ (32mm)48.1 (39.5)78%

Ballistic Ratings Note     * Contains Acrylic U2020 Tested By An Acredited Independent Lab According To UL Specs.


Testing Standard Reference and Description

Testing Standard ReferenceStandard and YearTitle / Description
ASTMF1233-08Standard Test Method for Security Glazing Materials and Systems
ASTMF1915-05Standard Test Method for Glazing for Detention Facilities
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
UL752Bullet Resistant Equipment

Regulatory Code Compliance Certification

ANSIZ97.1-09Approved Impact and Weathering
CPSC16 CFR 1201Category I or II

Frequently Asked Questions

What size do bullet resistant polycarbonate sheets come in?
+ -

PALSHIELD ballistic grade polycarbonate is available in a variety of sizes and specifications. Custom size options are available upon request.

Can the percentage of light transmission be controlled? I need a lot of light but I need it to be diffused.
+ -

Palram offers various LT% parameters - from 0% to 90%. In addition, we offer a color called a “diffuser” that allows 85% of the light in while diffusing it by 100%. The result is a light-transmitting panel that is not transparent but is highly translucent.

If polycarbonate sheets block UV radiation, why is there a "UV-side" that faces outwards?
+ -

Polycarbonate sheets block UV radiation by absorbing it. This absorption mechanism can cause degradation to the material, and to prevent this from happening, the sheet is coated with a special material.

For this reason, it is recommended that the sheets are installed with the marked UV protective layer facing outward. Moreover, most of the sheets are only protected on the side that is clearly marked as such.

Are there customized sizes of BULLETPROOF sheets?
+ -

Yes, BULLETPROOF is available in custom sheets of up to four square meters.

What is the protection level for ballistic?
+ -

For bullets, BULLETPROOF offers UL 752 protection up to level 6 — protection against automatic weapons firing pistol-caliber ammunition such as an Uzi sub-machine gun chambered in 9 mm.

What level of protection against forced entry can I expect from BULLETPROOF?
+ -

BULLETPROOF offers forced entry protection equivalent to ASTM F1915-05 Security Grade Level 1-3 — a standard developed to measure impact-resistant fittings in correctional facilities.

How do I clean the polycarbonate?
+ -

  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.

What is the meaning of Shading Coefficient (SC)?
+ -

Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.

Will polycarbonate light transmittance deteriorate over time?
+ -

PALRAM's polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.
