PALSHIELD®

PALSHIELD® Bullet Resistant and containment glazing

Ballistic polycarbonate product line for a variety of applications

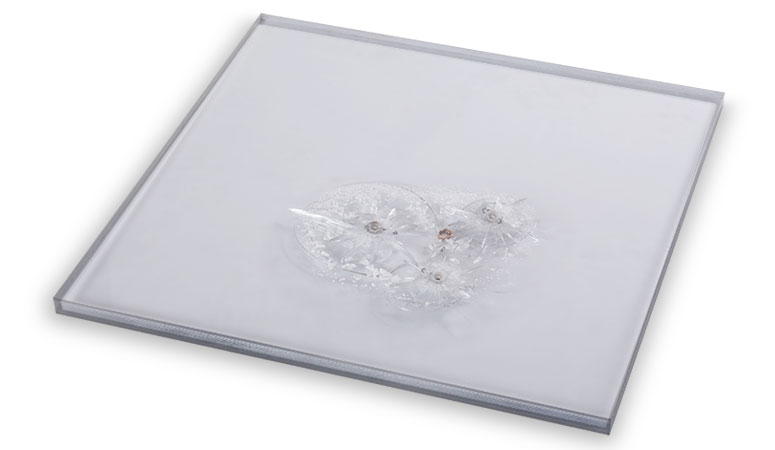

The PALSHIELD ballistic polycarbonate product line is available with different levels of ballistics and forced-entry protection to meet a variety of application needs. Due to their layered, laminated structure, PALSHIELD sheets can withstand both physical attacks and multi-shot ballistic assaults by absorbing impact energy without shattering or spalling.  PALSHIELD also features an abrasion-resistant coating, which ensures long-term clarity for applications in accessible public areas. Note that the information listed on the PALSHIELD sales sheet represents the Palram products that meet or exceed the various testing standards at the time of its printing. Please contact Palram for information about other test approvals that you may need.

Construction & ArchitectureConstruction & ArchitectureShieldingShielding

Main Benefits

  • No spall design

  • Abrasion resistant surface

  • Complies with various ballistic and forced entry standards

  • Low weight - nearly half the weight of glass-equivalents

  • Clear - good optical quality

  • Colors: clear, bronze, grey

Typical Applications

  • Security glazing in banks and government facilities

  • Public institutions

  • Gas stations and convenience stores

  • Drive-up windows

  • Ticket booths and kiosks

  • Law enforcement, prisons and detention centers

  • Industrial ballistic polycarbonate sheets

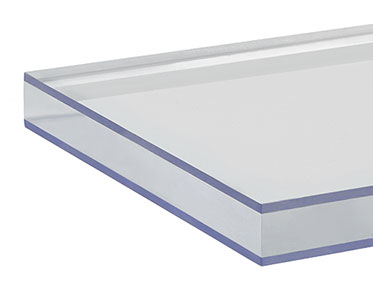

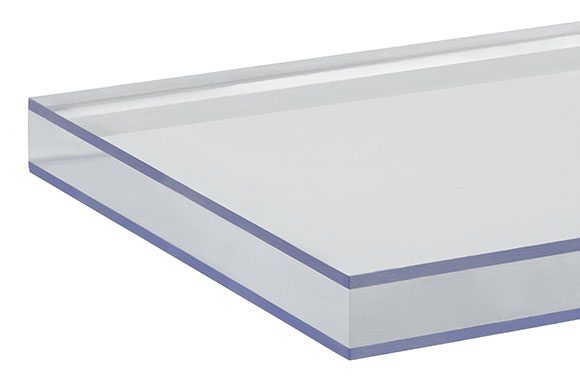

Reinforced, Layered Polycarbonate Structure

Reinforced, Layered Polycarbonate Structure

Projects

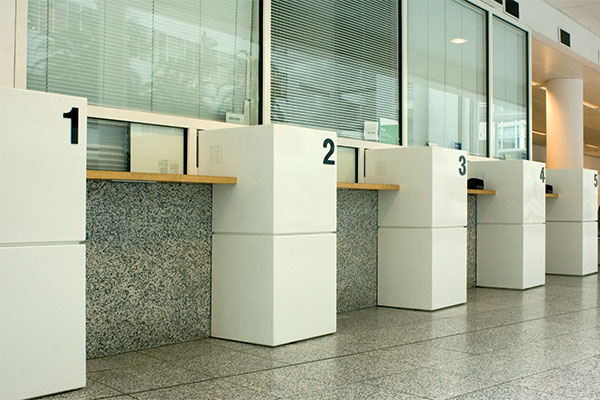

Bank Teller Windows

PALSHIELD can instill a greater level of confidence among bank tellers and employees, enabling them to focus on providing a great customer experience.

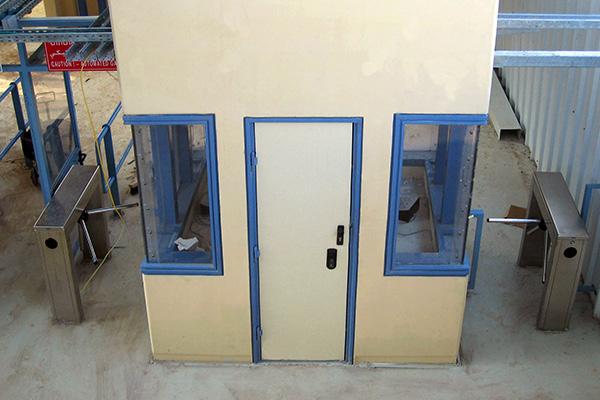

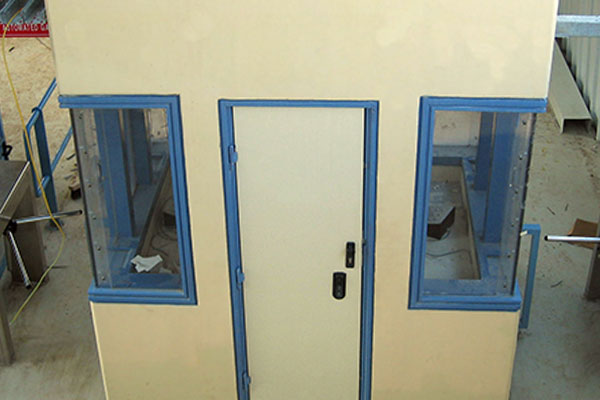

Security Kiosks and Check Points

Whether bullet-resistance or simply forced-entry protection is required, PALSHIELD ensures the safety of security personnel and communications systems.

Secure Window Glazing

Combined with the appropriate glazing profile designs, PALSHIELD can withstand extremely tough forced entry intrusion methods.

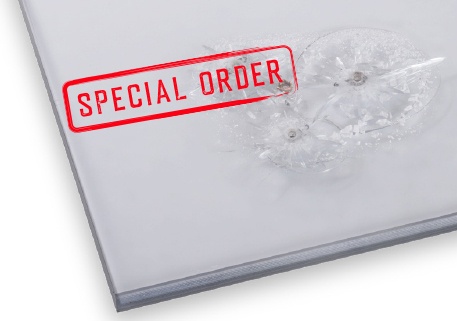

Special Order

This product is not stocked in South Africa, and requires a minimum order quantity.

Please contact us directly for more information.

Special Order

RELATED VIDEOS

PALSHIELD Bullet Proof Polycarbonate Sheet vs. Glock 17 9mm
PALSHIELD Bullet Proof Polycarbonate Sheet vs. Glock 17 9mm

This video includes a sneak peak of the bullet resistance acceptance tests for PALSHIELD bullet-proof secured glazing polycarbonate sheets, which are part of the development cycle.

Shooting Test of PALSHIELD Bullet-Proof Containment Glazing
Shooting Test of PALSHIELD Bullet-Proof Containment Glazing

This video shows the shooting test of PALSHIELD bullet-proof containment glazing.

PALSHIELD Containment & Bullet-Resistant Glazing – ASTM F1915 Impact Test
PALSHIELD Containment & Bullet-Resistant Glazing – ASTM F1915 Impact Test

This video shows PALSHIELD Containment & Bullet-Resistant Glazing – ASTM F1915 Impact Test, Part 1, 2 & 3.

Frequently Asked Questions

Can the percentage of light transmission be controlled? I need a lot of light but I need it to be diffused.
+ -

Palram offers various LT% parameters - from 0% to 90%. In addition, we offer a color called a “diffuser” that allows 85% of the light in while diffusing it by 100%. The result is a light-transmitting panel that is not transparent but is highly translucent.

PALCLEAR®PALGARD®PALGLAS®PALSUN®SUNLITE®SUNGLAS™SUNGLAZE®SUNPAL®
If polycarbonate sheets block UV radiation, why is there a "UV-side" that faces outwards?
+ -

Polycarbonate sheets block UV radiation by absorbing it. This absorption mechanism can cause degradation to the material, and to prevent this from happening, the sheet is coated with a special material.

For this reason, it is recommended that the sheets are installed with the marked UV protective layer facing outward. Moreover, most of the sheets are only protected on the side that is clearly marked as such.

PALSUN®SUNGLAZE®SUNLITE®SUNPAL®
Are there customized sizes of BULLETPROOF sheets?
+ -

Yes, BULLETPROOF is available in custom sheets of up to four square meters.

What is the protection level for ballistic?
+ -

For bullets, BULLETPROOF offers UL 752 protection up to level 6 — protection against automatic weapons firing pistol-caliber ammunition such as an Uzi sub-machine gun chambered in 9 mm.

What level of protection against forced entry can I expect from BULLETPROOF?
+ -

BULLETPROOF offers forced entry protection equivalent to ASTM F1915-05 Security Grade Level 1-3 — a standard developed to measure impact-resistant fittings in correctional facilities.

How do I clean the polycarbonate?
+ -

  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.

PALGARD®PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTOP®Suntuf DIY
What is the meaning of Shading Coefficient (SC)?
+ -

Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.

PALCLEAR®PALGARD®PALGLAS®PALSUN®SUNGLAS™SUNGLAZE®SUNLITE®SUNPAL®Suntuf DIY
Will polycarbonate light transmittance deteriorate over time?
+ -

PALRAM's polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.

PALGARD®PALOPAQUE™PALSUN®SUNGLAZE®SUNLITE®SUNPAL®Suntuf DIY
