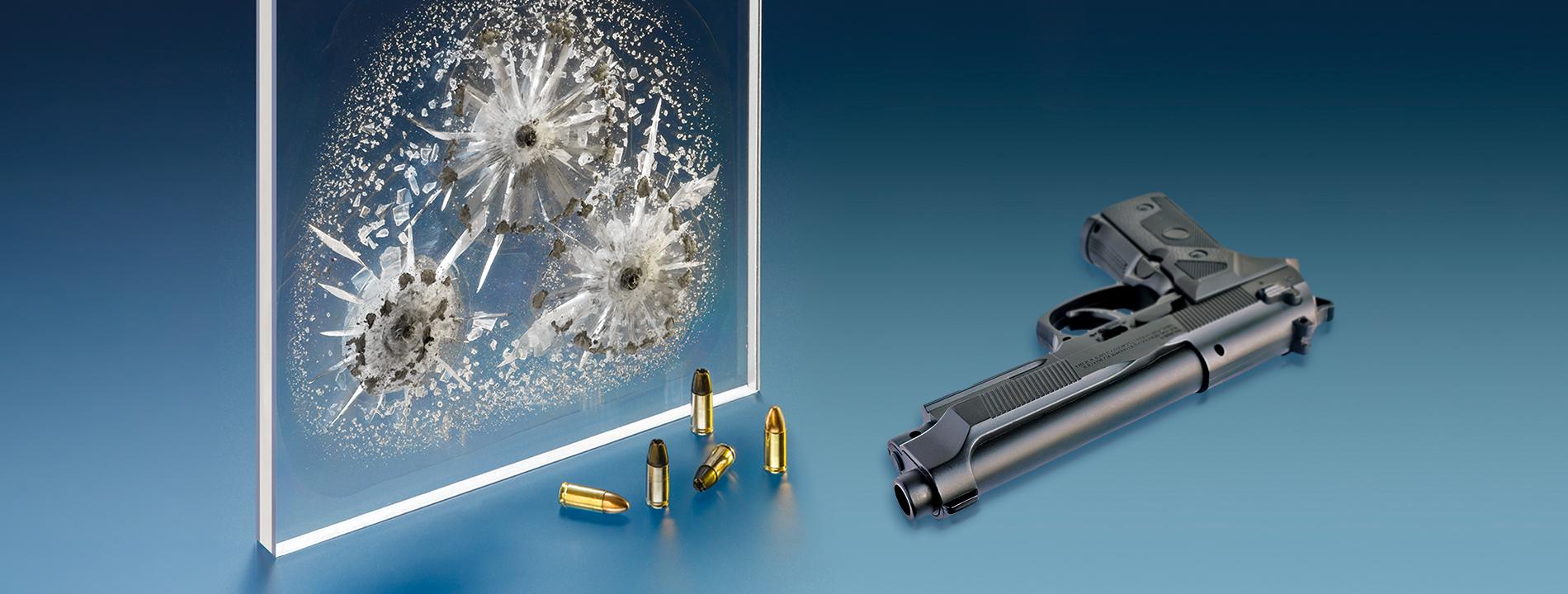

PALSHIELD® Пуленепробиваемая прозрачная панель

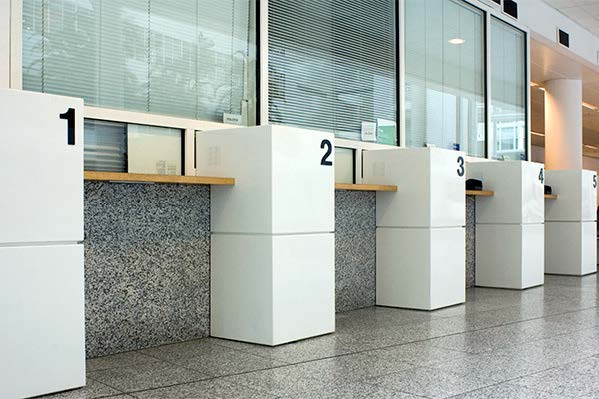

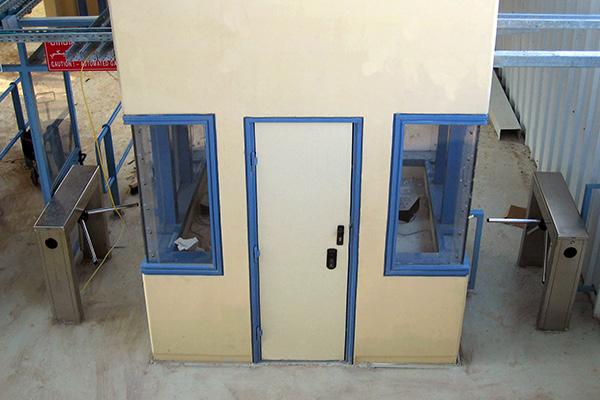

Ассортимент продукции из баллистического поликарбоната для различных применений

Линейка продуктов из баллистического поликарбоната PALSHIELD доступна с различными уровнями баллистики и защитой от принудительного проникновения для различных сфер  применения. Благодаря своей многослойной ламинированной структуре листы PALSHIELD могут противостоять как физическим атакам, так и множественным баллистическим атакам, поглощая энергию удара, не разрушаясь и не раскалываясь. PALSHIELD также имеет стойкое к истиранию покрытие, которое обеспечивает долговременную прозрачность. Обратите внимание, что информация, указанная в листе продаж PALSHIELD, представляет продукты Palram, которые соответствуют или превосходят различные стандарты тестирования на момент его печати. Пожалуйста, свяжитесь с Palram для получения информации о других протоколах испытаний, которые могут вам понадобиться.

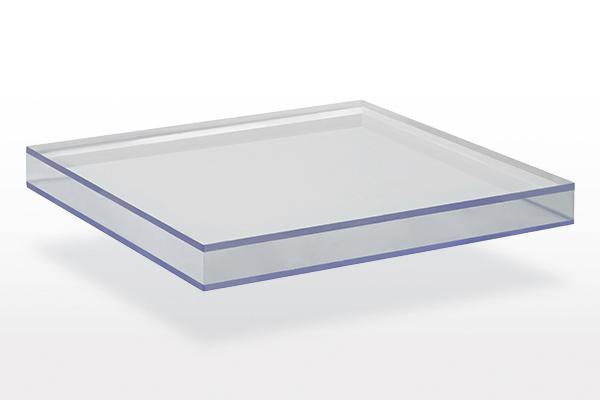

Reinforced, Layered Polycarbonate Structure

Reinforced, Layered Polycarbonate Structure

Downloads

File name
Size

PRODUCT DETAILS

Dimensions

PropertyUnitsValue
Thicknessmm19-32
Size*mm1220 x 2440
ColorsClear, Bronze, Grey



Dimensions Note*Other Sizes Are Available Upon Request, Subject To Minimum Quantity

Product Availability Note* Contains Acrylic N** Tested By An Acredited Independent Lab According To UL Specs.
Available Colors     Clear, Bronze, Gray

Typical Physical Properties

PropertyConditions (U.S. Customary)ASTM MethodUnits - SI U.S. Customary)Value (U.S. Customary)
Physical
DensityD-1505g/cm3 (lb/ft3)1.2 (75)
Water Absorption24 hr. @ 23°CD-570%0.15
Mechanical
Tensile strength at yield10 mm/min (0.4 in./min)D-638MPa (psi)62 (9
Tensile strength at break10 mm/min (0.4 in./min)D-638MPa (psi)65 (9500)
Elongation at yield10 mm/min (0.4 in./min)D-638%6
Elongation at break10 mm/min (0.4 in./min)D-638%110
Tensile Modulus of Elasticity10 mm/min (0.4 in. /min)D-638MPa (psi)2
Flexural Modulus1.3 mm/min (0.05 in./min)D-790MPa (psi)2
Flexural Strength at Yield1.3 mm/min (0.05 in./min)D-790MPa (psi)93 (13
Notch Impact Strength Izod23°C (73°F)D-256J/m (ft·lbf/in.)800 (15)
Notch Impact Strength Charpy23°C (73°F)D-256J/m (ft·lbf/in)800 (15)
Impact Falling Weight3 mm (0.12 in.) SheetISO-6603/1bJ (ft·lbf)158 (117)
Rockwell HardnessD-785R scale / M scale125 / 70
Abrasion (Taber Process)100 CyclesCS-10S Wheel500gD-1044
Compressive Strength1.3 mm/min (.05 in./min)D-695MPa (psi)86 (12
Compressive Modulus1.3 mm/min (.05 in./min)D-695MPa (psi)2378 (345
Shear strength at Yield1.3 mm/min (.05 in./min)D-732MPa (psi)41 (6000)
Shear strength at Break1.3 mm/min (.05 in./min)D-732MPa (psi)68 (10
Shear Modulus1.3 mm/min (.05 in./min)D-732MPa (psi)786 (114
Thermal
Long Term Service Temperature°C (°F)-75 to +100 (-175 to +212)
Short Term Service Temperature°C (°F)-75 to +120 (-175 to +250)
Heat Deflection TemperatureLoad: 1.82 Mpa (264 psi)D-648°C (°F)132 (270)
Vicat Softening TemperatureLoad: 1 kg (2.2 lb)D-1525°C (°F)150 (300)
Coefficient of Linear
Thermal ExpansionD-69610-5/°C (10-5/°F)6.5 (3.6)
Thermal ConductivityC-177W/m°K (Btu-in./hr-ft2-°F)0.21 (1.46)
Specific Heat CapacityC-351kJ/kg°K (Btu/lb°F)1.26 (0.31)
Optical
Light TransmissionD-1003%See Product Data Sheet
Refractive IndexClear SheetD-5421.59
Electrical
Dielectric Constant50 HzD-1503
1 MHzD-1502.9
Dissipation Factor50 HzD-1500.9
1 MHzD-15011
Dielectric Strength Short Time500 V/sD-149kV/mm (V/mil)>30 (>770)
Surface ResistanceKetleyD-257Ohm5.1x1015
Volume ResistanceKetleyD-257Ohm-cm1.3x1017



Forced Entry Ratings

Forced Entry ProductsStandardCompliance / RatingThickness (inches, mm)PliesLbs./ft2 (Kg/m²)Light Transmission
PALSHIELD FE 375ASTM F1915-0Security Grade Level 20.375″ (9.5mm)22.4 (11.7)86%
PALSHIELD FE 500ASTM F1915-05Security Grade Level 20.500″ (12.7mm)33.3 (16.1)83%
PALSHIELD FE 500HPW 0500.03Level A ballistics (.38 special)0.500″ (12.7mm)33.3 (16.1)83%
PALSHIELD FE 750ASTM F1915-05Security Grade Level 10.750″ (19mm)34.9 (23.9)77%
PALSHIELD FE 750HPW-TP-0500.00Level B Balllistics (9mm)0.750″ (19mm)34.9 (23.9)77%



Ballistic Ratings

Ballistic ProductsStandardCompliance / RatingThickness (inches, mm)PliesLbs./ft2 (Kg/m²)Light Transmission
PALSHIELD UL1-750*UL 752Level 1 u2020 - 9mm 3 shots.750″ (19mm)34.9 (23.9)88%
PALSHIELD UL2-1000UL 752Level 2 u2020 - .357 3 shots1.0″ (25.4mm)46.5 (31.7)72%
PALSHIELD UL3-1250UL 752Level 3 u2020 - .44 Mag 3 shots1.25″48.1 (39.5)67%
PALSHIELD UL3-1250ASTM F1915-05Security Grade 11.25″48.1 (39.5)67%
PALSHIELD UL3-1250ASTM 1233-08Class V (Body)1.25″ (32mm)48.1 (39.5)67%
PALSHIELD UL6-1250*UL 752Level 6 u2020 - High Velocity 9mm 5 shots, Supplemental shotgun 1 shot1.25″ (32mm)48.1 (39.5)78%

Ballistic Ratings Note     * Contains Acrylic U2020 Tested By An Acredited Independent Lab According To UL Specs.



Testing Standard Reference and Description

Testing Standard ReferenceStandard and YearTitle / Description
ASTMF1233-08Standard Test Method for Security Glazing Materials and Systems
ASTMF1915-05Standard Test Method for Glazing for Detention Facilities
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
UL752Bullet Resistant Equipment

Regulatory Code Compliance Certification

OrganizationStandardClassification
ANSIZ97.1-09Approved Impact and Weathering
CPSC16 CFR 1201Category I or II
