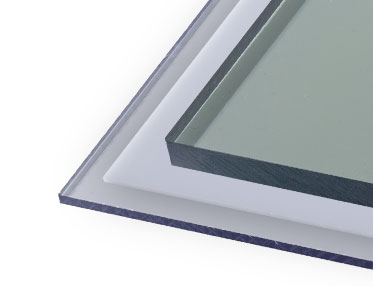

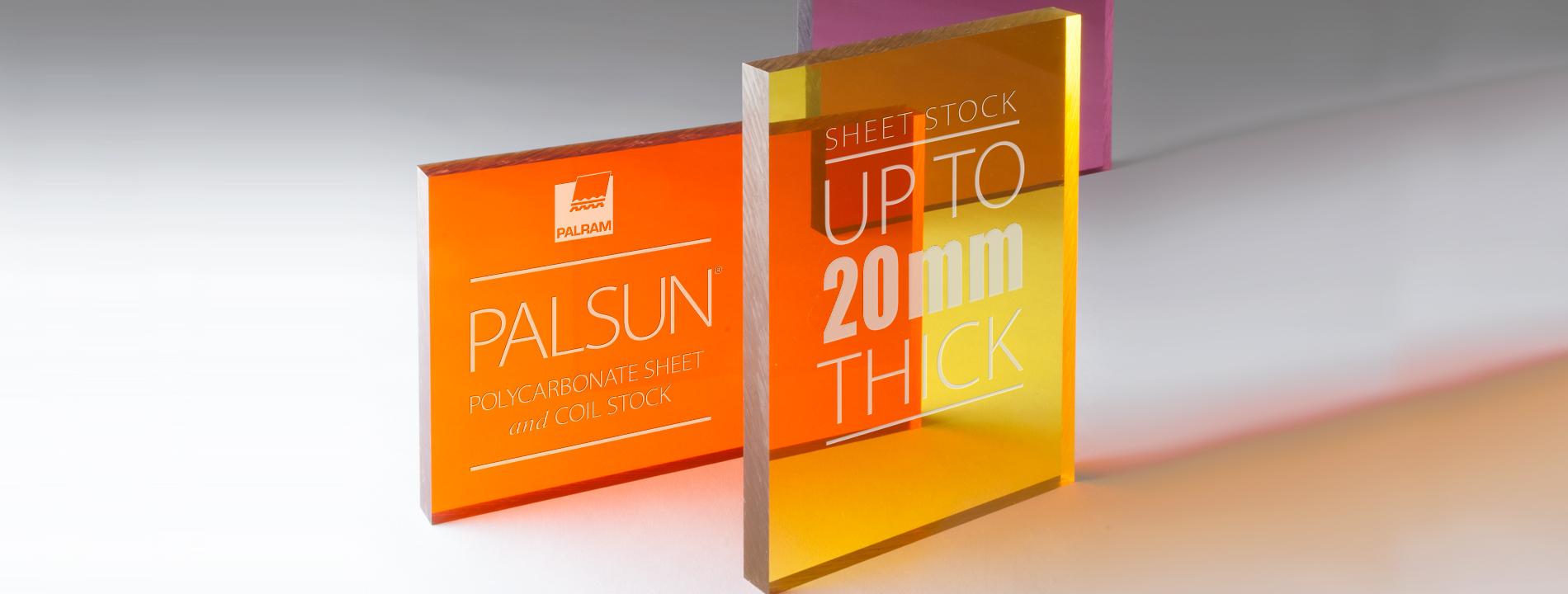

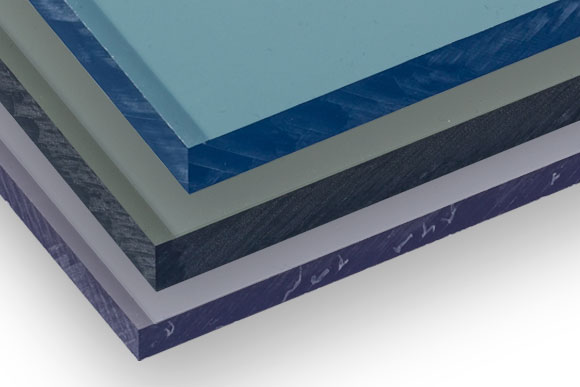

PALSUN® Flat Solid Polycarbonate Sheets

Widest range of clear flat polycarbonate roof panels, glazing and sign & display solutions

For over 35 years, Palram has steadily expanded its portfolio of PALSUN polycarbonate products for a variety of markets.
Flat solid polycarbonate sheets are an excellent solution for a wide range of applications.
PALSUN clear flat polycarbonate sheets are 200 times stronger than glass, but with less than half the weight. PALSUN offers extraordinary impact resistance and durability, and is available in a range of tints and clarity from glass-like clear polycarbonate sheets, to opaque, translucent or colored sheets with varying levels of clarity and light transmission and diffusion. Palram's SolarSmart™ technology provides selective solar transmittance, breaking the traditional ratio between light and heat build-up.
Millions of square meters of PALSUN has been installed around the world in projects that surpass the imagination.
PALSUN’s impact strength, easy fabrication, and excellent ink adhesion also make it an ideal solution for digital printing, displays, thermoformed signs, and backlit and illuminated signage.

Sign & DisplaySign & DisplayConstruction & ArchitectureConstruction & ArchitectureFabricationFabricationShieldingShielding

Main Benefits

  • 200 times stronger than glass, less than half the weight; stronger and lighter than aluminum
  • Ideal for use as safety glazing or vandalism protection
  • Available with 1 or 2 sided co-extruded UV protection for improved durability
  • Available in clear, with up to 90% light transmission; tinted, colored, or embossed for a variety of light transmission & light diffusion options
  • Withstands blunt force pounding

  • Withstands nature’s most extreme hot and cold climates
  • Protects people, plants, furniture and other objects from UV exposure
  • Provides good thermal insulation, considerably better than glass or aluminum
  • Resists various chemicals and other substances
  • Easy to mount, work with, and install
  • Excellent ink adhesion and print quality
  • Flexible, formable, machinable; hot/cold bend or thermoform it into an unlimited range of shapes

Typical Applications

PALSUN Basic Series
PALSUN Basic Series

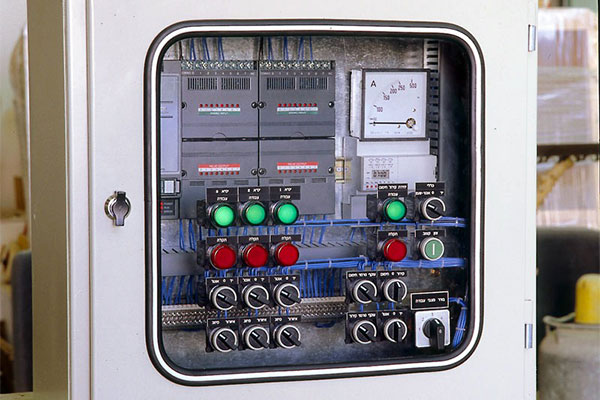

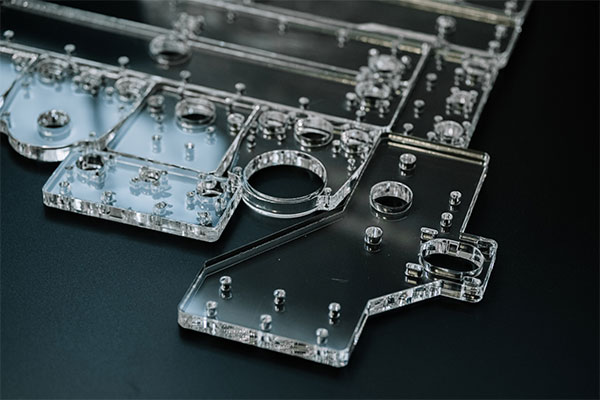

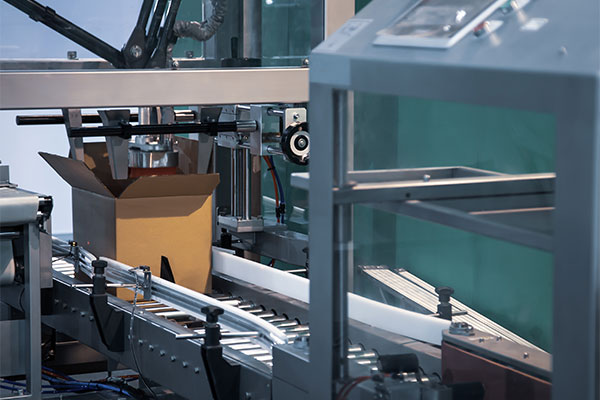

• Interior Safety Glazing & Machine Guards • Fabricated Parts • POP Displays • Ideal for Sign Face • Sound barriers
Read all about it
PALSUN UV Series
PALSUN UV Series

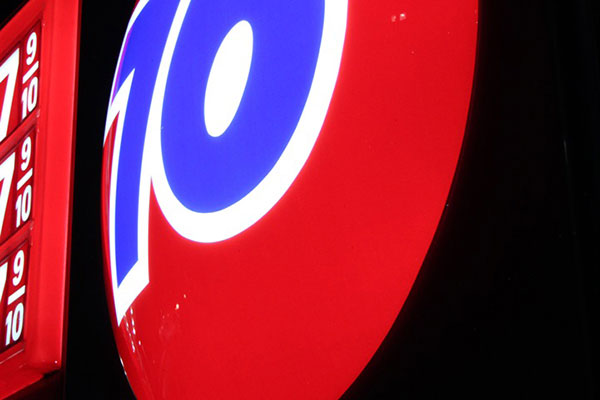

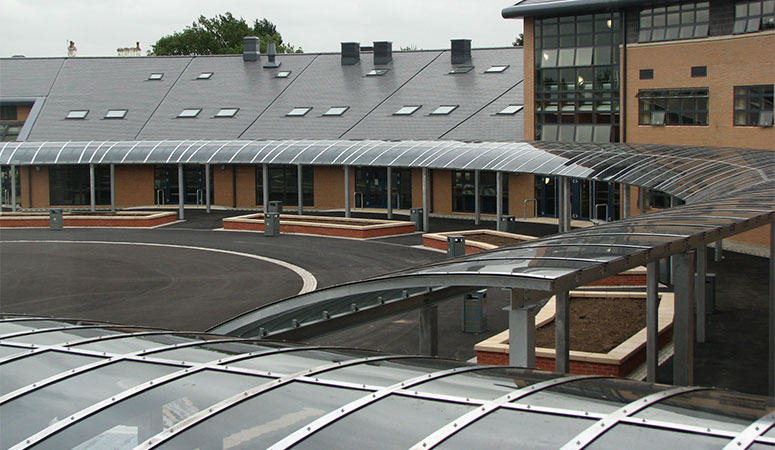

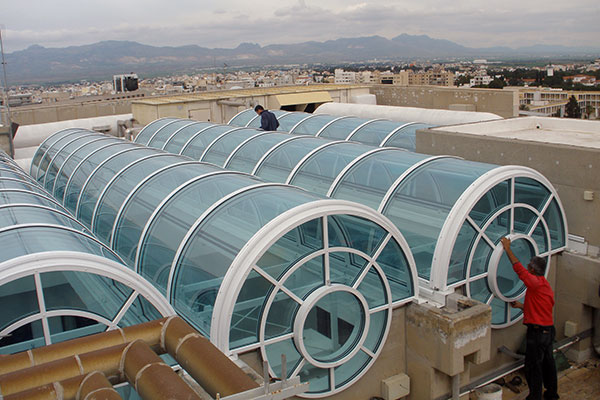

• Exterior Flat & Thermoformed Sign Faces • Skylights and Architectural Glazing • Outdoor Enclosures • Flat Polycarbonate Roofing • Acoustic Barriers
Read all about it

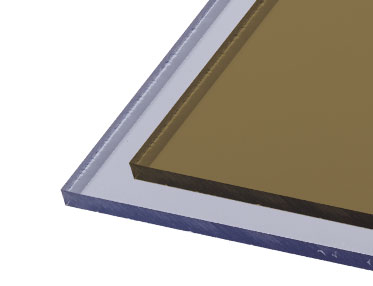

PALSUN Specialty Sheet Series
PALSUN Specialty Sheet Series

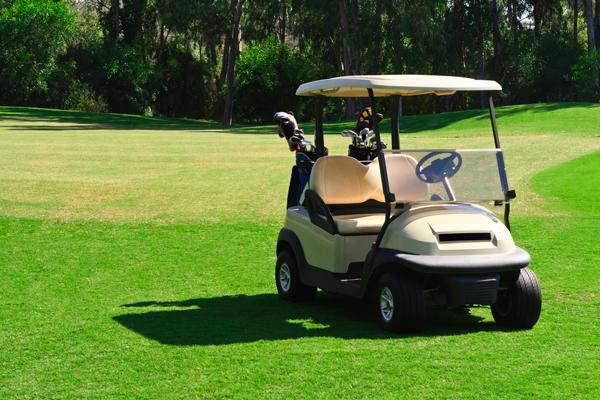

• Windshields for Golf Carts & Low-speed Vehicles • Glazing in Boats, Trains, Buses, Military Vehicles, & Planes • Safety & Security Glazing
Read all about it

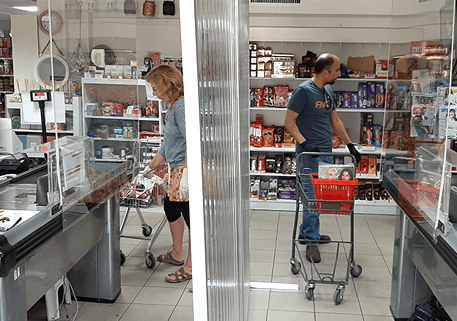

Protective Partitions and Barriers to Fight the Spread of Infectious Diseases

The need for protective sheets, partitions, and barriers to fight the spread of infectious diseases continues to grow. Sneeze guards and checkout partitions are in high demand within grocery stores, retail establishments, healthcare facilities and other public spaces.

Palram's PALSUN® clear, monolithic polycarbonate provides:

  • High clarity, light transmission and visibility
  • Lighter weight than monolithic sheet
  • Simple to handle, cut and install
  • Self-extinguishing
  • Easy to clean & disinfect

Learn More

Protective Partitions and Barriers to Fight the Spread of Infectious Diseases

APPLICATIONS

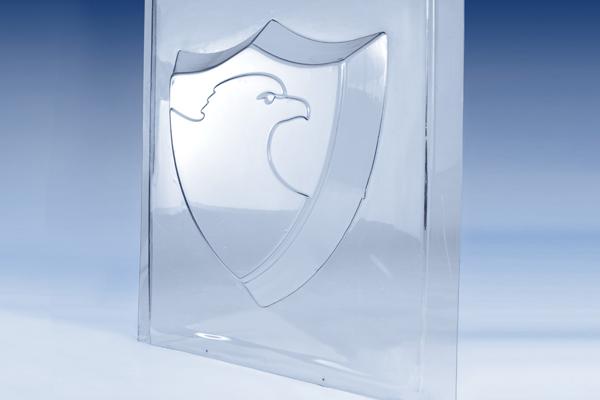

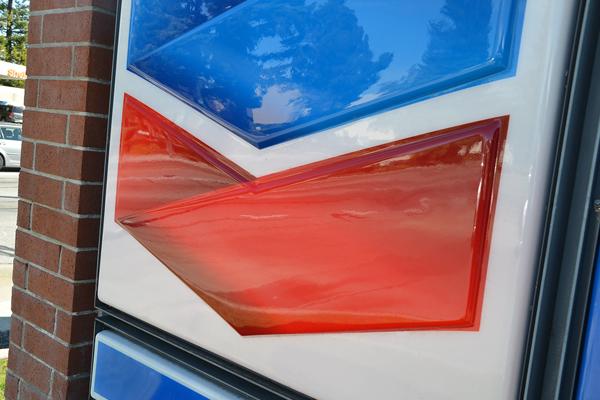

SIGNS & DISPLAYS
SIGNS & DISPLAYS

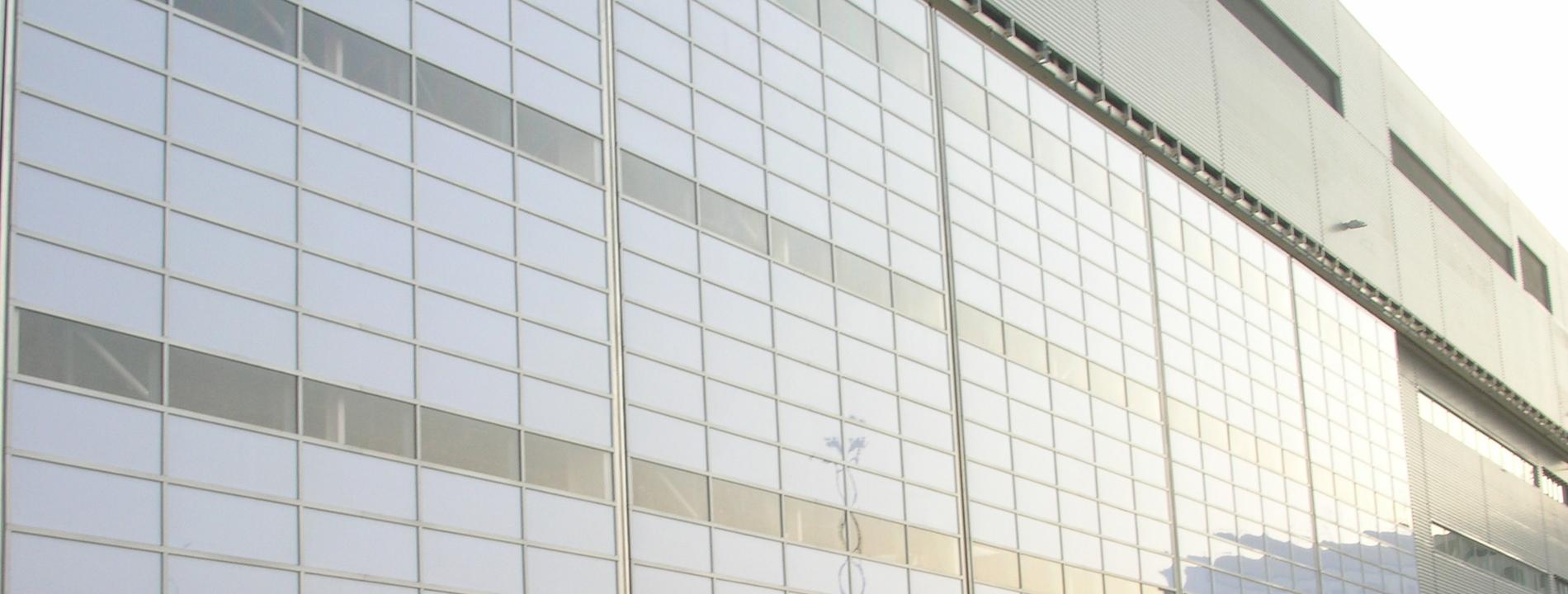

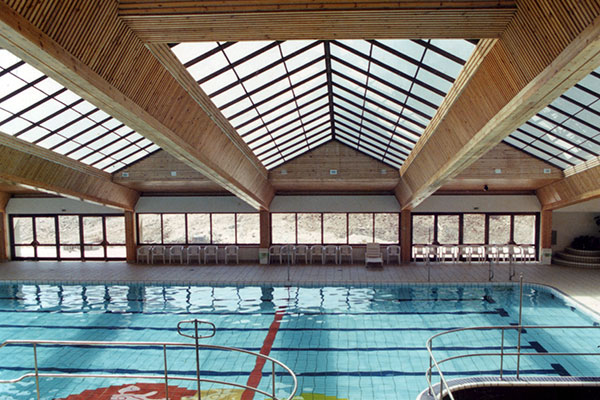

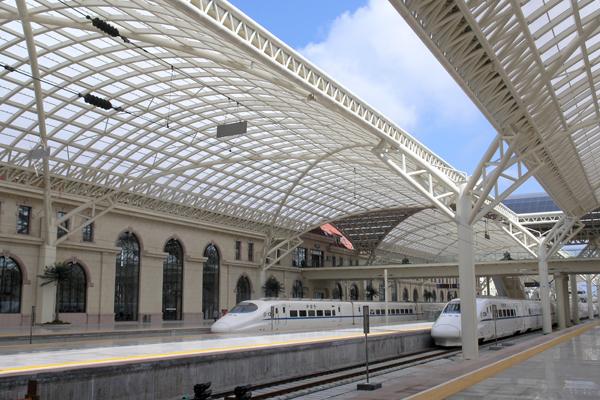

CONSTRUCTION & ARCHITECTURE
CONSTRUCTION & ARCHITECTURE

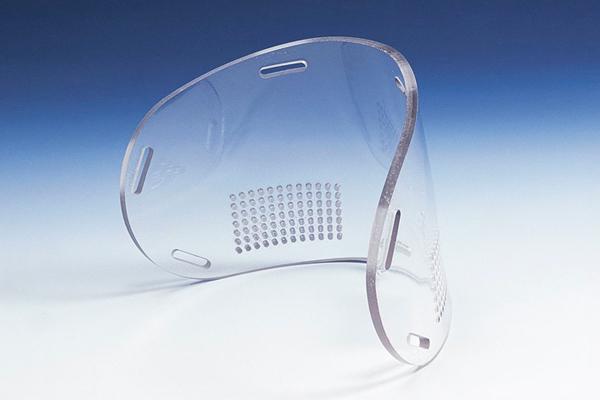

FABRICATION
FABRICATION
TRANSPORTATION
TRANSPORTATION

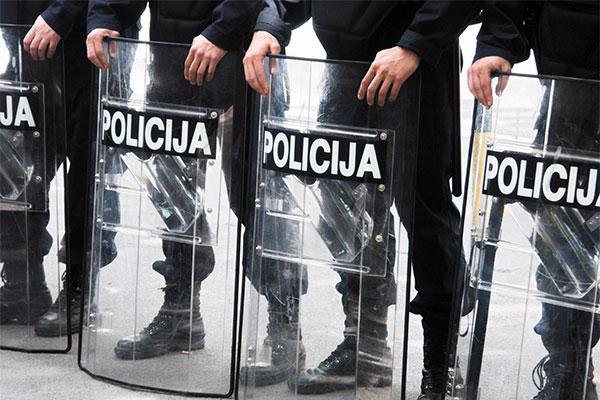

SAFETY & SECURITY
SAFETY & SECURITY

Related Articles

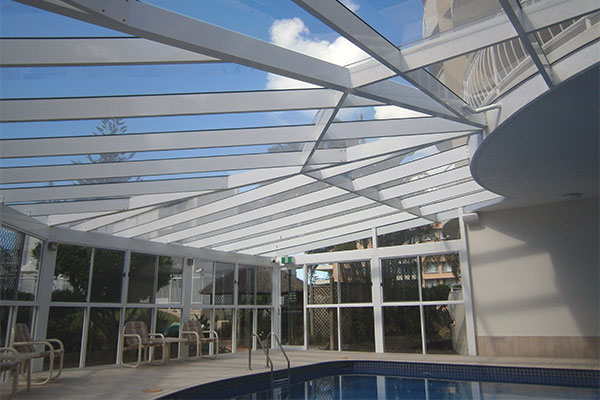

PALSUN Pool Cover Gold Coast, Queensland, Australia
PALSUN Pool Cover Gold Coast, Queensland, Australia
Palram’s PALSUN polycarbonate flat sheets were chosen to boost daylighting, views and performance for a residential pool cover. Impact resistance was a key issue as the cover needs to withstand the impact of windblown and falling objects.
Read all about it

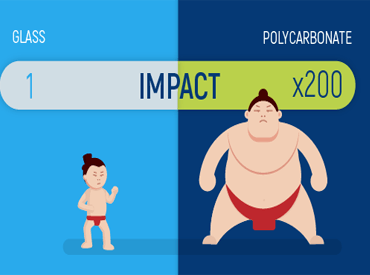

A Handy Comparison Between Flat Solid Polycarbonate Sheet And Glass
A Handy Comparison Between Flat Solid Polycarbonate Sheet And Glass
Deciding whether to use glass or polycarbonate is about more than just aesthetics. While polycarbonate is versatile enough to meet a variety of design challenges, it’s also extremely strong, provides effective insulation against heat
Read all about it
Polycarbonate Glazing that Controls Heat & Light Transmission: SolarSmart
Polycarbonate Glazing that Controls Heat & Light Transmission: SolarSmart
Palram's SolarSmart technology resists the standard transmission of solar energy in transparent sheets and allows for more versatile color and solar transmission specification per project.
Read all about it

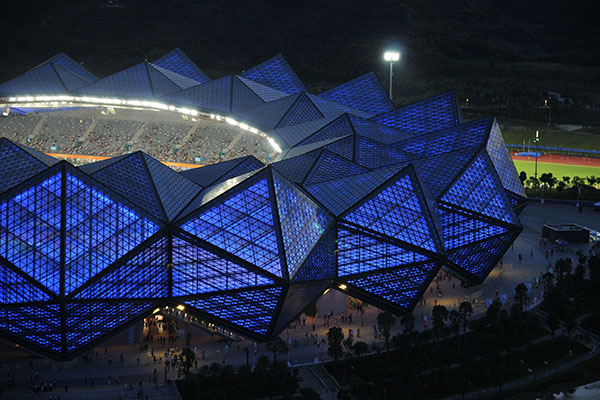

SHENZHEN UNIVERSIADE STADIUM - PALRAM PROJECTS TEAM

Palram supplied PALSUN flat solid polycarbonate glazing for the main stadium of the Shenzhen Universiade complex, along with engineering solutions and support. At the time when the project was completed, the Shenzhen Universiade main stadium had the largest polycarbonate roof installation in the world.

SHENZHEN UNIVERSIADE STADIUM - PALRAM PROJECTS TEAM

DOWNLOADS

File name
Size
PALSUN Leaflet (En).pdfPALSUN Leaflet (En).pdf
144 KB
BioBase Polycarbonate Products (En).pdfBioBase Polycarbonate Products (En).pdf
870 KB
Flat Sheets Application Catalog (En).pdfFlat Sheets Application Catalog (En).pdf
5 MB
PALRAM Make A Difference (En).pdfPALRAM Make A Difference (En).pdf
6 MB
PALSUN CS Films Leaflet (En).pdfPALSUN CS Films Leaflet (En).pdf
194 KB
PALSUN Solar Transmission Properties (En).jpgPALSUN Solar Transmission Properties (En).jpg
152 KB
PALSUN_En_Brochure_61303.pdfPALSUN_En_Brochure_61303.pdf
1 MB
Palram Covid Product Selection Guide (En).pdfPalram Covid Product Selection Guide (En).pdf
1 MB
Palram Transparent Acoustic Barriers (En).pdfPalram Transparent Acoustic Barriers (En).pdf
4 MB
How To Specify Polycarbonate Sheeting (En).pdfHow To Specify Polycarbonate Sheeting (En).pdf
645 KB
PALRAM Polycarbonate Adhesives and Sealants (En).pdfPALRAM Polycarbonate Adhesives and Sealants (En).pdf
169 KB
PALRAM Polycarbonate Chemical Resistance (En).pdfPALRAM Polycarbonate Chemical Resistance (En).pdf
181 KB
PALSUN Technical Guide (En).pdfPALSUN Technical Guide (En).pdf
1 MB
Palram Minimum cold bending radius Tables (En).pdfPalram Minimum cold bending radius Tables (En).pdf
88 KB
Palram Product Safety Data Sheet Polycarbonate (En).pdfPalram Product Safety Data Sheet Polycarbonate (En).pdf
84 KB
Polycarbonate Care and Maintenance (En).pdfPolycarbonate Care and Maintenance (En).pdf
69 KB
Palram Architectural Projects Portfolio (En).pdfPalram Architectural Projects Portfolio (En).pdf
12 MB

PRODUCT DETAILS

Dimensions

Standard Dimensions and Surface Finishing Options*

Thickness (mm)Width x Length (mm)Smooth Both sidesEmbossed Both sidesMatte One sideHair Cell One sidePrismatic One side
11220 x 2440✔
✔
1.51250 x 2440✔
✔
✔
21220 x 2440, 1250 x 2440, 2050 x 3050✔
✔
✔
2.5 - 61220 x 2440, 1250 x 2440, 2050 x 3050✔
✔
✔
✔
✔
81220 x 2440, 1250 x 2440, 2050 x 3050✔
✔
✔
9 - 12.71220 x 2440, 1250 x 2440, 2050 x 3050✔
✔
2-182450 x 3050✔
Standard Dimensions Note           *Other Dimensions Are Available Upon Request, Subject To A Minimum Order.

Product Range

RangeProductDescription
BasicPalsun® Basicu2122UV Stabilized general purpose polycarbonate sheet
UVPalsun® UV1Co-extruded UV protection on one side for exterior applications
UVPalsun® UV2Co-extruded UV protection on both sides for exterior applications

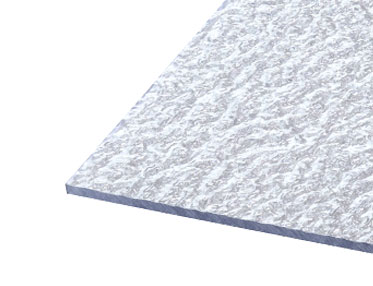

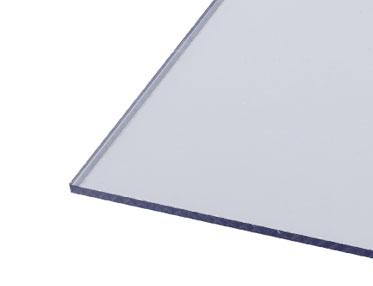

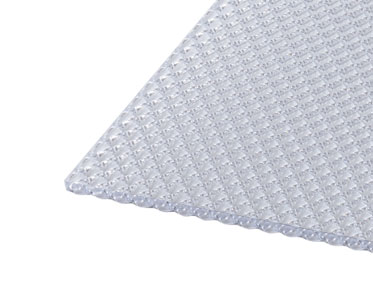

UVPalsun® Embossed*Embossed surface (E102, prismatic, hair cell)

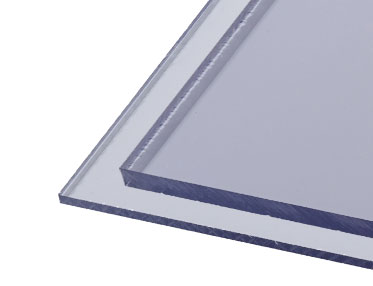

UVPalsun® FR*Fire retardant, with higher fire resistant rating

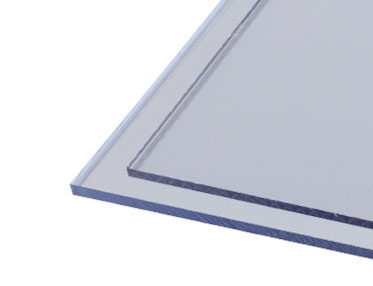

UVPalsun® Matte*Matte finish on one side
UVPalsun® SG WhiteHigh diffusion for sign grade applications

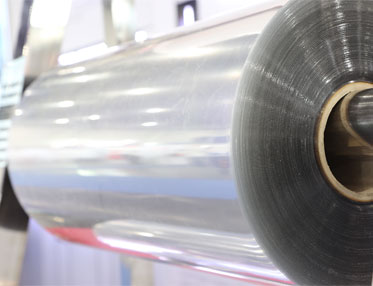

UVPalsun® CSCoil stock on rolls (Clear and SG White standard)
UVPalsun® FoamFlat foamed polycarbonate sheet, UV protected on one side

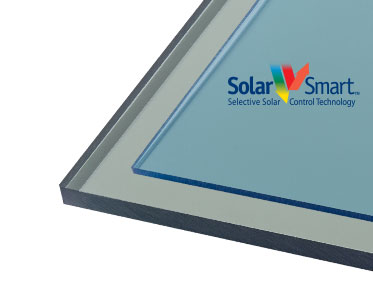

Solar Smart UVPalsun® Solar Control*Efficient heat-blocking with metallic appearance
Solar Smart UVPalsun® Smart*See-through sheet with advanced heat-blocking
SpecialtyPalsun® Basic FR**Fire retardant, with elevated Relative Thermal Index (RTI) values
SpecialtyPalsun® OGOptical grade sheet
SpecialtyPalgard®Abrasion resistant on one or both sides
SpecialtyPalgard® TGTransportation grade (meets specific transportation codes)
SpecialtyPalshieldu2122Containment and bullet resistant glazing
Product Range Note         *With Co-Extruded UV Protection On One Or Both Sidesn** Available In 2mm And 2.36mm For Applications Without Direct UV Exposure

Typical Width Dimensions

TypeDimensions
Available Widths x Lengths48'' X 96'', 60'' x 96'', 72'' x 96'' and 80'' x 120''
Available Thicknesses0.03'' to 0.50''

Typical Width Dimensions Note          * Custom Width - Run To Size, In Thicknesses 0.03″ To 0.67″

Colors & Finishes

Standard Color chart

Type:*Colors

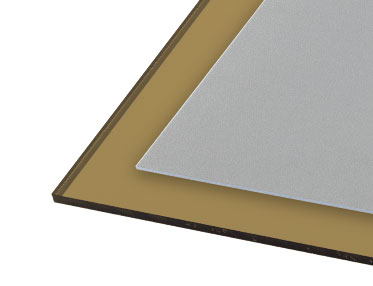

TransparentClear, Grey, Bronze, Red, Blue, Green, Smart Green, Smart Blue, Bluish Breeze

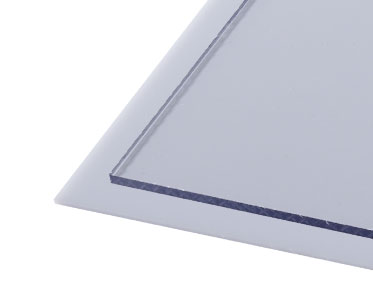

TranslucentYellow, Red, Mint Green, White Opal, White Diffuser, Light Box, Solar Ice, Solar Olympic, Solar Control

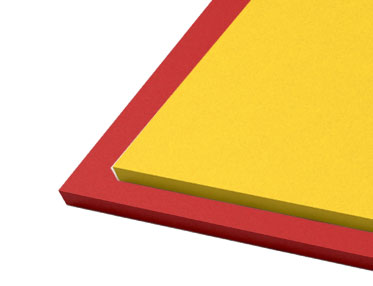

OpaqueDark Green, Red Brick, Black, Dark Blue, Cream, Light Grey, Dark Grey, Brown, Off White
Standard Color Text
  • *Custom Colors And Solar Transmissions Are Available Upon Request, Subject To A Minimum Order
Solar Smart Colors Note
  • *Significant Minimum Order Requirements May Apply For Some Colors Listed. Custom Colors Available Upon Request; Please Contact Your Palram Representative Or Agent For Additional Details And Minimums. N** Solar Smart

Physical Properties

Typical Physical Properties

PropertyMethod*ConditionsUnitsValue
Density(D-792)g/cm31.2
Heat Deflection Temperature (D-648)Load: 1.82 MP°C130
Service Temperature - Short Term°C-50 to +120
Service Temperature - Long Term°C-50 to +100
Coefficient of Linear Thermal Expansion(D-696)mm/m °C0.065
Thermal Conductivity(C-177)W/m K0.21
Tensile Strength at Yield(D-638)10 mm/min.MPa65
Tensile Strength at Break(D-638)10 mm/min.MPa60
Elongation at Yield(D-638)10 mm/min.%6
Elongation at Break(D-638)10 mm/min.%>90
Tensile Modulus of Elasticity(D-638)1 mm/min.MPa2300
Flexural Strength(D-790)1.3 mm/min.MPa100
Flexural Modulus(D-790)1.3 mm/min.MPa2600
Impact Falling Weight(ISO 6603/1 E50)3mm sheetJ158
Rockwell Hardness(D-785)R Scale125R
Light Transmission(D-1003)3mm clear sheet%90
Haze(D-1003)3mm clear sheet%<0.5
Yellowness Index(D-313)3mm clear sheetYI<1
Typical Physical Properties Notes           * ASTM Except Where Noted.

Technical Data

Flammability

StandardClassification*
EN13501B, s1, d0
BS 476/7Class 1
NFP 92501M/2
UL ClassifiedV2 (File e221255)
ASTM D-635CC1

Flammability Notes          * Depends On Thickness. For Additional Information Please Contact Your Palram Distributor.

FR Flammability

OrganizationStandardClassification
ASTMD-2863-87L.O.I. = 30
ULUL 94V-0
AU1530.3-1982Ignitability Index = 9,Spread of Flame Index = 8, Heat Evolved Index = 10, Smoke Developed Index = 8
FR Flammability Note           * Depends On Thickness. For Additional Information Please Contact Your Palram Distributor.

Regulatory Code Compliance Certification

OrganizationStandardClassification
ULSAM File # E336663Rigid Sign Face Material
ULUL972Pass
Miami Dade CountyNOA # 15-1207.07Approved Plastic
ANSIZ97.1-09Impact and Weathering
ICCIBC Section 2606.4Light Trans. Plastic
ICCIBC Section 803.1Interior Finish
CCMCNBC 2010 (Canopy Covering)Compliant (CCMC Eval. Rep. 13450-R)

Palsun Fr Flammability Notes          *0.177″ Thru 0.50″ **0.040 (1mm) Thickness Available With Class A Rating ***Depends On Thickness

Related Products

PALOPAQUE™
PALOPAQUE™

PALBOARD™
PALBOARD™

PALIGHT®
PALIGHT®

PALCLEAR®
PALCLEAR®

PALGLAS®
PALGLAS®

Frequently Asked Questions

What are three-dimensional or 3D logo signs?
+ -

3D letters and/or 3D logos are made of plastic, metal or foam. They reinforce an upscale image and create a clear highlighted message. These signs can be illuminated when required.

PALGLAS®PALIGHT®PALOPAQUE™PUBL — New Product Page Example
How do I curve the polycarbonate to follow the façade curve?
+ -

All Palram polycarbonate products can be cold bent onsite during installation, subject to a minimum radius. The radius varies based on the chosen product. For flat sheets such as PALSUN & SUNLITE, the rule-of-thumb for the minimum radius is the thickness multiplied by 200. Please check the Palram catalog for more detailed specifications.

PALGARD™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTOP®SUNTUF®SUNTUF DIYSUNTUF® PLUSPUBL — New Product Page Example
How do I specify the required thickness of the polycarbonate glazing material?
+ -

The recommended thickness of the polycarbonate glazing material is based on factors such as wind & snow load, panel size, and boundary conditions. Visit the Palram website for access to calculators that can help you determine the recommended thickness.

PALGARD™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTOP®SUNTUF®SUNTUF DIYSUNTUF® PLUSPUBL — New Product Page Example
How do I reduce the heat build-up coming from the façade into the building?
+ -

In order to reduce heat build-up through the façade, Palram strongly recommends the use of its tinted SolarSmart™ panels. SolarSmart™ tints can be implemented in all Palram polycarbonate products. For more information, reference the Palram SolarSmart™ technology page.

PALGARD™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF®SUNTUF DIYSUNTUF® PLUSPUBL — New Product Page Example
How do I create a double skin glazing solution for façades and curtain walls?
+ -

Flat solid or multiwall sheets can be glazed in double skin applications using standard aluminum curtain wall profiles and EPDM gaskets. The SUNPAL system can be installed in a double skin application with a special aluminum profile provided by Palram.

PALGARD™SUNLITE®SUNGLAZE™SUNLITE® PLUSSUNPAL®PUBL — New Product Page Example
Can flat solid polycarbonate be installed in a similar manner to glass in curtain wall applications?
+ -

PALSUN can be installed with standard curtain wall aluminum glazing profiles and EPDM gaskets (similar to glass), or spider fixing spaced with approximately 400 mm centers. However, it cannot be used with structural silicone and PALGARD (PALSUN) with anti-scratch coating is the recommended substitute in this case.

PALGARD™SUNGLAZE™
Should products be pre-dried before thermoforming?
+ -

This depends on the production date and storage conditions of the product before thermoforming. It is recommended to check the product before thermoforming is attempted.

PALCLADPALCLEAR®PALGARD™PALGLAS®PALIGHT®PALOPAQUE™SUNGLAS™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®
Is the PE film suitable for thermoforming applications?
+ -

Most of Palram's products that are delivered with PE film covering are suitable for thermoforming. In general, we recommend using clear PE and not printed PE.

PALCLADPALCLEAR®PALGARD™PALGLAS®PALIGHT®PALOPAQUE™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®
What is the minimum allowed bending radius of polycarbonate?
+ -

The minimum allowed bending radius of the polycarbonate is 200 times the thickness of the sheet, for example, a 2 mm sheet has a minimum 400 mm bending radius.

PALGARD™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNTOP®SUNTUF®SUNTUF DIYSUNTUF® PLUS
How do I install flat solid or multiwall polycarbonate sheets as skylights?
+ -

Flat solid or multiwall polycarbonate sheets need to be installed with designated aluminum profiles when used as a skylight.

SUNGLAZE™SUNLITE®SUNPAL®
Can the percentage of light transmission be controlled? I need a lot of light but I need it to be diffused.
+ -

Palram offers various LT% parameters - from 0% to 90%. In addition, we offer a color called a “diffuser” that allows 85% of the light in while diffusing it by 100%. The result is a light-transmitting panel that is not transparent but is highly translucent.

PALCLEAR®PALGARD™PALGLAS®PALSHIELD™SUNGLAS™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF®SUNTUF DIYSUNTUF® PLUS
If polycarbonate sheets block UV radiation, why is there a "UV-side" that faces outwards?
+ -

Polycarbonate sheets block UV radiation by absorbing it. This absorption mechanism can cause degradation to the material, and to prevent this from happening, the sheet is coated with a special material.

For this reason, it is recommended that the sheets are installed with the marked UV protective layer facing outward. Moreover, most of the sheets are only protected on the side that is clearly marked as such.

PALSHIELD™SUNGLAZE™SUNLITE®SUNPAL®SUNTUF®
How do I design the secondary steel support spacings for roofing/siding?
+ -

Palram created specific loading tables for each product. Please visit our website and download the specific catalog.

AG-TUF® CORRUGATED PVCPALGLAS®PALRUF®PALTOP™SUNGLAS™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTOP®SUNTUF®SUNTUF DIYSUNTUF® PLUS
How do I clean the polycarbonate?
+ -

  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.

PALGARD™PALSHIELD™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTOP®SUNTUF®SUNTUF DIYSUNTUF® PLUS
What is the meaning of Shading Coefficient (SC)?
+ -

Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.

PALCLEAR®PALGARD™PALGLAS®PALSHIELD™SUNGLAS™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF®SUNTUF DIYSUNTUF® PLUS
When should I use multiwall polycarbonate and when solid polycarbonate?
+ -

Multiwall polycarbonate should be used when the key design parameter is thermal insulation. Solid polycarbonate should be used when the key design parameter is acoustic insulation and glass-like appearance.

PALIGHT®SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF® PLUS
What is the difference between multiwall and solid polycarbonate?
+ -

Multiwall is a multi-cell structured sheet. Due to its multi-cell structure, it has superior thermal insulation and low area weight.

SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF®SUNTUF® PLUS
When should I specify a matte surface finish for the polycarbonate?
+ -

A matte surface finish is good if you want to avoid glare within your surroundings.

PALGARD™SUNGLAZE™SUNLITE®SUNPAL®SUNTUF®SUNTUF DIY
How do I determine the color, Light Transmission (LT) and haze properties of polycarbonate?
+ -

This decision depends on the application – some of the colors are transparent and some are translucent. If a see-through material is needed, then haze should be smaller than 1% and the LT% should be based on the illumination design. If a translucent effect is needed, then the haze should be 100% and the LT% based on the chosen color.

PALGARD™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF®SUNTUF DIYSUNTUF® PLUS

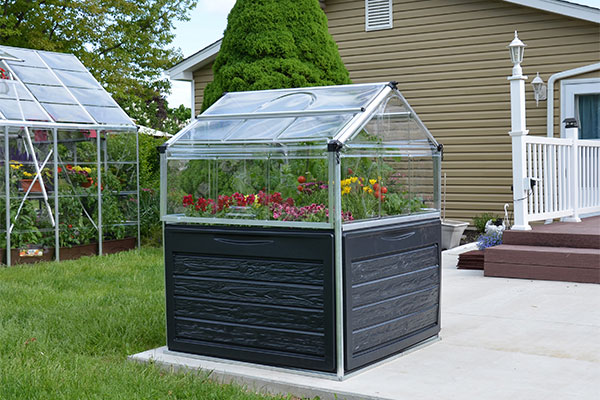

Can I cover my old polyethylene greenhouse with polycarbonate while still keeping the old structure?
+ -

Yes, but with minor reinforcements to the structure in order to support the load.

SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF®SUNTUF DIYSUNTUF® PLUS
Will polycarbonate light transmittance deteriorate over time?
+ -

PALRAM's polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.

PALGARD™PALOPAQUE™PALSHIELD™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®SUNTUF®SUNTUF DIYSUNTUF® PLUS
Which of Palram's sheets are suitable for printing, sign & display applications?
+ -

For use in illuminated signage, PALSUN, PALSUN CS (Coil Stock) and PALGLAS are suitable for the sign face; and PALBOARD, PALOPAQUE, and PALIGHT for the body of the letters or symbols. For print & display, Palram's entire product portfolio can be used based on the specific application. This choice depends on a combination of several parameters, including the cost of the media, its durability, and its suitability for the specific application. Please visit Palram’s Flat sheet application catalog for more information.

PALCLADPALCLEAR®PALGLAS®PALIGHT®PALOPAQUE™SUNLITE®
Which materials can be used in the construction of my sign?
+ -

Sign faces are usually made from polycarbonate or acrylic. For extreme conditions such as heavy hail, low temperatures, or high temperatures produced when thermo-forming, polycarbonate is probably more suitable. For sign boxes or channel letter cans, PVC, multi-layered PVC and foam PVC can be used.

PALCLEAR®PALGLAS®PALIGHT®PALOPAQUE™SUNLITE®
Which material diffuses the light better?
+ -

The diffusion is not defined by the material, but by the diffusion additive that is part of the manufacturing formula. The materials should be selected by their fit to the application (e.g. polycarbonate for thermo-forming or extreme weather). Usually products marked with sign grade and/or diffusion grades have greater light diffusion than others.

PALCLEAR®PALGLAS®SUNLITE®
What is an illuminated sign?
+ -

A sign that is illuminated by an electrical light source (fluorescent\LED).

PALCLEAR®PALGLAS®PALIGHT®

Contact Us

We're here to help you with whatever you need.

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Some of these cookies are essential, while others help us to improve your experience by providing insights into how the site is being used. We use cookies, including third party cookies, for analytics, to optimize and personalize the site and our services, enhance site usage, and assist in our analytics and marketing. By clicking I Accept you allow our site to place those cookies on your browser. Click Reject all to reject all non-essential cookies.

For more details on our cookie policy, see our Privacy Policy

For more details on our cookie policy, see our Privacy Policy

For more details on our cookie policy, see our Privacy Policy
