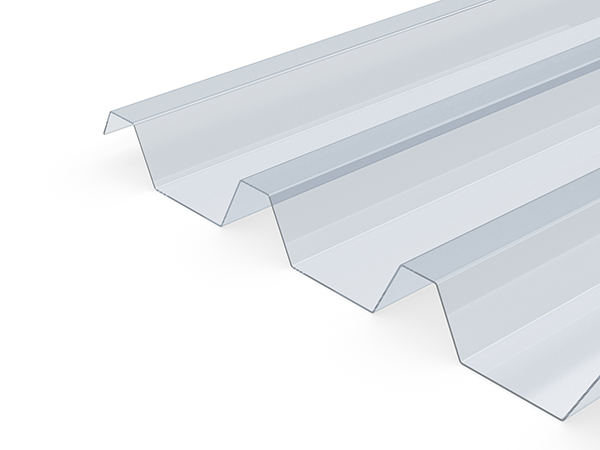

SUNTUF® Stadia

Solid Profiled Polycarbonate System

SUNTUF® Stadia is a robust and durable polycarbonate panel system that is specifically designed for roofs with large spans. While other translucent cladding materials require a supporting substructure, SUNTUF® Stadia can be installed directly on the main structure.

By using SUNTUF® Stadia you can save on the metal structure and save even more on installation labor.

SUNTUF® Stadia provides excellent light transmission, impact resistance, flexibility and load capacity. The system is lightweight and very easy to fabricate and install. SUNTUF® Stadia is perfectly suited for large roofs such as sports stadia and arenas, concert halls, and logistic centers.

Construction & ArchitectureConstruction & Architecture

Main Benefits

  • Installation over large spans
  • Excellent light transmission and transparency
  • Impressive load capacity
  • Lightweight and flexible
  • Easy to cut and drill
  • Simple and fast installation
  • Allows free expansion and contraction
  • Integrated UV protection

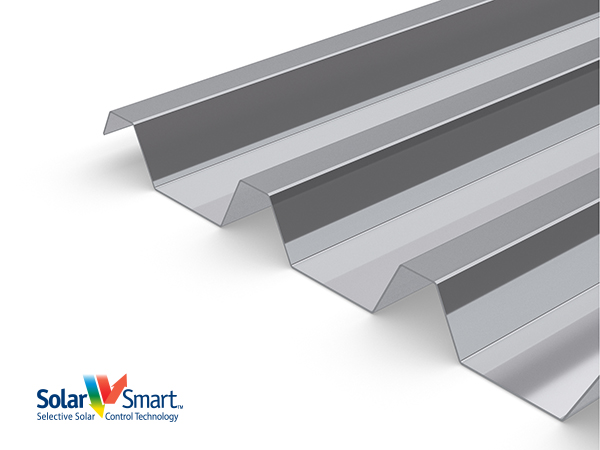

  • SolarSmart™ cool light colors

Typical Applications

  • Stadiums and arenas
  • Concert halls
  • Banquet halls
  • Open markets
  • Large commercial and logistic facilities
  • Covered parking spaces

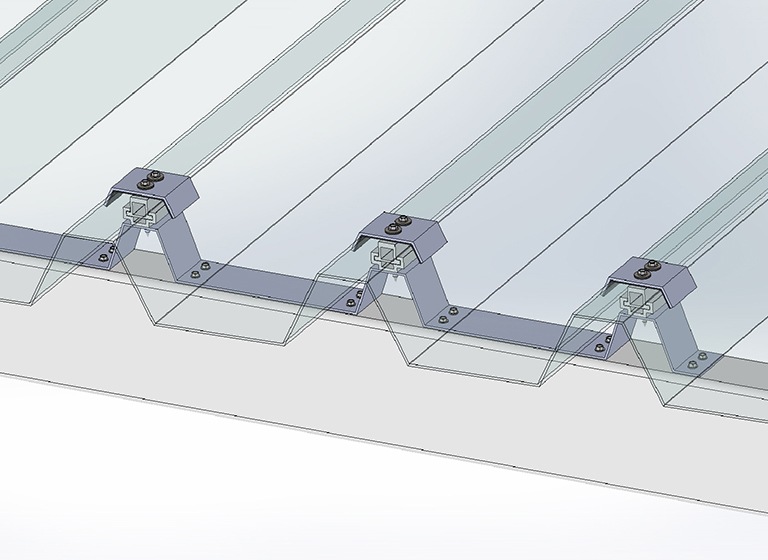

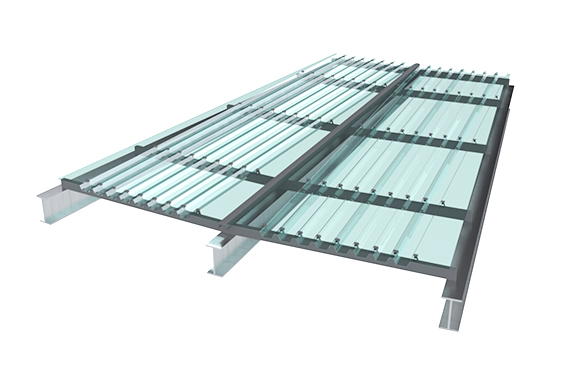

Typical Assembly

Click on the images below to enlarge:

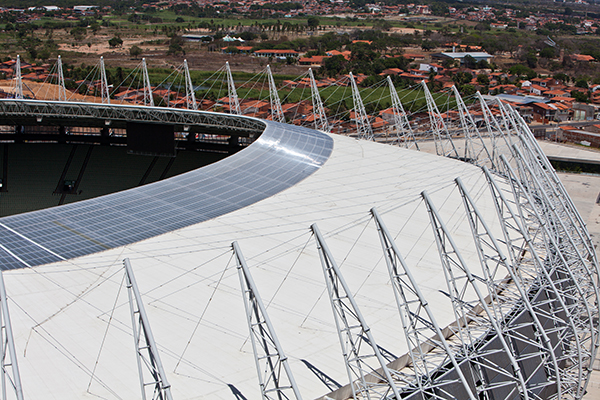

Projects

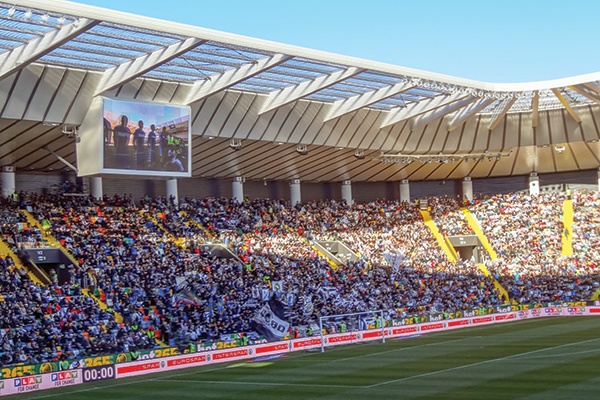

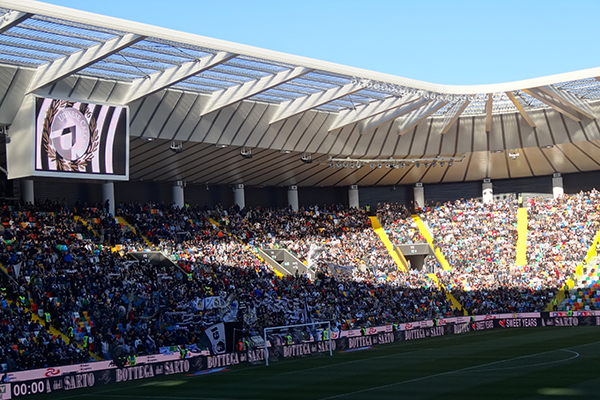

FRIULI STADIUM / ITALY

Main Architect: Lorenzo Giacomuzzi Moore | Product Type : SUNTUF Stadia , Clear Embossed 3mm | Application Type - Skylight

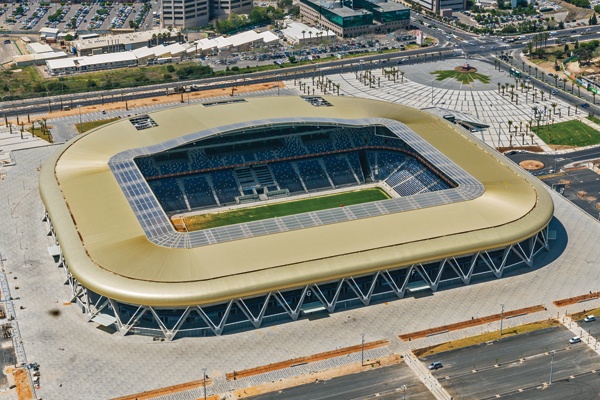

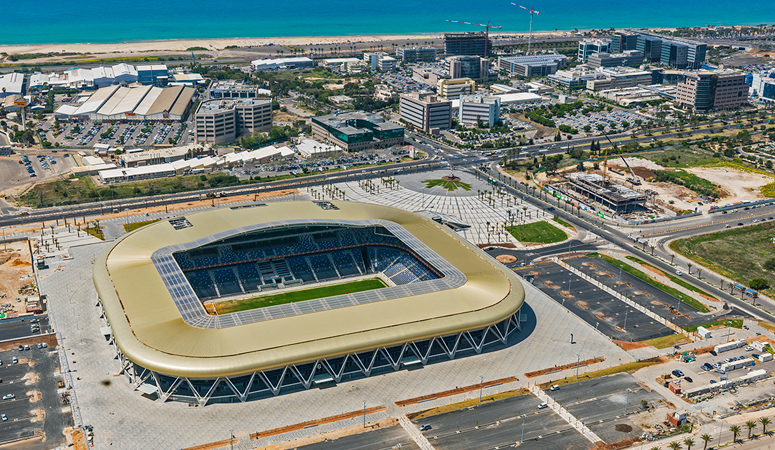

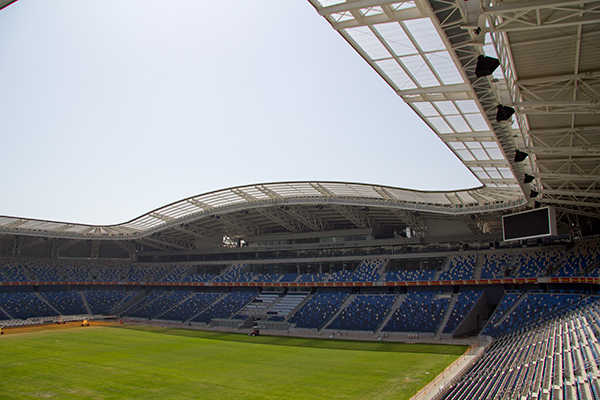

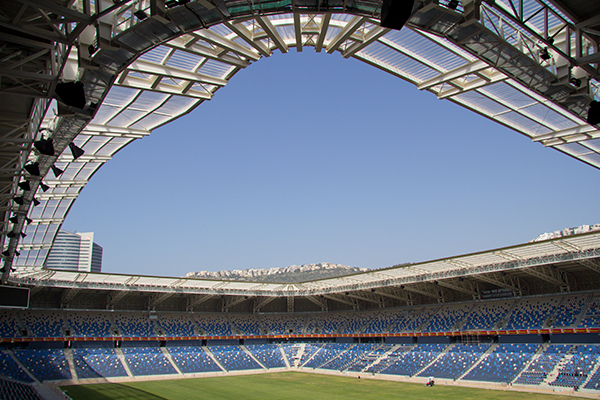

SAMMY OFER STADIUM / ISRAEL

Architect: KSS, in collaboration with Mansfeld-Kehat | Product Type: SUNTUF Stadia, Clear Embossed 3mm |

CUBIERTA CAMPO DA FESTA / SPAIN

Architect: Jose Antonio Ganzalez Mejide and Arturo Casado ( Temha ) Product Type : SUNTUF Stadia, Green

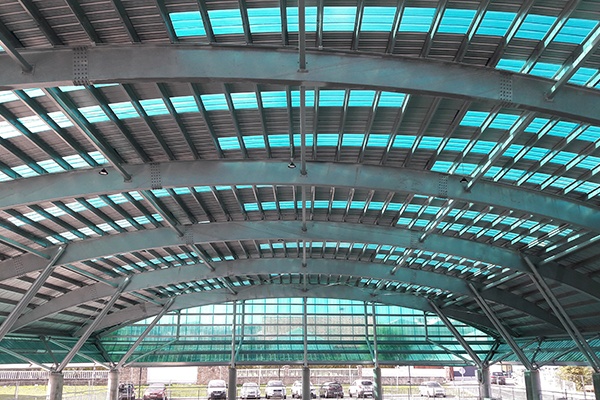

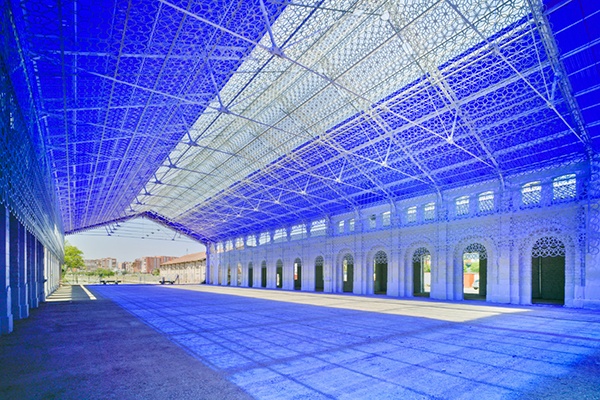

CASA MEDITERRANEO STATION / SPAIN

Product Type : SUNTUF Stadia, Blue and Clear | Application Type - Skylight | Total Product Usage: 900 sqm

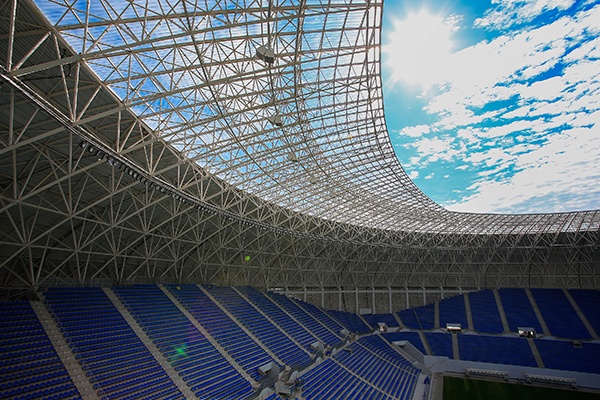

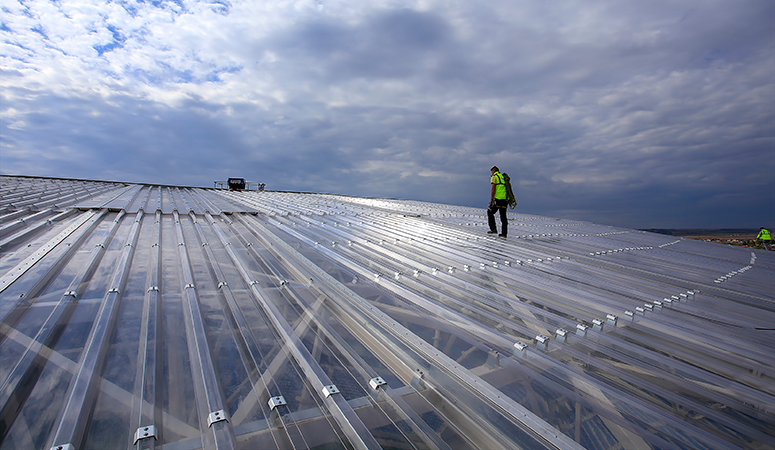

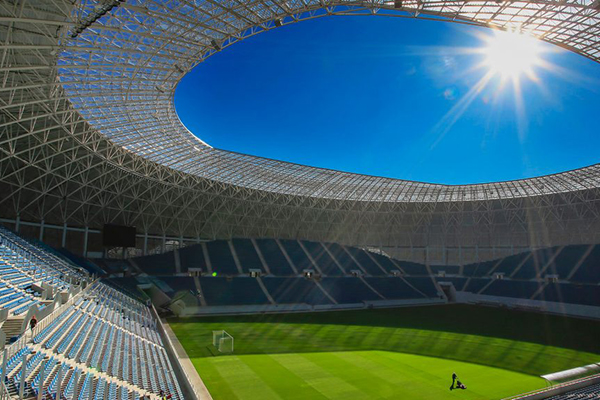

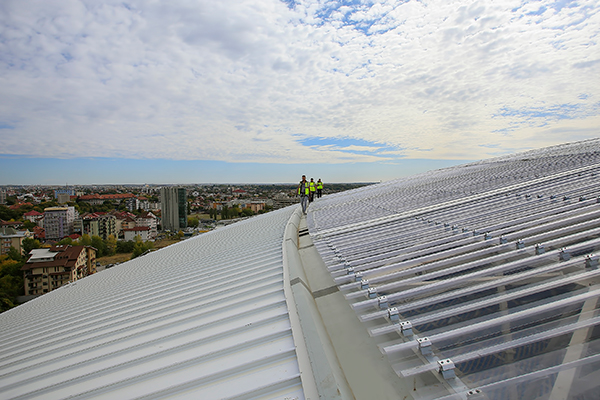

CRAIOVA STADIUM / ROMANIA

Main Architect: Dico si Tiganas, Romania | Product Type: SUNTUF Stadia, Clear 2mm Application Type: Skylight | Total Product Usage: 14000 sqm.

From Our Blog

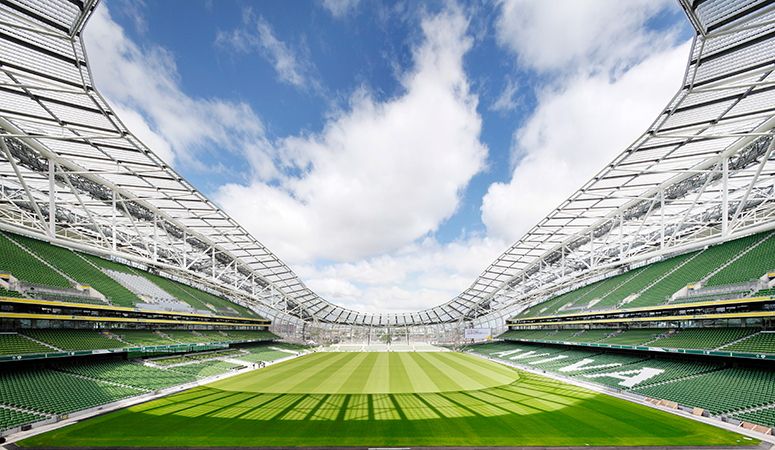

Irish Icon Reinvents Spectator Comfort and Excitement

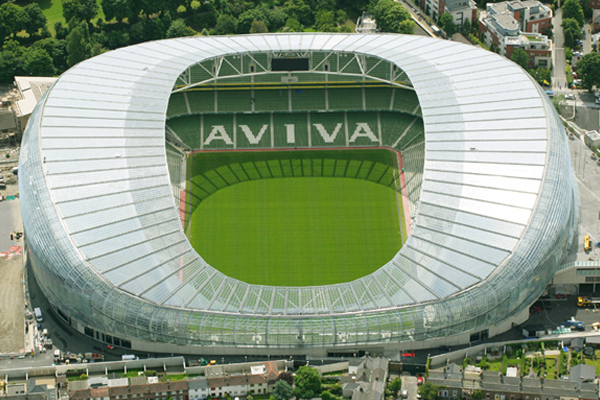

Acclaimed $457 Million Aviva Stadium Wows Soccer and Rugby Fans Under a Spectacular Corrugated Polycarbonate Roof

Read More

From Our Blog

USE LIGHT TO ENHANCE YOUR DESIGN, DAY AND NIGHT

As an architect, you need to consider the design aesthetics of both the exterior and the interior. If there is too much transparency in your glazing material, you may compromise on privacy. In contrast, too little transparency or translucency may reduce light transmission in the interior. For these reasons, you need to consider all options to achieve exactly the look you are going for. In addition, you can't ignore other factors, such as energy efficiency.

Palram offers four different polycarbonate glazing products to meet all of your requirements. These include flat solid sheet, multi-wall sheet, single-layer corrugated sheet, and complete architectural panels systems. Palram Project Support Engineers are here to help you evaluate which solution best meets your design aspirations, efficiency and sustainability goals, and budgetary and performance requirements.

For architects, engineers and builders that need assistance evaluating their design, and developing an installation method and process for their polycarbonate architecture, our Architectural Project Support Center team is available to guide you through our array of polycarbonate roofing systems, polycarbonate wall panels and polycarbonate cladding solutions.

USE LIGHT TO ENHANCE YOUR DESIGN, DAY AND NIGHT

Downloads

File name
Size
Installation/Technical
PALRAM Polycarbonate Adhesives and Sealants (En).pdfPALRAM Polycarbonate Adhesives and Sealants (En).pdf
169 KB
PALRAM Polycarbonate Chemical Resistance (En).pdfPALRAM Polycarbonate Chemical Resistance (En).pdf
181 KB
Polycarbonate Care and Maintenance (En).pdfPolycarbonate Care and Maintenance (En).pdf
69 KB
Polycarbonate Product Safety Data Sheet (En).pdfPolycarbonate Product Safety Data Sheet (En).pdf
84 KB
SUNTUF STADIA Brochure (En).pdfSUNTUF STADIA Brochure (En).pdf
4 MB

PRODUCT DETAILS

Geometric Properties

The data below describes a main SUNTUF Stadia polycarbonate profile

Profile (mm)Thikness (mm)Length (m)Overall width (mm)Cover width (mm)Side-Lap (%)
322/9631.5-11.6110096612%

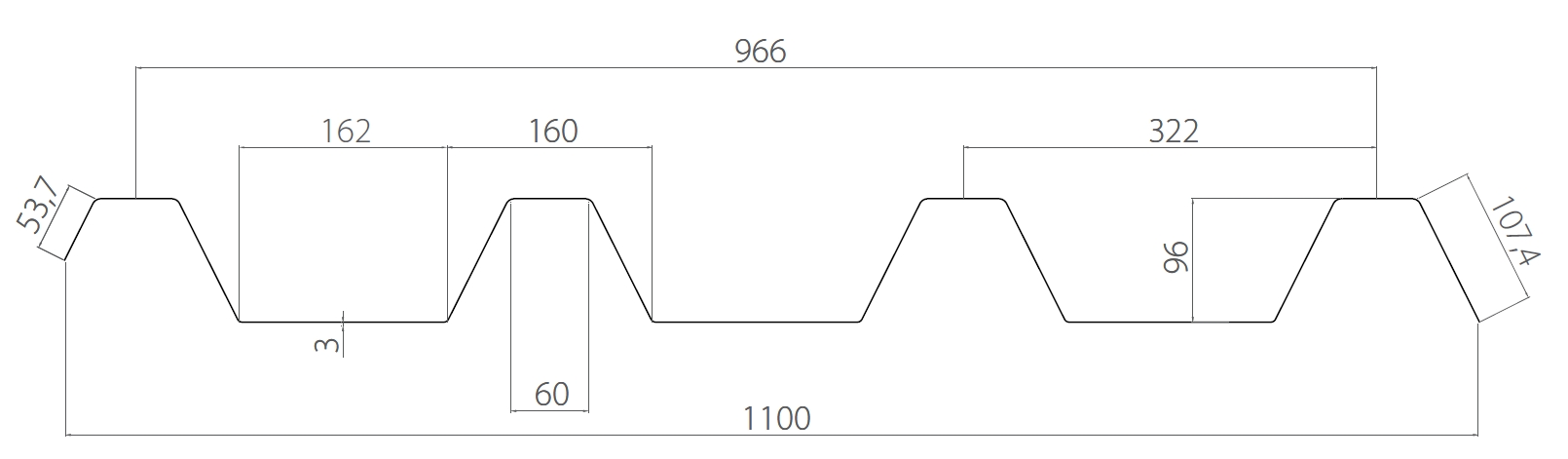

Profile diagram :

Geometric properties:

Area (mm²)Ixx (mm4)Iyy (mm4)Zxx (mm3)Yc (mm)Xc (mm)
463367526904935871712005042.75558.05

Palram can tailor the profile geometry per the project requirements.
Profile height is typically between 60 mm and 100 mm, thickness up to 3 mm.
The polycarbonate panel is available with one or two sides co-extruded UV protection.

Load Kg/sqmMaximum roof span (mm)
322/96 profile, thickness 3 mm
End spanMid span
15027003400
20026003300
25025003200
30024003100
35023003000
40022002900
45021002800

Notes:

  • •  The specified dimensions do not supersede the requirements of local construction codes.
  • •  The given spans are according to deflections criterion of L/20, and minimum slope of 10%.
  • •  The maximum roof spans are based on calculation model and practical testing.
  • •  The mentioned load refers to wind and snow load only.

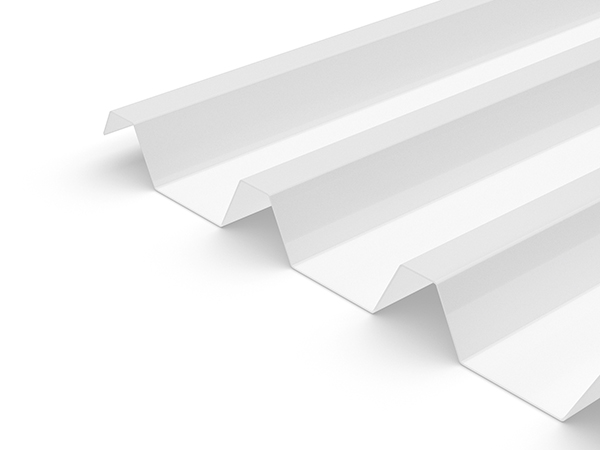

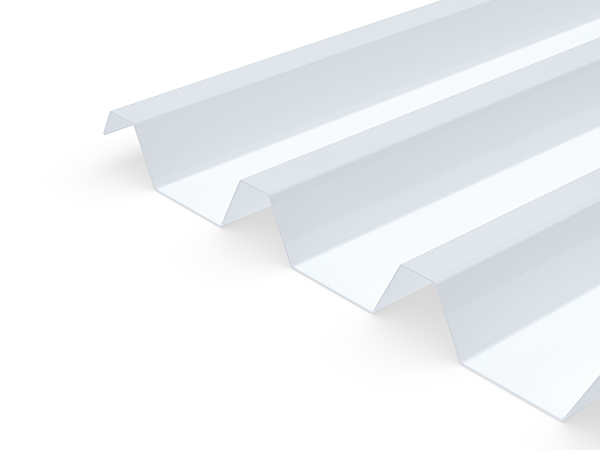

Colors

Colors

Color*% Light Transmission
ASTM D-1003		Solar Heat Gain (SHGC)
ASTM E-424-71		Shading Coefficient
ASTM E-424-71
Clear900.871.00
Bronze200.450.52
Bronze350.560.64
Bronze500.650.75
Solar Grey200.440.51
Solar Grey350.560.64
Solar Grey500.650.75
White Opal280.320.37
White Diffuser800.871.00
Solar Ice200.370.45
Solar Control200.330.36
Solar Control350.450.52
Solar Control500.540.61
Solar Olympic200.410.47
Solar Olympic350.520.60
Solar Olympic500.630.73
Smart Green700.580.67
Smart Blue700.570.65
Bluish Breeze700.550.63

*Values in the table above relate to 3mm Sheet. Further information on additional products is available upon request.
*SUNTUF Stadia comes in an embossed finish

Physical Properties

Typical properties

PropertyStandardConditionsUnitValue
DensityASTDM D792-g/cm³1.2
Heat deflection temperatureASTDM D6481.82 MPa℃130
Service temperature (Short term)
Service temperature (Long term)		--℃-50 to 120
-50 to 100
Coefficient of linear thermal expensionASTDM D696-cm/cm ℃6.5 x 10-⁵
Thermal conductivityASTDM D177-W/mK0.21
Tensile strength at yieldASTDM D63810mm/minMPa62
Tensile strength at breakASTDM D63810mm/minMPa65
Elongation at yieldASTDM D63810mm/min%7
Elongation at breakASTDM D63810mm/min%>80
Tensile modulus of elasticityASTDM D63810mm/minMPa2300
Flexural strengthASTDM D7901-3mm/minMPa93
Flexural modulusASTDM D7901-3mm/minMPa1890
Impact falling weight (E-50)ISO 6603/1J50
Rockwell hardnessASTDM D785R Scale118R
Light transmissionASTDM D1003%90
HazeASTDM D1003%>0.5
Yellowness indexASTDM D1925>1

Flammability

SUNTUF Stadia flammability classification appears in the attached table, based on a test performed by certified independent
laboratories. The quoted certificate represents the flammability performance of the entire system.

MethodClassification*
EN 13501B, s1, d0

*Depends on panel thickness.
