Solid PVC industrial interior wall cladding system

PALCLAD consists of solid PVC panels and installation accessories for clean, professional installation. PALCLAD combines mechanical advantages for easy cleaning and maintenance, as well as outstanding resistance to chemicals, moisture, stains, and spills. The PALCLAD interior cladding panels can be cut, formed and fabricated on site while still maintaining their original physical properties.
PALCLAD is an excellent substrate for digital printing, allowing designers to create colourful, engaging, and elegant wall coverings.
Constructors, installers, and maintenance teams can use PALCLAD to create a simple, easy-to-install, easy-to-clean interior cladding solution that never cracks or tarnishes and can be used in a wide range of facilities.
The HYG version of PALCLAD is an active bacteria resistant cladding that sets a higher standard of sanitation and bio-security.

Print & DisplayPrint & DisplayConstruction & ArchitectureConstruction & ArchitectureFabricationFabrication

Main Benefits

  • Complete cladding solution with color-matched welding rods

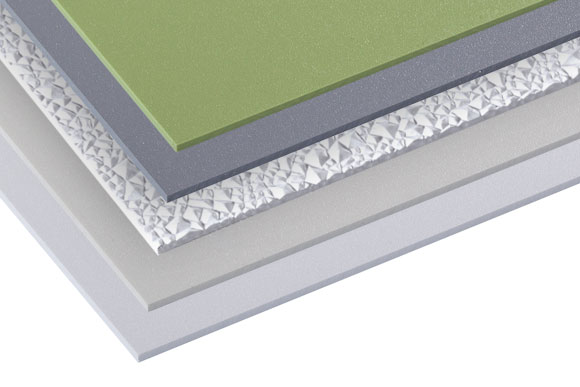

  • Multiple colors & surfaces for a variety of design possibilities
  • Withstands repeated cleaning cycles
  • High impact strength and fire resistance
  • Available with HYG™ bacteria resistant cladding technology for active antimicrobial protection
  • Excellent for environments with high sanitation requirements
  • Non-toxic
  • USDA/FDA Compliant

Typical Applications

  • Public facilities: schools, restrooms, airports, public transportation hubs
  • Food industry: food plants, food preparation areas, sorting halls, storage/refrigeration rooms
  • Agriculture: livestock and dairy farms, layer chambers and egg sorting halls, incubators, poultry housing, refrigeration facilities, bio-secured storage rooms and refrigeration facilities

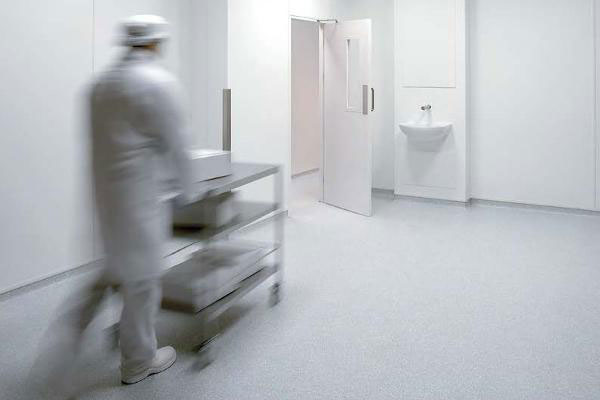

  • Healthcare: pre-op, surgical suites, PACU, hospital corridors and rooms, clinics, laboratories, sterile/clean rooms, pharmacies, operation theaters, pharmaceutical plants

Ideal for Sterile Environments

Ideal for Sterile Environments

PALCLAD PRODUCTS

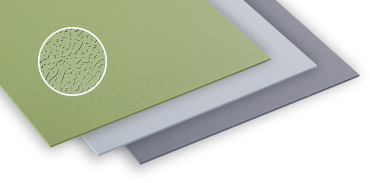

PALCLAD™ Pro
PALCLAD™ Pro

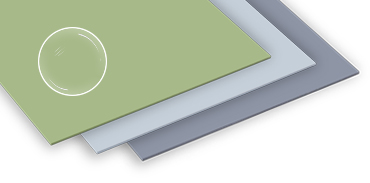

PALCLAD™ Prime
PALCLAD™ Prime

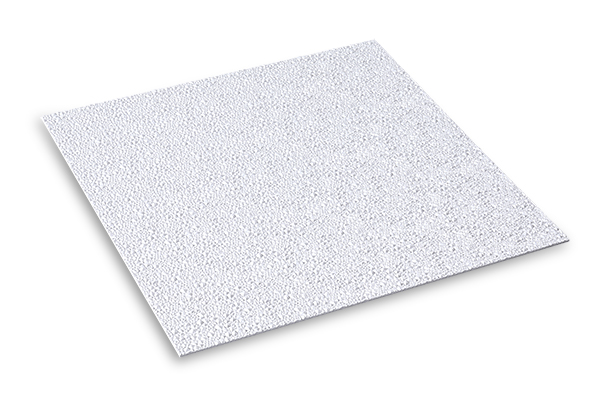

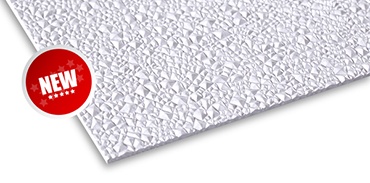

PALCLAD™ Pro Cracked Ice
PALCLAD™ Pro Cracked Ice

APPLICATIONS

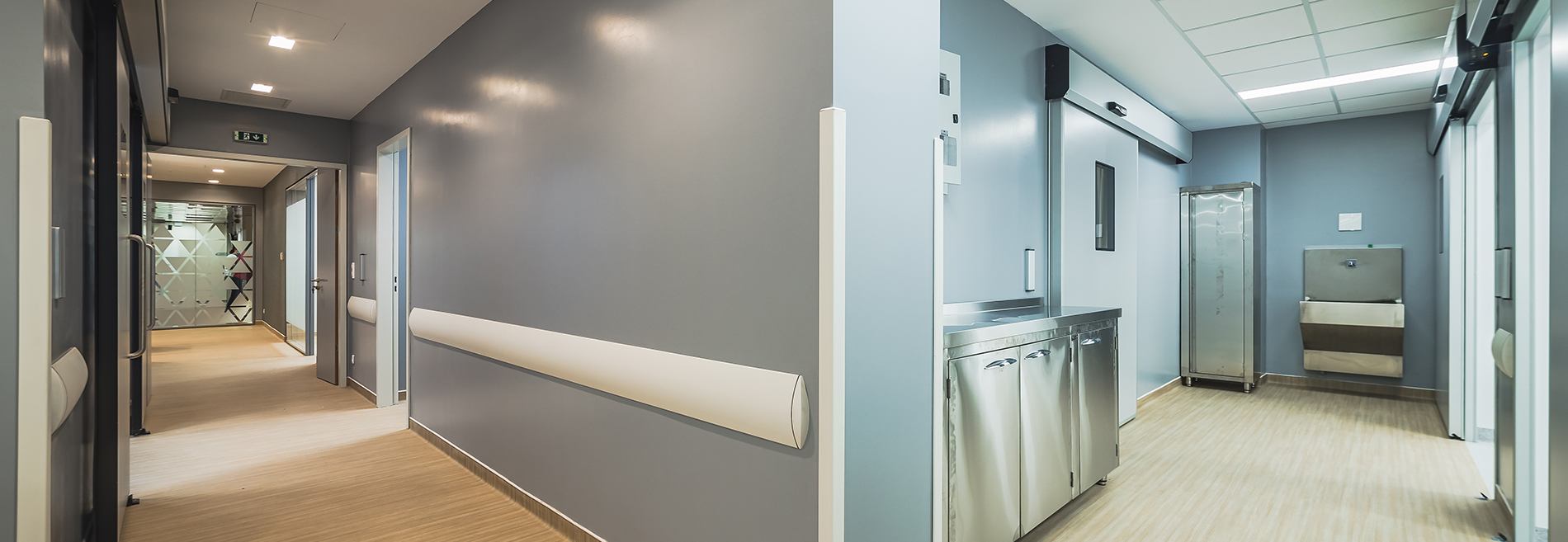

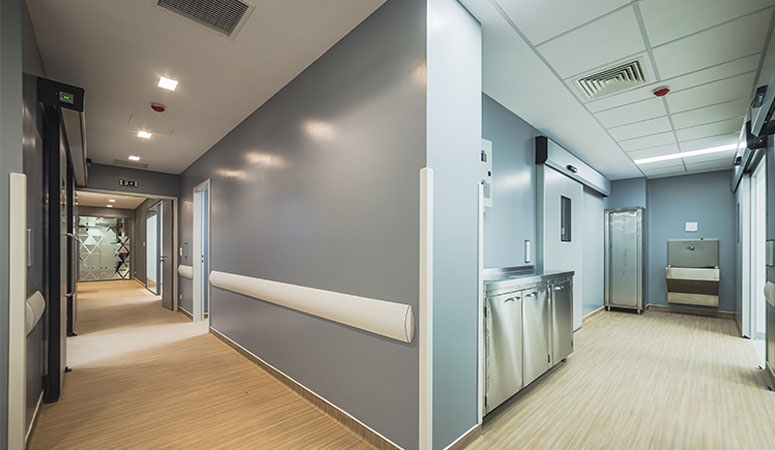

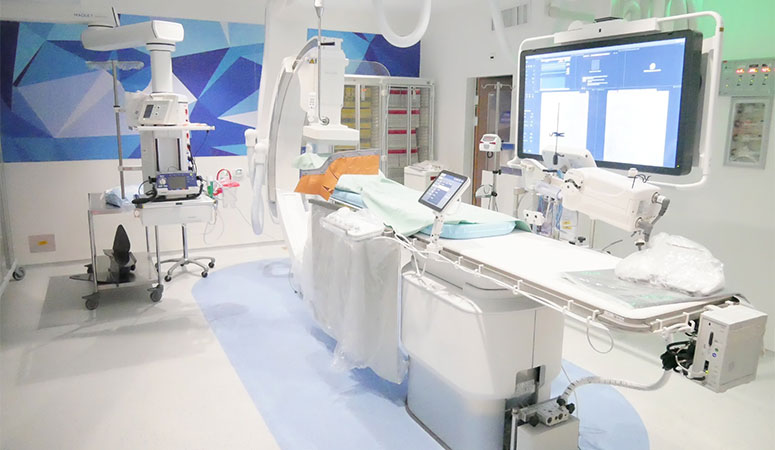

Healthcare Facilities

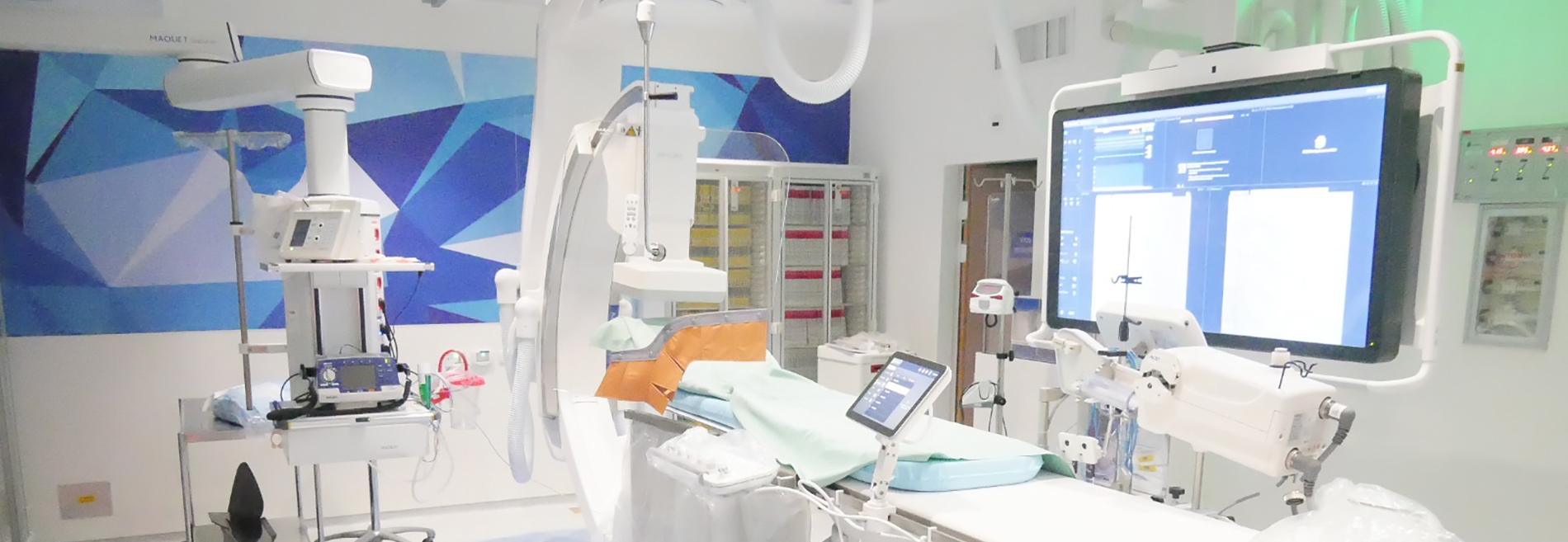

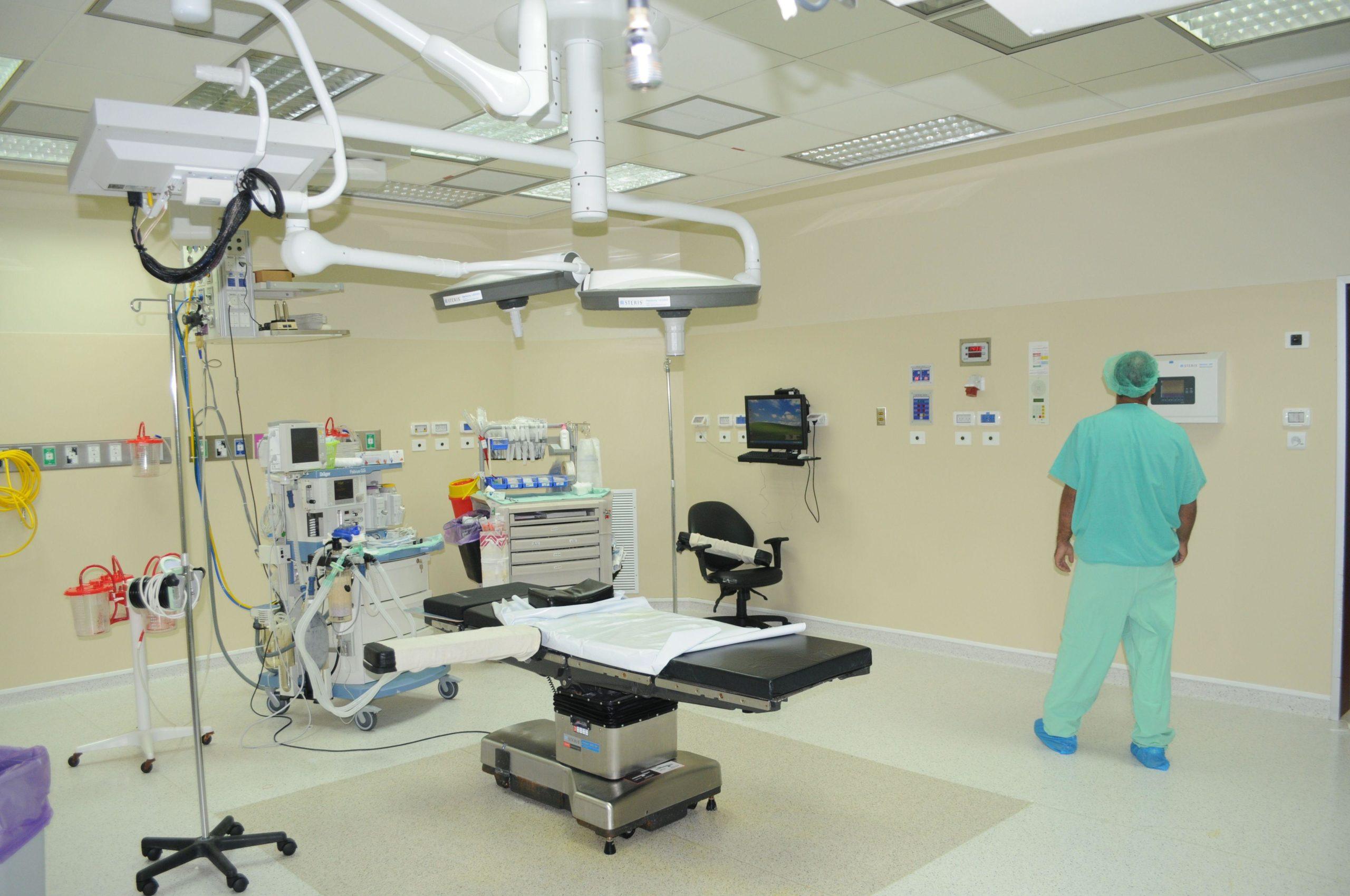

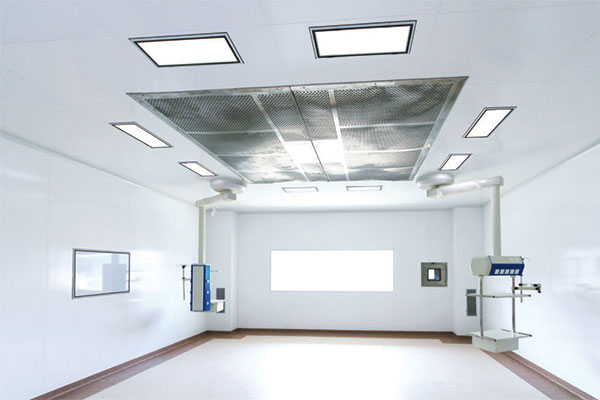

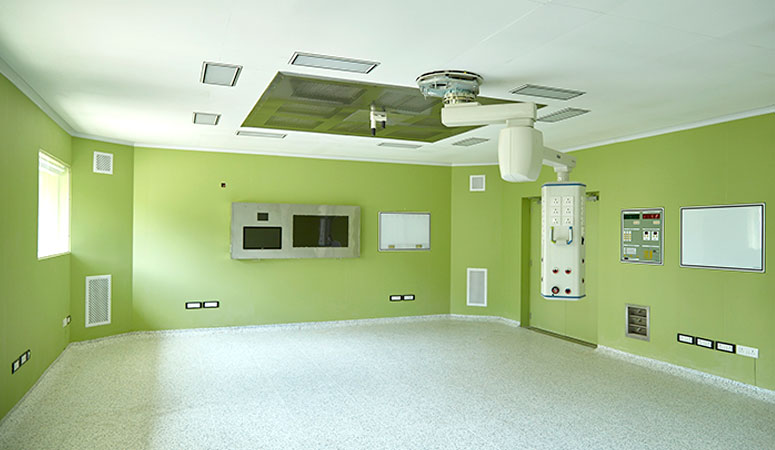

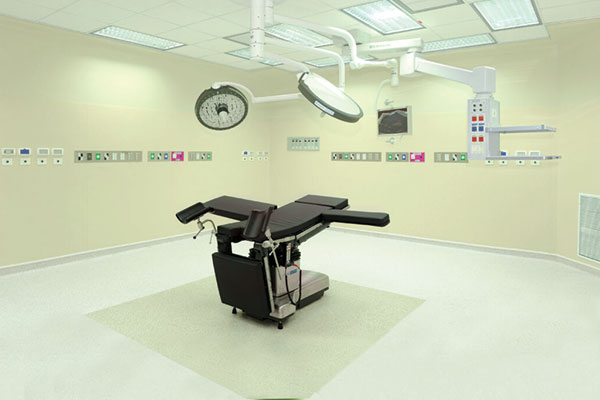

Hospital Operating Rooms
Sports Clubs
Pharmaceutical Plants

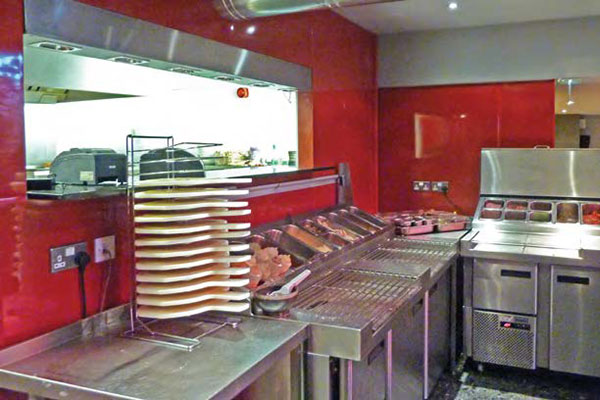

Restaurant Kitchens

PALCLAD HYG ACTIVE ANTIMICROBIAL PROTECTION REDUCES INFECTIONS

How does it work?

PALCLAD HYG Hygienic wall cladding inhibits the growth of pathogens. The system's sheets utilize silver ions, a natural antimicrobial agent that inhibits the reproduction of microbes. Unlike a coating, these ions are embedded into the panels, so even worn or scuffed panels retain their antimicrobial properties.

Read more about Palram HYG Technology

PALCLAD HYG ACTIVE ANTIMICROBIAL PROTECTION REDUCES INFECTIONS

AN EASY-TO-INSTALL WALL CLADDING PVC SYSTEM

For maintaining a clean and safe environment, the PALCLAD industrial interior wall cladding system is a practical, cost-effective and comprehensive solution.

The PALCLAD interior wall cladding system is composed of solid, opaque PVC panels in a variety of colors and surface textures, as well as matching connecting profiles and welding rods.

The system's components and the sheet's mechanical properties allow a fast and simple installation, while its durability ensures long-term resistance to impact, chemicals, and repeated cleaning routines.

View all system components

AN EASY-TO-INSTALL WALL CLADDING PVC SYSTEM

RELATED ARTICLES

How Can Shop fitters Reduce In-store Infection Risk?
How Can Shop fitters Reduce In-store Infection Risk?
Hygienic anti-bacterial wall cladding
Read all about it
High quality hygienic wall cladding PVC sheets save time, money and lives
High quality hygienic wall cladding PVC sheets save time, money and lives
Reducing hospital acquired infections and optimizing building maintenance
Read all about it
Can PVC be Recycled?
Can PVC be Recycled?
What is the role of the designers and the manufacturers in providing better alternatives to the end user?
Read all about it
Read more

Related Videos

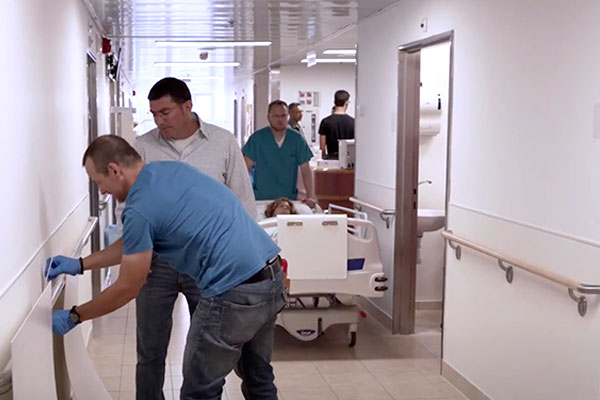

Why do hospitals choose PALCLAD™ Cladding System?
Why do hospitals choose PALCLAD™ Cladding System?

The HYG version of PALCLAD is an active bacteria resistant cladding that sets a higher standard of sanitation and bio-security.

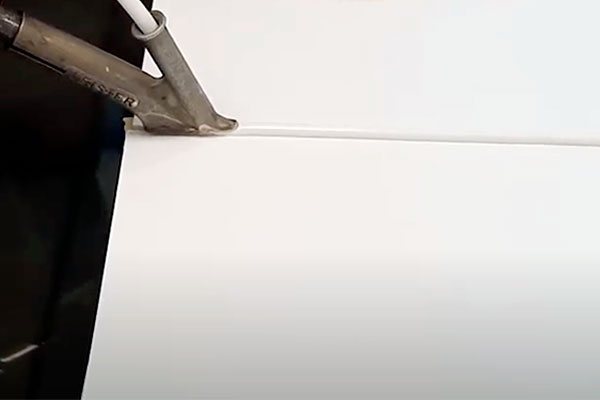

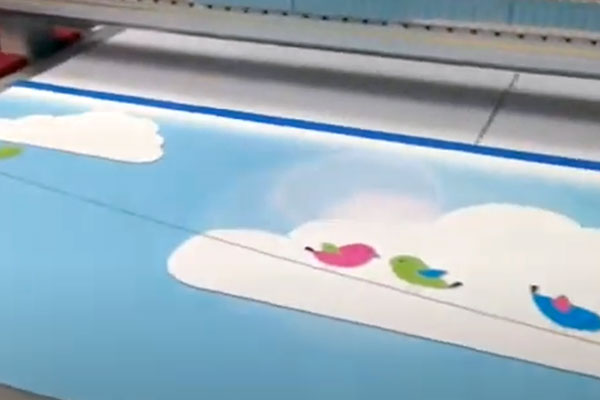

PALCLAD™ - You can print it, hot bend it, and thermoform it.
PALCLAD™ - You can print it, hot bend it, and thermoform it.

PALCLAD panels retain their properties even when worn or scratched. See how simple it is to fabricate a PALCLAD™ Sheet.

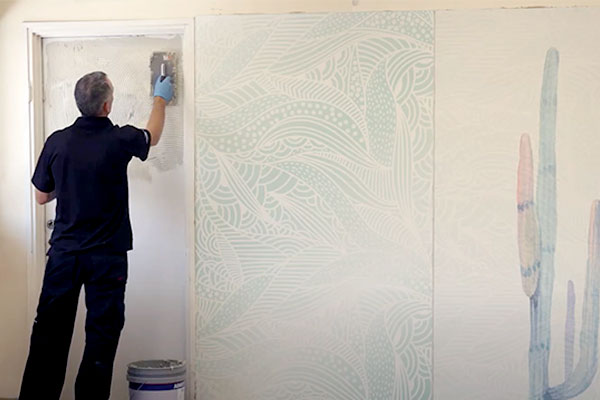

PALCLAD™ Installation Video
PALCLAD™ Installation Video

Solid PVC industrial interior wall cladding system

DOWNLOADS

File name
Size
PALCLAD Prime UK Leaflet.pdfPALCLAD Prime UK Leaflet.pdf
781 KB
PALCLAD Prime UK Colour Palette.pdfPALCLAD Prime UK Colour Palette.pdf
897 KB
PALCLAD Pro Leaflet (En).pdfPALCLAD Pro Leaflet (En).pdf
916 KB
PALCLAD Pro Brochure (En).pdfPALCLAD Pro Brochure (En).pdf
35 MB

Related Products

PALRUF®
PALRUF®
AG-TUF®
AG-TUF®

PRODUCT DETAILS

PALCLAD™ Pro

Dimensions

ThicknessDimensionsFinishColorsFlammability
2.0mm, 2.5mm220mm x 2440mm
1220mm x 3050mm
1500mm x 3000mm		Embossed (Hair-Cell)Ocean Blue, Medium Grey, Black,
Red, Standard White, Off White,
Cream, Grape Green 		ASTM E 84 - Class A
En 13501 - B, s3, d0

PALCLAD™ Prime

Dimensions

ThicknessDimensionsFinishColorsFlammability
2.5 mm1500mm x 3000mm
1220mm x 3050mm		SatinPorcelain White, White M660, Blue, Grey,
Cream, Mint, Jade, Granite, Peacock,
Dolphin Grey, Enchanted, Bluebird, Siren,
Candy Floss, Sugar Plum, Black Ice		476/7 - Class 0
En 13501 - B, s3, d0

HYG microbes elimination test results

HYG microbes elimination test results

MicrobesReduction % of viable microbes after 24H
Clostridium difficile95.00%
Klebsiella pneumoniae87.38%
VRE87.57%
Listeria monocytogenes99.90%
Streptococcus faecalis97.91%
Staphylococcus aureus99.96%
Aspergillus niger99.68%
Legionella pneumophila98.50%
Salmonella typhimurium96.11%
MRSA99.98%

Frequently Asked Questions

Should products be pre-dried before thermoforming?
+ -

This depends on the production date and storage conditions of the product before thermoforming. It is recommended to check the product before thermoforming is attempted.

PALBOARD™PALCLEAR®PALGARD™PALGLAS®PALIGHT®PALOPAQUE™PALSUN®SUNGLAS™SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®
Is the PE film suitable for thermoforming applications?
+ -

Most of Palram's products that are delivered with PE film covering are suitable for thermoforming. In general, we recommend using clear PE and not printed PE.

PALBOARD™PALCLEAR®PALGARD™PALGLAS®PALIGHT®PALOPAQUE™PALSUN®SUNGLAZE™SUNLITE®SUNLITE® PLUSSUNPAL®
What are the dimensions of PALCLAD Pro sheets (size and thickness)?
+ -

PALCLAD Pro comes in a standard size of 1500x3000 mm and in thicknesses of 2 and 2.5 mm.

PALOPAQUE™
What is the range of colors for PALCLAD Pro?
+ -

PALCLAD Pro comes standard in white and off-white. In addition, 10 more colors are available on special order. PALCLAD Pro can be printed on with excellent ink adhesion to surface and print quality.

PALOPAQUE™
What is the difference between antimicrobial and antibacterial?
+ -

Antimicrobial and antibacterial are interchangeable in many cases. However, antimicrobial offers further protection by eliminating fungi, that is, by eliminating any mold or potential mold build-up.

PALOPAQUE™
Do Palram's animal covering and cladding solutions have thermal insulation properties?
+ -

All of Palram's animal covering & cladding solutions have superior thermal insulation properties compared to metal coverings.

AG-TUF® CORRUGATED PVCPALOPAQUE™PALRUF®
Is PALRUF resistant to animal residue?
+ -

All of Palram's animal covering & cladding solutions are resistant to animal residues, detergents, and other chemicals, and come with a 10+ year warranty.

AG-TUF® CORRUGATED PVCPALRUF®
Which of Palram's sheets are suitable for printing, sign & display applications?
+ -

For use in illuminated signage, PALSUN, PALSUN CS (Coil Stock) and PALGLAS are suitable for the sign face; and PALBOARD, PALOPAQUE, and PALIGHT for the body of the letters or symbols. For print & display, Palram's entire product portfolio can be used based on the specific application. This choice depends on a combination of several parameters, including the cost of the media, its durability, and its suitability for the specific application. Please visit Palram’s Flat sheet application catalog for more information.

PALBOARD™PALCLEAR®PALGLAS®PALIGHT®PALOPAQUE™PALSUN®SUNLITE®
What is the most accurate white point that is suitable for wide-format printing?
+ -

There are different white substrates available but in order to achieve a true colored image according to the design, a process of profiling (ICC profile) needs to be done. By using a natural white substrate (a tint which been made with no extra additives), the process of measuring and profiling becomes very simple and fast.

PALBOARD™PALCLEAR®PALGLAS®PALIGHT®PALOPAQUE™
How do I handle inkjet printable media before and after printing?
+ -

Before: use a protected sheet with PE masking, store unused inkjet printable media in original packaging and in a clean area, and avoid touching the print side by handling the edges of the sheet or by using lint-free white gloves.

After: avoid any finishing until prints are completely dry, store the printed media in a clean environment, and avoid dust from sticking to the fresh cured ink.

PALBOARD™PALCLEAR®PALGLAS®PALIGHT®PALOPAQUE™
What is the difference between a polypropylene sheet and PVC?
+ -

In terms of ink adhesion properties, both polymers act very differently. PVC is a ready-to-use polymer so no pre-treatment needs to be done before printing (on rigid or flexible media). Polypropylene has different chemical properties and for this reason, needs to get a pre-treatment coat ('Corona'), which has a limited shelf life.

PALBOARD™PALCLEAR®PALGLAS®PALIGHT®PALOPAQUE™
What is the best wide-format inkjet media (substrate) for my application?
+ -

This is based on a combination of several parameters, but the main ones are the cost of the media and its durability, and its fit to the required application. Please visit Palram’s Flat Sheet Application Catalog.

PALBOARD™PALCLEAR®PALGLAS®PALIGHT®PALOPAQUE™
What can assure accurate double-sided printing or recto verso prints?
+ -

A strict spec of diagonal (from angle to angle) during the production process is feasible for this.
