AG-TUF® Corrugated PVC Liner Panels

AG-TUF® CORRUGATED PVC

Corrugated PVC liner panels for industrial and agricultural interior cladding and lining applications

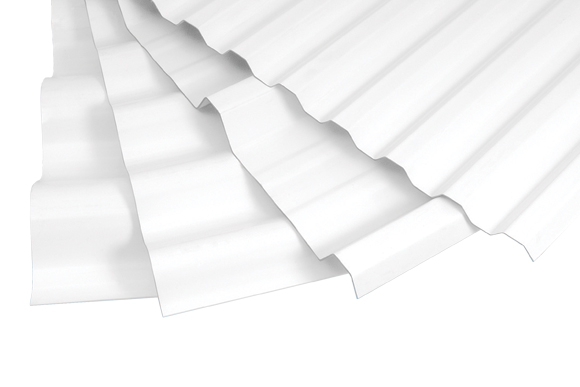

AG-TUF corrugated PVC liner panels have been produced by Palram for more than 50 years and have been used to clad the interiors of many types of industrial and agricultural structures around the world. From hog barns to dairy sheds or poultry houses, car washes, chemical processing plants, or fertilizer storage facilities, AG-TUF panels hold up where other products don’t. As they are resistant to chemicals, these panels can be cleaned frequently to facilitate maximum sanitary maintenance while still offering extended service in harsh chemical environments. AG-TUF panels are easy to install using ordinary tools. They can be used to line the interior of your structure to make it instantly become brighter, easier-to-maintain, and provide an attractive glossy appearance. AG-TUF corrugated PVC liner panels are one of many Palram products for these market segments.

Construction & Architecture

Agriculture

Environmental Commitment

Main Benefits

Ideal for interior cladding applications (PALRUF can be used for exterior cladding)
Attractive high-gloss white finish
Excellent chemical resistance
High fire-resistance
Easy cleaning & maintenance
Great economical alternative to metal
Excellent light reflectance
Impact-resistant (resists breakage)
Does not rust or corrode
Resists scuffing and scratching

Typical Applications

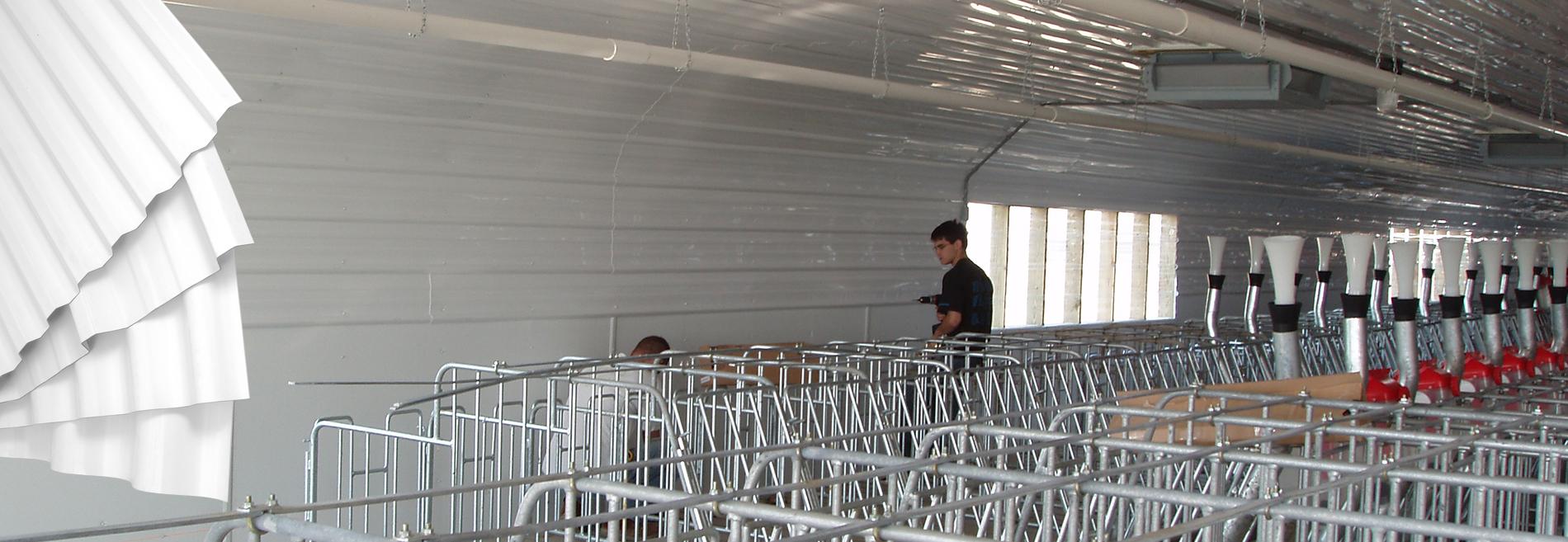

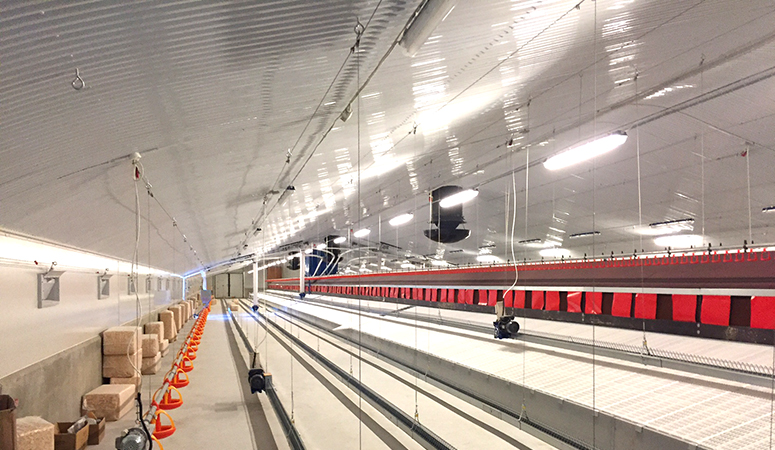

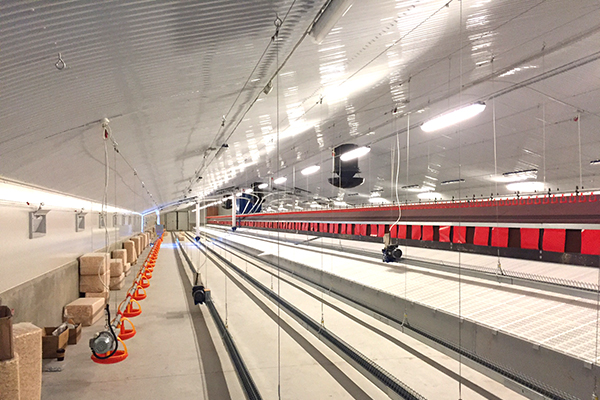

Hog, dairy and poultry shelters
Food processing & meat packing
Salt & fertilizer storage
Loafing sheds
Aquaculture farms
Kennels and stables

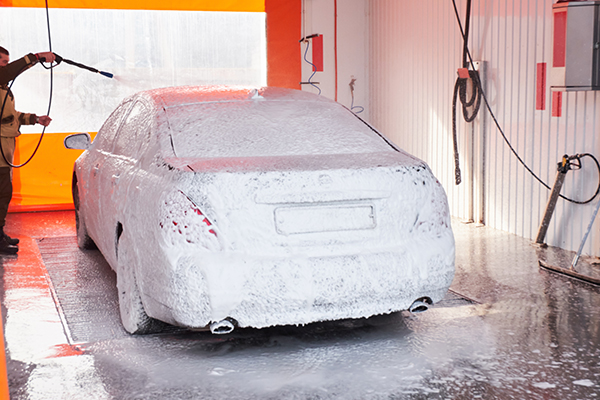

Car & truck washes

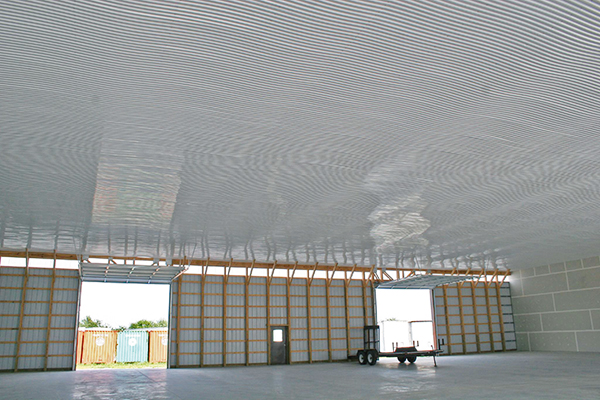

Factories & industrial buildings

Royal Institute of British Architects

Applications

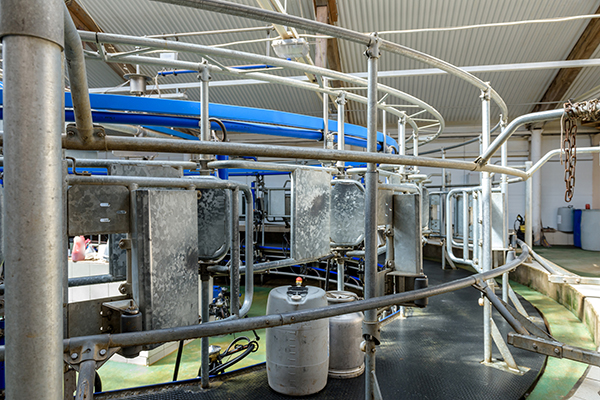

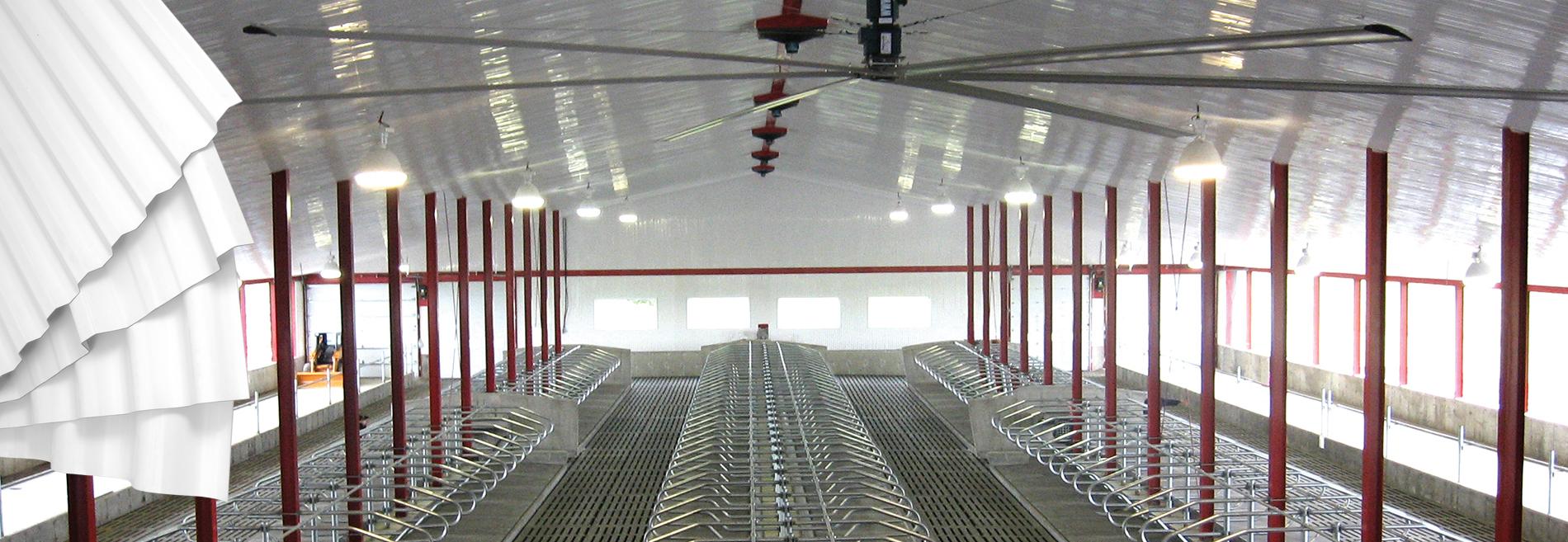

Dairy Parlor, USA

AG-TUF white opaque PVC liner panels for maximum chemical-resistance to enable frequent cleaning and long-term durability.

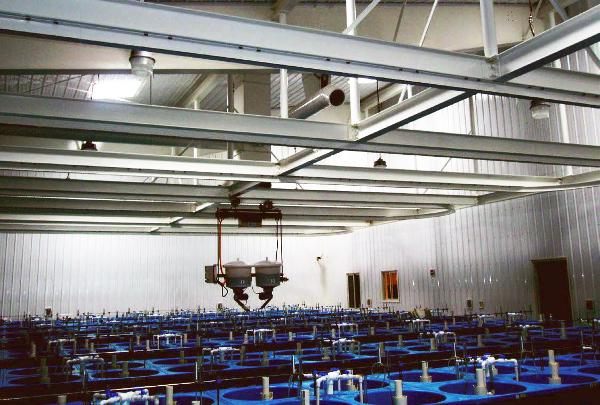

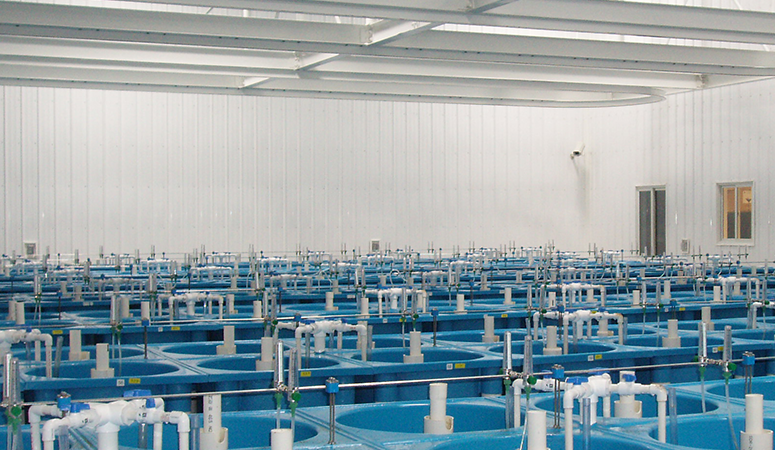

Fish Research Farm, USA

AG-TUF white opaque corrugated panel 3 mm used for this facility because of its long-term durability and anti-corrosive properties.

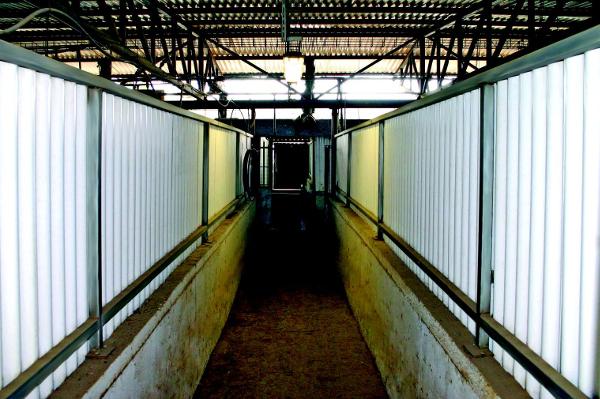

Cattle Pass-Through

AG-TUF white opaque PVC liner panel used for its long-term durability and resistance to corrosion.

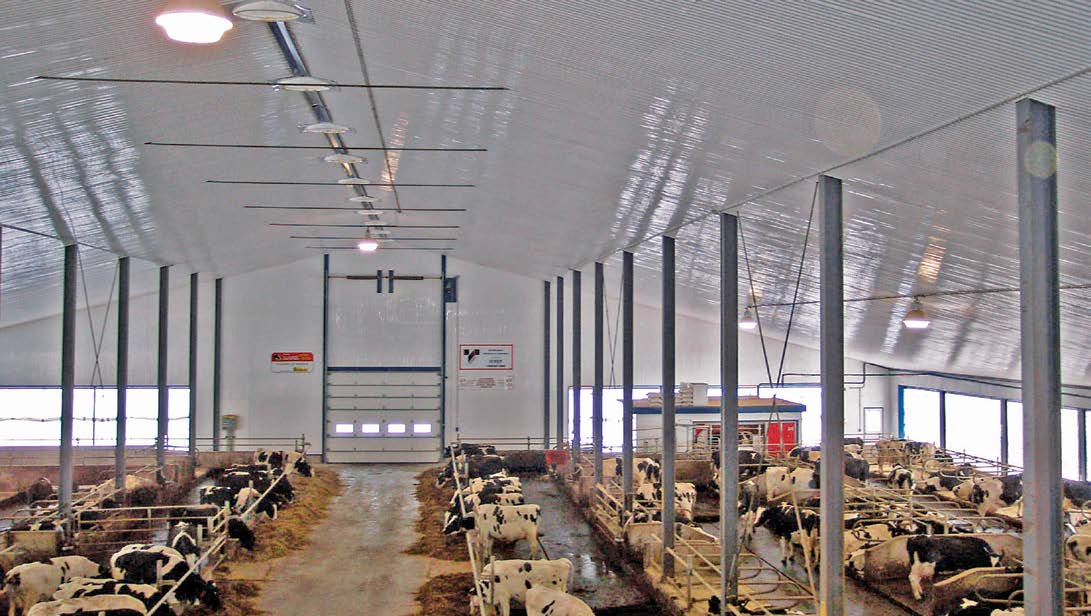

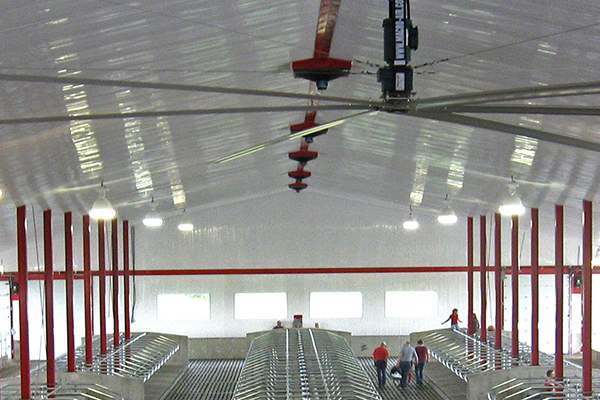

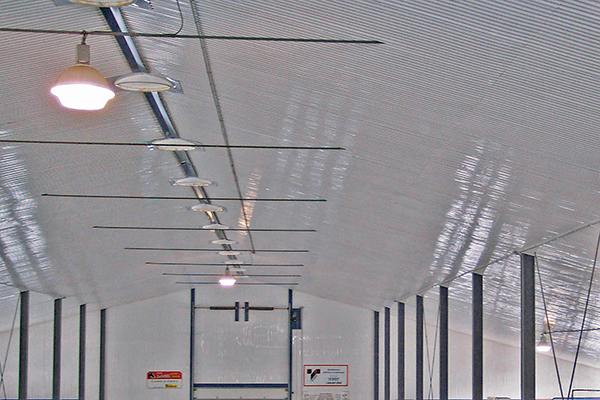

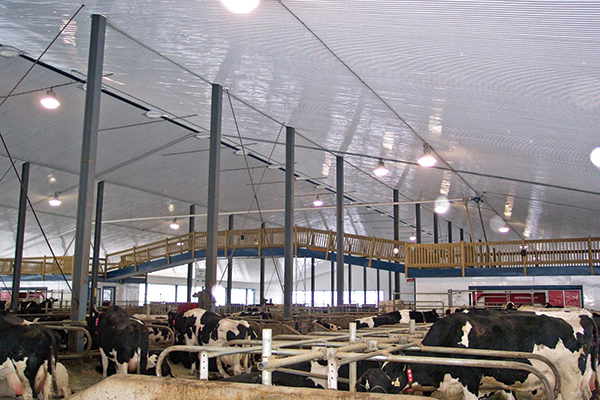

Dairy Farm, Canada

AG-TUF white opaque 3 mm corrugated panel used for its long-term durability and resistance to chemicals and corrosion.

WHY AVOID METAL SHEETS IN CHEMICALLY AGGRESSIVE AND CORROSIVE ENVIRONMENTS?

Agricultural environments such as barns, pigpens, hen houses, dairies, and stables can present multiple challenges for any interior lining or cladding material. Gases such as ammonia and hydrogen are common in livestock feeding or housing environments, and they are the source of quick and widespread rust and corrosion for metal. This corrosion results in high maintenance and replacement costs. AG-TUF sheets offer a corrosion-free and chemical-resistant alternative that provides farmers with years of low cost, low maintenance and greater hygiene.

Industrial environments such as mining and chemical processing plants create dust and ash that, when combined with mist, rain, and perhaps even saltwater, coat the roofing with a layer of sentiment that is highly corrosive to metals. But not in the case of AG-TUF. These corrugated PVC lining boards are virtually maintenance free and endure a wide variety of gases and chemicals for the lifespan of the panel—and under the harshest conditions.

WHY AVOID METAL SHEETS IN CHEMICALLY AGGRESSIVE AND CORROSIVE ENVIRONMENTS?

Product Details

Dimensions

Product Availability

Specification	Availability
Width (mm)	1115
Length (mm)	Up to 7.3
Thickness (mm)	1.2

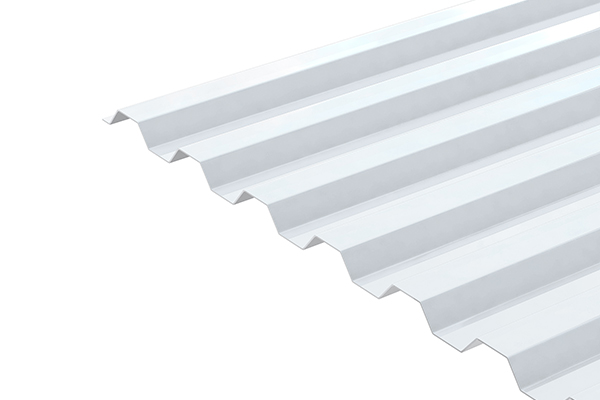

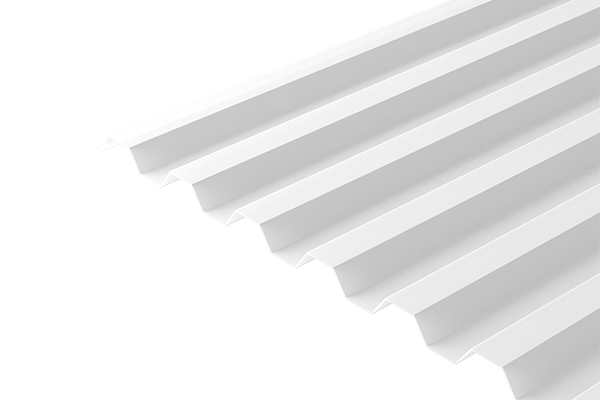

Profile	Greca 76
Colour*	Bright White: Opaque or 15% Translucent

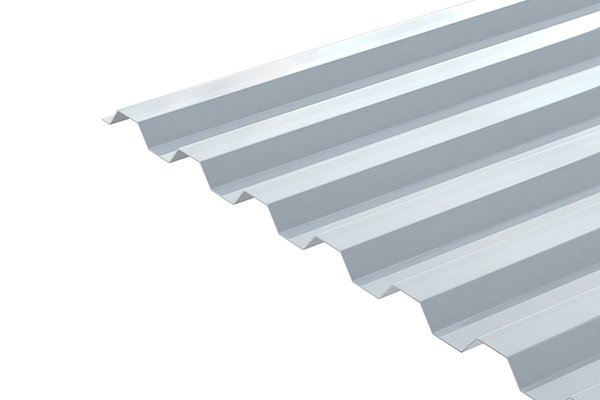

Product Availability Note *Light Grey Colour Available Upon Request

Colors & Finishes

Available Colors Bright White, Dark Grey*

Colors Text

*Special Orders Available, But Subject To Surcharge And/Or Minimum Order Requirements.

Physical Properties

Typical Physical Properties

Property	Conditions (U.S. Customary)	ASTM Method	Units - SI (U.S. Customary)	Value (U.S. Customary)
Physical
Density		D-1505	g/cmu00b3 (lb/ftu00b3)	1.4 (87.4)
Mechanical
Tensile Strength at Yield	10 mm/min (0.4 in./min)	D-638	MPa (psi)	52-66(7542-9573)
Tensile Strength at Break	10 mm/min (0.4 in./min)	D-638	MPa (psi)	39-53(5656-7687)
Elongation at Yield	10 mm/min (0.4 in./min)	D-638	%	3
Elongation at Break	10 mm/min (0.4 in./min)	D-638	%	140-160
Tensile Modulus of Elasticity	10 mm/min (0.4 in./min)	D-638	MPa (psi)	2700(391,600)
Flexural Modulus	1.3 mm/min (0.05 in./min)	D-790	MPa (psi)	2200(320,000)
Flexural Strength at Yield	1.3 mm/min (0.05 in./min)	D-790	MPa (psi)	90-100(13,100-14,500)
Impact Falling Weight	3 mm (0.12 in.) Sheet	ISO-6603/1b	J (ft-lbf)	45-60(33-44)
Rockwell Hardness		D-785	R scale / M scale	105-115
Thermal
Long Term Service			°C (°F)	-20 to 50 (-4 to 122)
Heat Deflection Temperature	Load: 1.82 Mpa (264 psi)	D-648	°C (°F)	61-67(142-152)
Coefficient of Linear Thermal Expansion		D-696	10-⁵ /°C (10-⁵/°F)	6.3 (3.5)
Thermal Conductivity		C-177	W/m°K (Btu-in./hr-ft²-°F)	0.16 (1.11)

Technical Data

Flammability

Standard	Classification
ASTM D365	CC1
EN 13501	B,s3,d0
ASTM E84	Class A

Frequently Asked Questions

Why do I have to pre-drill fastener holes in roofing with corrugated panels?

+ -

Pre-drilling the holes ensures that the panels have room to expand and contract properly with temperature changes. Skipping this step can lead to distorted, warped or cracked panels.

PALRUF – Old PALTOP SUNGLAS™SUNTOP®SUNTUF®Private: SUNTUF DIY – OLD SUNTUF® PLUS SUNTUF DIY SUNTUF ZigZag PALBOARD Terra

Is PALRUF resistant to UV radiation?

+ -

Yes, PALRUF corrugated PVC is resistant to UV.

PALRUF – Old

Can corrugated sheets be curved?

+ -

Yes. Corrugated sheets can be cold-curved to create arched shapes. It's important to follow the relevant Palram specifications for minimum radius in cold-curving, which can be found in the Installation Instructions of the relevant sheets. In addition, corrugated sheets should be arched so that the corrugations themselves are curved lengthwise.

PALRUF – Old SUNGLAS™SUNTOP®SUNTUF®Private: SUNTUF DIY – OLD PUBL — New Product Page Example SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag

How do I design the secondary steel support spacings for roofing/siding?

+ -

Palram created specific loading tables for each product. Please visit our website and download the specific catalog.

PALGLAS®PALRUF – Old PALSUN®PALTOP SUNGLAS™SUNGLAZE – Old SUNLITE®SUNLITE® PLUS SUNPAL®SUNTOP®SUNTUF®SUNTUF® PLUS SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag

Can I install corrugated PVC and polycarbonate sheets horizontally for siding?

+ -

Yes. Make sure you start installing from the bottom up so the overlaps will not let the water in.

PALRUF – Old SUNGLAZE – Old SUNTOP®SUNTUF®SUNTUF® PLUS SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag

What are the common applications of corrugated PVC sheets?

+ -

The common applications of corrugated PVC sheets are buildings that require opaque coverings and/or are located in highly-corrosive environments such as chemical plants, coastlines, cowsheds, and dairies.

PALRUF – Old PALTOP

When should I use PVC corrugated sheets versus polycarbonate corrugated sheets?

+ -

PVC corrugated sheets are mainly used for opaque roofing and siding of industrial buildings in highly-corrosive environments such as port warehouses, cowsheds, and dairies. Polycarbonate corrugated sheets are mainly used as roofing or siding where natural daylight illumination is needed.

PALRUF – Old SUNTOP®SUNTUF®SUNTUF® PLUS SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag

Do Palram's animal covering and cladding solutions have thermal insulation properties?

+ -

All of Palram's animal covering & cladding solutions have superior thermal insulation properties compared to metal coverings.

PALCLAD PALOPAQUE™PALRUF – Old

Is PALRUF resistant to animal residue?

+ -

All of Palram's animal covering & cladding solutions are resistant to animal residues, detergents, and other chemicals, and come with a 10+ year warranty.

PALCLAD PALRUF – Old
