PALCLAD™ Pro Hygienic PVC Wall Cladding System

Solid PVC panels and accessories for interior wall cladding projects

PALCLAD Pro is a cladding system made up of solid PVC panels and various installation accessories that ensure a clean, professional installation. The PALCLAD Pro system provides many mechanical benefits that simplify cleaning & maintenance and enhance long-term aesthetics, including exceptional resistance to impact, chemical substances, moisture, stains, and spills. PALCLAD Pro panels can be easily cut, formed and fabricated onsite while keeping their original physical properties intact. If you're interested in adding more creativity to your project, PALCLAD Pro is also an excellent substrate for digital printing. So it can be used to create decorative walls covering that are attractive, elegant and visually appealing. PALCLAD Pro is one of the many products that Palram offers for these market segments.

Ideal for Sterile Environments

Ideal for Sterile Environments

Easy-to-install wall cladding pvc system

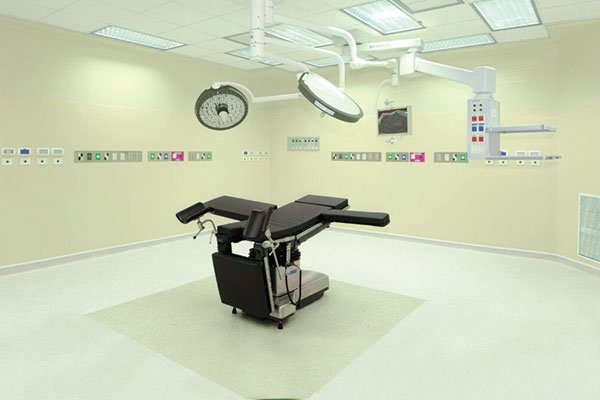

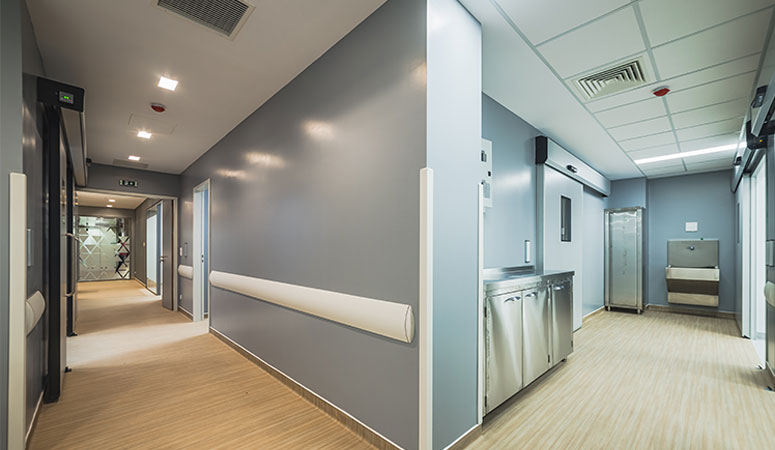

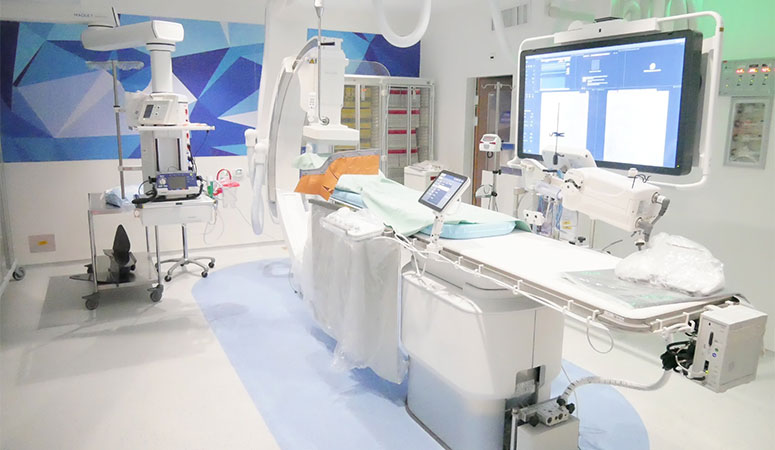

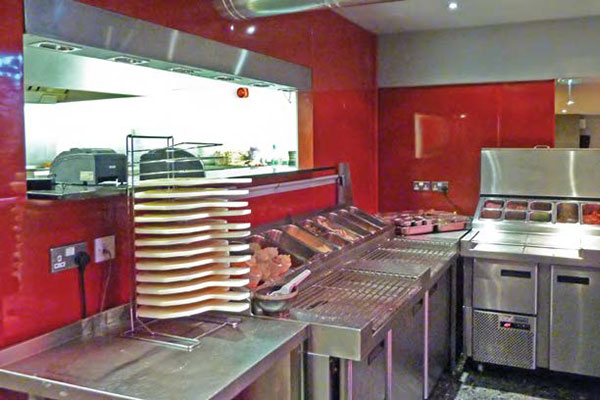

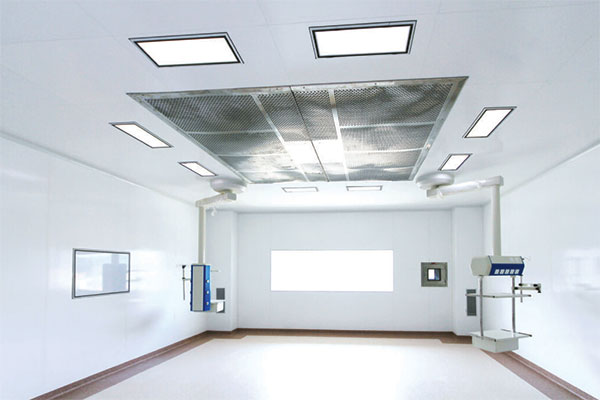

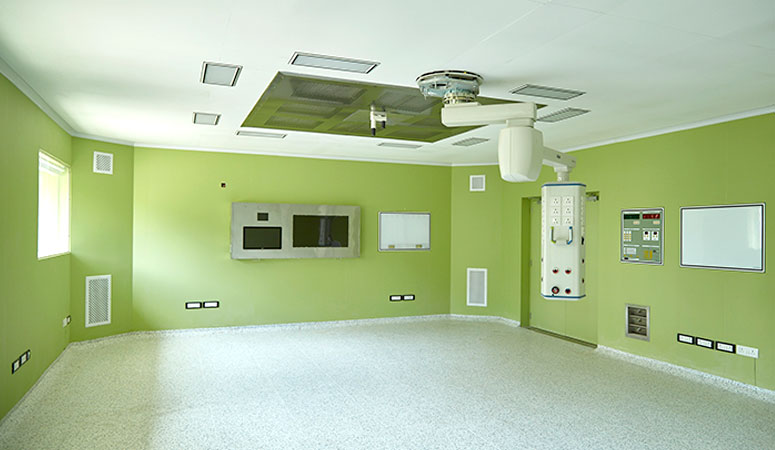

The PALCLAD Pro wall cladding system provides a practical, cost-efficient and comprehensive solution for maintaining a clean and safe environment. Large areas can be easily covered with the PALCLAD Pro system, which has been used worldwide to create areas that have high resistance to fire and chemicals in hospitals, pharmaceutical plants, restaurants, and more.

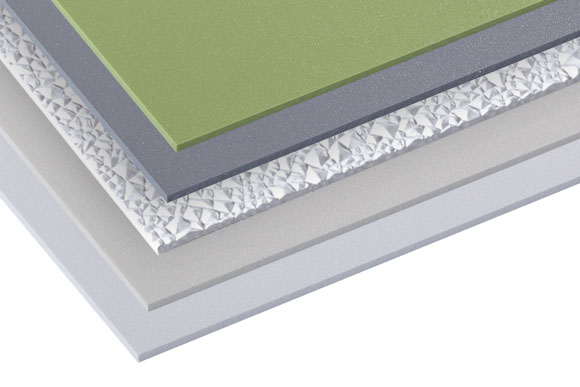

The system consists of flat opaque PVC panels, and fastening profiles and welding rods in matching colors. A wide range of colors and surface textures enables design versatility, and the system’s durability ensures long-term resistance to repetitive cleaning routines.

Easy-to-install wall cladding pvc system

MICROBES DON’T STAND A CHANCE

Available with HYG Active Antimicrobial Protection

Palram’s HYG technology sets a higher standard for hygienic cladding and facilitates high levels of sanitation.

PALCLAD Pro HYG has either eliminated or inhibited the growth of all the pathogens tested to date, including microorganisms that can affect the appearance of the panel. Since silver ions are uniformly distributed through to the core of the panel, a scratched or damaged surface will be equally effective. Read more about Palram HYG Technology.

MICROBES DON’T STAND A CHANCE

PRODUCT DETAILS

Dimensions

ThicknessWidth X Length
1.5 mm4' X 8' and 4' X 10'
2.0 mm4' X 8' and 4' X 10'
2.5 mm4' X 8' and 4' X 10'
Available Colors Available In Matte And Gloss Finishes.
Other Colors * Other Colors Are Available On Special Order, Subject To Minimum Quantity.

Flammability

StandardClassification
ASTM E 84Class A
BS 476/7Class 0
En 13501B, s3, d0

Test Results

MicrobesReduction % of viable microbes after 24H
Clostridium difficile95.00%
Klebsiella pneumoniae87.38%
VRE87.57%
Listeria monocytogenes99.90%
Streptococcus faecalis97.91%
Staphylococcus aureus99.96%
Aspergillus niger99.68%
Legionella pneumophila98.50%
Salmonella typhimurium96.11%
MRSA99.98%

Frequently Asked Questions

Should products be pre-dried before thermoforming?
+ -

This depends on the production date and storage conditions of the product before thermoforming. It is recommended to check the product before thermoforming is attempted.

What are the dimensions of PALCLAD Pro sheets (size and thickness)?
+ -

PALCLAD Pro comes in a standard size of 1500x3000 mm and in thicknesses of 2 and 2.5 mm.

What is the range of colors for PALCLAD Pro?
+ -

PALCLAD Pro comes standard in white and off-white. In addition, 10 more colors are available on special order. PALCLAD Pro can be printed on with excellent ink adhesion to surface and print quality.

What is the difference between antimicrobial and antibacterial?
+ -

Antimicrobial and antibacterial are interchangeable in many cases. However, antimicrobial offers further protection by eliminating fungi, that is, by eliminating any mold or potential mold build-up.

Do Palram's animal covering and cladding solutions have thermal insulation properties?
+ -

All of Palram's animal covering & cladding solutions have superior thermal insulation properties compared to metal coverings.

Is PALRUF resistant to animal residue?
+ -

All of Palram's animal covering & cladding solutions are resistant to animal residues, detergents, and other chemicals, and come with a 10+ year warranty.

Which of Palram's sheets are suitable for printing, sign & display applications?
+ -

For use in illuminated signage, PALSUN, PALSUN CS (Coil Stock) and PALGLAS are suitable for the sign face; and PALBOARD, PALOPAQUE, and PALIGHT for the body of the letters or symbols. For print & display, Palram's entire product portfolio can be used based on the specific application. This choice depends on a combination of several parameters, including the cost of the media, its durability, and its suitability for the specific application. Please visit Palram’s Flat sheet application catalog for more information.

What is the most accurate white point that is suitable for wide-format printing?
+ -

There are different white substrates available but in order to achieve a true colored image according to the design, a process of profiling (ICC profile) needs to be done. By using a natural white substrate (a tint which been made with no extra additives), the process of measuring and profiling becomes very simple and fast.

How do I handle inkjet printable media before and after printing?
+ -

Before: use a protected sheet with PE masking, store unused inkjet printable media in original packaging and in a clean area, and avoid touching the print side by handling the edges of the sheet or by using lint-free white gloves.

After: avoid any finishing until prints are completely dry, store the printed media in a clean environment, and avoid dust from sticking to the fresh cured ink.

What is the difference between a polypropylene sheet and PVC?
+ -

In terms of ink adhesion properties, both polymers act very differently. PVC is a ready-to-use polymer so no pre-treatment needs to be done before printing (on rigid or flexible media). Polypropylene has different chemical properties and for this reason, needs to get a pre-treatment coat ('Corona'), which has a limited shelf life.

What is the best wide-format inkjet media (substrate) for my application?
+ -

This is based on a combination of several parameters, but the main ones are the cost of the media and its durability, and its fit to the required application. Please visit Palram’s Flat Sheet Application Catalog.

What can assure accurate double-sided printing or recto verso prints?
+ -

A strict spec of diagonal (from angle to angle) during the production process is feasible for this.
