PALSHIELD™

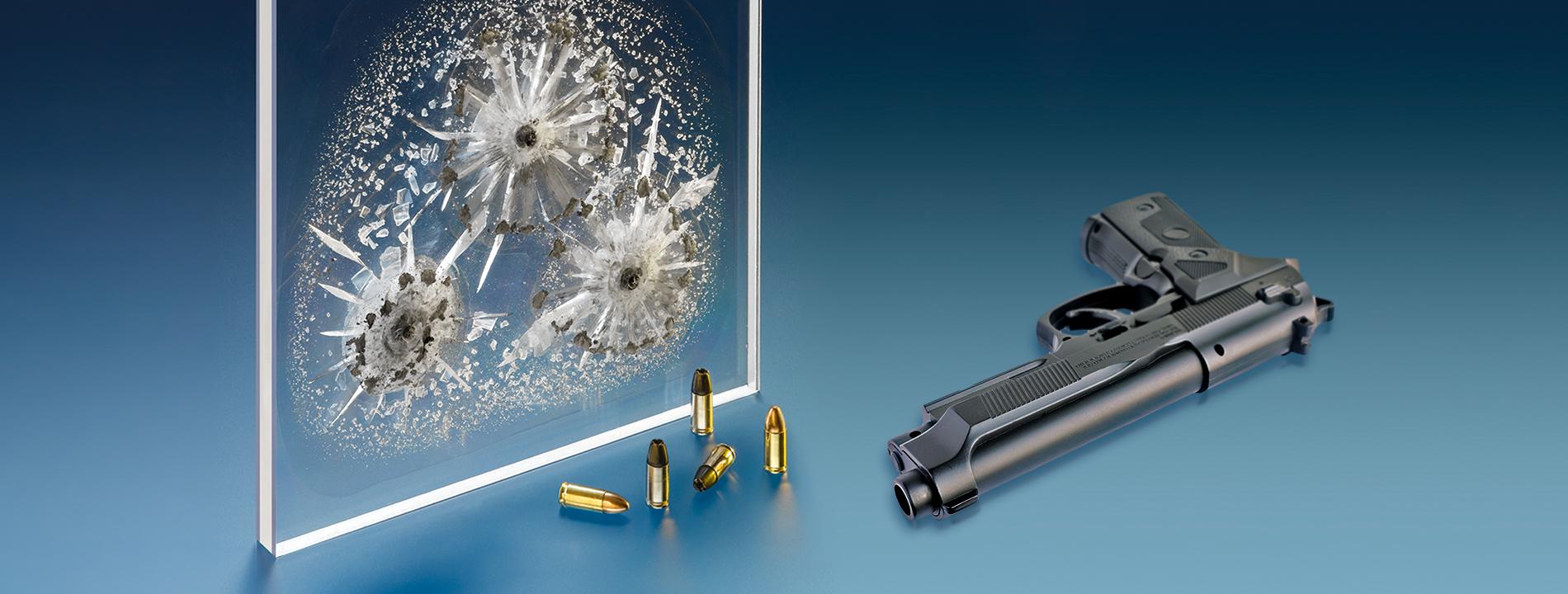

PALSHIELD™ ENVIDRAÇAMENTO À PROVA DE BALAS E DE CONTENÇÃO

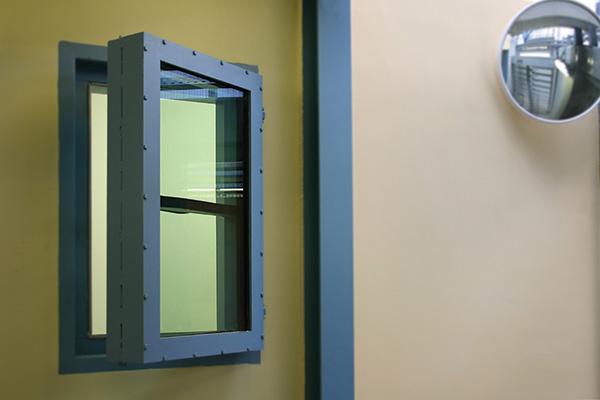

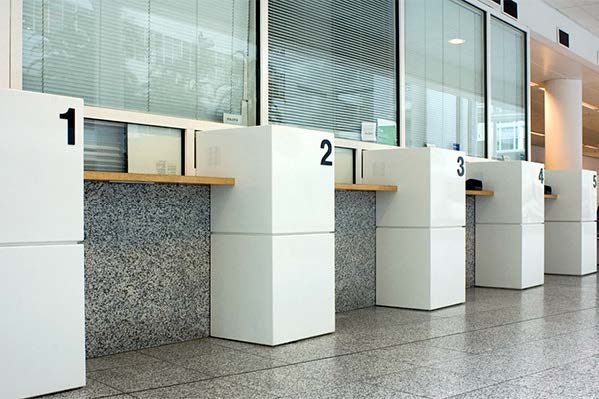

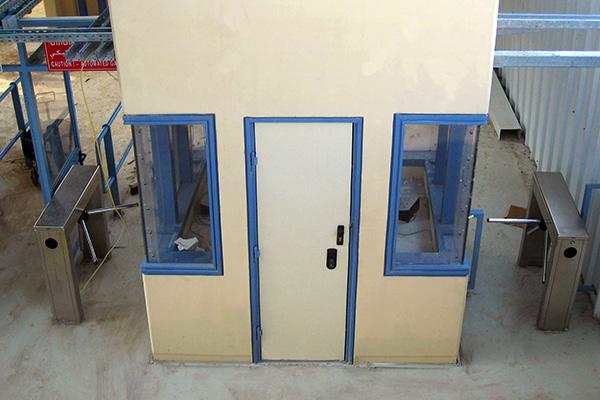

Uma linha de produtos balísticos em policarbonato para diferentes aplicações

A PALSHIELD conta com painéis linha de produtos balísticos de policarbonato de diferentes níveis de proteção balística e contra entrada forçada, que atendem diversas de necessidades de aplicação. Devido à sua estrutura laminada e em camadas, as chapas PALSHIELD suportam ataques físicos e balísticos por meio da absorção da energia do impacto sem quebrar ou lascar. PALSHIELD também possui um revestimento resistente a abrasão, que garante claridade por muito tempo em instalações em áreas públicas. Note que as informações listadas na ficha de PALSHIELD se referem aos produtos da Palram que atendem ou excedem os diferentes ensaios no momento da impressão. Contate a Palram para obter informações sobre outras certificações que você precisar.

Estrutura reforçada em camadas de policarbonato

Estrutura reforçada em camadas de policarbonato

Dados do produto

Dimensions

PropertyUnitsValue
Thicknessmm19-32
Size*mm1220 x 2440
ColorsClear, Bronze, Grey



Dimensions Note *Other Sizes Are Available Upon Request, Subject To Minimum Quantity
Product Availability Note * Contains Acrylic N** Tested By An Acredited Independent Lab According To UL Specs.
Available Colors     Clear, Bronze, Gray

Typical Physical Properties

PropertyConditions (U.S. Customary)ASTM MethodUnits - SI U.S. Customary)Value (U.S. Customary)
Physical
DensityD-1505g/cm3 (lb/ft3)1.2 (75)
Water Absorption24 hr. @ 23°CD-570%0.15
Mechanical
Tensile strength at yield10 mm/min (0.4 in./min)D-638MPa (psi)62 (9
Tensile strength at break10 mm/min (0.4 in./min)D-638MPa (psi)65 (9500)
Elongation at yield10 mm/min (0.4 in./min)D-638%6
Elongation at break10 mm/min (0.4 in./min)D-638%110
Tensile Modulus of Elasticity10 mm/min (0.4 in. /min)D-638MPa (psi)2
Flexural Modulus1.3 mm/min (0.05 in./min)D-790MPa (psi)2
Flexural Strength at Yield1.3 mm/min (0.05 in./min)D-790MPa (psi)93 (13
Notch Impact Strength Izod23°C (73°F)D-256J/m (ft·lbf/in.)800 (15)
Notch Impact Strength Charpy23°C (73°F)D-256J/m (ft·lbf/in)800 (15)
Impact Falling Weight3 mm (0.12 in.) SheetISO-6603/1bJ (ft·lbf)158 (117)
Rockwell HardnessD-785R scale / M scale125 / 70
Abrasion (Taber Process)100 CyclesCS-10S Wheel500gD-1044
Compressive Strength1.3 mm/min (.05 in./min)D-695MPa (psi)86 (12
Compressive Modulus1.3 mm/min (.05 in./min)D-695MPa (psi)2378 (345
Shear strength at Yield1.3 mm/min (.05 in./min)D-732MPa (psi)41 (6000)
Shear strength at Break1.3 mm/min (.05 in./min)D-732MPa (psi)68 (10
Shear Modulus1.3 mm/min (.05 in./min)D-732MPa (psi)786 (114
Thermal
Long Term Service Temperature°C (°F)-75 to +100 (-175 to +212)
Short Term Service Temperature°C (°F)-75 to +120 (-175 to +250)
Heat Deflection TemperatureLoad: 1.82 Mpa (264 psi)D-648°C (°F)132 (270)
Vicat Softening TemperatureLoad: 1 kg (2.2 lb)D-1525°C (°F)150 (300)
Coefficient of Linear
Thermal ExpansionD-69610-5/°C (10-5/°F)6.5 (3.6)
Thermal ConductivityC-177W/m°K (Btu-in./hr-ft2-°F)0.21 (1.46)
Specific Heat CapacityC-351kJ/kg°K (Btu/lb°F)1.26 (0.31)
Optical
Light TransmissionD-1003%See Product Data Sheet
Refractive IndexClear SheetD-5421.59
Electrical
Dielectric Constant50 HzD-1503
1 MHzD-1502.9
Dissipation Factor50 HzD-1500.9
1 MHzD-15011
Dielectric Strength Short Time500 V/sD-149kV/mm (V/mil)>30 (>770)
Surface ResistanceKetleyD-257Ohm5.1x1015
Volume ResistanceKetleyD-257Ohm-cm1.3x1017



Forced Entry Ratings

Forced Entry ProductsStandardCompliance / RatingThickness (inches, mm)PliesLbs./ft2 (Kg/m²)Light Transmission
PALSHIELD FE 375ASTM F1915-0Security Grade Level 20.375″ (9.5mm)22.4 (11.7)0.86
PALSHIELD FE 500ASTM F1915-05Security Grade Level 20.500″ (12.7mm)33.3 (16.1)0.83
PALSHIELD FE 500HPW 0500.03Level A ballistics (.38 special)0.500″ (12.7mm)33.3 (16.1)0.83
PALSHIELD FE 750ASTM F1915-05Security Grade Level 10.750″ (19mm)34.9 (23.9)0.77
PALSHIELD FE 750HPW-TP-0500.00Level B Balllistics (9mm)0.750″ (19mm)34.9 (23.9)0.77



Ballistic Ratings

Ballistic ProductsStandardCompliance / RatingThickness (inches, mm)PliesLbs./ft2 (Kg/m²)Light Transmission
PALSHIELD UL1-750*UL 752Level 1 u2020 - 9mm 3 shots.750″ (19mm)34.9 (23.9)0.88
PALSHIELD UL2-1000UL 752Level 2 u2020 - .357 3 shots1.0″ (25.4mm)46.5 (31.7)0.72
PALSHIELD UL3-1250UL 752Level 3 u2020 - .44 Mag 3 shots1.25″48.1 (39.5)0.67
PALSHIELD UL3-1250ASTM F1915-05Security Grade 11.25″48.1 (39.5)0.67
PALSHIELD UL3-1250ASTM 1233-08Class V (Body)1.25″ (32mm)48.1 (39.5)0.67
PALSHIELD UL6-1250*UL 752Level 6 u2020 - High Velocity 9mm 5 shots, Supplemental shotgun 1 shot1.25″ (32mm)48.1 (39.5)0.78

Ballistic Ratings Note     * Contains Acrylic U2020 Tested By An Acredited Independent Lab According To UL Specs.



Testing Standard Reference and Description

Testing Standard ReferenceStandard and YearTitle / Description
ASTMF1233-08Standard Test Method for Security Glazing Materials and Systems
ASTMF1915-05Standard Test Method for Glazing for Detention Facilities
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
HP WhiteTP-0500-.03Transparent Material for Use in Forced Entry or Containment Barriers
UL752Bullet Resistant Equipment

Regulatory Code Compliance Certification

OrganizationStandardClassification
ANSIZ97.1-09Approved Impact and Weathering
CPSC16 CFR 1201Category I or II
