SUNTUF Residential Pergola
Suntuf DIY
Suntuf DIY
Suntuf DIY

SUNTUF® CORRUGATED POLYCARBONATE SHEET

Make the most of your outdoor spaces year round!

Are your home’s outdoor spaces equipped for the full range of weather conditions? If not, you’re missing a great opportunity to enjoy your outdoor spaces year round. Whether you're looking for a beautiful covered patio, a storage shed for organizing your garden equipment, or even a chicken coop to provide fresh eggs to your family each day, SUNTUF is a great choice to bring your outdoor spaces to life. SUNTUF is lightweight, super-tough and easy-to-cut and drill using basic woodworking tools. It also has built in 99.99% UV protection, so the panel itself is protected – and so is everything else under it. Use it to cover just about any type of outdoor structure to increase your outdoor living area, storage space or shelter.

Main Benefits

  • Impact-resistant – virtually unbreakable
  • Up to 90% light transmission
  • Long-term weather and UV resistant
  • Lightweight and easy to install
  • Meets fire rating requirements
  • Limited lifetime warranty, including 10-years for damage due to hail

Typical Applications

  • Patio, deck and pergola coverings
  • Swimming pool covers or enclosures
  • Storage structures
  • Carports
  • Garden greenhouses
  • Animal enclosures

SolarSmart SUNTUF Pergola

SolarSmart SUNTUF Pergola

Projects

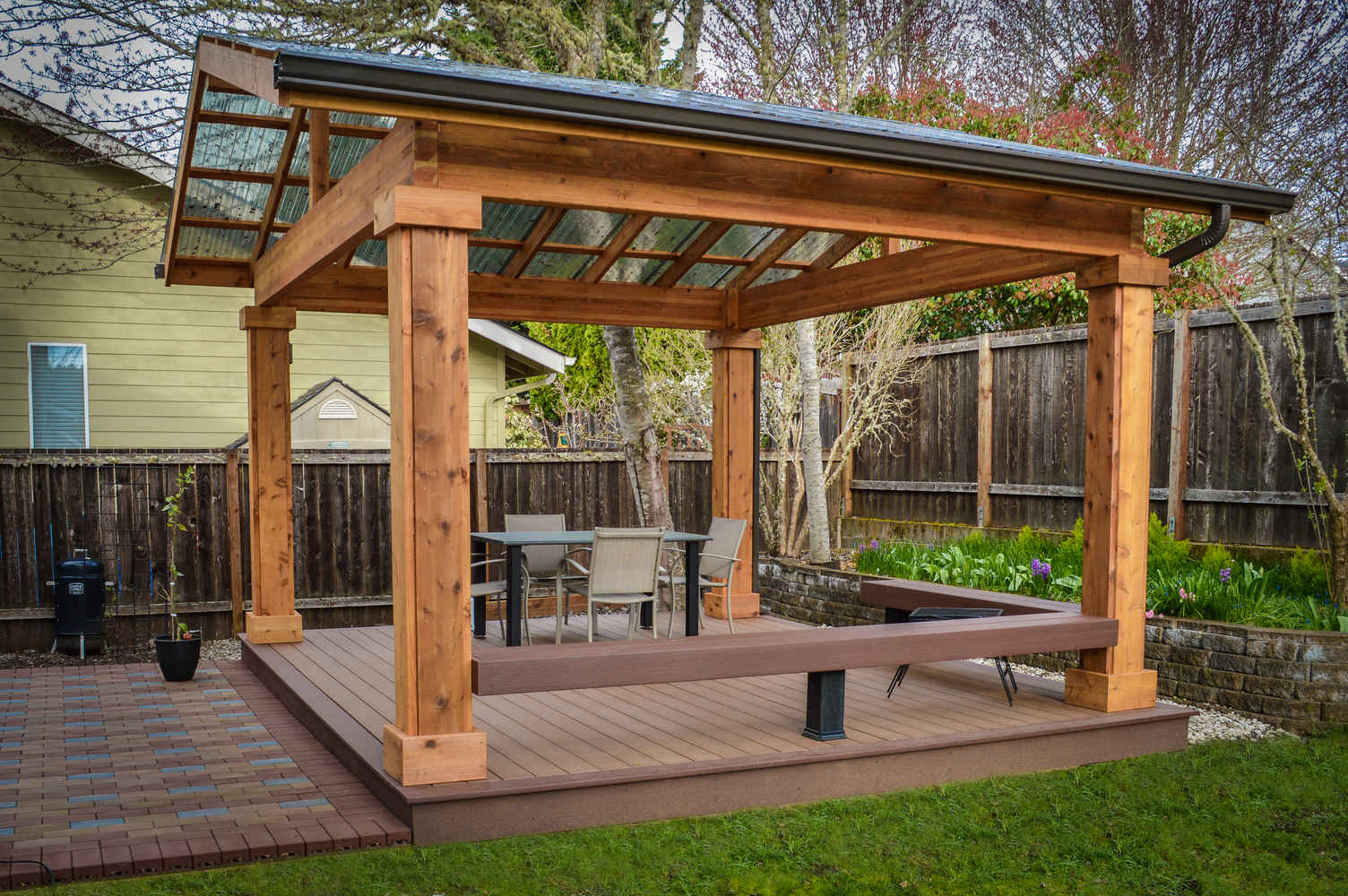

Residential Pergolas

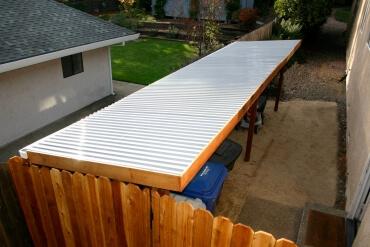

Sheds
Patio Coverings
Chicken Coops

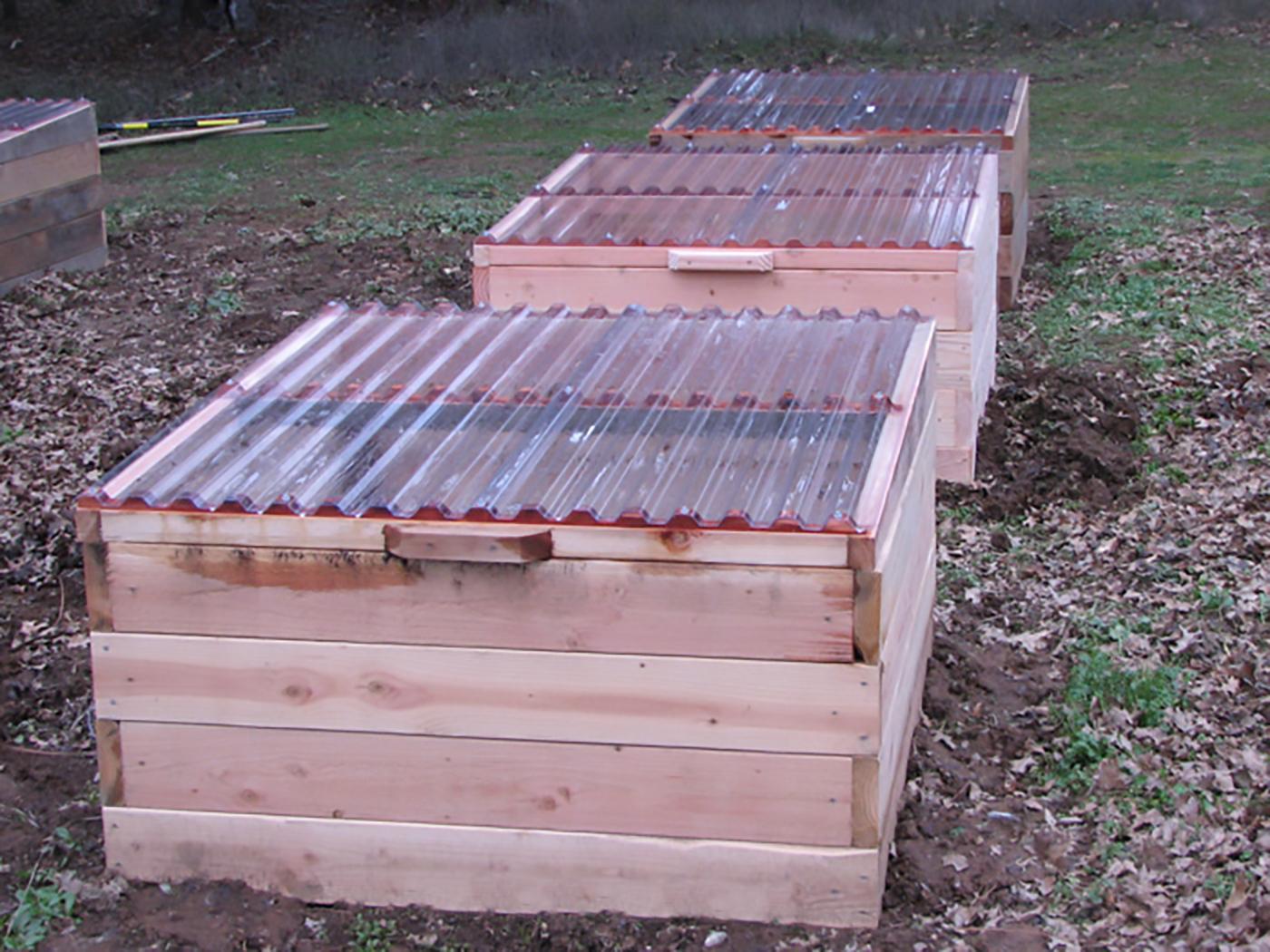

Cold Frames

SUNTUF BH- Corrugated Beehive embossed polycarbonate sheets

These high impact profiled premium sheets, intend for DIY and professional roofing projects, combine modern aesthetics and style with higher durability rating than standard polycarbonate sheets.
Palram has created a selection of shades and colors, all of which produce 100% diffused light with reduced glare for improved comfort and usability.
SUNTUF BH with the beehive embossed underside surface adds an aesthetic appearance in roofing applications, and is especially durable for long-term construction.
Recommended for use in areas that are subjected to extreme heat or, alternatively, hail and other extreme weather conditions.
Particularly resistant to heavy loads and impact.

Learn more…

SUNTUF BH- Corrugated Beehive embossed polycarbonate sheets

CLARITY OR COLOR? OR PERHAPS A LITTLE OF BOTH?

With three standard colors and five specialty colors, Palram has created a selection that will allow you to pick the right combination of light transmission, diffusion, and color for your outdoor spaces. SUNTUF is available in standard colors such as clear, opal white and solar gray, and specialty colors.

COLOR SWATCHES

Comparison of Standard Colors and Specialty Colors

SUNTUF Standard Color Comparison
SUNTUF Standard Color Comparison

SUNTUF colors range from transparent to translucent to virtually opaque. Take a look at these 20-second videos to see how our Standard Colors and Specialty Colors compare.

SUNTUF Specialty Color Comparison
SUNTUF Specialty Color Comparison

This video shows the difference between SUNTUF specialty colors in terms of translucency and opacity.

TAKES WHATEVER MOTHER NATURE (OR YOUR KID) THROWS AT IT

SUNTUF easily withstands snow, ice and temperatures ranging from -40° to 248° F (-40° to 120° C). And with up to 20 times more impact resistance than fiberglass, it offers the best hail protection available in transparent or translucent products. But Mother Nature is gentle compared to kids playing around the house! See how well SUNTUF holds up to garden rocks, golf balls, and baseballs in this video.

TAKES WHATEVER MOTHER NATURE (OR YOUR KID) THROWS AT IT

INSTALLATION BASICS

SUNTUF® DIY - A variety of designs, shades, and finishes
SUNTUF® DIY - A variety of designs, shades, and finishes
How to Store SUNTUF
How to Store SUNTUF

SUNTUF is one of the toughest products around when installed, but you should follow these tips if you want to store it before installation.

How to Cut SUNTUF
How to Cut SUNTUF

Watch this video for an explanation on the different ways to cut SUNTUF.

How to Fasten SUNTUF
How to Fasten SUNTUF

Correct fasteners, fastening locations, and fastener tightness can make or break a project. Learn what matters if you want to ensure long-term durability.

Downloads

File name
Size
SUNTUF Beehive Leaflet (En).pdfSUNTUF Beehive Leaflet (En).pdf
2 MB
SUNTUF ZigZag Leaflet (En).pdfSUNTUF ZigZag Leaflet (En).pdf
3 MB
Palram Finishing Accessories (En).pdfPalram Finishing Accessories (En).pdf
2 MB
Polycarbonate Care and Maintenance (En).pdfPolycarbonate Care and Maintenance (En).pdf
69 KB

PRODUCT DETAILS

Dimensions

Profile Geometry:Select profile from hundreds of profiles or have us make one customized to your needs
Thickness:1-4 mm
Corrugation Height/Depth:Up to 110mm
Width:Up to 1,800mm
Length:Palram can fit any length of skylight or roof. Overlaps may be required.
Dimensions Note*Custom Colors Are Available Upon Request, Subject To Minimum Quantity.

Colors & Finishes

SUNTUF Dimensions:SUNTF profiles vary by width from one profile to another, and come in a variety of length. See specific profile for detailed information



Available ColorsClear
White Opal
White Diffuser

Standard Color chart

Type:Colors

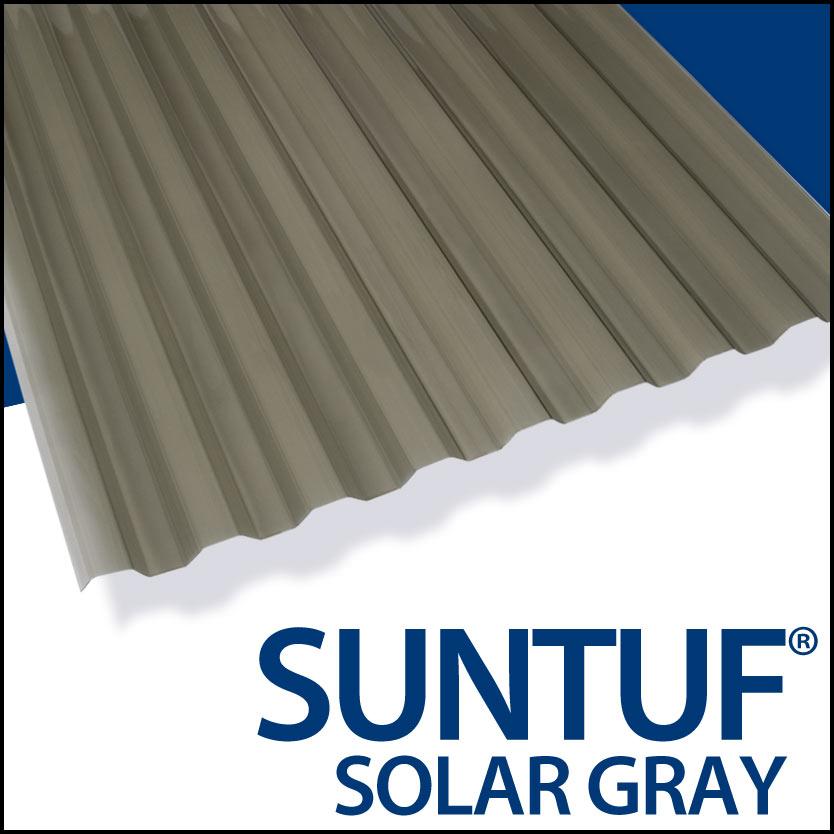

TransparentClear, Gray, Bronze, Sky Blue, Transparent Green, Smart Gray

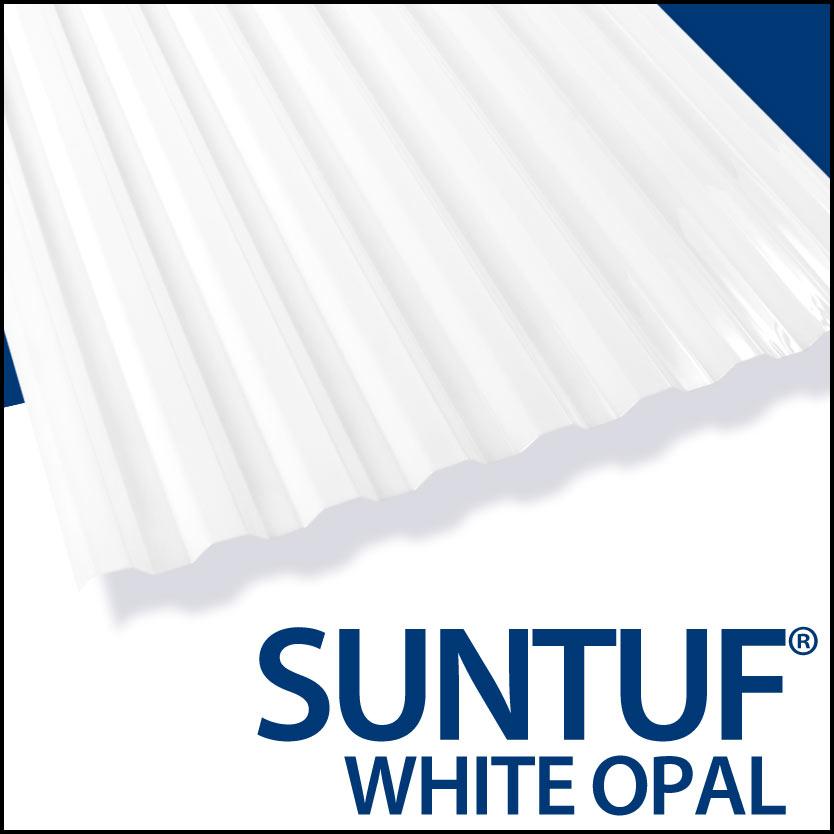

TranslucentWhite Opale, White Diffuser, Solar Control, Solar Ice, Mist Green, Smooth Cream

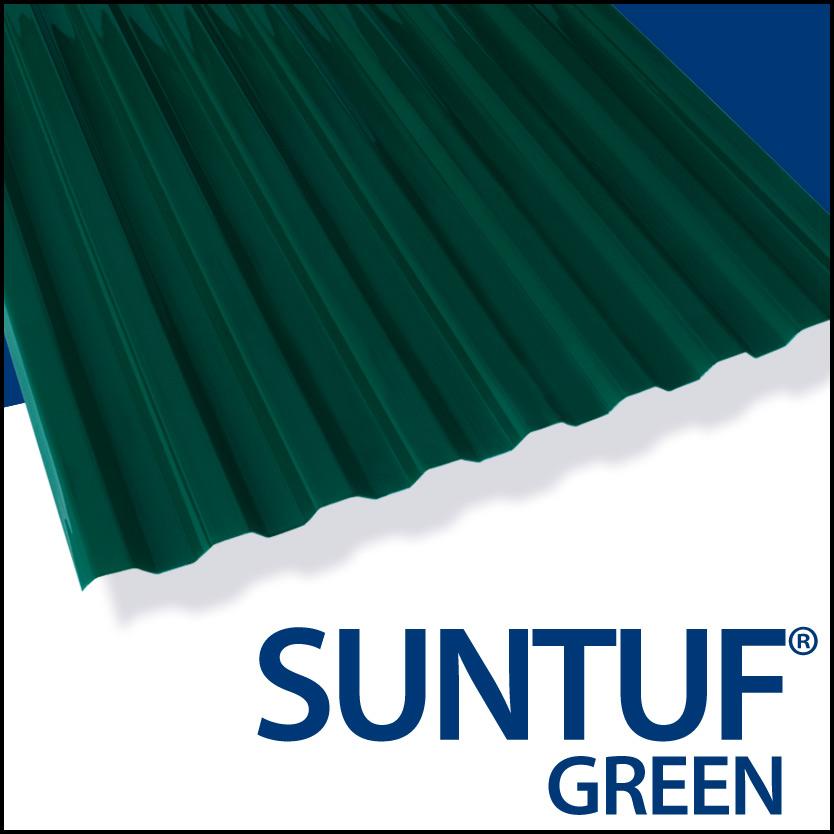

OpaqueWhite, Green, Blue, Red Brick

*Custom colors are available upon request, subject to minimum quantity.



Surface Finishing Options

Surface Finish TypeDescription
StandardCorrugated polycarbonate sheet with UV protection on one side
UV2With UV protection on both sides
Solar ControlWith effective heat blocking
SmartAdvanced heat blocking with high clarity
EmbossedEmbossed finish on one sides
HCHair Cell finish on one sides
BHBee Hive finish on one sides

Physical Properties

Typical Physical Properties

PropertyStandardConditionsUnitValue
DensityASTM D792-g/cm³1.2
Heat Deflection TemperatureASTM D6481.82 MPaCº130
Service Temperature (Short term)-Cº-50 to 120
Service Temperature (Long term)Cº-50 to 100
Coefficient of Linear Thermal ExpansionASTM D696-cm/cm Cº6.5 X 10-⁵
Thermal ConductivityASTM C177-W/mK0.21
Tensile Strength at YieldASTM D63810 mm/minMpa62
Tensile Strength at BreakASTM D63810 mm/minMpa65
Elongation at YieldASTM D63810 mm/min%7
Elongation at BreakASTM D63810 mm/min%>80
Tensile Modulus of ElasticityASTM D63810 mm/minMpa2300
Flexural StrengthASTM D7901.3 mm/minMpa93
Flexural ModulusASTM D7901.3 mm/minMpa1890
Impact Falling Weight (E-50)ISO 6603/1 E50J50
Rockwell HardnessASTM D785R Scale118R
Light TransmissionASTM D1003%90
HazeASTM D1003%<0.5
Yellowness IndexASTM D1925<1

Typical Physical Properties Notes     * ASTM Method Except Where Noted Otherwise

Technical Data

StandardClassification*
EN13501B, s1, d0
NFP 92501,4,5M-1
DIN 4102B-1
UL 7234,7,47.0
Los Angeles Building CodeCC2 (Section 2603)
UNI 9177, 9176Class 2
Flammability Notes* For Additional Information Please Contact Your Palram Distributor

Frequently Asked Questions

How do I curve the polycarbonate to follow the façade curve?
+ -

All Palram polycarbonate products can be cold bent onsite during installation, subject to a minimum radius. The radius varies based on the chosen product. For flat sheets such as PALSUN & SUNLITE, the rule-of-thumb for the minimum radius is the thickness multiplied by 200. Please check the Palram catalog for more detailed specifications.

PALGARD®PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTOP®SUNTUF®
How do I specify the required thickness of the polycarbonate glazing material?
+ -

The recommended thickness of the polycarbonate glazing material is based on factors such as wind & snow load, panel size, and boundary conditions. Visit the Palram website for access to calculators that can help you determine the recommended thickness.

PALGARD®PALSUN®SUNLITE®SUNPAL®SUNTOP®SUNTUF®
How do I reduce the heat build-up coming from the façade into the building?
+ -

In order to reduce heat build-up through the façade, Palram strongly recommends the use of its tinted SolarSmart™ panels. SolarSmart™ tints can be implemented in all Palram polycarbonate products. For more information, reference the Palram SolarSmart™ technology page.

PALGARD®PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTUF®
How do I install corrugated polycarbonate sheets as a skylight?
+ -

Corrugated polycarbonate sheets are installed as a homogeneous part of the metal roof. For more information, please review Palram's installation instructions for the desired profile.

SUNTUF®
Why do I have to pre-drill fastener holes in roofing with corrugated panels?
+ -

Pre-drilling the holes ensures that the panels have room to expand and contract properly with temperature changes. Skipping this step can lead to distorted, warped or cracked panels.

AG-TUF® CORRUGATED PVCPALRUF®PALTOP™SUNGLAS™SUNTUF®SUNTOP®
Can the percentage of light transmission be controlled? I need a lot of light but I need it to be diffused.
+ -

Palram offers various LT% parameters - from 0% to 90%. In addition, we offer a color called a “diffuser” that allows 85% of the light in while diffusing it by 100%. The result is a light-transmitting panel that is not transparent but is highly translucent.

PALCLEAR®PALGARD®PALGLAS®PALSHIELD®PALSUN®SUNGLAS™SUNGLAZE®SUNLITE®SUNPAL®SUNTUF®
Can corrugated sheets be curved?
+ -

Yes. Corrugated sheets can be cold-curved to create arched shapes. It's important to follow the relevant Palram specifications for minimum radius in cold-curving, which can be found in the Installation Instructions of the relevant sheets. In addition, corrugated sheets should be arched so that the corrugations themselves are curved lengthwise.

AG-TUF® CORRUGATED PVCPALRUF®SUNGLAS™SUNTOP®SUNTUF®
How do I design the secondary steel support spacings for roofing/siding?
+ -

Palram created specific loading tables for each product. Please visit our website and download the specific catalog.

AG-TUF® CORRUGATED PVCPALGLAS®PALRUF®PALSUN®PALTOP™SUNGLAS™SUNGLAZE®SUNLITE®SUNPAL®SUNTOP®SUNTUF®
Can I install corrugated PVC and polycarbonate sheets horizontally for siding?
+ -

Yes. Make sure you start installing from the bottom up so the overlaps will not let the water in.

AG-TUF® CORRUGATED PVCSUNGLAZE®PALRUF®SUNTOP®SUNTUF®
How do I clean the polycarbonate?
+ -

  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.

PALGARD®PALSHIELD®PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTOP®SUNTUF®
When should I use PVC corrugated sheets versus polycarbonate corrugated sheets?
+ -

PVC corrugated sheets are mainly used for opaque roofing and siding of industrial buildings in highly-corrosive environments such as port warehouses, cowsheds, and dairies. Polycarbonate corrugated sheets are mainly used as roofing or siding where natural daylight illumination is needed.

AG-TUF® CORRUGATED PVCPALRUF®SUNTOP®SUNTUF®
What are the benefits of using polycarbonate standing-seam system over standard polycarbonate sheets?
+ -

The main benefit of the standing-seam system is that unlike standard sheets, it is sold together with all installation accessories. This system also provides superior water tightness and is easier and faster to install.

SUNGLAZE®SUNPAL®
What is the meaning of Shading Coefficient (SC)?
+ -

Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.

PALCLEAR®PALGARD®PALSHIELD®PALSUN®SUNGLAS™SUNGLAZE®SUNLITE®SUNPAL®SUNTOP®SUNTUF®
When should I specify a matte surface finish for the polycarbonate?
+ -

A matte surface finish is good if you want to avoid glare within your surroundings.

PALGARD®PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTUF®
How do I determine the color, Light Transmission (LT) and haze properties of polycarbonate?
+ -

This decision depends on the application – some of the colors are transparent and some are translucent. If a see-through material is needed, then haze should be smaller than 1% and the LT% should be based on the illumination design. If a translucent effect is needed, then the haze should be 100% and the LT% based on the chosen color.

PALGARD®PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTUF®
Where should I use corrugated versus multiwall polycarbonate covering?
+ -

SUNTUF Plus corrugated polycarbonate sheets provide the best light transmittance and UV light resistance, with exceptional load bearing and impact-resistance properties. SUNLITE Plus multiwall PC sheets provide the best thermal insulation. In locations where you would prefer thermal insulation to light transmission, you should use SUNLITE Plus multiwall PC sheets.

SUNLITE®SUNTOP®SUNTUF®
Can I cover my old polyethylene greenhouse with polycarbonate while still keeping the old structure?
+ -

Yes, but with minor reinforcements to the structure in order to support the load.

PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTUF®
Will polycarbonate light transmittance deteriorate over time?
+ -

PALRAM's polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.

PALGARD®PALOPAQUE™PALSHIELD®PALSUN®SUNGLAZE®SUNLITE®SUNPAL®SUNTUF®
