PALTOP™

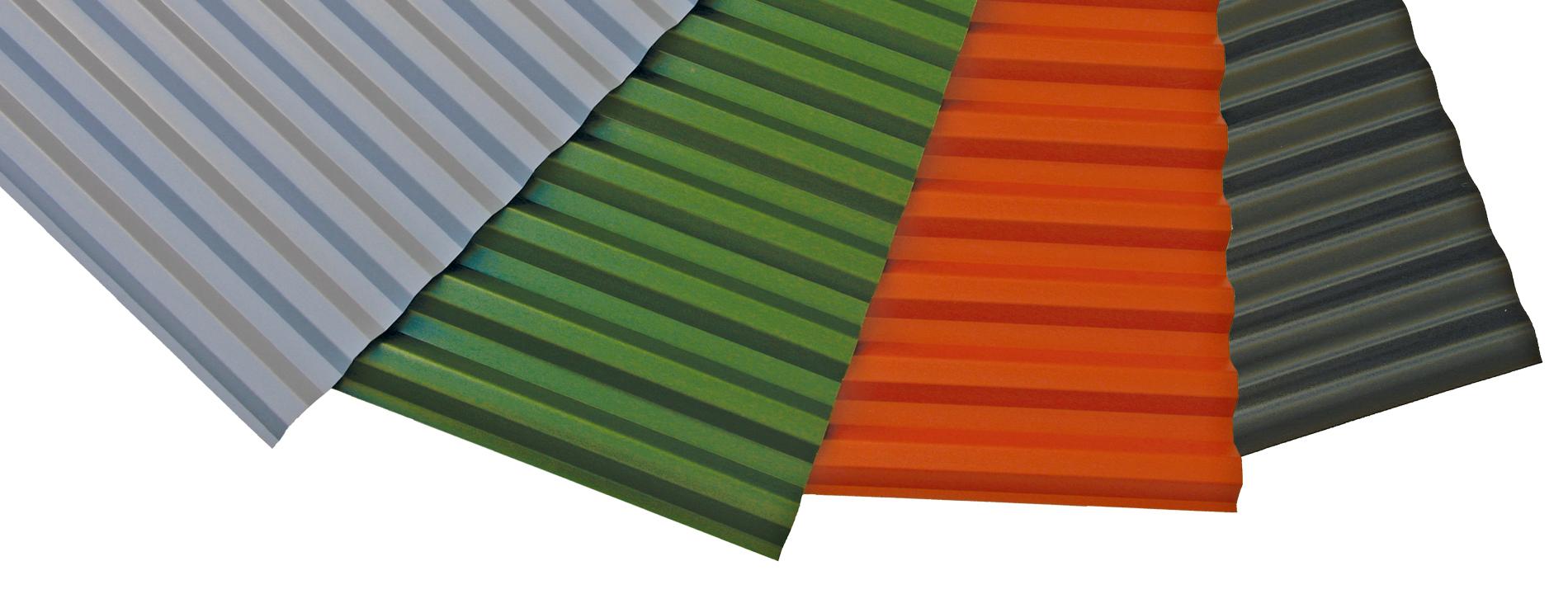

PALTOP™ Corrugated Foamed PVC Sheet

Cost-efficient foam PVC sheets for residential roofing

PALTOP offers a cost-efficient solution for lightweight exterior roofing applications. Its impact resistance and low weight make PALTOP easy to handle and ideal for a variety of roofing applications around the home and garden. It it is offered in black or a range of vivid non-fading colors, giving it a smooth and attractive appearance.

Colorful & lightweight corrugated PVC

Main Benefits

Ideal for lightweight roofing
Good impact resistance
Suitable for all weather conditions
Suitable for curved roofing
Colors will not fade
Provides thermal insulation
Heavy-metal free
5 year warranty
Easy to install

Typical Applications

Lightweight domestic roofing
Pergolas
Awnings
Private parking structures
Sheds

Downloads

File name

Size

Installation/Technical

Palram Finishing Accessories (En).pdf

2 MB

Palram PVC Adhesives Sealants (En).pdf

108 KB

Palram PVC Chemical Resistance (En).pdf

158 KB

Palram Product Safety Data Sheet Foamed PVC (En).pdf

78 KB

Dimensions

Standard Dimensions

Type	Color Range	Profile	Thickness (mm)	Width (mm)	Length (mm)
PALTOP™	Black	76/18 (Iron/Sinus)	1.2	900	2,000-6,000
PALTOP™ Premuim	Grey, Green, Red, Black	70/18 (Greca/Trapeze)	1.2	900	2,000-6,000


Standard Dimensions Note	*Other Options Are Available Upon Special Request And Are Subject To A Minimum Quantity.

Physical Properties

Typical Physical Properties

Property	ASTM Method	Conditions	Units	Value
Density	(D-1505)		g/cm³	0.9
HBU* (Heat buildup)			ºC	<33
Tensile strength at yield	(D-638)	10 mm/min	MPa	25
Tensile strength at break	(D-638)	10 mm/min	MPa	20
Elongation at yield	(D-638)	10 mm/min	%	1.4
Elongation at break	(D-638)	10 mm/min	%	7
Modulus of elasticity	(D-638)	1 mm/min	MPa	1480
Water absorption	(D-570)	24hr @ 23ºC	%	<0.2


Typical Physical Properties Notes	* Heat Buildup = The Increase Of Temperature That The Product Is Able To Withstand On Top Of The Environment's Temperature. In The Test, 12x12cm Samples Of PALTOP Were Exposed To IR2 250W Lamp At A 30cm Distance.

Related Products

SUNTOP®

SUNGLAS™
