Cost-efficient foam PVC sheets for residential roofing

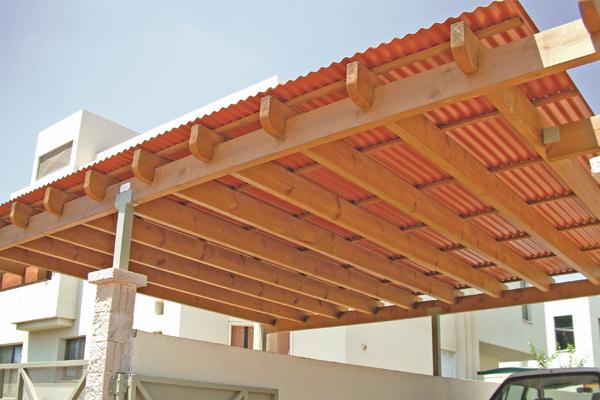

PALTOP offers a cost-efficient solution for lightweight exterior roofing applications. Its impact resistance and low weight make PALTOP easy to handle and ideal for a variety of roofing applications around the home and garden. It it is offered in black or a range of vivid non-fading colors, giving it a smooth and attractive appearance.

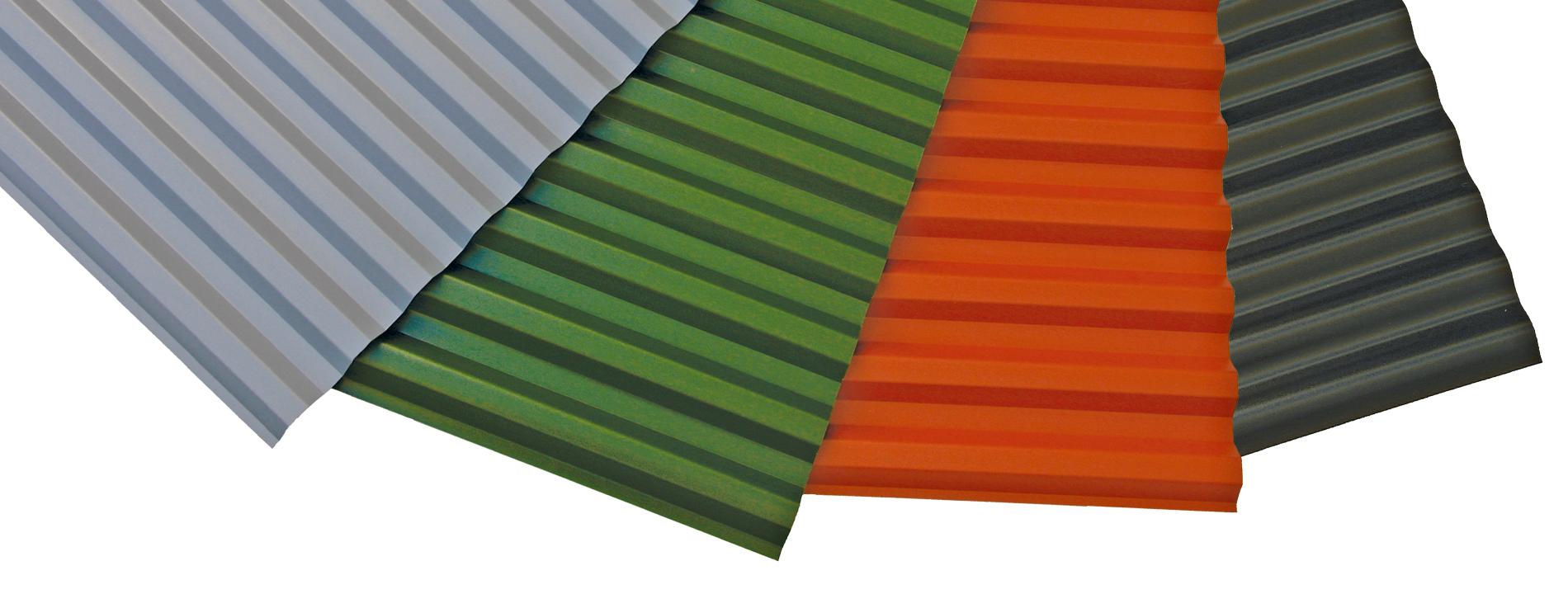

Colorful & lightweight corrugated PVC


Standard Dimensions

TypeColor RangeProfileThickness (mm)Width (mm)Length (mm)
PALTOP™Black76/18 (Iron/Sinus)1.29002,000-6,000
PALTOP™ PremuimGrey, Green, Red, Black70/18 (Greca/Trapeze)1.29002,000-6,000
Standard Dimensions Note*Other Options Are Available Upon Special Request And Are Subject To A Minimum Quantity.

Typical Physical Properties

PropertyASTM MethodConditionsUnitsValue
HBU* (Heat buildup)ºC<33
Tensile strength at yield(D-638)10 mm/minMPa25
Tensile strength at break(D-638)10 mm/minMPa20
Elongation at yield(D-638)10 mm/min%1.4
Elongation at break(D-638)10 mm/min%7
Modulus of elasticity(D-638)1 mm/minMPa1480
Water absorption(D-570)24hr @ 23ºC%<0.2
Typical Physical Properties Notes* Heat Buildup = The Increase Of Temperature That The Product Is Able To Withstand On Top Of The Environment's Temperature. In The Test, 12x12cm Samples Of PALTOP Were Exposed To IR2 250W Lamp At A 30cm Distance.
