PALBOARD® CO-EXTRUDED MULTILAYER PVC SHEET

Co-extruded Multilayer PVC Substrates for Signage, POP, & Retail Display Creations

PALBOARD innovative co-extruded multi-layered PVC sheets are designed for 3D model fabrication, flat graphics printing and signage applications, POP display, and more.

PALBOARD combines the ultra-smooth surfaces of solid PVC with the lightweight, easy-to-use characteristics of a foam PVC core, made of recycled PVC.
Its uniform surfaces are bright white allowing for the most vibrant color reproduction, with excellent ink-adhesion, while its lightweight, rigidity and durability make it an excellent substrate for mechanical fabrication.

The PALBOARD family includes PALBOARD® 2D, PALBOARD® 3D and PALBOARD® 3D MAX.

Benefits

Chemical Resistance

Easy To Fabricate

Wide Format Printing

High Recycled Content

Thermoforming

Lightweight

Applications

PALBOARD is easy to fabricate, making it ideal for a wide variety of sign and display applications.
  • Unique 3D Exhibits

  • Digital & Screen Printing

  • Cosmetic Displays

  • Stand-off Photos

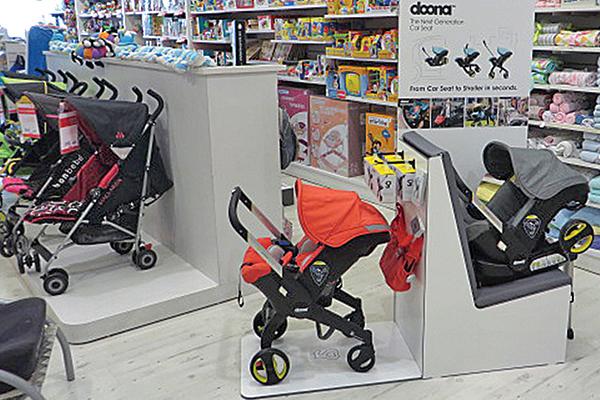

  • Retail Shelving for Slatwalls

  • Superior Print Quality

  • Easy to Assemble Displays

  • Exterior Signage

  • PALBOARD Kennel

  • Model Making

Processing

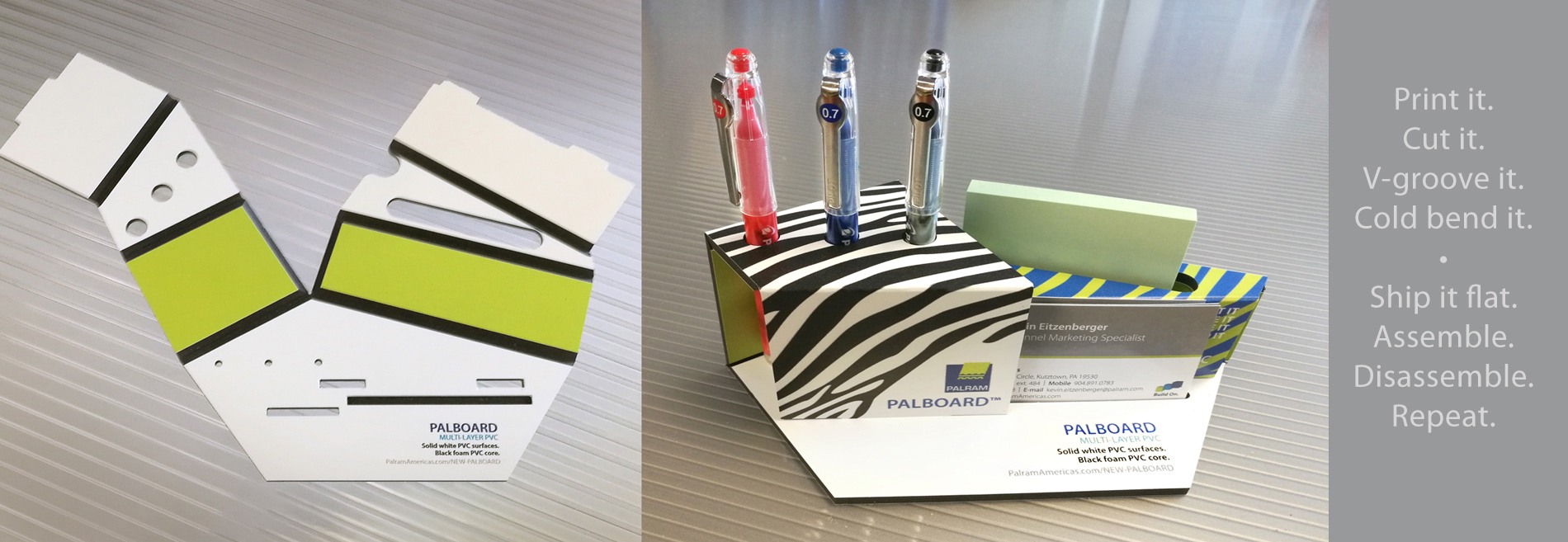

Print-ready, cutting-ready, and V-groove-ready. Ready for printing, routing, and assembly.
  • Milling & Routing

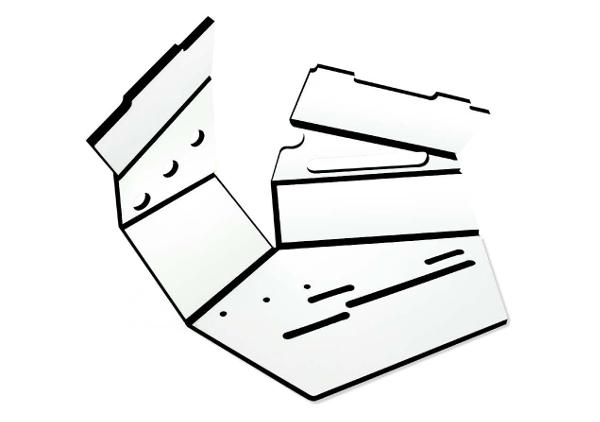

  • V-groove Cold Bending

  • Drilling & Punching

  • Laminating

  • Texture Die Press

  • Screwing & Riveting

  • Hot Bending & Thermoforming

  • Digital & Screen Printing

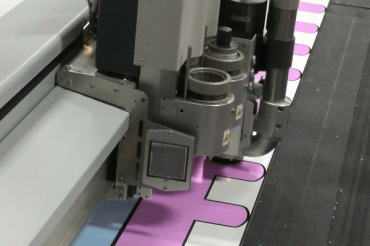

  • CNC & Die Cutting

Colour Swatch

Choose from a variety of PALBOARD colour options
  • White – Black

  • White – Black – White

  • White – White – White

Ready to Get Started?

Find a location or distributor near you so that you can get your projected off and running.

FAQ

Show FAQs
Should products be pre-dried before thermoforming?
+

This depends on the production date and storage conditions of the product before thermoforming. It is recommended to check the product before thermoforming is attempted.

Is the PE film suitable for thermoforming applications?
+

Most of Palram’s products that are delivered with PE film covering are suitable for thermoforming. In general, we recommend using clear PE and not printed PE.

What is the best wide-format inkjet media (substrate) for my application?
+

This is based on a combination of several parameters, but the main ones are the cost of the media and its durability, and its fit to the required application. Please visit Palram’s Flat Sheet Application Catalog.

What is the difference between a polypropylene sheet and PVC?
+

In terms of ink adhesion properties, both polymers act very differently. PVC is a ready-to-use polymer so no pre-treatment needs to be done before printing (on rigid or flexible media). Polypropylene has different chemical properties and for this reason, needs to get a pre-treatment coat (‘Corona’), which has a limited shelf life.

How do I handle inkjet printable media before and after printing?
+

Before: use a protected sheet with PE masking, store unused inkjet printable media in original packaging and in a clean area, and avoid touching the print side by handling the edges of the sheet or by using lint-free white gloves.

After: avoid any finishing until prints are completely dry, store the printed media in a clean environment, and avoid dust from sticking to the fresh cured ink.

What is the most accurate white point that is suitable for wide-format printing?
+

There are different white substrates available but in order to achieve a true colored image according to the design, a process of profiling (ICC profile) needs to be done. By using a natural white substrate (a tint which been made with no extra additives), the process of measuring and profiling becomes very simple and fast.

What is an illuminated sign?
+

A sign that is illuminated by an electrical light source (fluorescent\LED).

Which material diffuses the light better?
+

The diffusion is not defined by the material, but by the diffusion additive that is part of the manufacturing formula. The materials should be selected by their fit to the application (e.g. polycarbonate for thermo-forming or extreme weather). Usually products marked with sign grade and/or diffusion grades have greater light diffusion than others.

Which materials can be used in the construction of my sign?
+

Sign faces are usually made from polycarbonate or acrylic. For extreme conditions such as heavy hail, low temperatures, or high temperatures produced when thermo-forming, polycarbonate is probably more suitable. For sign boxes or channel letter cans, PVC, multi-layered PVC and foam PVC can be used.

Which of Palram’s sheets are suitable for printing, sign & display applications?
+

For use in illuminated signage, PALSUN, PALSUN CS (Coil Stock) and PALGLAS are suitable for the sign face; and PALBOARD, PALOPAQUE, and PALIGHT for the body of the letters or symbols. For print & display, Palram’s entire product portfolio can be used based on the specific application. This choice depends on a combination of several parameters, including the cost of the media, its durability, and its suitability for the specific application. Please visit Palram’s Flat sheet application catalog for more information.
