SUNGLAZE® SOLID STANDING SEAM PANEL SYSTEM

Solid Polycarbonate Standing Seam Panels Glazing System

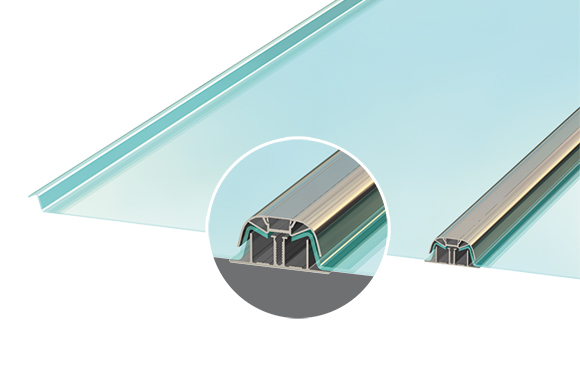

SUNGLAZE roof glazing system is an all-in-one architectural solution. It consists of polycarbonate standing seam panels, aluminium profiles, and fasteners. A leak-proof system engineered to support wide spans and heavy-duty engineering challenges. From pitched roof glazing, hail resistant skylights, and clear span roofs, to commercial curtain walls. SUNGLAZE polycarbonate panels are also a durable alternative to residential glass roof systems. Glazed roofing that delivers performance and durability, with minimal maintenance.

Benefits

Gasket-free standing seam ensures water-tight installations. Designed for wide spans and increased loading capacity.

Glass Appearance

Leak Proof

Fast & Safe installation

Heavy Duty

Gaskets & Sealants Free

Minimal maintenance

Applications

Glazed roofing with smart design for commercial, public, and residential architecture.
  • Outdoor roof glazing systems

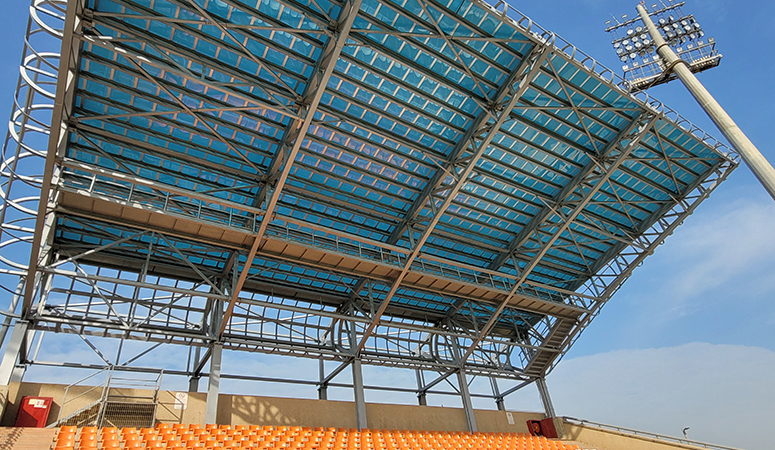

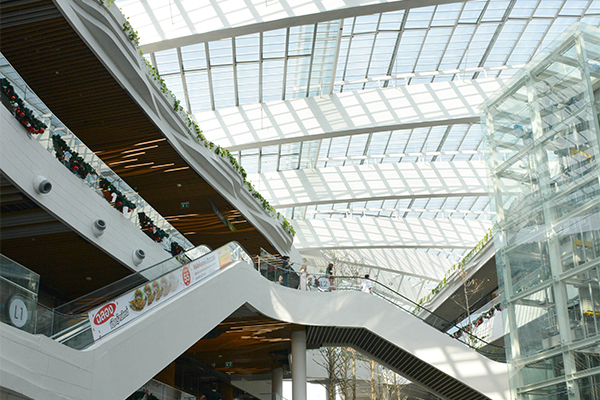

  • Solid roofs for open commercial areas

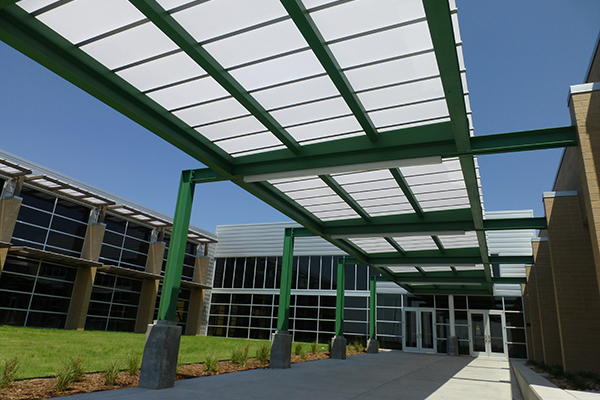

  • Walkways polycarbonate roof system

  • Awning system roofing

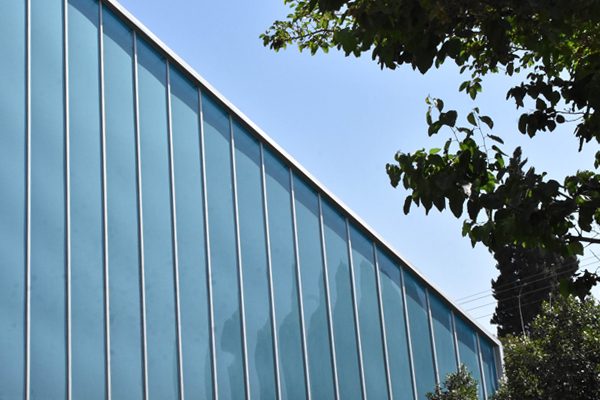

  • Curtain wall polycarbonate standing seam panels

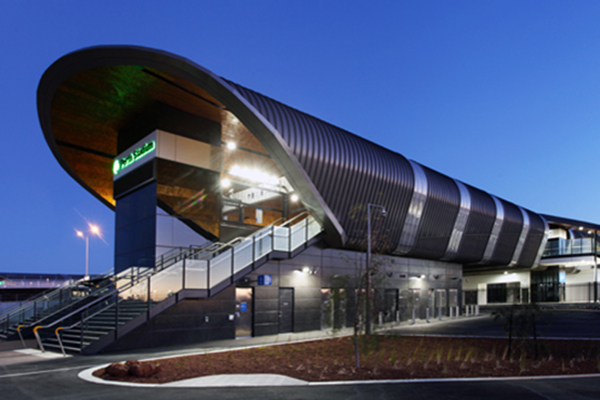

  • Curved façade and roof design architecture

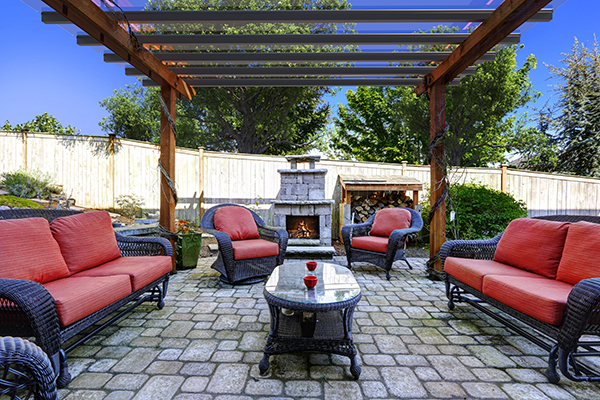

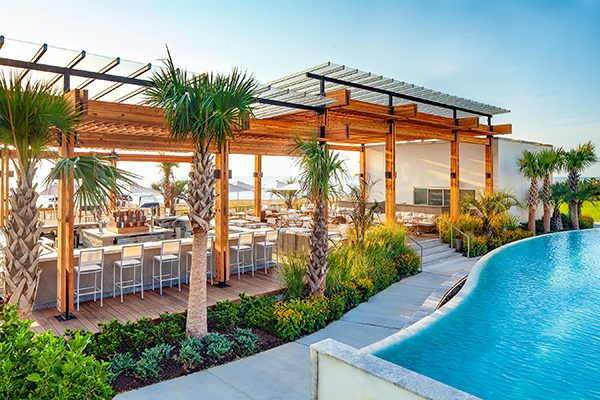

  • Translucent roof panels for outdoor canopies

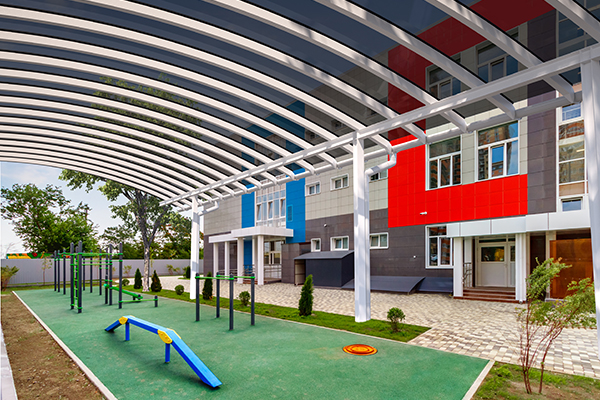

  • Curved and pitched roof glazing system

  • Polycarbonate gazebo replacement panels

Color Swatch

View the brochure in the downloads section for detailed optical properties of SUNGLAZE colors.

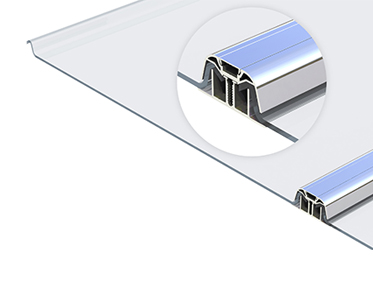

  • Clear

    Light 90% ǀ Haze <1%

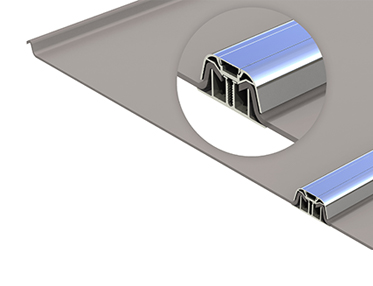

  • Grey

    Light 20%ǀ Haze <1%

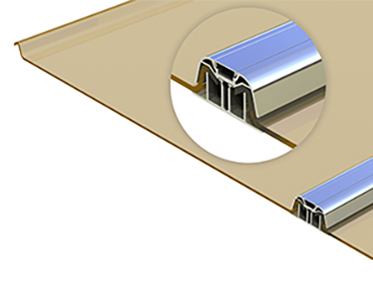

  • Bronze

    Light 20% ǀ Haze <1%

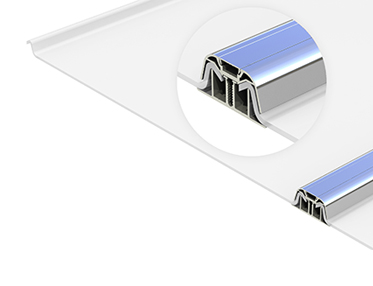

  • White Opal

    28% light transmission ǀ Haze 100%

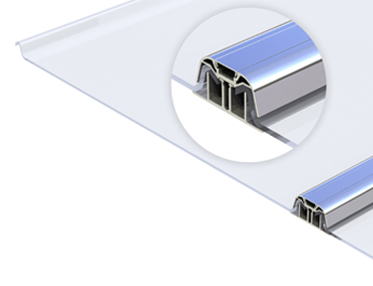

  • White Diffuser

    80% light transmission ǀ Haze 100%

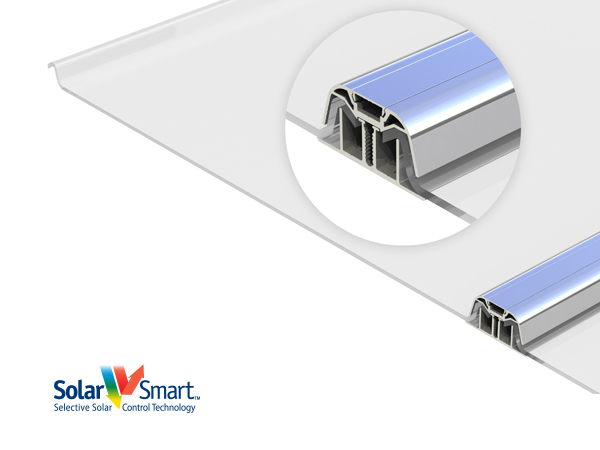

  • Solar Ice

    20% light transmission ǀ Haze 100%

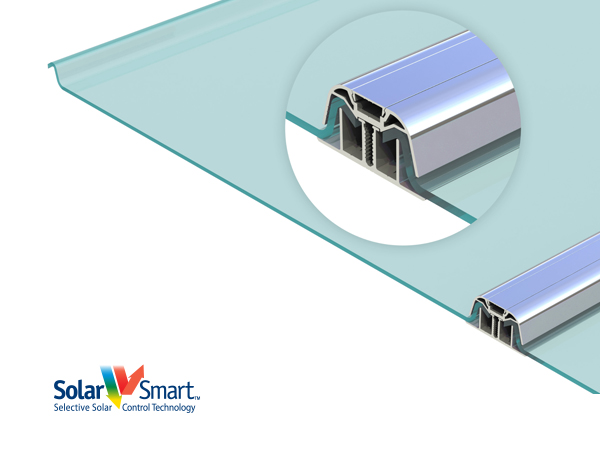

  • Solar Olympic

    20% light transmission ǀ Haze 35%

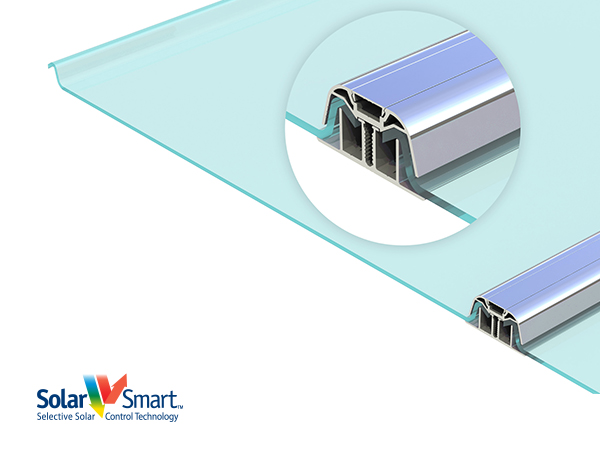

  • Bluish Breeze

    70% light transmission ǀ Haze 1%

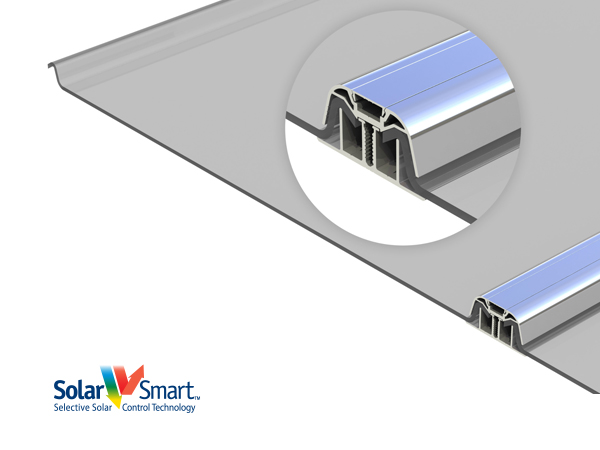

  • Solar Control

    20% light transmission ǀ Haze 67%

Videos

SUNGLAZE polycarbonate roof panel guidance and testimonials. Embrace design freedom with the help of our team.
  • SUNGLAZE curved awnings

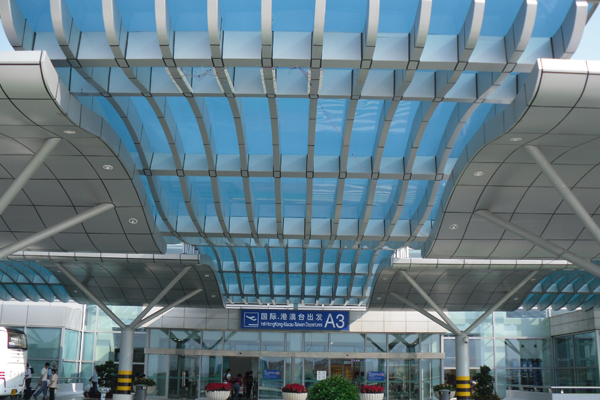

    Roof glazing systems with Solar Olympic SUNGLAZE, a 6mm thick solid polycarbonate

    Watch video>
  • SUNGLAZE Installation Guide

    A visual guide to installing Palram SUNGLAZE onto a raftered roof

    Watch video>

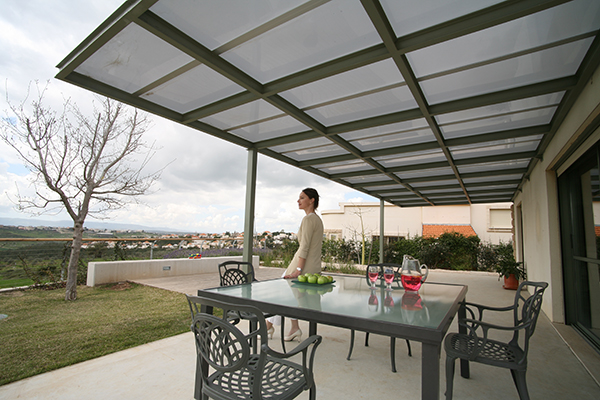

  • SUNLAZE residential roof glazing

    Translucent roof panels: clear sky views, cool daylight with UV protection

    Watch video>
  • SUNGLAZE retractable roof

    4mm SUNGLAZE retractable roof brings light and blocks heat. Lightweight and durable.

    Watch video>
  • Why architects choose SUNGLAZE

    Get support, engineering specs and customization. Get the right solution for your project

    Watch video>
  • Freedom in Design

    We provide comprehensive solutions for architects and builders

    Watch video>
  • SUNGLAZE basics

    Standing seam polycarbonate panel systems principles. Translucent roofing and glazing

    Watch video>
  • SolarSmart Polycarbonate

    Glass-like clarity with selective IR filtering to reduce heat buildup

    Watch video>

Downloads

File name
Size

FAQ

Show FAQs
How do I curve the polycarbonate to follow the façade curve?
+
All Palram polycarbonate products can be cold bent onsite during installation, subject to a minimum radius. The radius varies based on the chosen product. For flat sheets such as PALSUN & SUNLITE, the rule-of-thumb for the minimum radius is the thickness multiplied by 200. Please check the Palram catalog for more detailed specifications.
How do I specify the required thickness of the polycarbonate glazing material?
+
The recommended thickness of the polycarbonate glazing material is based on factors such as wind & snow load, panel size, and boundary conditions. Visit the Palram website for access to calculators that can help you determine the recommended thickness.
How do I reduce the heat build-up coming from the façade into the building?
+
In order to reduce heat build-up through the façade, Palram strongly recommends the use of its tinted SolarSmart™ panels. SolarSmart™ tints can be implemented in all Palram polycarbonate products. For more information, reference the Palram SolarSmart™ technology page.
How do I create a double skin glazing solution for façades and curtain walls?
+
Flat solid or multiwall sheets can be glazed in double skin applications using standard aluminum curtain wall profiles and EPDM gaskets. The SUNPAL system can be installed in a double skin application with a special aluminum profile provided by Palram.
Can flat solid polycarbonate be installed in a similar manner to glass in curtain wall applications?
+
PALSUN can be installed with standard curtain wall aluminum glazing profiles and EPDM gaskets (similar to glass), or spider fixing spaced with approximately 400 mm centers. However, it cannot be used with structural silicone and PALGARD (PALSUN) with anti-scratch coating is the recommended substitute in this case.
Should products be pre-dried before thermoforming?
+
This depends on the production date and storage conditions of the product before thermoforming. It is recommended to check the product before thermoforming is attempted.
Is the PE film suitable for thermoforming applications?
+
Most of Palram’s products that are delivered with PE film covering are suitable for thermoforming. In general, we recommend using clear PE and not printed PE.
What is the minimum allowed bending radius of polycarbonate?
+
The minimum allowed bending radius of the polycarbonate is 200 times the thickness of the sheet, for example, a 2 mm sheet has a minimum 400 mm bending radius.
How do I install flat solid or multiwall polycarbonate sheets as skylights?
+
Flat solid or multiwall polycarbonate sheets need to be installed with designated aluminum profiles when used as a skylight.
If polycarbonate sheets block UV radiation, why is there a “UV-side” that faces outwards?
+
Polycarbonate sheets block UV radiation by absorbing it. This absorption mechanism can cause degradation to the material, and to prevent this from happening, the sheet is coated with a special material. For this reason, it is recommended that the sheets are installed with the marked UV protective layer facing outward. Moreover, most of the sheets are only protected on the side that is clearly marked as such.
How do I design the secondary steel support spacings for roofing/siding?
+
Can I install multiwall polycarbonate sheets horizontally for siding?
+
No. The multiwall channels should always be vertical to allow condensation water to drain out by gravity.
Can I install corrugated PVC and polycarbonate sheets horizontally for siding?
+
How do I clean the polycarbonate?
+
  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.
What are the benefits of using polycarbonate standing-seam system over standard polycarbonate sheets?
+
The main benefit of the standing-seam system is that unlike standard sheets, it is sold together with all installation accessories. This system also provides superior water tightness and is easier and faster to install.
What is the meaning of Shading Coefficient (SC)?
+
Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.
When should I use multiwall polycarbonate and when solid polycarbonate?
+
Multiwall polycarbonate should be used when the key design parameter is thermal insulation. Solid polycarbonate should be used when the key design parameter is acoustic insulation and glass-like appearance.
What is the difference between multiwall and solid polycarbonate?
+
Multiwall is a multi-cell structured sheet. Due to its multi-cell structure, it has superior thermal insulation and low area weight.
When should I specify a matte surface finish for the polycarbonate?
+
Can I cover my old polyethylene greenhouse with polycarbonate while still keeping the old structure?
+
Will polycarbonate light transmittance deteriorate over time?
+
PALRAM’s polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.
Can the percentage of light transmission be controlled? I need a lot of light but I need it to be diffused.
+
Palram offers various LT% parameters – from 0% to 90%. In addition, we offer a color called a “diffuser” that allows 85% of the light in while diffusing it by 100%. The result is a light-transmitting panel that is not transparent but is highly translucent.
How do I determine the color, Light Transmission (LT) and haze properties of polycarbonate?
+
This decision depends on the application – some of the colors are transparent and some are translucent. If a see-through material is needed, then haze should be smaller than 1% and the LT% should be based on the illumination design. If a translucent effect is needed, then the haze should be 100% and the LT% based on the chosen color.
