PALSUN POLYCARBONATE COIL STOCK

Polycarbonate coils for high yield, impact resistance, illumination & UV protection

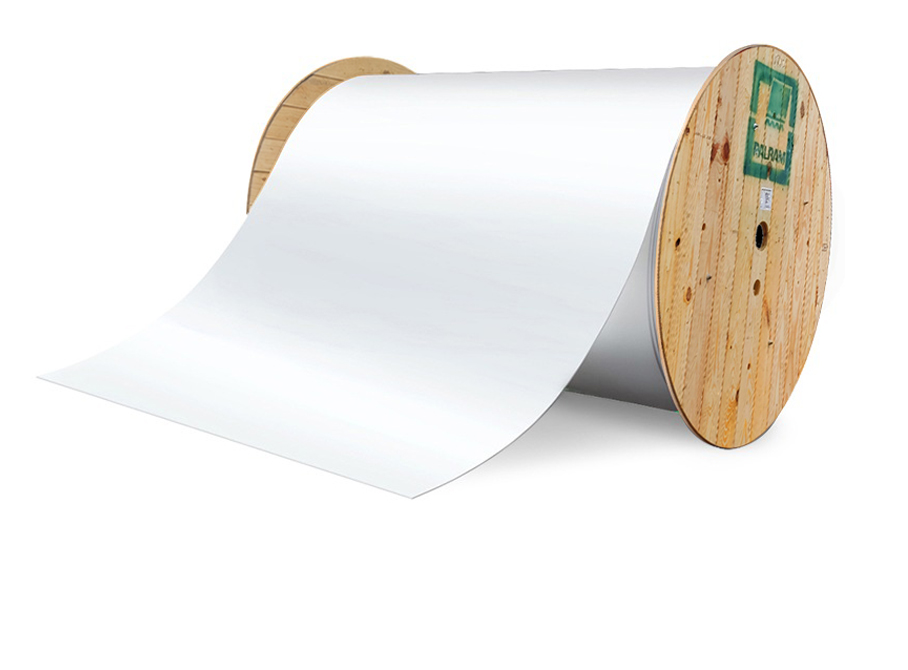

Virtually unbreakable, sign makers value the high impact strength of our PALSUN CS polycarbonate versus standard and impact modified acrylic for flat and formed sign faces. Its durability minimizes breakage during fabrication, shipping and installation, even in low temperature extremes. Offering maximum efficiency, PALSUN CS provides sign makers and printers flexibility and yield advantages because sheets can be cut at any desired length, right off the coil.

PALSUN Sign-Grade White reels offer superior diffusion and illumination with unmatched hiding power for backlit LED applications. Clear offers glass-like transparency and comes with a 10-year warranty against yellow­ing and breakage. Both deliver optimal surface consistency as well as UV and chemical resistance.

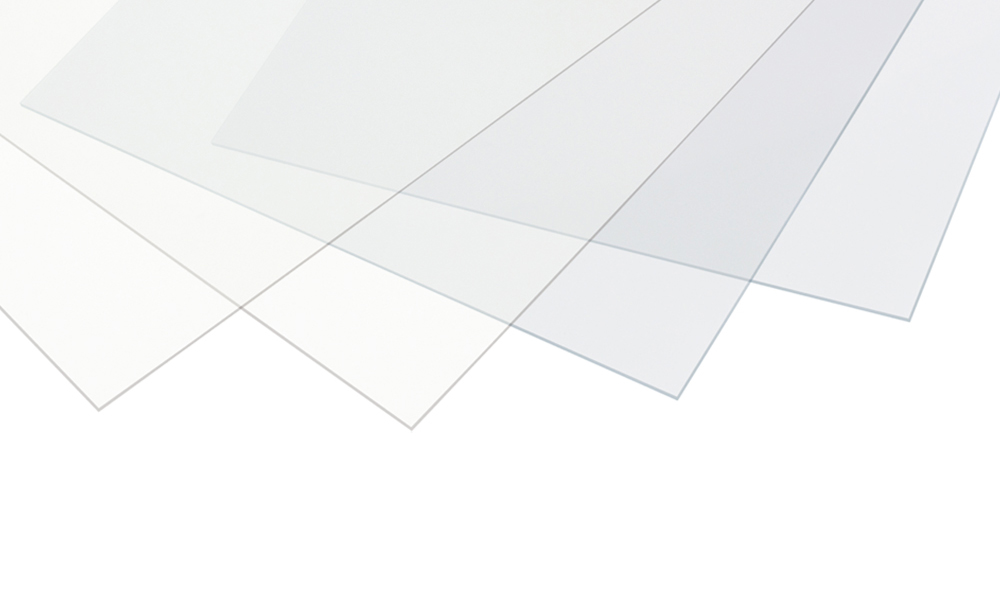

Manufactured using the latest extrusion technology, PALSUN CS is available in a range of thicknesses, coil widths as well as flat sheet sizes. PALSUN meets UL879 for electrical sign components and is listed in the Sign Components Manual (SAM).

Buy LocallyRequest a Quote

Benefits

An ideal alternative to acrylic and glass

High impact resistance

Ideal for use as safety glazing or vandalism protection

High optical clarity

Clear options for high light transmission

Widest service temperature range of any plastic substrate

Versatile, formable, and machinable

More flame resistance than acrylic

Applications

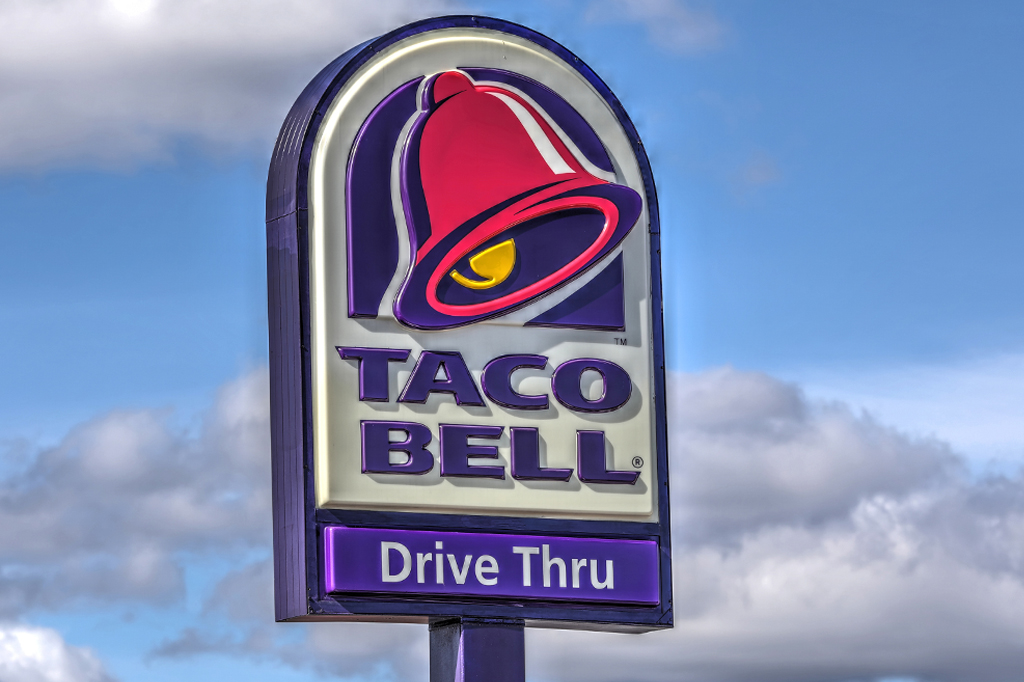

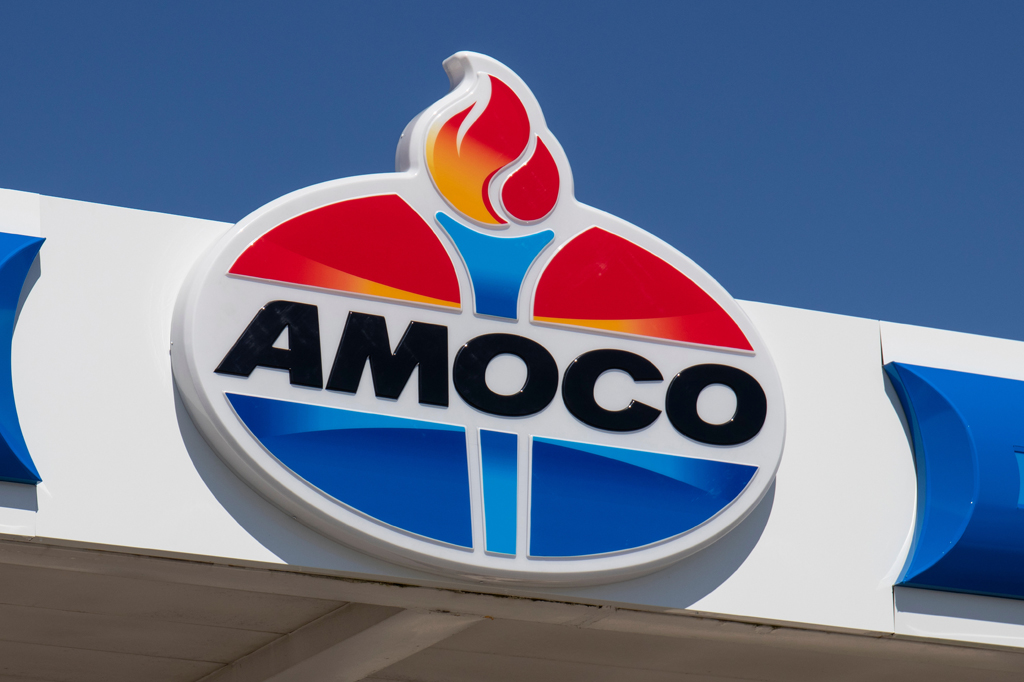

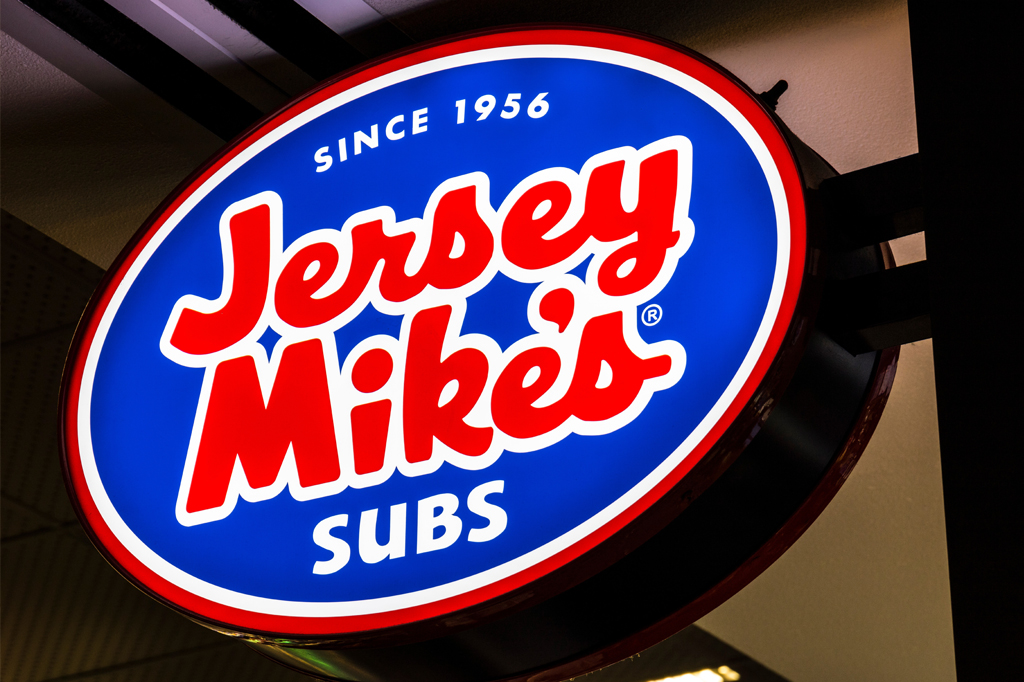

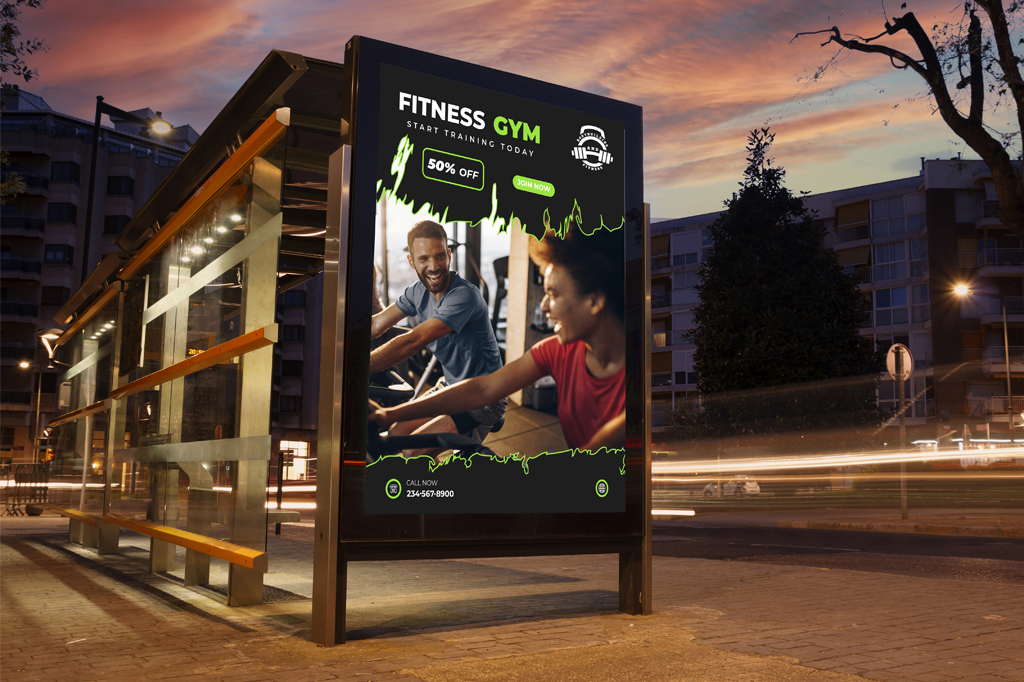

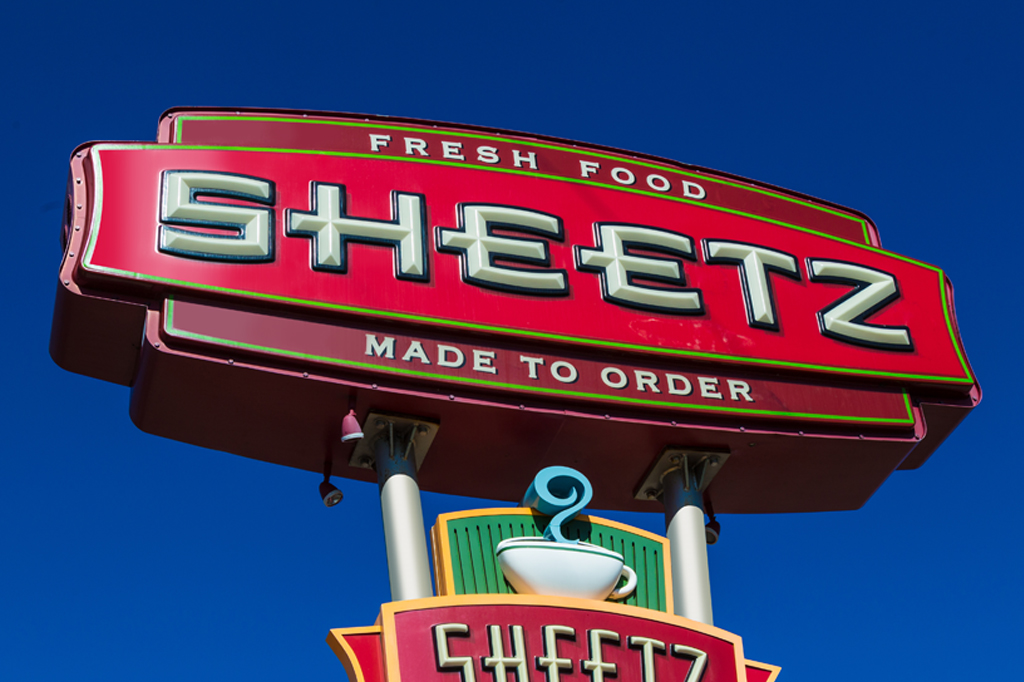

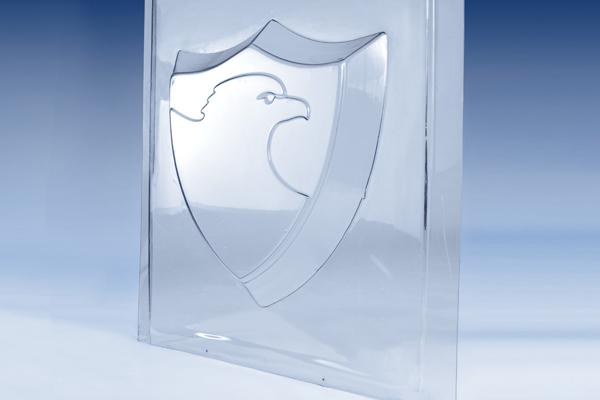

  • Backlit thermoformed signage

  • Superb light diffusion & whiteness

  • Excellent vacuum definition

Downloads

File name
Size
Flat Sheet Line Card (SP).pdf Flat Sheet Line Card (SP).pdf
1 MB
Flat Sheets Line Card (EN).pdf Flat Sheets Line Card (EN).pdf
5 MB
PALSUN CS Sales Sheet (EN).pdf PALSUN CS Sales Sheet (EN).pdf
2 MB
PALSUN CS Sales Sheet (SP).pdf PALSUN CS Sales Sheet (SP).pdf
1 MB
12mm Palsun Basic ASTM D2843 Test Report.pdf 12mm Palsun Basic ASTM D2843 Test Report.pdf
2 MB
12mm Palsun UV ASTM D 635-14 Test Report.pdf 12mm Palsun UV ASTM D 635-14 Test Report.pdf
53 KB
Chemical Resistance of Palram Polycarbonate Products.pdf Chemical Resistance of Palram Polycarbonate Products.pdf
106 KB
F5001-TB_PalramMonolithicPC_ASTMD3935_Molding.pdf F5001-TB_PalramMonolithicPC_ASTMD3935_Molding.pdf
183 KB
F5002-A-A-59502_PalramPC_CID.pdf F5002-A-A-59502_PalramPC_CID.pdf
103 KB
Flat Sheet Polycarbonate & International Building Code Compliance Tech Brief.pdf Flat Sheet Polycarbonate & International Building Code Compliance Tech Brief.pdf
130 KB
PALSUN Physical Properties Sheet.pdf PALSUN Physical Properties Sheet.pdf
43 KB
Palram Polycarbonate Product Safety Data Sheet (PSDS).pdf Palram Polycarbonate Product Safety Data Sheet (PSDS).pdf
121 KB
Palsun Basic FR Physical Properties.pdf Palsun Basic FR Physical Properties.pdf
184 KB
Palsun Basic Physical Properties.pdf Palsun Basic Physical Properties.pdf
184 KB
Palsun Technical Guide.pdf Palsun Technical Guide.pdf
4 MB
Polycarbonate Care and Maintenance Document.pdf Polycarbonate Care and Maintenance Document.pdf
114 KB
UL94 Flammability Testing Description.pdf UL94 Flammability Testing Description.pdf
430 KB
PALSUN UV Series Warranty.pdf PALSUN UV Series Warranty.pdf
148 KB
Palram Americas ROHS Declaration Document.pdf Palram Americas ROHS Declaration Document.pdf
73 KB
Palram_REACH_Declaration_April_2024.pdf Palram_REACH_Declaration_April_2024.pdf
32 KB
ISO CERTIFICATION 2015 for PALRAM AMERICAS.pdf ISO CERTIFICATION 2015 for PALRAM AMERICAS.pdf
745 KB
Palram Americas Company Overview.pdf Palram Americas Company Overview.pdf
5 MB

Product Details

  • Dimensions
  • Colors & Finishes
  • Technical Data
Dimensions
Typical Width Dimensions
Thickness Inches (mm)Weight (lbs./sf)WidthLength (Linear Feet)
0.118" (3mm)0.7441", 55", 67", 78"600
0.118" (3mm)0.74104" untrimmed500
0.150" (3.8mm)0.9441", 55", 67", 78"500
0.150" (3.8mm)0.94104" untrimmed400
0.177" (4.5mm)1.1141", 55", 67", 78"450
0.177" (4.5mm)1.11104" untrimmed350
0.236" (6mm)1.4741", 55", 67", 78"350
0.236" (6mm)1.47104" untrimmed250

* Call to discuss minimum order requirements.

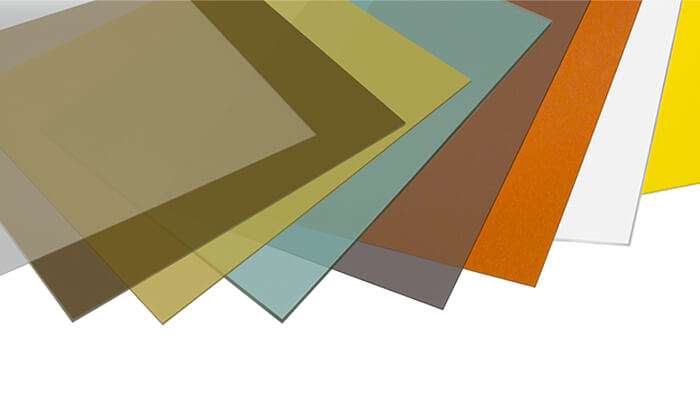

Colors & Finishes
Colors*Clear, Sign White

* Significant minimum order requirements may apply for some colors listed. Custom colors available upon request; please contact your Palram representative or agent for additional details and minimums.

Technical Data
PALSUN UV Series: Regulatory Code Compliance Certification
OrganizationStandardClassification
ULSAM File # E336663Rigid Sign Face Material
ULUL972Pass
Miami Dade CountyFlorida Building Code (FBC)Approved Plastic
ANSIZ87.1-15Impact and Optical *
ANSIZ97.1-09Impact and Weathering
ICCIBC Section 2606.4Light Trans. Plastic
ICCIBC Section 803.1Interior Finish
CCMCNBC 2015 (Canopy Covering)Compliant (CCMC Eval. Rep. 13450-R)
PALSUN UV Series: Flammability Compliance Certifications
OrganizationStandardClassification
FMVSS302Pass
ULUL 94 - File E221255V-2
ASTMD-635CC1 (AEB<1")
ASTME-84Class A**
ASTMD-2843Smoke Density <75
FAAFAR 25.853(a)Pass ***
PALSUN with FR: Flammability Compliance Certifications
OrganizationStandardClassification
ASTMD-2863-87L.O.I. = 30
ULUL 94 File E221255V-0
AU1530.3-1982Ignitability Index = 9,Spread of Flame Index = 8, Heat Evolved Index = 10, Smoke Developed Index = 8

*0.40″ only

** 1.5mm thru 3mm Palsun Basic only

*** .060″ only
