PALBOARD™ 3D Co-extruded Multilayer PVC Sheet

Three-layer substrate for 3D, retail, POP displays, & store fixtures

In the world of multilayer substrates, PALBOARD is an innovative PVC sheet that’s like no other. PALBOARD 3D combines two ultra-smooth surfaces of solid PVC with a black or white dense foam core. Its uniform surfaces are bright white allowing for the most vibrant color reproduction. Lighter weight than ACM, and more structurally stable than corrugated, PALBOARD is the next generation substrate for displays & fixtures.

Print it. Cut it. V-groove it. Cold-bent it. Ship it flat. Assemble, dissemble, repeat.

Get FREE Samples of PALBOARD

Sign & DisplaySign & Display

Main Benefits

  • Easy to fabricate, heat-bend, and cold-bend using v-groove routing
  • Ultra-smooth and uniform surface that resists dents and scratches
  • EverClean™ protective film is standard
  • Excellent ink adhesion and white index for vibrant color reproduction
  • Up to 50% recycled content, 100% recyclable
  • High structural strength with a relatively low weight
  • Excellent chemical and fire resistance
  • Strong electrical and thermal insulation
  • A true co-extruded sheet, not a laminate
  • Phthalate-free, REACH & RoHS compliant
  • 10 year delamination warranty
  • 3 year non-yellowing warranty (all white only)

Typical Applications

  • Digital and screen printing

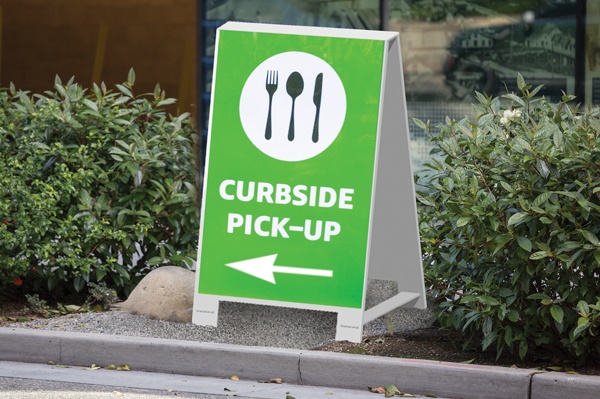

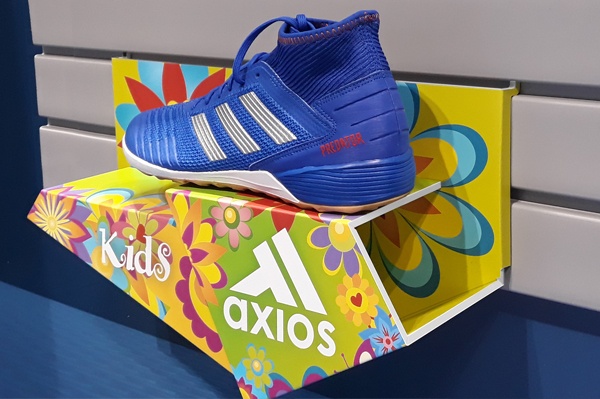

  • POP and retail displays & signage
  • Exhibits and kiosks
  • Routed and relief lettering

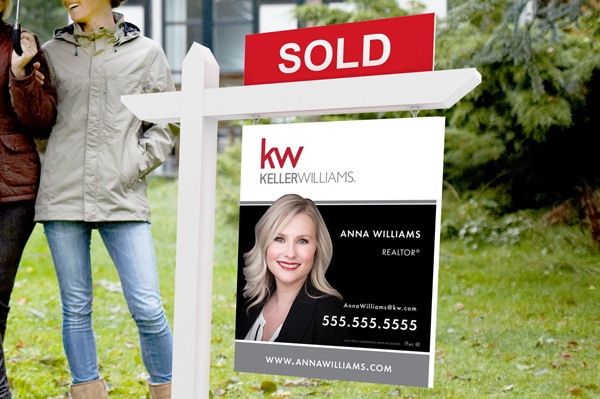

  • Industrial and construction signs
  • Fabricated and structural parts
  • Organizational Storage

Create something wild with PALBOARD!

Create something wild with PALBOARD!

Need help getting started with PALBOARD?

Use the links below for inspiration and to discover all the creative things you can do with PALBOARD, including innovative fastening methods, flexible configurations, and unique features.

How-to's & other videosSample Cut FilesFabrication Guide
Need help getting started with PALBOARD?

Applications

How-to: Display Pedestal
How-to: Display Pedestal

This display pedestal uses NO adhesives or fasteners!

How-to: Lock Edges without adhesives
How-to: Lock Edges without adhesives

Easily lock edges without any adhesives or fasteners using PALBOARD.

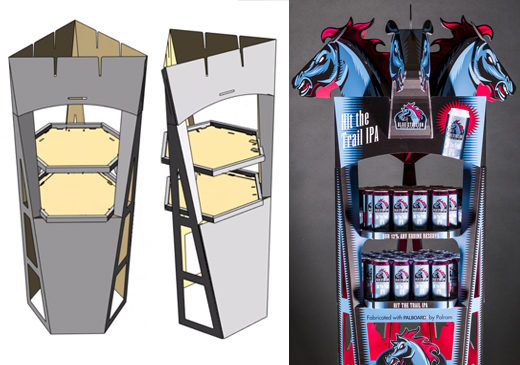

How-to: Easy 3D Beer Display
How-to: Easy 3D Beer Display

Watch this time-lapsed video to see the assembly of an in-store beverage display made using PALBOARD.

Downloads

File name
Size
Antimicrobial Surfacing for Hygienic Environments Brochure.pdfAntimicrobial Surfacing for Hygienic Environments Brochure.pdf
404 KB
Flat Sheet Line Card (SP).pdfFlat Sheet Line Card (SP).pdf
1 MB
Flat Sheets Line Card (EN).pdfFlat Sheets Line Card (EN).pdf
5 MB
PALBOARD How-to & Video Demos.pdfPALBOARD How-to & Video Demos.pdf
1 MB
Palboard Family Brochure (EN).pdfPalboard Family Brochure (EN).pdf
2 MB
Chemical Resistance of Palram PVC Products.pdfChemical Resistance of Palram PVC Products.pdf
104 KB
Flat PVC Recyclability.pdfFlat PVC Recyclability.pdf
89 KB
PALBOARD Fabrication Guide.pdfPALBOARD Fabrication Guide.pdf
365 KB
Palboard 2D, 3D, and 3D MAX Physical Properties Table.pdfPalboard 2D, 3D, and 3D MAX Physical Properties Table.pdf
288 KB
Palboard Recycled Content 11-17-22.pdfPalboard Recycled Content 11-17-22.pdf
250 KB
Palram Product Safety Data Sheet for Foamed PVC Products.pdfPalram Product Safety Data Sheet for Foamed PVC Products.pdf
126 KB
Palboard Family Warranty.pdfPalboard Family Warranty.pdf
157 KB
Palram Americas ROHS Declaration Document.pdfPalram Americas ROHS Declaration Document.pdf
73 KB
ISO CERTIFICATION 2015 for PALRAM AMERICAS.pdfISO CERTIFICATION 2015 for PALRAM AMERICAS.pdf
745 KB
Palram Americas Company Overview (SP).pdfPalram Americas Company Overview (SP).pdf
4 MB
Palram Americas Company Overview.pdfPalram Americas Company Overview.pdf
5 MB
Palram's Concepts for Safer Environments.pdfPalram's Concepts for Safer Environments.pdf
4 MB

Product Details

Dimensions

Standard Sizes *

Thickness: 0.118" - 0.197" - 0.394" ( 3 - 5 - 10mm )

12mm on Request (minimums apply)
Width x Length4' x 8'
(1220mm x 2440mm)

5' x 10'
3mm & 5mm only
(1524mm x 3050mm)

* Other dimensions available upon request with minimum order requirements

Colors & Finishes

Colors

White / Black / White
White / White / White

Physical Properties

Physical Properties

PropertyMethod*ConditionsUnitsValue
Physical
Density ASTM D-792g/cm³0.58 - 0.62
Water absorptionASTM D-57024 hr @ 23°C% 3mm - 0.5
5mm - 0.8
Mechanical – Machine direction
Flexural modulus ASTM D-790MPa1600
Shore hardness ASTM D-2240Shore D60
Thermal
Service temperature range °C -10 to 55
Heat deflection temperatureASTM D-648Load: 1.82 MPa°C62
Coefficient of linear thermal expansion ASTM D-69610-⁵/°C6.7
Electrical
Surface resistance ASTM D-257Ohm4.1x10^14

Technical Data

Flammability Properties

StandardThicknessClassification*
EN135010.118" ( 3mm )
0.118" - 0.394" ( 3 - 10mm )		B, s2, d0
B, s3, d0
UL 940.118" - 0.394" ( 3 - 10mm ) V-0
ASTM E 84Class A*

* Depends on thickness. For additional information please contact your Palram distributor.
