PALCLEAR® TRANSPARENT PVC SHEETS

Clear PVC Sheets for Sign & Graphics, Commercial, and Industrial Applications

The PALCLEAR® family of clear PVC products provides an excellent alternative to other transparent thermoplastic sheets such as acrylic, PETG and polycarbonate. With its UL94 V-0 fire rating, PALCLEAR offers high fire resistance and is self-extinguishing. It also provides superior chemical, bacteria and mold resistance, withstanding frequent cleaning and disinfecting with harsh chemicals.

Easy to thermoform and fabricate, PALCLEAR has high mechanical properties and impact strength. Designed for indoor use, PALCLEAR sheets are used in a wide variety of industrial and commercial environments including retail stores, food service/processing, and manufacturing plants.

PALCLEAR offers high light transmission and water-like clarity. Due its to excellent ink adhesion, the sheets can be printed on without the need for an adhesion promoter.

Where to Buy

Benefits

High impact resistance

100% recyclable

Better fire resistance than acrylic

Can be thermoformed, vacuum formed, cold/hot bent, & routed

Water-clear transparency

Resistance to harsh chemicals

Applications

Typical applications include:

  • Transparent advertising, point-of-purchase displays, and sales promotion items
  • Indoor signage and in-store merchandising in populated areas

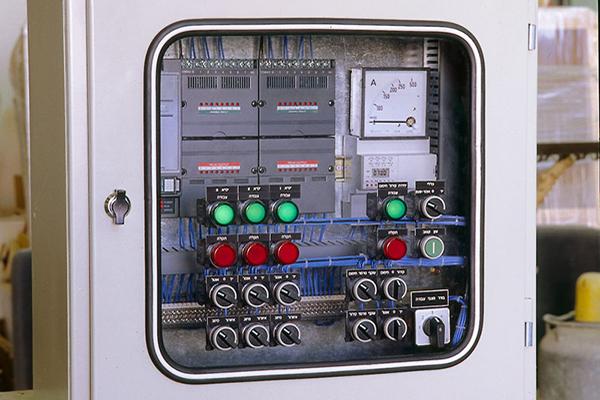

  • Machine guards
  • Chemically-resistant safety glazing
  • Fabrication and forming applications
  • High-impact glazing (PALCLEAR HI)
  • Projects requiring an anti-glare finish (PALCLEAR MATTE)

Gallery

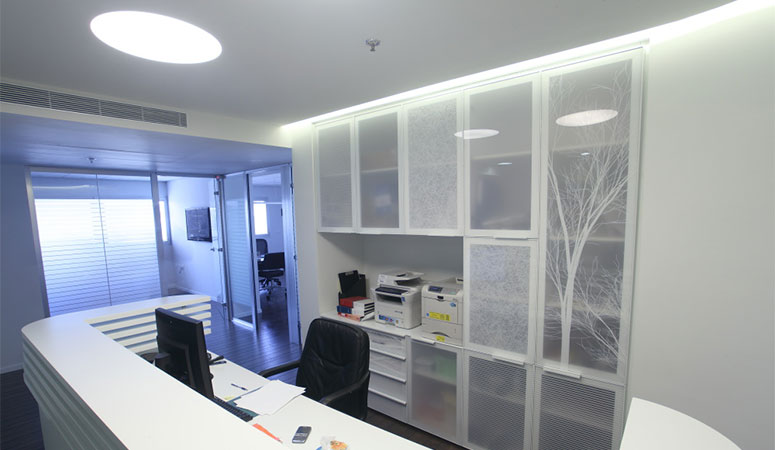

  • PALCLEAR PVC Office

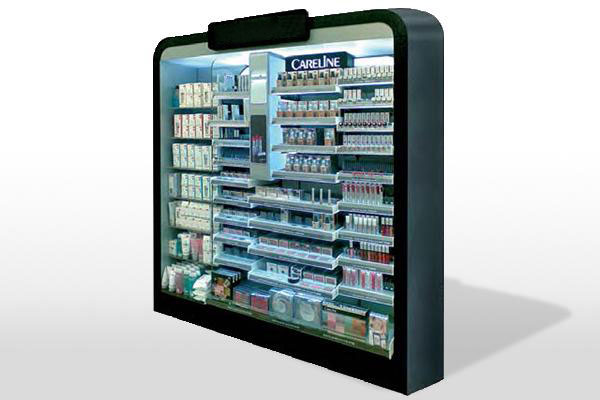

  • PALCLEAR POP

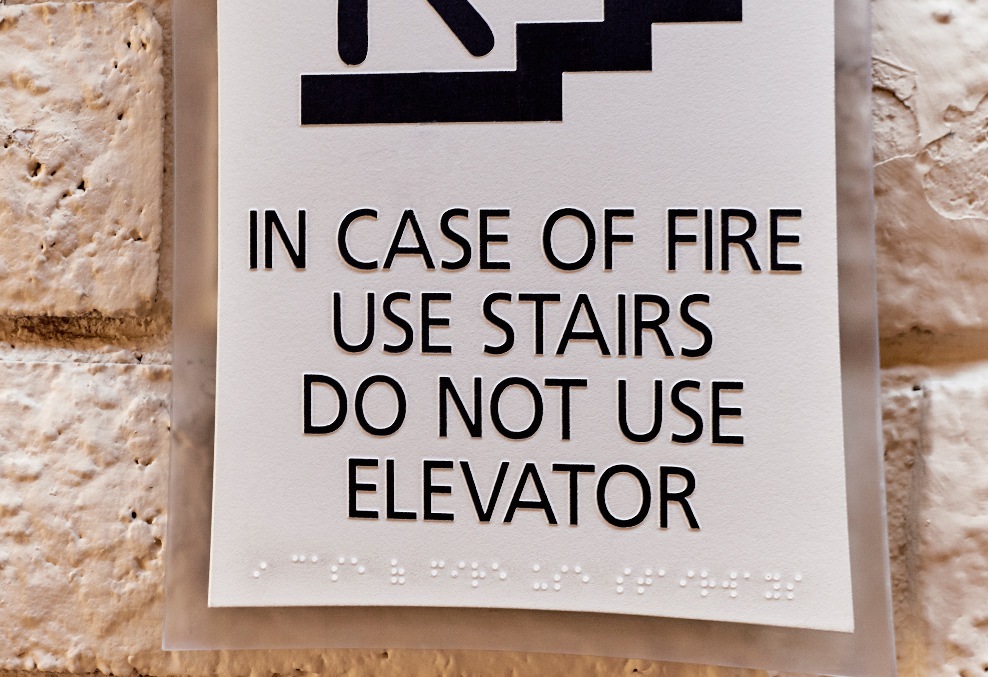

  • clear pvc sheets Palclear being used for braille on stairs sign

Downloads

File name
Size
Flat Sheet Line Card (SP).pdf Flat Sheet Line Card (SP).pdf
1 MB
Flat Sheets Line Card (EN).pdf Flat Sheets Line Card (EN).pdf
5 MB
PALCLEAR Detailed Brochure.pdf PALCLEAR Detailed Brochure.pdf
1 MB
PALCLEAR Sales Sheet.pdf PALCLEAR Sales Sheet.pdf
1 MB
Chemical Resistance of Palram PVC Products.pdf Chemical Resistance of Palram PVC Products.pdf
104 KB
Flat PVC Recyclability.pdf Flat PVC Recyclability.pdf
89 KB
PALCLEAR Water-Clear Physical Properties.pdf PALCLEAR Water-Clear Physical Properties.pdf
190 KB
Palclear Fabrication Guide (EN).pdf Palclear Fabrication Guide (EN).pdf
413 KB
Product Safety Data Sheet for Palram Rigid PVC Products.pdf Product Safety Data Sheet for Palram Rigid PVC Products.pdf
128 KB
UL94 Flammability Testing Description.pdf UL94 Flammability Testing Description.pdf
430 KB
Palram Americas ROHS Declaration Document.pdf Palram Americas ROHS Declaration Document.pdf
73 KB
Palram_REACH_Declaration_April_2024.pdf Palram_REACH_Declaration_April_2024.pdf
32 KB
ISO CERTIFICATION 2015 for PALRAM AMERICAS.pdf ISO CERTIFICATION 2015 for PALRAM AMERICAS.pdf
745 KB
Palram Americas Company Overview (SP).pdf Palram Americas Company Overview (SP).pdf
4 MB
Palram Americas Company Overview.pdf Palram Americas Company Overview.pdf
5 MB
Palram's Concepts for Safer Environments.pdf Palram's Concepts for Safer Environments.pdf
4 MB

Product Details

  • Dimensions
  • Colors
  • Technical Data
Dimensions

Product Range

ProductDescription
PALCLEAR® Water Clear*Clear UV stabilized PVC sheet
PALCLEAR® BluishBluish tint
PALCLEAR® UVUV protected on one side
PALCLEAR® HIHigh Impact
PALCLEAR® EmbossedPrismatic embossed finish on one side
PALCLEAR® MatteMatte finish on one side
PALCLEAR® DifffuserFor indoor light box applications

* Water-Clear is PALCLEAR’s standard color with best availability. The other options listed are available upon request.

Standard Dimensions

Thickness in. (mm)0.040" - 0.472" (1-12mm)
Dimensions in. *48.5" X 96.5"

*Other dimensions are available upon request with minimum order requirements.

Colors
TransparentWater-Clear, Bronze, Bluish
TranslucentWhite Opal, White Diffuser
Technical Data

Flammability

StandardClassification*
EN 13501B, s3, d0
BS 476/7Class 1
NSP 92501,5M-1, M-2
EC 695.2.1Self-extinguishing
CSE RF 3/77Class 1
UL 94V-0
ASTM D-635CC1

* Depends on thickness, color and type.

Impact Resistance: PALCLEAR and PALCLEAR HI offer a wider choice to designers and fabricators for point of sale and general fabricated items, particularly when compared to the impact properties of acrylic and polystyrene sheets.
