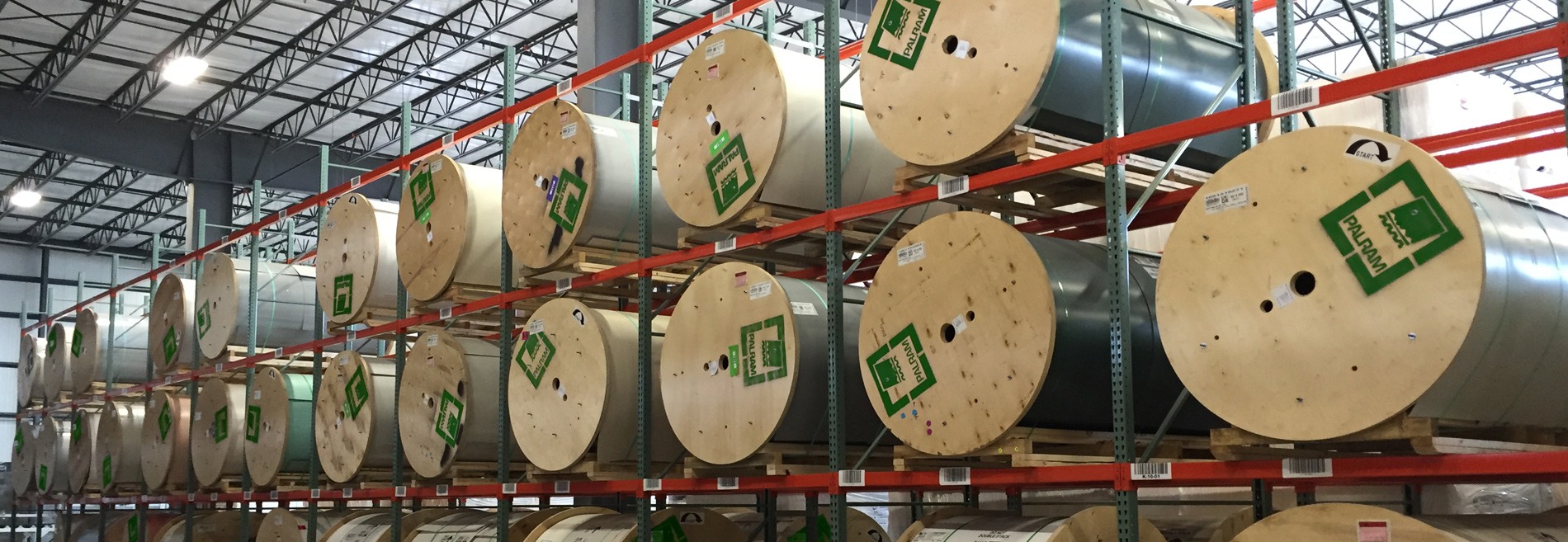

PALSUN Flat Polycarbonate Coil Stock Rolls (CS)

Polycarbonate coils for high yield, impact resistance, illumination & UV protection

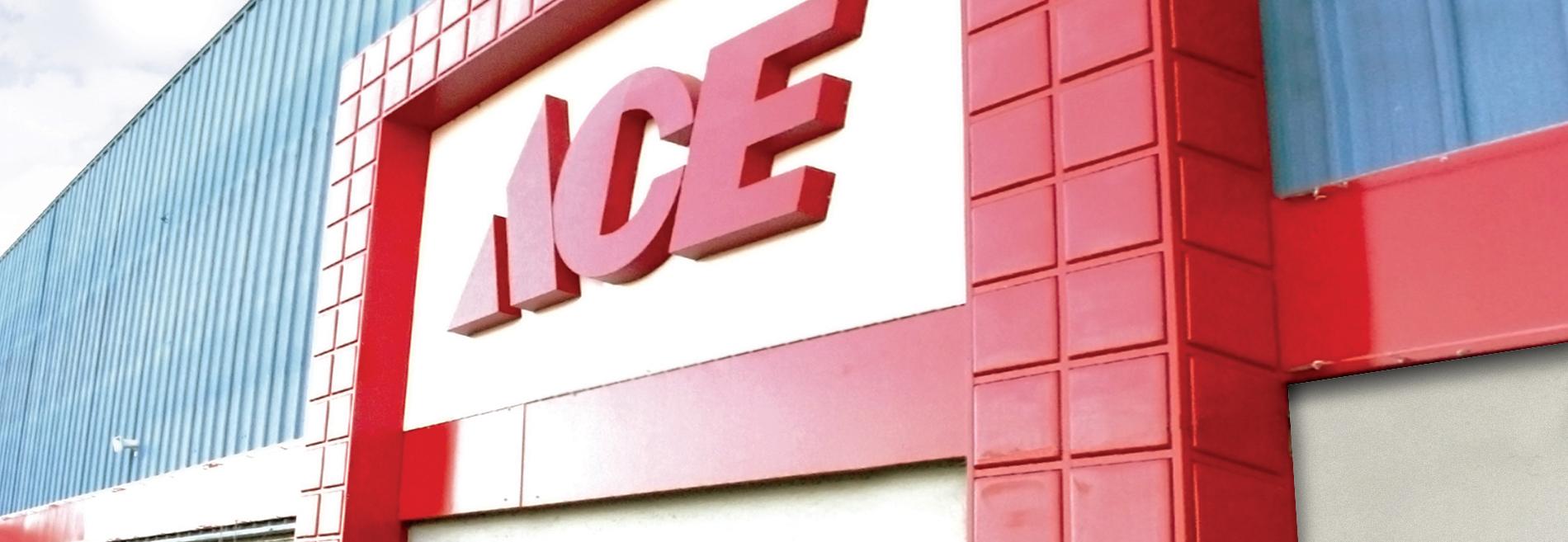

Virtually unbreakable, sign makers value the high impact strength of our PALSUN CS polycarbonate versus standard and impact modified acrylic for flat and formed sign faces. Its durability minimizes breakage during fabrication, shipping and installation, even in low temperature extremes. Offering maximum efficiency, PALSUN CS provides sign makers and printers flexibility and yield advantages because sheets can be cut at any desired length, right off the coil.

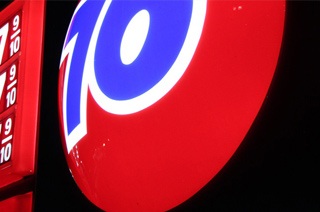

PALSUN Sign-Grade White offers superior diffusion and illumination with unmatched hiding power for backlit LED applications. Clear offers glass-like transparency and comes with a 10-year warranty against yellow­ing and breakage. Both deliver optimal surface consistency as well as UV and chemical resistance. Manufactured using the latest extrusion technology, PALSUN CS is available in a range of thicknesses, coil widths as well as flat sheet sizes.

Product Details

Product Range

RangeProductDescription
BasicPalsun® Basic™UV Stabilized general purpose polycarbonate sheet
UVPalsun® UV1Co-extruded UV protection on one side for exterior applications
UVPalsun® UV2Co-extruded UV protection on both sides for exterior applications
UVPalsun® Embossed*Embossed surface (E102, prismatic, hair cell)
UVPalsun® FR*Fire retardant, with higher fire resistant rating
UVPalsun® Matte*Matte finish on one side
UVPalsun® SG WhiteHigh diffusion for sign grade applications
UVPalsun® CSCoil stock on rolls (Clear and SG White standard)
UVPalsun® FoamFlat foamed polycarbonate sheet, UV protected on one side
Solar Smart UVPalsun® Solar Control*Efficient heat-blocking with metallic appearance
Solar Smart UVPalsun® Smart*See-through sheet with advanced heat-blocking
SpecialtyPalsun® Basic FR**Fire retardant, with elevated Relative Thermal Index (RTI) values
SpecialtyPalsun® OGOptical grade sheet
SpecialtyPalgard®Abrasion resistant on one or both sides
SpecialtyPalgard® TGTransportation grade (meets specific transportation codes)
SpecialtyPalshield™Containment and bullet resistant glazing



*With co-extruded UV protection on one or both sides



** Available in 2mm and 2.36mm for applications without direct UV exposure

Dimensions

Thickness Inches (mm)Weight (lbs./sf)WidthLength (Linear Feet)
0.118" (3mm)0.7441", 55", 67", 78"600
0.118" (3mm)0.74104" untrimmed500
0.150" (3.8mm)0.9441", 55", 67", 78"500
0.150" (3.8mm)0.94104" untrimmed400
0.177" (4.5mm)1.1141", 55", 67", 78"450
0.177" (4.5mm)1.11104" untrimmed350
0.236" (6mm)1.4741", 55", 67", 78"350
0.236" (6mm)1.47104" untrimmed250



*Other dimensions are available with a special order, subject to minimum quantity

Colors*

Colors*Clear, Sign White



Custom colors are available upon request with minimum order requirements

PropertyConditions
(U.S. Customary)
ASTM MethodUnits - SI
(U.S. Customary)
Value
(U.S. Customary)
Physical
DensityD-1505g/cm³ (lb/ft³)1.2 (75)
Water Absorption24 hr. @ 23°CD-570%0.15
Mechanical
Tensile strength at yield10 mm/min (0.4 in./min)D-638MPa (psi) 62 (9,000)
Tensile strength at break10 mm/min (0.4 in./min)D-638MPa (psi)65 (9500)
Elongation at yield10 mm/min (0.4 in./min)D-638%6
Elongation at break10 mm/min (0.4 in./min)D-638%110
Tensile Modulus of Elasticity10 mm/min (0.4 in. /min)D-638MPa (psi)2,378 (345,000)
Flexural Modulus1.3 mm/min (0.05 in./min)D-790MPa (psi)2,378 (345,000)
Flexural Strength at Yield1.3 mm/min (0.05 in./min)D-790MPa (psi)93 (13,500)
Notch Impact Strength Izod23°C (73°F)D-256J/m (ft·lbf/in.)800 (15)
Notch Impact Strength Charpy23°C (73°F)D-256J/m (ft·lbf/in)800 (15)
Impact Falling Weight3 mm (0.12 in.) SheetISO-6603/1bJ (ft·lbf)158 (117)
Rockwell HardnessD-785R scale / M scale125 / 70
Abrasion (Taber Process)100 Cycles, CS-10S Wheel, 500gD-1044% HazeN/A
Compressive Strength1.3 mm/min (.05 in./min)D-695MPa (psi)86 (12,500)
Compressive Modulus1.3 mm/min (.05 in./min)D-695MPa (psi)2378 (345,000)
Shear strength at Yield1.3 mm/min (.05 in./min)D-732MPa (psi)41 (6000)
Shear strength at Break1.3 mm/min (.05 in./min)D-732MPa (psi)68 (10,000)
Shear Modulus1.3 mm/min (.05 in./min)D-732MPa (psi)786 (114,000)
Thermal
Long Term Service Temperature°C (°F)-75 to +100 (-175 to +212)
Short Term Service Temperature°C (°F)-75 to +120 (-175 to +250)
Heat Deflection TemperatureLoad: 1.82 Mpa (264 psi)D-648°C (°F)132 (270)
Vicat Softening TemperatureLoad: 1 kg (2.2 lb)D-1525°C (°F)150 (300)
Coefficient of Linear
Thermal Expansion
D-69610-⁵/°C (10-⁵/°F)6.5 (3.6)
Thermal ConductivityC-177W/m°K (Btu-in./hr-ft²-°F)0.21 (1.46)
Specific Heat CapacityC-351kJ/kg°K (Btu/lb°F)1.26 (0.31)
Optical
Haze3 mm (0.12 in.)
Clear Sheet
D-1003%<0.5
Light Transmission3 mm (0.12 in.)
Clear Sheet
D-1003%89
Refractive IndexClear SheetD-5421.59
Yellowness Index3 mm (0.12 in.)
Clear Sheet
D-1925<1
Electrical
Dielectric Constant50 HzD-1503
1 MHzD-1502.9
Dissipation Factor50 HzD-1500.9
1 MHzD-15011
Dielectric Strength Short Time500 V/sD-149kV/mm (V/mil)>30 (>770)
Surface ResistanceKetleyD-257Ohm5.1x10^15
Volume ResistanceKetleyD-257Ohm-cm1.3x10^17

Palsun® UV Series: Regulatory Code Compliance Certification

OrganizationStandardClassification
ULSAM File # E336663Rigid Sign Face Material
ULUL972Pass
Miami Dade CountyNOA # 18-0328.02Approved Plastic
ANSIZ97.1-09Impact and Weathering
ICCIBC Section 2606.4Light Trans. Plastic
ICCIBC Section 803.1Interior Finish
CCMCNBC 2015 (Canopy Covering)Compliant (CCMC Eval. Rep. 13450-R)

Palsun® UV Series: Flammability Related Compliance Certifications

OrganizationStandardClassification
ULCAN / ULC-S102.2-07Class A*
ULFile e221255V-2
ASTMD-635CC! (AEB <1")
ASTME-84Class B**
ASTMD2843Smoke Density <75***
FAAFAR 25.853(a)Pass***



*0.177" thru 0.50"



**0.040 (1mm) thickness available with Class A rating



***Depends on thickness



Palsun® With FR: Flammability Related Compliance Certifications

OrganizationStandardClassification
ASTMD-2863-87L.O.I. = 30
ULUL 94V-0
AU1530.3-1982Ignitability Index = 9,Spread of Flame Index = 8, Heat Evolved Index = 10, Smoke Developed Index = 8

Frequently Asked Questions

What considerations are there for fastening Palram products to ACQ treated lumber?
+ -

The new guidelines by manufacturers of ACQ lumber call for heavily galvanized or stainless steel fasteners due to the corrosive nature of the ACQ treatment.

You have two basic options for using Palram products with ACQ lumber:

  1. Use a comparable fastener made from an ACQ approved material. Make sure that such a fastener uses either a neoprene or EPDM washer, and that it is installed per Palram’s recommendations.
  2. Use Palram’s fasteners. Initial tests with ACQ have shown no adverse effect on our fasteners. This is added to the fact that the fasteners are being used to secure a light weight plastic panel (rather than connect structural members). If you use Palram fasteners, our 10 year warranty will still apply.

What is the purpose of the protective polyethylene films on certain sheets?
+ -

The protective films in flat (non-corrugated) Palram sheets are for protection against dirt and scratching during the long journey from manufacturing to the job site. In some cases, the film also carries important installation and other product information.

The film will also indicate which side is UV-protected. This side should be installed facing outwards (extremely important).

In most cases, we recommend peeling off the protective films after installation. If this is not possible for practical reasons, always mark the UV protected surface, if there is one, so that the sheet will not be installed upside down.

Important note: The protective films that cover Palram sheets are highly sensitive to heat and direct sunlight. Excessive heat and direct sunlight before taking off the film can cause gluing of that film to the sheet surface, after which it will be extremely difficult to remove it from the sheet.

Can I paint polycarbonate panels?
+ -

We do not recommend painting our polycarbonate panels. Polycarbonate is a very resilient material, but it is potentially sensitive to chemicals contained in many exterior paints. While we can test a paint for compatibility, we have no way of controlling whether a paint manufacturer will remain consistent with their formulas over time.

Do Palram panels keep out heat?
+ -

Palram products are available in a variety of colors, which varies by product. Each has its own heat and light transmission properties. While all Palram panels block virtually 100% of harmful UV radiation, there are variations in heat and light transmission.

Clear panels allow the most solar light and heat through, while lighter, opaque colors are more reflective. If excessive heat buildup is a concern, our "Solar Control" panels are your best bet. Please see each product page for more information on color offerings, light transmission percentages and warranty terms.

How important is it to follow Palram general recommendations on product usage?
+ -

Very. Palram recommendations for the storage, installation and general treatment of products are drafted to ensure that the product’s quality and serviceability is met to full extent, and following these recommendations ensures that product warranty isn't void. Please be sure to view the specific product's documents for more information.

Do Palram sheets expand in heat?
+ -
Can Palram sheets catch fire?
+ -

All plastic materials are flammable to some degree, and will catch fire in presence of exterior flame.

The ignition temperature of polycarbonate sheets is 915ºF (490ºC).

The ignition temperature of PVC sheets is 736ºF (391ºC).

Both materials are self-extinguishing, and fire will decay when the exterior flame source is removed.

Note that compared to polycarbonate and PVC, acrylic sheets (which are not produced by Palram) are more flammable.

Can Palram sheets be curved?
+ -

Bending/forming instructions vary by sheet material. Always check the installation instructions of the relevant sheet material.

But in general, some of our sheets can be cold-curved for arched shapes, provided the relevant Palram specifications for minimum radius in cold-curving are followed.

Rigid flat sheets can be cold-curved in any direction.

Corrugated sheets can be cold arched "along the grain" of the corrugation (lengthwise). Corrugated sheets cannot be curved/arched "against the grain." That is, do not bend perpendicular to the direction of the ribs.

Like corrugated sheets, multiwall sheets can be arched only "along the grain" of multiwall (lengthwise).

Our Palight Trimboard "lumber-style" boards can be heat formed in any direction, with the proper heating equipment and forming jig.

Again, see the installation guidelines for each material for specific instructions.

How should I store Palram sheets when not in use?
+ -

Store sheets in a protected, shaded, ventilated site, with no direct exposure to sunlight and winds. For outdoor temporary storage, cover with an opaque protective tarp, avoiding heat-absorbing materials.

Important note: Palram flat (non-corrugated) panels have a protective surface film that keeps the product safe from dirt and scratches during the long journey from manufacturing to the job site.

These films are sensitive to heat and direct sunlight. Excessive heat and direct sunlight before taking off the film can cause that film to bond the sheet surface, after which it will be extremely difficult to remove the film from the sheet.

Can I use any of Palram's products as a hurricane screen?
+ -
How long do Palram PVC and polycarbonate products last?
+ -

Palram manufactures a variety of different products for different applications. Most have industry-leading warranties against manufacturing related defects, as well as specific warranties related to the intended use for the product.

However, with proper installation and maintenance, our products typically far exceed their warranty periods.

Many of our products are engineered to be installed outdoors and are warranted accordingly. Nevertheless, the lifespan of outdoor products can be affected by how well they were installed, as well as environmental factors like air pollution, sun exposure, winds and erosion by airborne particles.

Warranty details can be found in the Downloads tab under the Warranties section at the bottom of the page for each individual product.

Can I recycle Palram polycarbonate or PVC panel scraps?
+ -

Yes, Palram's polycarbonate and PVC sheet products are recyclable.

Polycarbonate products such as Suntuf, Sunlite, Palsun, DynaGlas, or ThermaGlas should be marked "Plastic #7" prior to recycling.

PVC products such as Palruf, Ag-Tuf, PALCLAD PRO HYG, Palclear, or should be marked "Plastic #3".

If local recycling is not available, other resources are available. For PVC products, click here to visit the Vinyl Institute's Recycling Provider Database.

For polycarbonate products, visit The Association of Post Consumer Plastic Recyclers site and review their materials buyers and seller's list.
