PALGARD™ 3X
PALGARD™ 3X

PALGARD™ 3X

Abrasion-resistant Polycarbonate Sheet for High Traffic Interiors

PALGARD 3X is an abrasion resistant polycarbonate sheet for interior and short-term exterior applications. Its advanced surface coating provides excellent chemical and abrasion resistance, enabling frequent cleaning, easy removal of graffiti, and increased durability in high traffic areas. PALGARD 3X is impact resistant for increased safety and security – nearly 200 times stronger than glass, yet half the weight – which also makes it easier to install.



Download the Palgard 3X sales sheet for more information.

Construction & Architecture Construction & Architecture Safety & Security Safety & Security

Advantages

  • Economical alternative to exterior-grade Palgard
  • High abrasion resistance on one or both sides
  • Impact resistant, virtually unbreakable
  • Up to 90% light transmission
  • Excellent acoustical insulation
  • Blocks UV radiation
  • High chemical resistance
  • Easy removal of graffiti
  • Lightweight

Applications

  • Safety glazing
  • Industrial protective shielding
  • Interior windows and doors
  • Anti-vandalism glazing
  • Sound barriers
  • Room dividers, partitions, and entryways

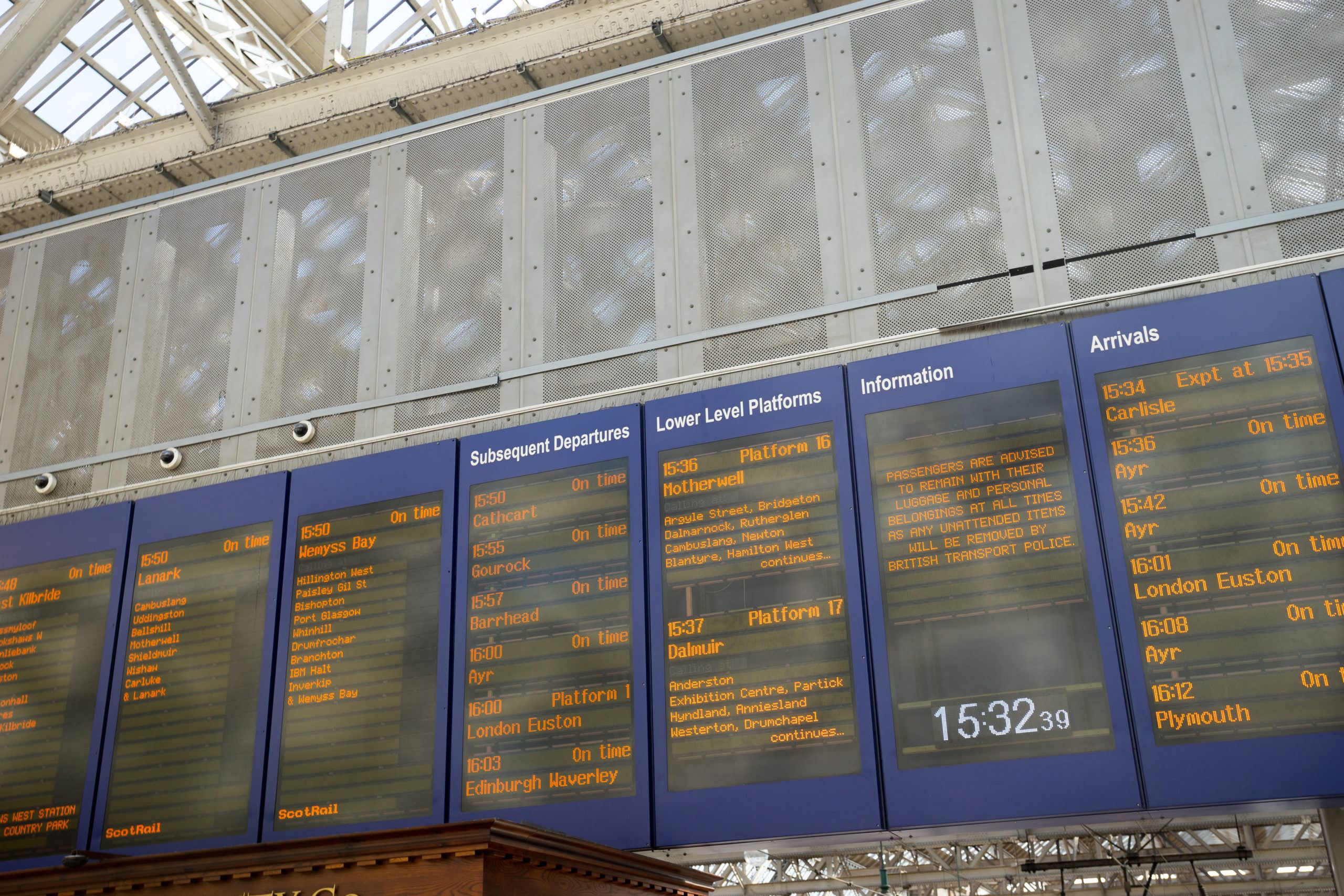

  • Wayfinding and signage covers
  • Conference room glazing
  • Temporary glazing
  • Dry-erase boards

PALGARD 3X bank teller window:

PALGARD 3X bank teller window:

PROJECTS

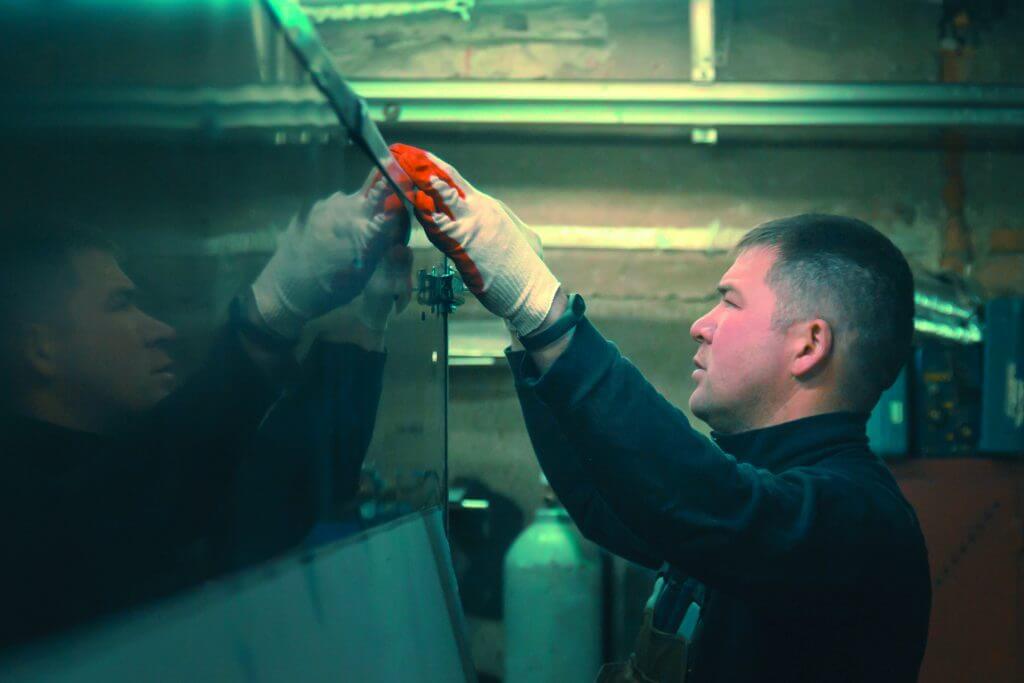

Machine Guard

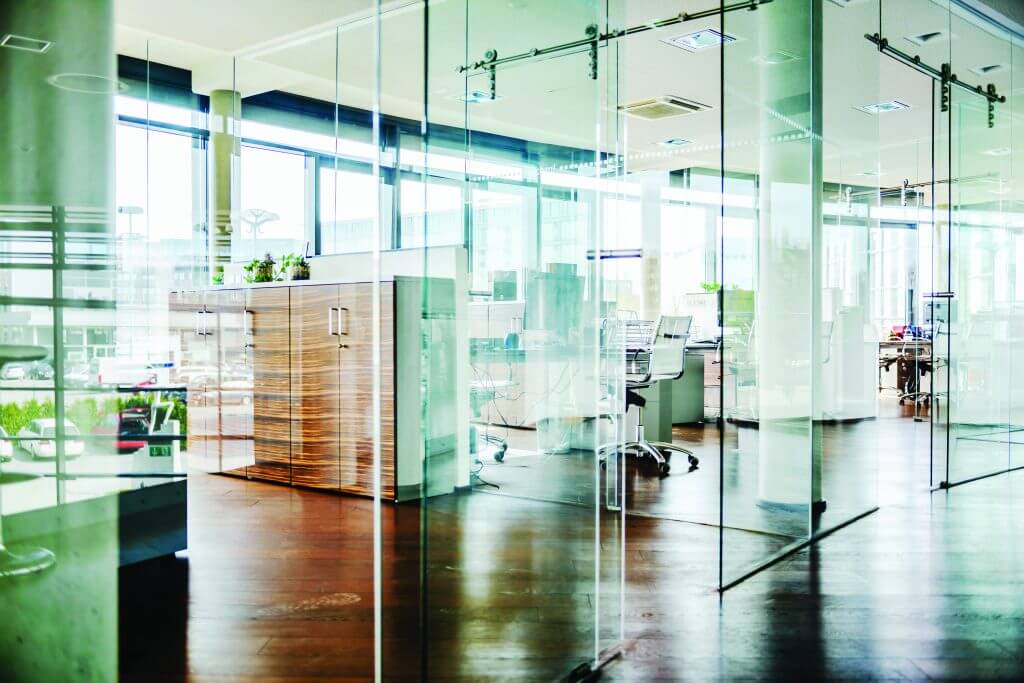

Office Dividers

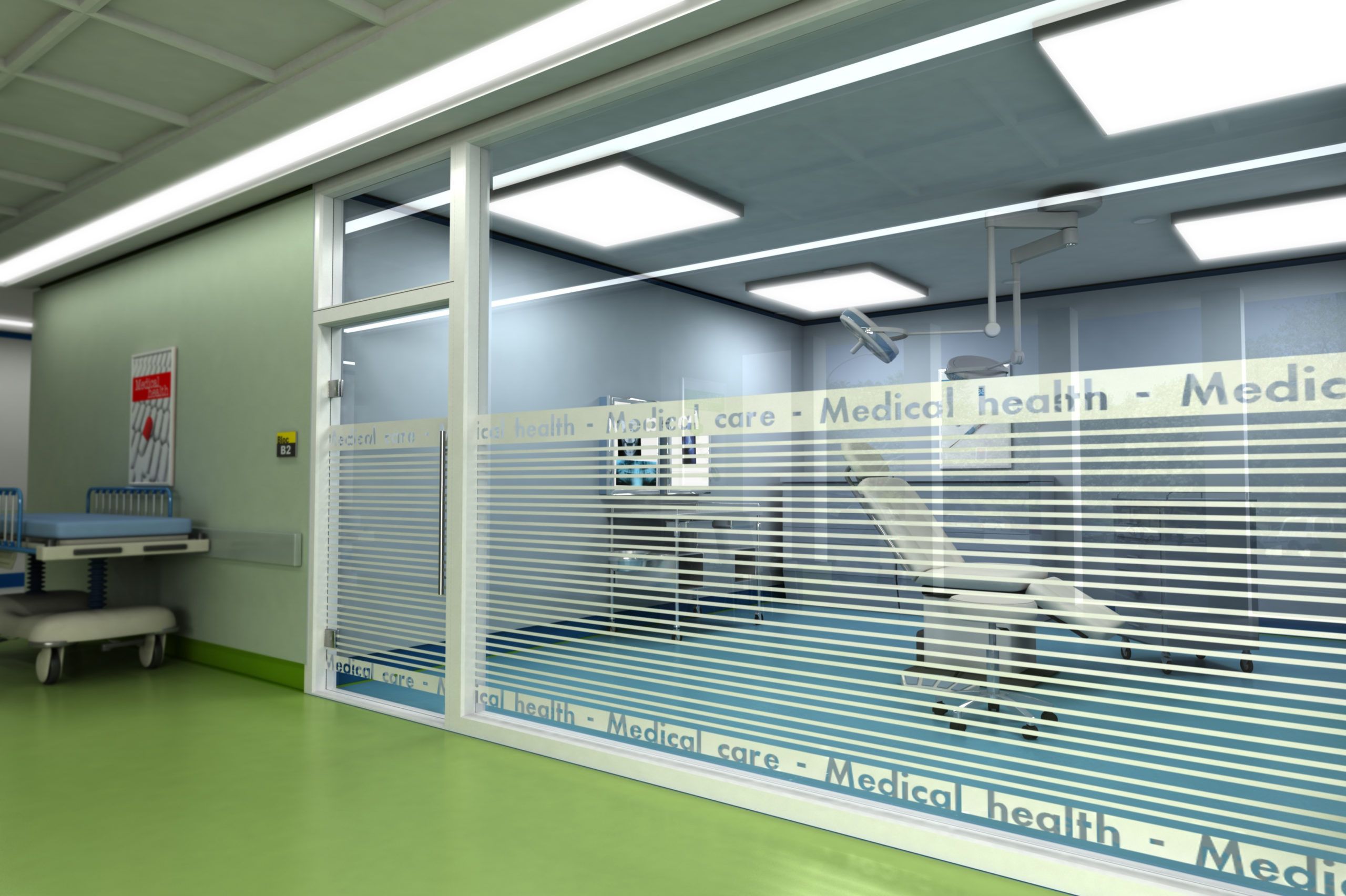

Hospital Interior Suite

RELATED PRODUCTS

PALSUN®
PALSUN®

Flat Solid Polycarbonate Sheet
PALGARD™
PALGARD™

Flat Abrasion-Resistant Polycarbonate Sheet
PALGARD TG™
PALGARD TG™

Flat Transportation-Grade Polycarbonate Sheet

Downloads

File name
Size
Sales Information
Palgard 3X Sales SheetPalgard 3X Sales Sheet
1 MB
Installation/Technical
Chemical Resistance of Palram Polycarbonate ProductsChemical Resistance of Palram Polycarbonate Products
100 KB
PALGARD & PALSHIELD Master SpecificationPALGARD & PALSHIELD Master Specification
42 KB
Palgard 3X Physical PropertiesPalgard 3X Physical Properties
242 KB
Product Safety Data Sheet (PSDS) for Palram Solid and Foamed Polycarbonate sheetsProduct Safety Data Sheet (PSDS) for Palram Solid and Foamed Polycarbonate sheets
87 KB
Certificates & Warranties
ESR-1893 - Palram Americas, Inc.ESR-1893 - Palram Americas, Inc.
197 KB
Palgard 3X WarrantyPalgard 3X Warranty
174 KB
General Information
Palram Americas Company OverviewPalram Americas Company Overview
5 MB
Product Selection Guide - Barriers, Partitions & CladdingProduct Selection Guide - Barriers, Partitions & Cladding
1 MB

Product Details

Dimensions

Product Availability*

Width X Length In. (mm)Thicknesses in. (mm)
48 X 96 (1200 X 2440).060 - 0.50
60 X 96 (1524 X 2440)*(1.5 to 12.7)
72 X 96 (1830 X 2440 )*



* Special dimensions and colors are available, subject to minimum order.

Colors & Finishes

Colors

Clear, Bronze*, Gray*



* Special dimensions and colors are available, subject to minimum order.

Physical Properties

Property Conditions
(U.S. Customary) 		ASTM Method Units - SI
(U.S. Customary) 		Value
(U.S. Customary)
Physical
Density D-1505g/cm³ (lb/ft³) 1.2 (75)
Water Absorption 24 hr. @ 23°C D-570 % 0.15
Mechanical
Tensile strength at yield 10 mm/min (0.4 in./min) D-638 MPa (psi) 62 (9,000)
Tensile strength at break 10 mm/min (0.4 in./min) D-638 MPa (psi) 65 (9500)
Elongation at yield 10 mm/min (0.4 in./min) D-638 % 6
Elongation at break 10 mm/min (0.4 in./min) D-638 % 110
Tensile Modulus of Elasticity 10 mm/min (0.4 in. /min) D-638 MPa (psi) 2,378 (345,000)
Flexural Modulus 1.3 mm/min (0.05 in./min) D-790 MPa (psi) 2,378 (345,000)
Flexural Strength at Yield 1.3 mm/min (0.05 in./min) D-790 MPa (psi) 93 (13,500)
Notch Impact Strength Izod 23°C (73°F) D-256 J/m (ft·lbf/in.) 800 (15)
Notch Impact Strength Charpy 23°C (73°F) D-256 J/m (ft·lbf/in) 800 (15)
Impact Falling Weight 3 mm (0.12 in.) Sheet ISO-6603/1b J (ft·lbf) 158 (117)
Rockwell Hardness D-785 R scale / M scale 125 / 70
Abrasion (Taber Process)100 Cycles, CS-10S Wheel, 500gD-1044% Haze<2.0
Compressive Strength1.3 mm/min (.05 in./min)D-695MPa (psi) 86 (12,500)
Compressive Modulus1.3 mm/min (.05 in./min)D-695MPa (psi) 2378 (345,000)
Shear strength at Yield1.3 mm/min (.05 in./min)D-732MPa (psi) 41 (6000)
Shear strength at Break1.3 mm/min (.05 in./min)D-732MPa (psi) 68 (10,000)
Shear Modulus1.3 mm/min (.05 in./min)D-732MPa (psi) 786 (114,000)
Thermal
Long Term Service Temperature °C (°F) -75 to +100 (-175 to +212)
Short Term Service Temperature °C (°F) -75 to +120 (-175 to +250)
Heat Deflection Temperature Load: 1.82 Mpa (264 psi) D-648 °C (°F) 132 (270)
Vicat Softening Temperature Load: 1 kg (2.2 lb) D-1525 °C (°F) 150 (300)
Coefficient of Linear
Thermal Expansion		D-696 10-⁵/°C (10-⁵/°F) 6.5 (3.6)
Thermal Conductivity C-177 W/m°K (Btu-in./hr-ft²-°F) 0.21 (1.46)
Specific Heat Capacity C-351 kJ/kg°K (Btu/lb°F) 1.26 (0.31)
Optical
Haze 3 mm (0.12 in.)
Clear Sheet 		D-1003 % <0.5
Light Transmission 3 mm (0.12 in.)
Clear Sheet 		D-1003 % 89
Refractive Index Clear Sheet D-542 1.59
Yellowness Index 3 mm (0.12 in.)
Clear Sheet 		D-1925 <1
Electrical
Dielectric Constant 50 Hz D-150 3
1 MHz D-150 2.9
Dissipation Factor 50 Hz D-150 0.9
1 MHz D-150 11
Dielectric Strength Short Time 500 V/s D-149 kV/mm (V/mil) >30 (>770)
Surface Resistance Ketley D-257 Ohm 5.1x10^15
Volume Resistance Ketley D-257 Ohm-cm1.3x10^17

Technical Data

Regulatory Code Compliance Certification

OrganizationStandardClassification*
ASTMD635 CC1 and/or HB
ASTME84Flame Spread - Class B*
ASTMD2843Smoke Density <75
ASTMD1929>650°F
UL972Pass

* Depends on Thickness

Product Selection Chart

AttributePalsun UVPalgard 3XPalgard
Impact ResistanceBestBestBest
Chemical ResistanceGoodBestBest
Abrasion ResistanceGoodBetterBest
OpticalBestBetterBetter
CostBestBetterGood
Warranty TermBestGoodBetter
