PALCLEAR® INDUSTRIAL PVC Sheets

Transparent PVC Sheet for Industrial Applications

PALCLEAR IND PVC Sheets are used in a wide variety of industrial and commercial environments including retail stores, healthcare facilities, food service/processing, and manufacturing plants.

These sheets have excellent fire and impact resistance, can be thermoformed, joined with mechanical fasteners, and are easily fabricated using conventional tools.

PALCLEAR IND withstands many chemical agents and industrial cleaners/sanitizers, unlike acrylic and polycarbonate. Plus, PALCLEAR IND has protective film on both sides to help keep it clean and scratch-free during installation.

For the Water-Clear PVC Sheets, see PALCLEAR®.

TransportationTransportationSafety & SecuritySafety & SecuritySign & DisplaySign & Display

Main Benefits

  • More economical than other impact plastic products
  • Superior chemical & corrosion resistance
  • Better fire resistance than acrylic or Polycarbonate - Fire rating: UL 94 V-0
  • Better abrasion resistance than Polycarbonate and PETG
  • Can be thermoformed, vacuum formed, heat-bent and fabricated
  • Protective film masking on two sides
  • Easy to fabricate or machine
  • 100% recyclable
  • Made in the USA

Typical Applications

  • Protective partitions, barriers, dividers for retail, office, healthcare, restaurant, and manufacturing environments.
  • Chemical processing areas
  • Semiconductor/server rooms
  • Decontamination rooms
  • Wet-process equipment, splash guards
  • Vapor blocking and fume exhaust hoods
  • Machine and conveyor guards
  • Chemically resistant safety glazing
  • Fabrication and forming applications

See how one manufacturer transformed their HQ using PALCLEAR IND

Exceptional Impact Resistance

PALCLEAR IND offers a wider choice to fabricators for components and fabricated parts, and has significantly better impact resistance than acrylic and polystyrene sheets.

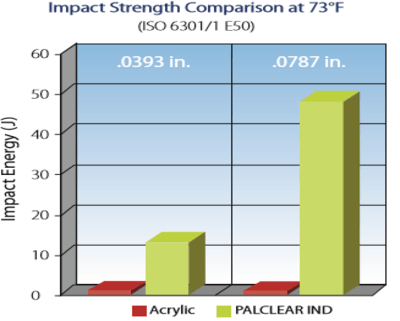

The graph to the left compares the impact strength of PALCLEAR IND to Acrylic under a temperature of approximately 73°F.

Exceptional Impact Resistance

DOWNLOADS

File name
Size
Flat Sheet Line Card (SP).pdfFlat Sheet Line Card (SP).pdf
1 MB
Flat Sheets Line Card (EN).pdfFlat Sheets Line Card (EN).pdf
5 MB
PALCLEAR Industrial Data Sheet.pdfPALCLEAR Industrial Data Sheet.pdf
2 MB
Chemical Resistance of Palram PVC Products.pdfChemical Resistance of Palram PVC Products.pdf
104 KB
PALCLEAR IND Physical Properties.pdfPALCLEAR IND Physical Properties.pdf
221 KB
Palclear Fabrication Guide (EN).pdfPalclear Fabrication Guide (EN).pdf
413 KB
Product Safety Data Sheet for Palram Rigid PVC Products.pdfProduct Safety Data Sheet for Palram Rigid PVC Products.pdf
128 KB
UL94 Flammability Testing Description.pdfUL94 Flammability Testing Description.pdf
430 KB
Palram_REACH_Declaration_April_2024.pdfPalram_REACH_Declaration_April_2024.pdf
32 KB
Palram Americas ROHS Declaration Document.pdfPalram Americas ROHS Declaration Document.pdf
73 KB
ISO CERTIFICATION 2015 for PALRAM AMERICAS.pdfISO CERTIFICATION 2015 for PALRAM AMERICAS.pdf
745 KB
Palram Americas Company Overview (SP).pdfPalram Americas Company Overview (SP).pdf
4 MB
Palram Americas Company Overview.pdfPalram Americas Company Overview.pdf
5 MB
Palram's Concepts for Safer Environments.pdfPalram's Concepts for Safer Environments.pdf
4 MB

Product Details

Dimensions

Dimensions

48" X 96"

Thickness

0.118" - 0.236" (3mm - 6mm)

Color

Transparent

*Other dimensions are available upon request with minimum order requirements.

Physical Properties

Physical Properties

PropertyConditions**
(U.S.)		Method*Units - Metric
(U.S.)**		Value - Metric
(U.S. Customary)**
Physical
Density D-1505g/cm³ (lb/ft³)1.35-1.4 (84-87)
Water Absorption24 hr. @ 23°C (73°F) D-570%0.03
Mechanical
Tensile strength at yield10 mm/min (0.4 in./min)D-638MPa (psi)71 (10,300)
Tensile strength at break10 mm/min (0.4 in./min)D-638MPa (psi)39 (5,650)
Elongation at yield10 mm/min (0.4 in./min)D-638%3
Elongation at break10 mm/min (0.4 in./min)D-638%95
Tensile Modulus of Elasticity1 mm/min (0.052 in. /min)D-638MPa (psi)3100 (450,000)
Flexural Modulus1 mm/min (0.052 in. /min)D-790MPa (psi)3200 (464,000)
Flexural Strength at Yield1 mm/min (0.052 in. /min)D-790MPa (psi)103 (14,900)
Notch Impact Strength Izod23°C (73°F)D-256J (ft·lbf)35 (0.65)
Notch Impact Strength Charpy23°C (73°F)D-256J/m (ft·lbf/in)25 (0.48)
Impact Falling Weight3 mm (0.118 in.) SheetISO-6603/1dJ (ft·lbf)95 (70)
HardnessD-785Rockwell R Scale Shore115
Shore DD Scale80
Thermal
Long Term Service Temperature0 to +50 (32 to 122)
Heat Deflection TemperatureLoad: 1.82 Mpa (264 psi)D-648°C (°F)62 to 65 (144 to 150)
Vicat Softening TemperatureLoad: 1 kg (2.2 lb)D-1525°C (°F)86 (185)
Coefficient of Linear Thermal ExpansionD-696°C (°F)6.7x10-5 (3.7x10-5)
Thermal ConductivityC-177W/m°K0.11 (1.05)
Optical
Light Transmission3 mm (0.118 in.) Water-Clear SheetD-1003%82
Yellowness Index3 mm (0.118 in.) Water-Clear SheetD-1925<4
Refractive Index3 mm (0.118 in.) Water-Clear SheetD-5421.5
Electrical
Dielectric Constant50 HzD-1504
Dielectric Constant1 MHzD-1503
Dielectric Strength500 V/sD-149kV/mm (V/mil)>50
Surface ResistanceKeithleyD-257Ohm3.7x1014
Volume ResistanceKeithleyD-257Ohm-cm (Ohm-in)1.2x1015



*ASTM except where noted otherwise



**Conditions, units, and values in U.S. Customary units are presented in the table within parentheses

Technical Data

Flammability

StandardClassification*
DIN 4102B-1
BS 476/7Class 1
NSP 92501,5M-1, M-2
EC 695.2.1Self-extinguishing
CSE RF 3/77Class 1
UL 94V-0
ASTM D-635CC1



* Depends on thickness, color and type.
